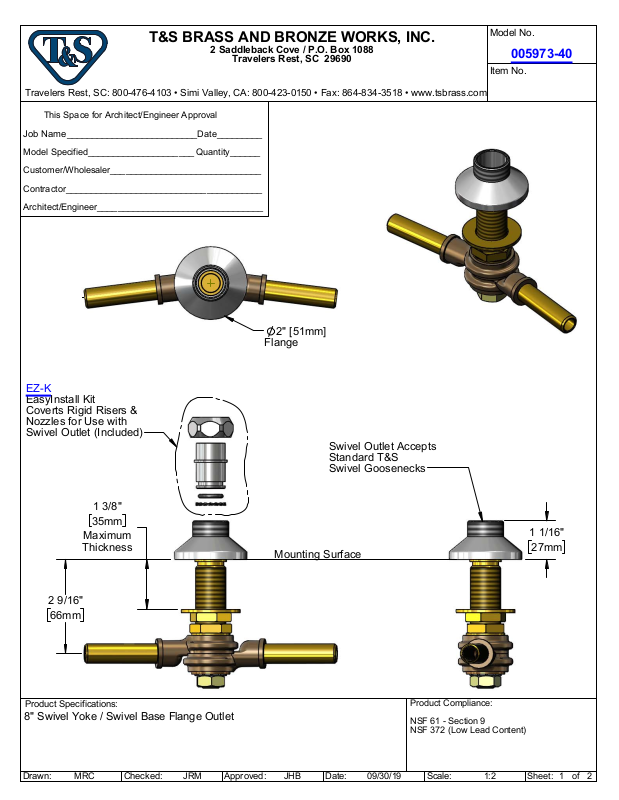

T&S Brass 005973-40 Parts List
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
Model No.
005973-40
Item No.
EZ-K
EasyInstall Kit
Coverts Rigid Risers &
Nozzles for Use with
Swivel Outlet (Included)
1 3/8"
35mm
Maximum
Thickness
2 9/16"
66mm
2" [51mm]
Flange
Swivel Outlet Accepts
Standard T&S
Swivel Goosenecks
Mounting Surface
1 1/16"
27mm
Product Specifications:
8" Swivel Yoke / Swivel Base Flange Outlet
Drawn: Approved:
MRC
Checked:
JHB
Product Compliance:
NSF 61 - Section 9
NSF 372 (Low Lead Content)
Date: 1:2
09/30/19JRM
Scale:
of
2
1Sheet:
T&S BRASS AND BRONZE WORKS, INC.
2 Saddleback Cove / P.O. Box 1088
Travelers Rest, SC 29690
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
10
9
8
ITEM
NO.
1 000956-45 Yoke Lock Nut
2 000982-45 Yoke Star Washer
3 000994-45 Swivel Yoke Top Washer
4 001060-45 O-Ring
5 001068-45 O-Ring
6 000342-20 Nipple
7 000993-45 Swivel Yoke Bottom Washer
8 002954-45 Shank Lock Nut
9 000999-45 Brass Lock Washer
10 000137-40NS Swivel Center Body Outlet
11 000273-20 Swivel Yoke
SALES NO. DESCRIPTION
Model No.
005973-40
Item No.
8
7
6
4
11
5
4
11
3
2
6
Converts Rigid Outlets to
EZ-K
EasyInstall for Use with
1
T&S Swivel Base Faucets
Product Specifications:
8" Swivel Yoke / Swivel Base Flange Outlet
MRC
Checked:
JRM
Approved:Drawn:
Date:
Product Compliance:
NSF 61 - Section 9
NSF 372 (Low Lead Content)
09/30/19 Scale:
NTS
of
2
2Sheet:JHB
