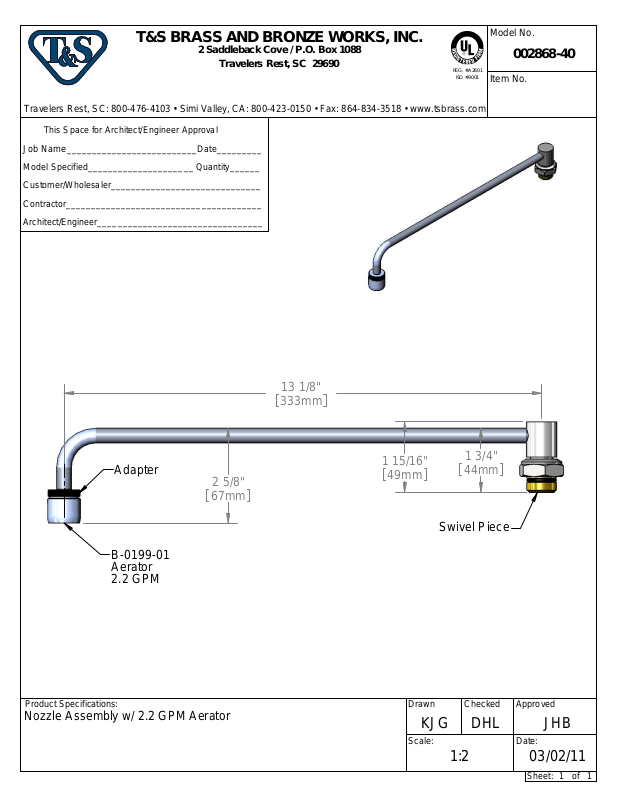

T&S Brass 002868-40 User Manual

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

REG. #A2601

ISO #9001

Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: [phone] • www.tsbrass.com

This Space for Architect/Engineer Approval

Model No.

002868-40

Item No.

Job Name

Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________

__________________________Date_________

13 1/8"

333mm

Adapter

2 5/8"

67mm

B-0199-01
Aerator

2.2 GPM

Product Specifications:

Nozzle Assembly w/ 2.2 GPM Aerator

1 15/16"

49mm

Drawn

KJG

Scale:

1 3/4"

44mm

Swivel Piece

Checked

DHL

1:2

Approved

JHB

Date:

03/02/11

of

1Sheet:

1
