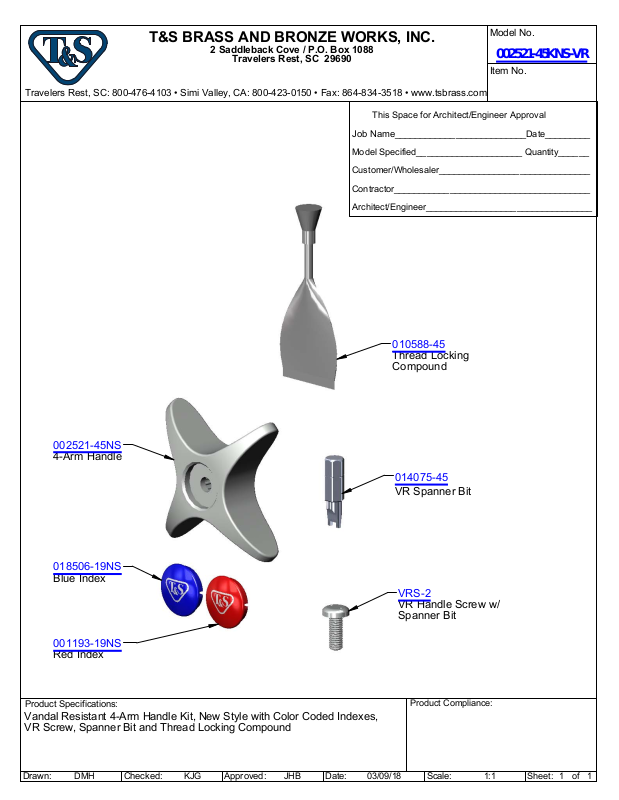

T&S Brass 002521-45KNS-VR Parts Manual
T&S BRASS AND BRONZE WORKS, INC. |
Model No. |
2 Saddleback Cove / P.O. Box 1088 |
002521-45KNS-VR |
Travelers Rest, SC 29690 |
|
|
Item No. |
Travelers Rest, SC: 800-476-4103 • Simi Valley, CA: 800-423-0150 • Fax: 864-834-3518 • www.tsbrass.com
This Space for Architect/Engineer Approval
Job Name__________________________Date_________
Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________
010588-45 Thread Locking Compound
002521-45NS
4-Arm Handle
014075-45 VR Spanner Bit
018506-19NS
Blue Index
VRS-2
VR Handle Screw w/ Spanner Bit
001193-19NS
Red Index
Product Specifications: |
Product Compliance: |
Vandal Resistant 4-Arm Handle Kit, New Style with Color Coded Indexes,
VR Screw, Spanner Bit and Thread Locking Compound
Drawn: |
DMH |
Checked: |
KJG |
Approved: |
JHB |
Date: |
03/09/18 |
Scale: |
1:1 |
Sheet: 1 of 1 |
