T&S Brass 000812-25 User Manual

T&S BRASS AND BRONZE WORKS, INC.

2 Saddleback Cove / P.O. Box 1088

Travelers Rest, SC 29690

Travelers Rest, SC: 800-476-4103

This Space for Architect/Engineer Approval

Job Name__________________________Date_________

Model Specified_____________________ Quantity______
Customer/Wholesaler______________________________
Contractor_______________________________________
Architect/Engineer_________________________________

Simi Valley, CA: 800-423-0150

Fax: [phone]

REG. #A2601

ISO #9001

www.tsbrass.com

Model No.

000812-25

Item No.

2 1/2"

[64mm]

Chrome Plated Brass

Seat Washerw/ EPDM

Left-To-Close
Threads ( Cold)

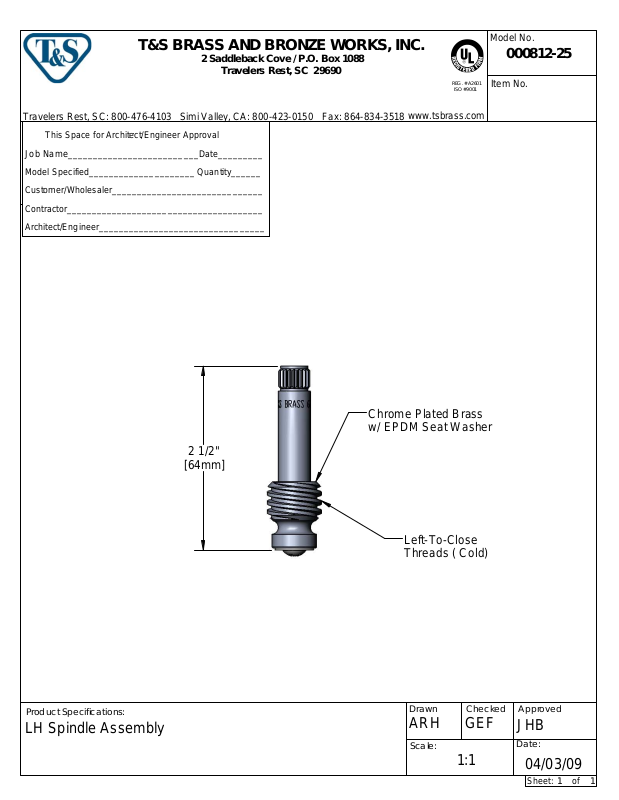

Product Specifications:

LH Spindle Assembly

Drawn Checked

ARH

Scale:

GEF

1:1

Approved

JHB

Date:

04/03/09

Sheet:

of

1

1
