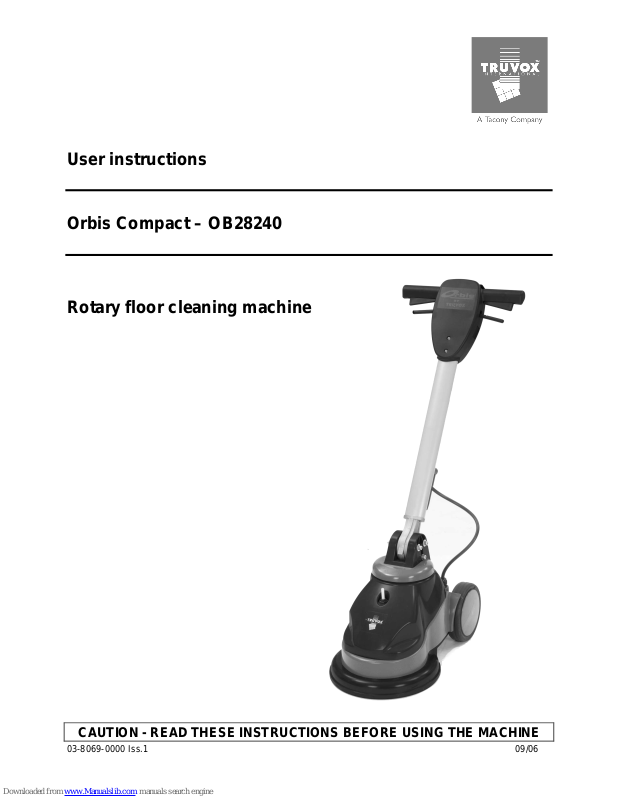

Truvox Orbis Compact OB28240 User Instructions

User instructions

Orbis Compact – OB28240

Rotary floor cleaning machine

CAUTION - READ THESE INSTRUCTIONS BEFORE USING THE MACHINE

03-8069-0000 Iss.1 09/06

Fig 1 Fig 2

Fig 3 Fig 4

2

Contents

Page

1 Product information

1.1 Important safety advice ................................................................... 4

1.2 Guidelines for the operator ............................................................. 4

1.3 Transporting the machine ............................................................... 4

...................................................................... 4

2 Preparing for use

2.1 Electrical connection ....................................................................... 5

3 Controls

3.1 Fitting pads ........................................................................................... 5

3.2 Adjusting the handle height .................................................................. 5

............................................................................................. 5

........................................................................... 5

4 Operation

4.1 Starting the machine ....................................................................... 6

4.2 Polishing .......................................................................................... 6

4.3 Scrubbing and Shampooing ............................................................ 6

4.4 Fitting the solution tank ................................................................... 6

5 Storage
6 Maintenance

........................................................................................... 5

............................................................................................... 6

..................................................................................... 6

7 After sales service

......................................................................... 7

8 Guarantee

.......................................................................................... 7

9 Technical specification

10 Accessories

...................................................................................... 8

................................................................ 8

11 Fault diagnosis

............................................................................... 9

12 Declaration of conformity

.......................................................... 10

3

IMPORTANT

READ THESE INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE REFERENCE

1 Product information

These floor cleaning machines are designed
for the scrubbing and polishing of hard floors
and/or shampooing of carpets in indoor
areas. They should not be used in outdoor
areas or where excessive moisture is
present.

The following instructions contain important
information about the machines and safety
advice for the operator.

Equipment must be operated, serviced and
maintained in accordance with the
manufacturer’s instructions.

If in doubt contact the supplier of your
machine.

These instructions are valid for the following
models.

Orbis – OB28240 in all voltage variants

1.1 Important Safety Advice

When using electrical equipment basic
safety precautions should be followed
including the following.

• Read all instructions carefully before use.

• Keep children and unauthorised persons

away from the machine when in use.

• Do not leave the machine connected to
the electricity supply when not in use,
always remove the plug from the socket­outlet.

• Switch off the machine before removing
the plug.

• When unplugging pull the plug, not the
supply cord.

• Keep the power supply cord clear of
moving parts. During operation hazard
may occur when running the machine
over the power supply cord.

• Do not operate the machine with a
damaged supply cord or plug, or after the
machine malfunctions or is damaged in
any way. Contact an authorised Service
Agent for repair or adjustment.

• The plug of the power supply cord must
be removed from the socket-outlet before
commencing cleaning of the machine or
undertaking maintenance operations.

• The power supply cord must be regularly
inspected for signs of damage. If the
power supply cord is damaged, it has to
be replaced.

• Do not use where hazardous dust is
present.

• Do not use in an explosive atmosphere.

• Take care when using a machine near the

top of stairs to avoid overbalancing.

1.2 Guidelines for the operator

• Operators must be fully trained in the use
of the machine in accordance with these
instructions, able to perform user
maintenance and the correct selection of
accessories, i.e. brushes and pads etc.

• Operators should be physically capable to
manoeuvre, transport and operate the
machines.

• Operators should be able to recognise
unusual operation of the machine and
report any problems.

• Keep hands and feet well clear of rotating
brushes.

• Let the machine do the work. Grip the
handle as lightly as possible.

• Stand with feet slightly apart to maintain
good balance. Avoid twisting the body
more than 45 degrees.

• Wear suitable footwear to avoid slipping.

• Wear suitable clothing to keep dry and

warm.

• Where possible implement job rotation
and adequate rest periods to avoid
continuous use of the same muscles.

• Do not smoke when using the
machine.

• CAUTION - This machine is for dry use
only and should not be used or stored
outdoors in wet conditions.

1.3 Transporting the machine

CAUTION - THIS MACHINE IS HEAVY
Do not attempt to lift the machine without
assistance. Incorrect lifting techniques may

result in personal injury.
The machine can be moved to the area to be

cleaned by wheeling on its rear transport
wheels. With the handle in the upright
position tip the machine backward to raise
the head off the floor and push machine.

Stair Transport

Detach accessory, tilt handle and hold
machine by the handgrip and the brush
housing (2 persons).
Although the wheels would allow the
operator to negotiate most stairs by pulling /
pushing the machine up or down, the
machine weighs 22kg and there is a risk that
the operator may lose control of the machine
or strain themselves, so we advise against
climbing or descending stairs in this way.
When transporting the machine between
separate sites in a car or van the handle can
be locked in the folded position. Anchor the
machine securely so that it cannot slide
about in transit.
