Truth Hardware Marvel Programming Manual

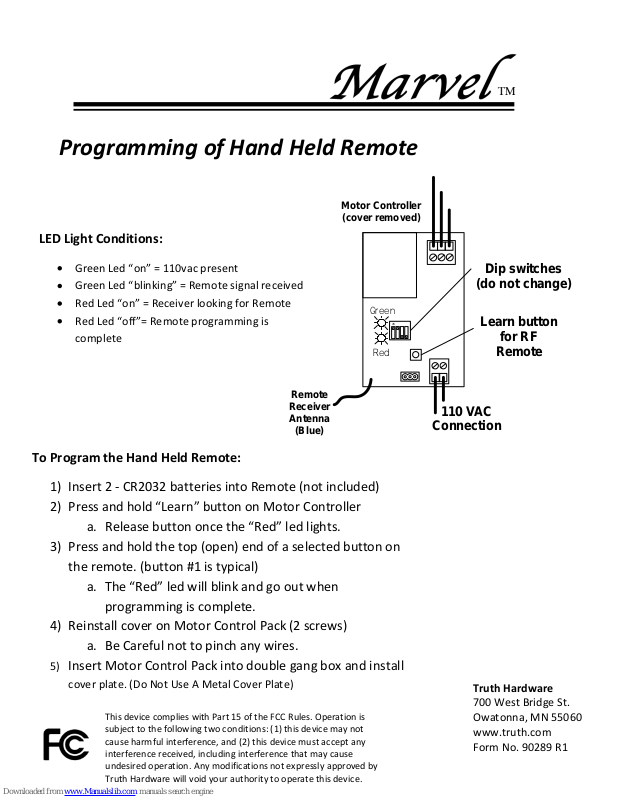

Programming of Hand Held Remote

ON

Motor Controller

(cover removed)

Learn button

for RF

Remote

110 VAC

Connection

Dip switches

(do not change)

Red

Green

Remote

Receiver

Antenna

(Blue)

LED Light Conditions:

Green Led “on” = 110vac present
Green Led “blinking” = Remote signal received
Red Led “on” = Receiver looking for Remote
Red Led “off”= Remote programming is

complete

Truth Hardware

700 West Bridge St.
Owatonna, MN 55060
www.truth.com
Form No. 90289 R1

This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. Any modifications not expressly approved by
Truth Hardware will void your authority to operate this device.

To Program the Hand Held Remote:

1) Insert 2 - CR2032 batteries into Remote (not included)

2) Press and hold “Learn” button on Motor Controller
a. Release button once the “Red” led lights.

3) Press and hold the top (open) end of a selected button on

the remote. (button #1 is typical)

a. The “Red” led will blink and go out when

programming is complete.

4) Reinstall cover on Motor Control Pack (2 screws)
a. Be Careful not to pinch any wires.

5) Insert Motor Control Pack into double gang box and install

cover plate. (Do Not Use A Metal Cover Plate)

Hand Held RF Remote & Wall Mount

1) Push Button #1 (Up & Down)

2) Push Button #2 (Up & Down)

3) Push Button #3 (Up & Down)

4) Push Button #4 (Up & Down)

5) IR transmitter (not active)

6) Battery Door

7) Wall Mount (back)

8) Screw Hole (2)

9) Wall Mount (front)

10) Screws ( 2 supplied)

11) Magnet

12) Battery Holder

13) Batteries, 2 - CR2032 (not included)
