BLE010V2 2016-9-6
1
BLE010V2
(Based on CSR1010)
Bluetooth Modules
User’s Manual
V2.7
BLE010V2 2016-9-6
2
TABLE OF CONTENTS
1 Introduction and Block Diagram ........................................................................................................................ 3
1.1 General Introduction .................................................................................................................................... 3
1.2 Block Diagram ............................................................................................................................................. 3
2 Main Features and Application ........................................................................................................................... 4
2.1 Key Feature .................................................................................................................................................. 4
2.2 Application .................................................................................................................................................. 4
3 Technical Specifications ....................................................................................................................................... 5
3.1 General Specification ................................................................................................................................... 5
3.2 Electrical Characteristics ............................................................................................................................. 5
3.21 Absolute Maximum Rating ................................................................................................................ 5
3.22 Recommended Operating Conditions ................................................................................................ 5
3.23 Power Consumption ........................................................................................................................... 6
3.24 Connected distance ............................................................................................................................ 7
4 Mechanical Dimensions and Electrical feature .................................................................................................. 7
4.1 BLE010V2(CSR1010) module outline:(mm) .............................................................................................. 7
4.2 Package dimensions ..................................................................................................................................... 8
4.3 Pin Assignment ............................................................................................................................................ 9
5 Reference Design ................................................................................................................................................. 10
6 NOTICE-----MOST IMPORTANCE! .............................................................................................................. 11
6.1 General information ................................................................................................................................... 11
6.2 Electrostatic Discharge (ESD) ................................................................................................................... 11
6.3 Antenna Design ......................................................................................................................................... 11
7 AT Command Set ............................................................................................................................................... 12
8 Recommended Reflow Temperature Profile .................................................................................................... 13
9 Related recommended ........................................................................................................................................ 13
BLE010V2 2016-9-6
3
1 Introduction and Block Diagram
1.1 General Introduction
BLE010V2 (Based on CSR1010) is a Bluetooth 4.1 BLE modul es which is a high
performance, cost effective, low pow er. The Bluetooth Low Energy module provides
a complete 2.4GHz Bluetooth system based on CSR1010 chip which is a single chip
data transfer and baseband IC for B luetooth 2.4G Hz systems. This module is fully
compliant to Bluetooth v4.1 BLE
1.2 Block Diagram
BLE010V2 2016-9-6
4
2 Main Features and Application
2.1 Key Feature
• Fully Qualified Bluetooth v4.1 System.
• 128KB memory, 64K RAM and 64K ROM
• 9dBm Bluetooth low energy max TX output power
• -92.5dBm Bluetooth low energy RX sensitivity
• Support for Bluetooth V4.1 specification host stack including
ATT,GATT,SMP,L2CAP,GAP
• RSSI monitoring for proximity applications
• <600nA current consumption in dormant mode
• 16mA~2mA current consum ption in CSR Mesh mode
• RoHS Compliant
2.2 Application
• Building an ecosystem using Blueto oth low energy
• Human Interface Devices(HID): keyboards, mice, touchpads, remote controls
• Sports and fitness sensors: heart rate , runner spee d and cadence, cycle speed
and cadence
• Health sensors: blood pressure, thermometer and glucose meters
• Mobile accessories: watches, proximity tags, alert tags and camera co ntrols
• Smart home: heating control and lighting control
• Mesh application for Smart Home
BLE010V2 2016-9-6
5
3 Technical Specifications
3.1 General Specification
Number
Items
Description
1
Bluetooth Standard
Bluetooth v4.1 Standard
2
Chipset
CSR CSR1010
3 Dimension 18mm x 15mm x 2.0mm
Tolerance: ±0.1mm
4
Voltage
1.8V~4.4V
5
Working Temperature
-30～+85℃
6
Storage Temperature
-40～+85℃
7
Frequency Range
2402～2480MHz
8
Maximum RF Transmit Pow e r
9dBm
9
Receive Sensitivity
-92.5dBm
3.2 Electrical Characteristics
3.21 Absolute Maximum Rating
Rating
Minimum
Maximum
Storage temperature
-40℃ +85℃
Supply Voltage:3V
1.8V
4.4V
3.22 Recommended Operating Conditions
Operating Condition Minimum Maximum
Operating tem pe rat ur e range
-30℃ +85℃
Supply voltage: VDD_BAT +1.8V +4.4V
BLE010V2 2016-9-6
6
3.23 Power Consumption
State
Description
Average
Current
Remarks
Fast Advertisements
1. Switch on the Device
2. Wait for 5 s
380uA
Advertising Interval: 60 ms
Measurement Time Duratio n: 20 s
Slow Advertisements
1. Switch on the device
2. Wait for 40 s
25uA
Advertising Interval: 1.28 s
Measurement Time Duration: 20 s
Connected Idle
(Close UART)
1. Connect to the Host
application
2. Wait for 60 s
14 μA
Connection parameters: 500ms
Measurement Time Duratio n: 60 s
Connected Active
(Close UART)
1. Connect to the Host
application
2. Wait for 60 s
3.APP transfer data to BT
26 μA
Connection parameters: 500ms
Measurement Time Duratio n: 60 s
disconnected
1.Disconnected the device
2. Wait for 90s
600nA
Connected Idle
(Open UART)
1. Connect to the Host
application
2. Wait for 60 s
24uA
Connection parameters: 500ms
Measurement Time Duratio n: 60 s
Connected active
APPBTMCU
1. Connect to the Host
application
2. Wait for 60 s
3: APP transfer data to MCU
30uA
Connection parameters: 500ms
Measurement Time Duratio n: 60 s
Connected active
MCUBTAPP
1. Connect to the Host
application
2. Wait for 60 s
3: MCU transfer data to APP
700~~900uA
Connection parameters: 500ms
Measurement Time Duratio n: 60 s
Connected active
Two-way transfer
1. Connect to the Host
application
2. Wait for 60 s
3: APP and MCU transfer
data at the same time
1mA
Connection parameters: 500ms
Measurement Time Duratio n: 60 s
CSR Mesh Mode
16mA~2mA
BLE010V2 2016-9-6
7
3.24 Connected distance
State
Distance
Connected time
Remarks
Fast Advertisements
<20meters
1S
>20meters
1~2S
Slow Advertisements
<20meters
1~2S
>20meters
2~6S
Connected state
<= 50meters
4 Mechanical Dimensions and Electrical feature
4.1 BLE010V2(CSR1010) module outline:(mm)
BLE010V2 2016-9-6
8
4.2 Package dimensions
BLE010V2 2016-9-6
9
4.3 Pin Assignment
Pin
No.
Name
Functions
Description
1 AIO0
Bidirectional
analogue
Analogue programmable I/O line.
2 AIO1
3 AIO2
4 GND VSS Ground
5 UART_TX Bidirectional with
programmable
strength internal pullup/
down
UART TX
6 UART_RX
UART RX
7 GND VSS Ground
8 PIO3 Bidirectional Programmable input / output line
9 PIO4 Bidirectional Programmable input / output line
10 SPI_CLK Bidirectional with
programmable
strength internal pullup/
down
debug SPI
CLK selected by SPI_PIO#. t
11 SPI_CS debug SPI
chip select (CS#) selected by
SPI_PIO#.
12 SPI_MOSI debug SPI
MOSI selected by SPI_PIO#.
13 SPI_MISO debug SPI
MISO selected by SPI_PIO#.
14 PIO9 Bidirectional Programmable input / output line
15 PIO10 Bidirectional Programmable input / output line
16 PIO11 Bidirectional Programmable input / output line
17 GND VSS Ground
18 GND VSS Ground
19 VDD_BAT Power supply Battery input and regulator enable
(active
high).
20 GND VSS Ground
BLE010V2 2016-9-6
10

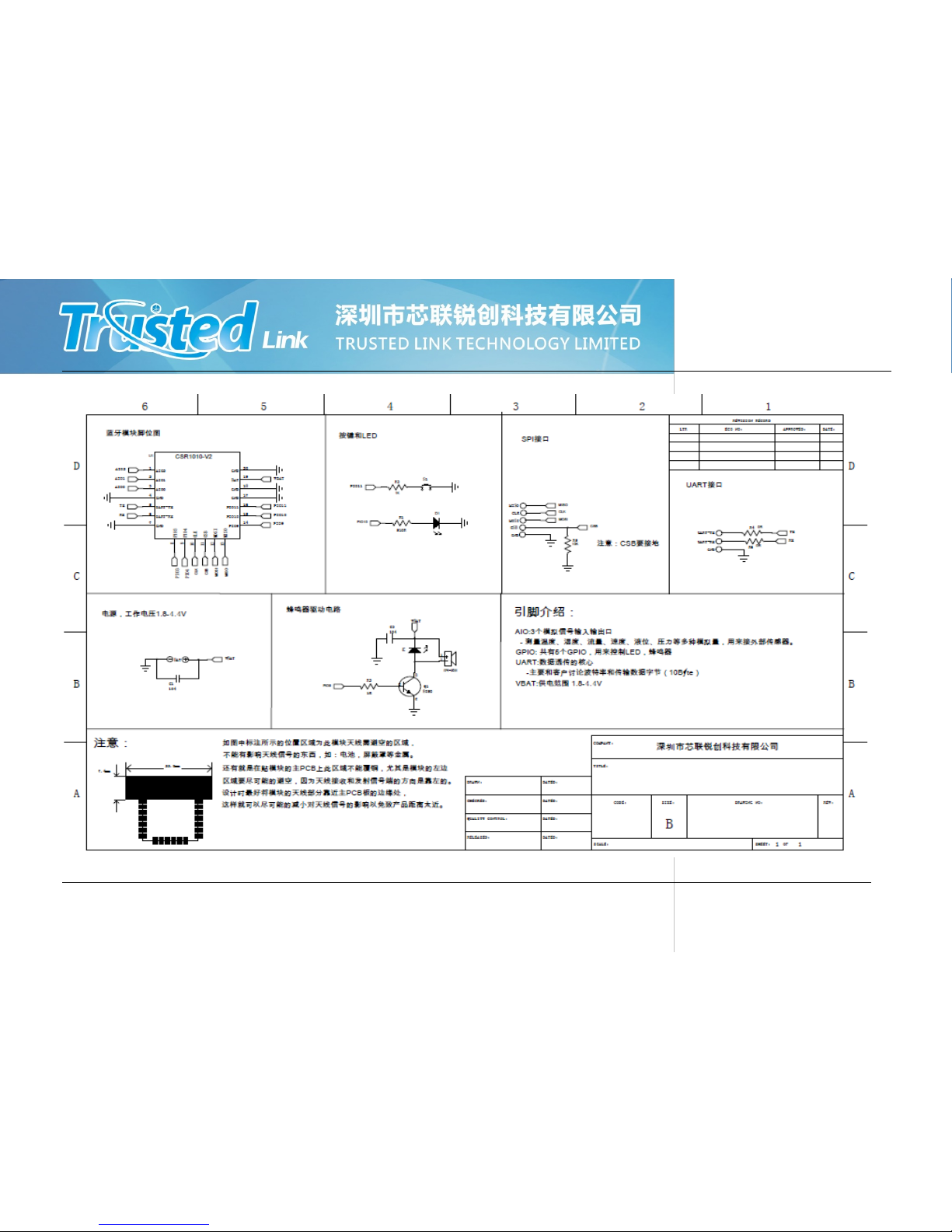

5 Reference Design
BLE010V2 2016-9-6
11
6 NOTICE-----MOST IMPORTANCE!
This chapter contains important information for the safe and reliable use of the
BLE010V2 module. Please read this chapter carefully before starting to use the
BLE010V2 Module.
6.1 General information
Bluetooth technology, is in fact a kind of short distance wireless communication
technology, can effectively simplify the palmtop computer, notebook computer and
mobile phone, Mobile Phone and other mobile communication between
communication terminal equipment, but also can successfully simplify the equipment
and communication between the Internet, so that these modern communications
equipment and Internet da ta transmission between rapidly became more efficient, to
widen the road for wirele ss communication.
6.2 Electrostatic Discharge (ESD)
The following Electrostatic Discharge (ESD) precautions are recommended:
·Protective ou ter ga rments.
·Handle device in ESD safe guarded work a rea.
·Transport device in ESD shielded containers.
·Monitor and test all ESD protection equipment.n
6.3 Antenna Design
BLE010V2 2016-9-6
12
7 AT Command Set
If BLE010V2 module has the AT command settings:
BLE010 AT Command
Command Format
Power
Down
Prote-
ction
Specification
Returned Value
Descriptions
ASCII:
^AT-Nxxxxx^
Hex:
5E 41 54 2D 4E ***5E
YES
xxxxx is the Bluetooth name
of the device
^ is the end mark
Applied successfully: OK
Applied failed: ERP
ASCII:
^AT-MAC
Hex:
5E 41 54 2D 4D 41 43
NO
Read the MAC Address of
the device
Applied successfully:
MAC Data
Applied failed: ERP
If setting successfully
then return the MAC
like:
20 2A 32 34 32 34
ASCII:
^AT-STATER
Hex:
5E 41 54 2D 53 54 41
54 45 52
NO
Read the state of the device
Applied successfully:
STATER
Applied failed: ERP
STATER1: Fast
broadcast
STATER2: Slow b
roadcast
STATER3: Linked
STATER5: un-linked
and ready to answer
the link request
ASCII:
^AT-STATEW01
Hex:
5E 41 54 2D 53 54 41
54 45 57 30 31
NO
Set the state of the device
Applied successfully: OK
Applied failed: ERP
01 to broadcast state:
Make the device go
into the broadcast
state without matter
the current work state
ASCII:
^AT-RATEXXXXXX
Hex:
5E 41 54 2D 52 41 54
45 ******
YES
Set the UART speed
Applied successfully:
UART speed
Applied failed: ERP
AT-RATE002400：
2400
AT-RATE115200：
115200
Support speed：
2400，9600，19200
38400 115200 230400
Remark:
1. AT Command will be available when the UART open.
2. ^AT-Nxxxxx^ and ^AT-STATEW01 will reset Bluetooth device and make Bluetooth on the broadcast state.
3. Please use ASCII or hexadecimal number format send AT commands
BLE010V2 2016-9-6
13
8 Recommended Reflow T emperature Profile
Based on the actual experience, BLE010V2 is not a tempera tur e and humidity
sensitive module.
If the module was in storage for more than 12 months, it wou ld be rec om mended to
Re-test the functions and perform ance before SMT and IR reflow process.
9 Related recommended
● Full metal shell will greatly shorten the Bluetooth transmissio n distance
● Bluetooth ant en na be low PCB pla te no t copped
10 Document History
Revision
Date
History
V1.0
2013-03-20
First release
V2.0
2013-06-30
Re-Design ANT
V2.1
2013-11-25
Re-Set the PINs Design
V2.2
2014-06-30
Add AT command
V2.3
2015-02-10
Renew the AT command set
V2.4
2015-06-23
Update RF power consumtion
V2.5
2015-09-30
Update the Recommended Operating
Conditions
Update the power current consumption in CSR
Mesh mode
V2.6
2015-11-11
Update the Recommended Working Voltage in
the reference design
Update the module size dimensions
V2.7
2016-09-06
Update Recommended Reflow Temperature
Profile
