Trust TK-3300P User Manual

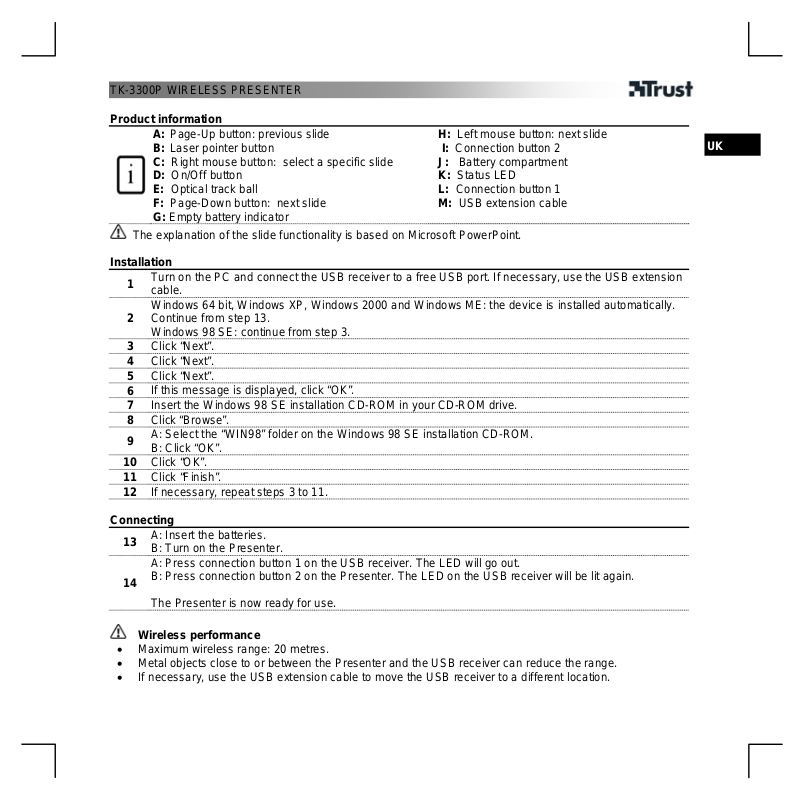

TK-3300P WIRELESS PRESENTER

Product information

A: Page-Up button: previous slide
B: Laser pointer button
C: Right mouse button: select a specific slide
D: On/Off button
E: Optical track ball
F: Page-Down button: next slide
G: Empty battery indicator

The explanation of the slide functionality is based on Microsoft PowerPoint.

Installation

Turn on the PC and connect the USB receiver to a free USB port. If necessary, use the USB extension

1

cable.
Windows 64 bit, Windows XP, Windows 2000 and Windows ME: the device is installed automatically.
Continue from step 13.

2

Windows 98 SE: continue from step 3.
Click “Next”.

3

Click “Next”.

4

Click “Next”.

5

If this message is displayed, click “OK”.

6

Insert the Windows 98 SE installation CD-ROM in your CD-ROM drive.

7

Click “Browse”.

8

A: Select the “WIN98” folder on the Windows 98 SE installation CD-ROM.

9

B: Click “OK”.
Click “OK”.

10

Click “Finish”.

11

If necessary, repeat steps 3 to 11.

12

Connecting

A: Insert the batteries.

13

B: Turn on the Presenter.
A: Press connection button 1 on the USB receiver. The LED will go out.
B: Press connection button 2 on the Presenter. The LED on the USB receiver will be lit again.

14

The Presenter is now ready for use.

Wireless performance

• Maximum wireless range: 20 metres.

• Metal objects close to or between the Presenter and the USB receiver can reduce the range.

• If necessary, use the USB extension cable to move the USB receiver to a different location.

H: Left mouse button: next slide
I: Connection button 2
J: Battery compartment
K: Status LED
L: Connection button 1
M: USB extension cable

UK

TK-3300P WIRELESS PRESENTER

Energy

• For the best performance, use rechargeable AAA NiMH batteries.

• The device will enter the energy saving mode when it is not used for 45 seconds. To save energy,

turn the device off after use.

Use

• As a result of the 4,096 different IDs, it is possible to use more than one Presenter in the same room.

Safety instructions

• LASER CLASS II device. Never look directly at the laser beam!

• Never open or repair this device yourself.

• Do not use the device in a damp environment. Clean the device with a damp cloth.

•

• Observe the local regulations when disposing of the batteries.

Go to www.trust.com/14417 for up-to-date FAQs, drivers and instruction manuals.

• This device meets the essential requirements and other relevant conditions of the applicable

Wireless

• This class 1 wireless device works at a frequency of 2.4 GHz. It meets the essential requirements

• There may be restrictions for the use of this device outside of the EU. If this device is used outside of

• Be careful when using wireless devices if you have a pacemaker or are dependent on other life-

Warranty & copyright

• This device has a two-year product warranty which is valid from the date of purchase. Go to

• It is forbidden to reproduce any part of this instruction manual without the permission of Trust

Do not recharge the batteries provided and do not throw them onto a fire.

European directives. The Declaration of Conformity (DoC) is available at www.trust.com/14417/ce.

and other relevant conditions of R&TTE Directive 1999/5/EC and can be used in the following
countries: all EU countries, as well as RU, TR, NO and HU. There are no limitations per channel for
the above-mentioned countries. Go to www.trust.com/14417 for an updated list of the countries
where the use of this device is permitted.

the EU, check whether this device meets the local regulations. Frequency: 2,446 ~ -2,454 GHz.
Bandwidth: 6-8 MHz, Power < 1 mW.

saving, sensitive electronic equipment, because this product transmits radio signals.

www.trust.com/warranty for more information.
International B.V.
