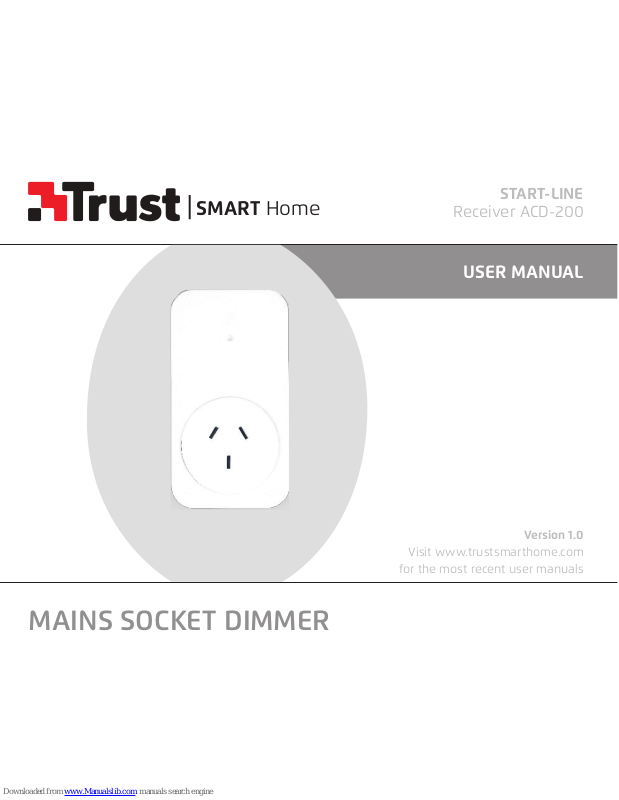

Trust START-LINE ACD-200 User Manual
START-LINE
Receiver ACD-200
MAINS SOCKET DIMMER
USER MANUAL
SMART Home
Version 1.0
Visit www.trustsmarthome.com
for the most recent user manuals
2
ACD-200 MAINS SOCKET DIMMER
COMPATIBILITY
This receiver works with all
trust smart h
ome
transmitters.
FUNCTIONALITY
Mains socket dimmer to dim lights wirelessly.
WIRELESS RADIO SIGNAL
• The 433.92 MHz radio signal passes through walls, windows and doors
• Indoor range: up to 30 m. Outdoor range: up to 70 m (optimal conditions)
• The range is strongly dependent on local conditions, such as the presence of metals. For example,
the thin metal coating in Low-emissivity (Low-E) glass has a negative impact on the range of radio
signals.
If you connect multiple lamps/spots, always use lamps of the same brand and type!
Incandescent lamps and 230V (eco) halogen
Min 20 Watt Max 200 Watt
12V halogen
with dimmable electronic transformer
Min 20 Watt Max 200 Watt
12V halogen with with iron-core transformer Min 40 Watt Max 200 Watt
Dimmable ESL Min 3 Watt Max 24 Watt
Dimmable LED Min 3 Watt Max 24 Watt
Non-dimmable ESL and non-dimmable LED Not suitable
Switchstart fluorescent tubes and compact fluorescent lamps Not suitable
TECHNICAL SPECIFICATIONS
Power supply input 220-240 VAC 50 Hz
RF frequency 433,92 MHz
RF range Up top 30m indoor/ 70m outdoor (optimal conditions)
Memory addresses 6
3
ACD-200 MAINS SOCKET DIMMER
MAXIMUM LOAD
Never connect lights or equipment that exceed
the maximum load of the receiver, as it can result
in defects.
SHOCK HAZARD
Exercise caution when installing a receiver.
Voltage may be present, even when a receiver is
switched o.
LIFE-SUPPORT
Never use
trust smart h
ome products for lifesupport systems or other applications in which
equipment malfunctions can have life-threatening
consequences.
INTERFERENCE
All wireless devices may be subject to
interference, which could aect performance. The
minimum distance between 2 receivers should be
at least 50 cm.
REPAIRING
Do not attempt to repair this product. There are
no user-serviceable parts inside.
WATER-RESISTANCE
This product is not water-resistant. Keep it dry.
Moisture will corrode the inner electronics and
can result in a short circuit, defects and shock
hazard.
CLEANING
Use a dry cloth to clean this product. Do not use
harsh chemicals, cleaning solvents, or strong
detergents.
HANDLING
Do not drop, knock, or shake the device. Rough
handling can break internal circuit boards and fine
mechanics.
ENVIRONMENT
Do not expose the product to excessive heat
or cold, as it can damage or shorten the life of
electronic circuit boards.
Read this manual carefully. Not following them may be dangerous and faulty installation will invalidate
any warranty that may apply to this product.
4
1. Connect lamp and place receiver
First check if the lamp is turned on. Then
plug the lamp into the receiver and plug
the receiver into a socket. Only connect
lamps that are suitable for dimming.
1 sec.

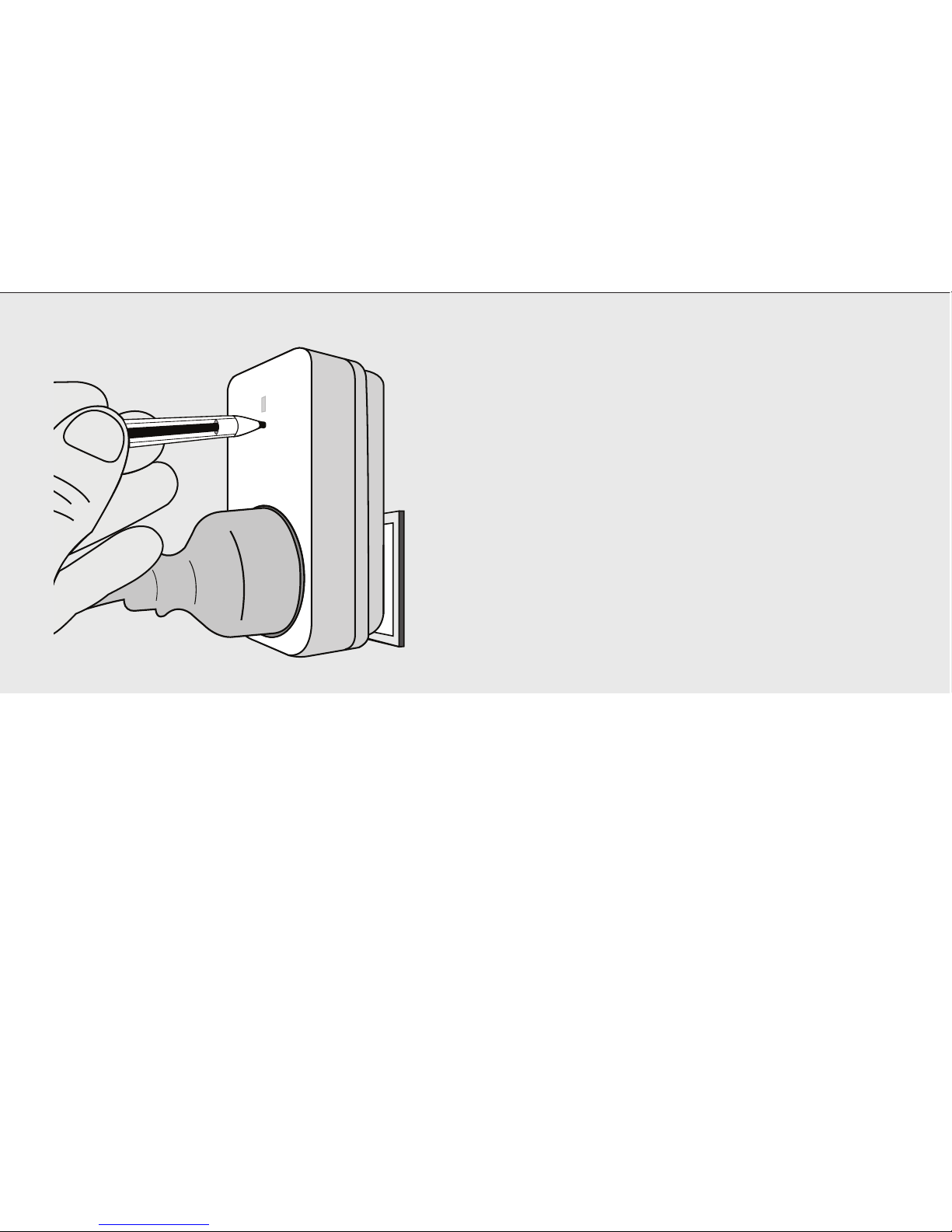

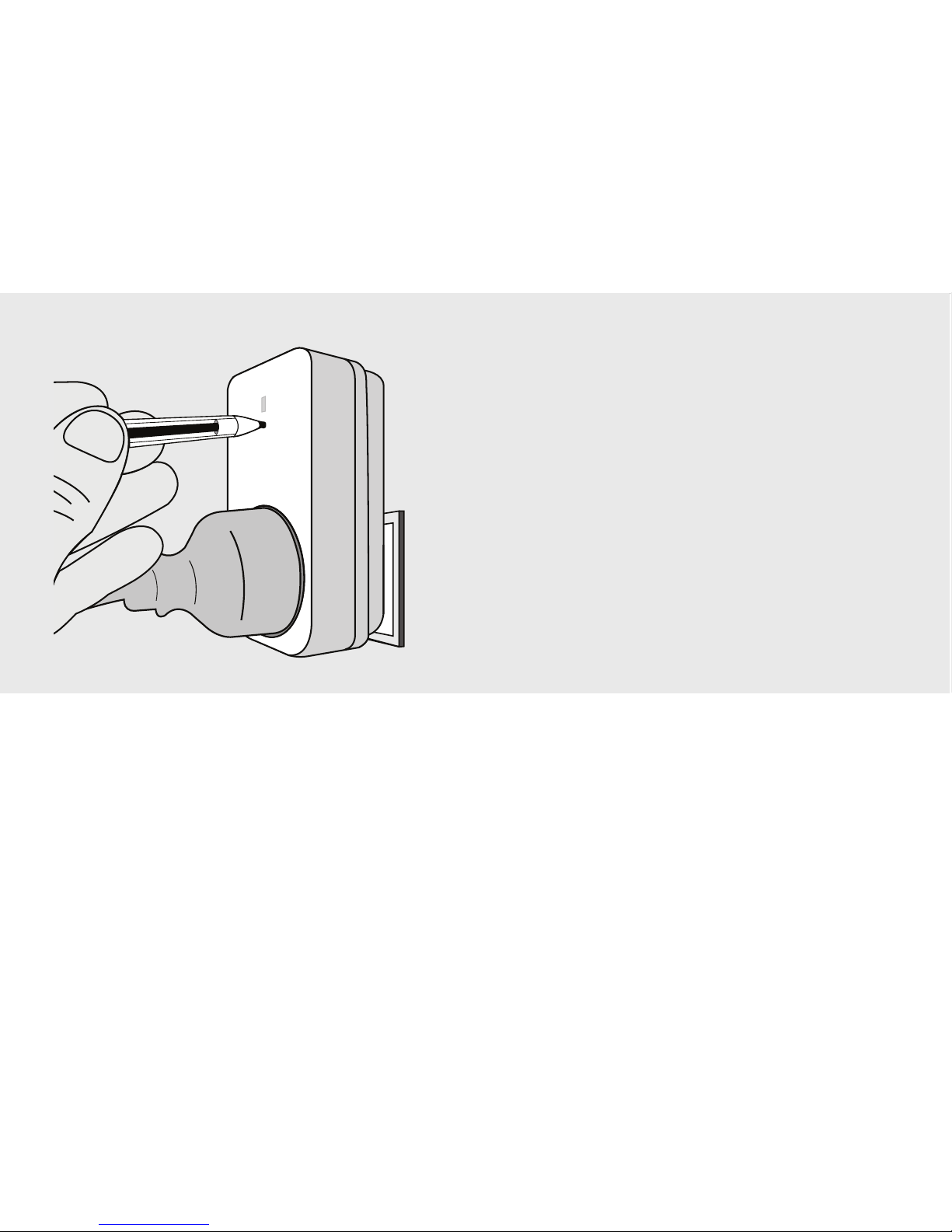

2a. Assign transmitter code
Press the learn-button on the receiver for 1
second. The learn-mode will be active for 15
seconds, during which the LED-indicator will
blink slowly.
ACD-200 MAINS SOCKET DIMMER
5

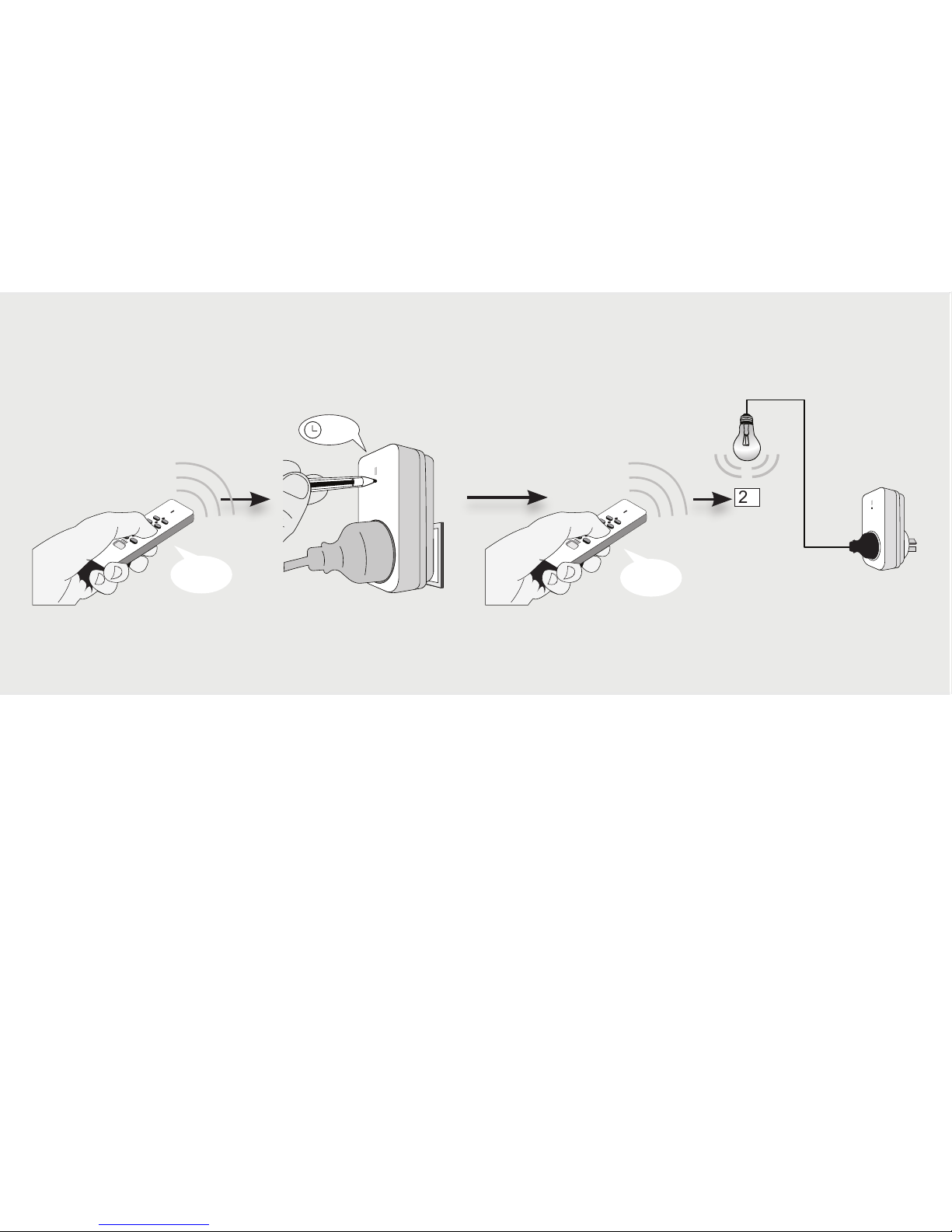

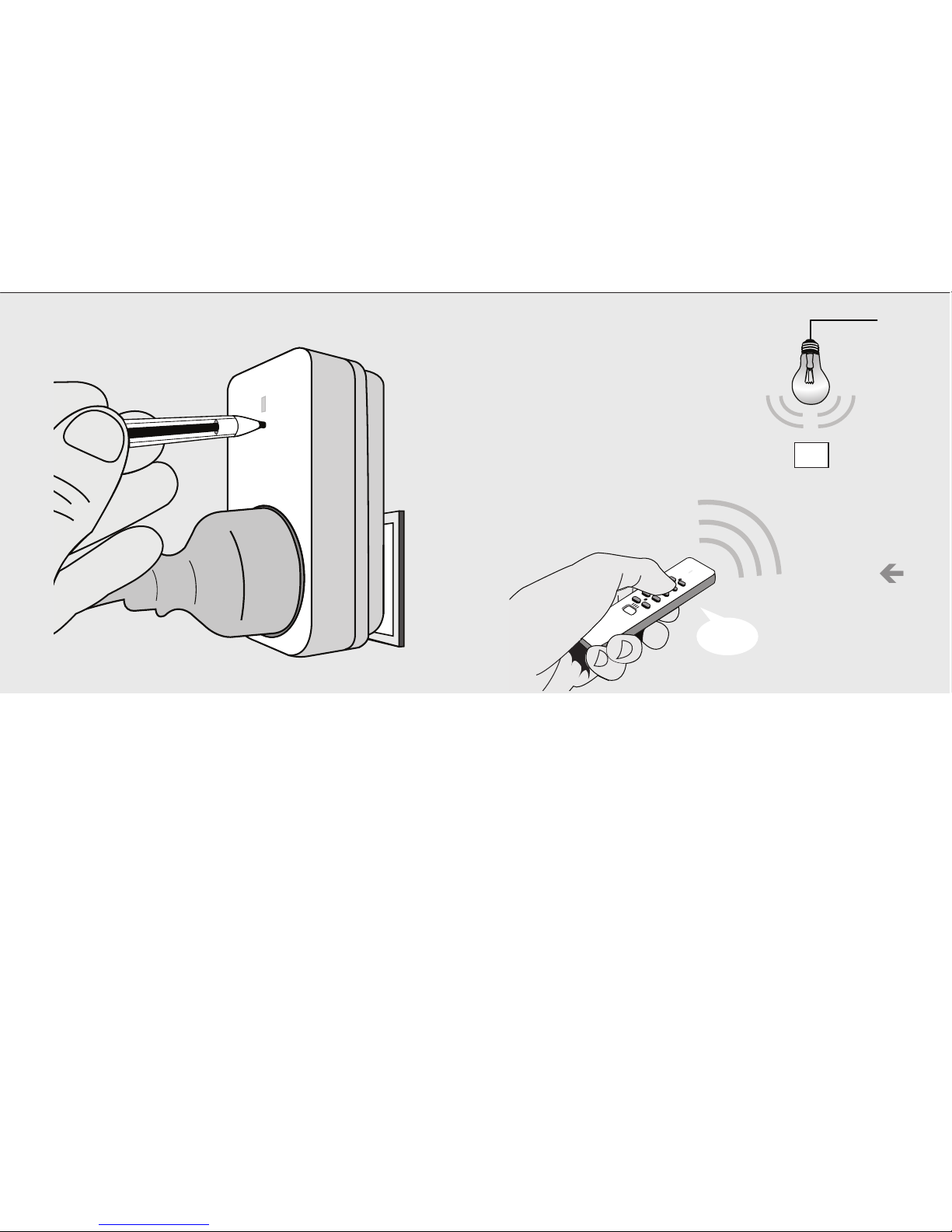

2b.
Send an ON-signal with any
trust smart h
ome
transmitter while the learn-mode is active, to
assign the code to the receiver’s memory.
The receiver will switch on/o 2 times to confirm the code has been received. The receiver
can store up to 6 dierent transmitter codes
in its memory.
The memory will be preserved when the
receiver is moved to another socket or in case
of power failure.
2c.
ON
2x
ACD-200 MAINS SOCKET DIMMER
6
ACD-200 MAINS SOCKET DIMMER

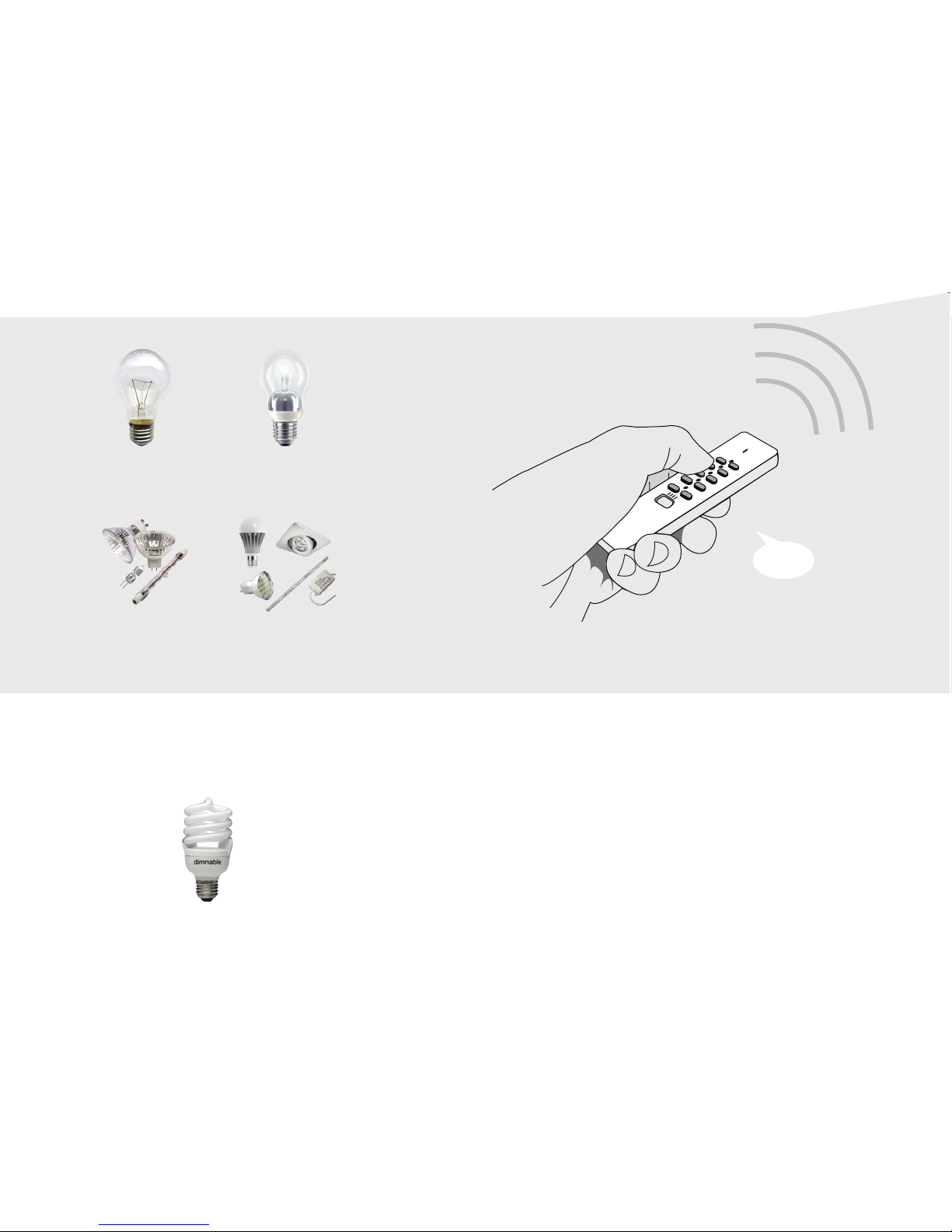

A3. Set the correct dimming range
Every type of lamp (incandescent, halogen,
dimmable ESL or dimmable LED) has a dierent
dimming range. Therefore, you should always
set the correct dimming range for the connected
lamps.

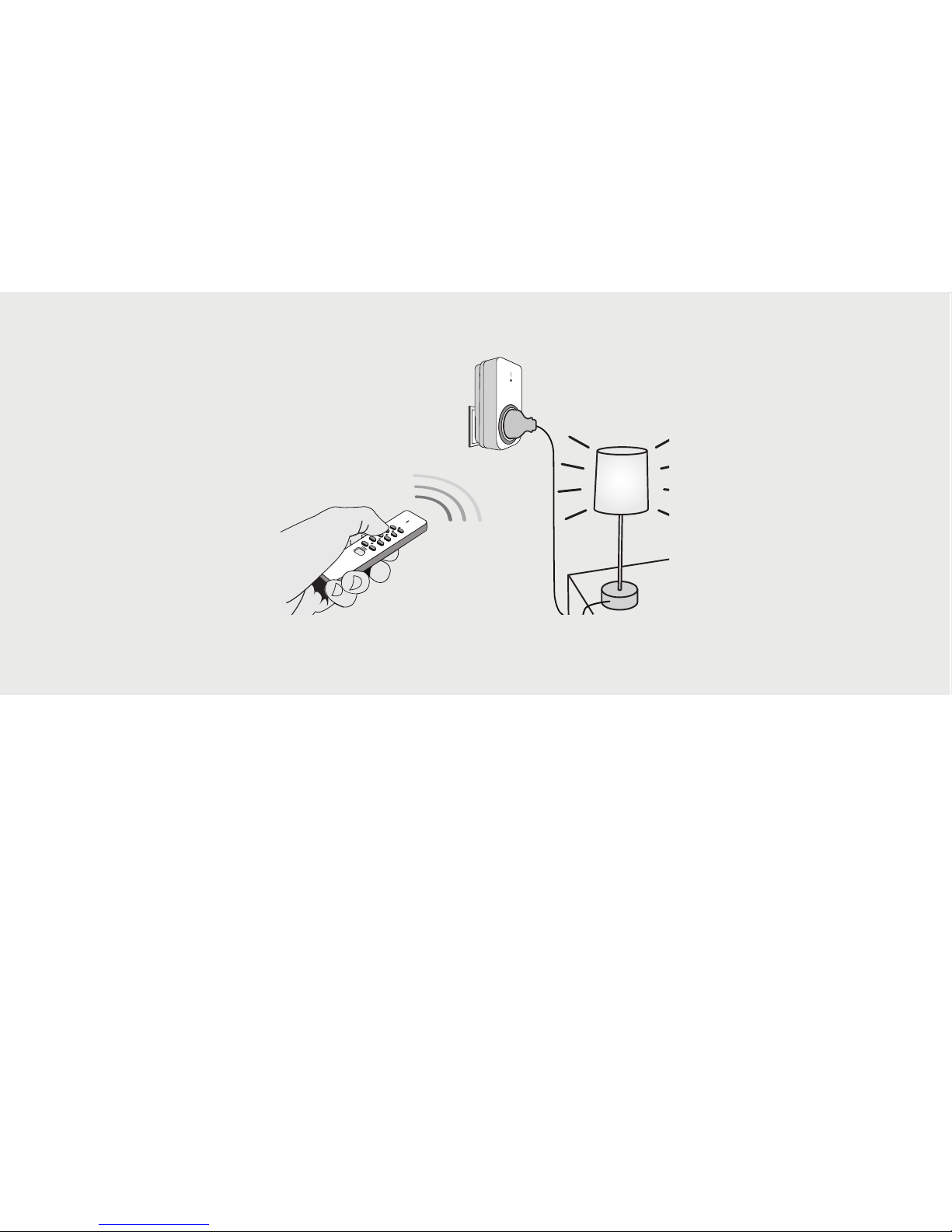

First, switch on the lamp with a
trust smart
h
ome transmitter (for example: a remote control).

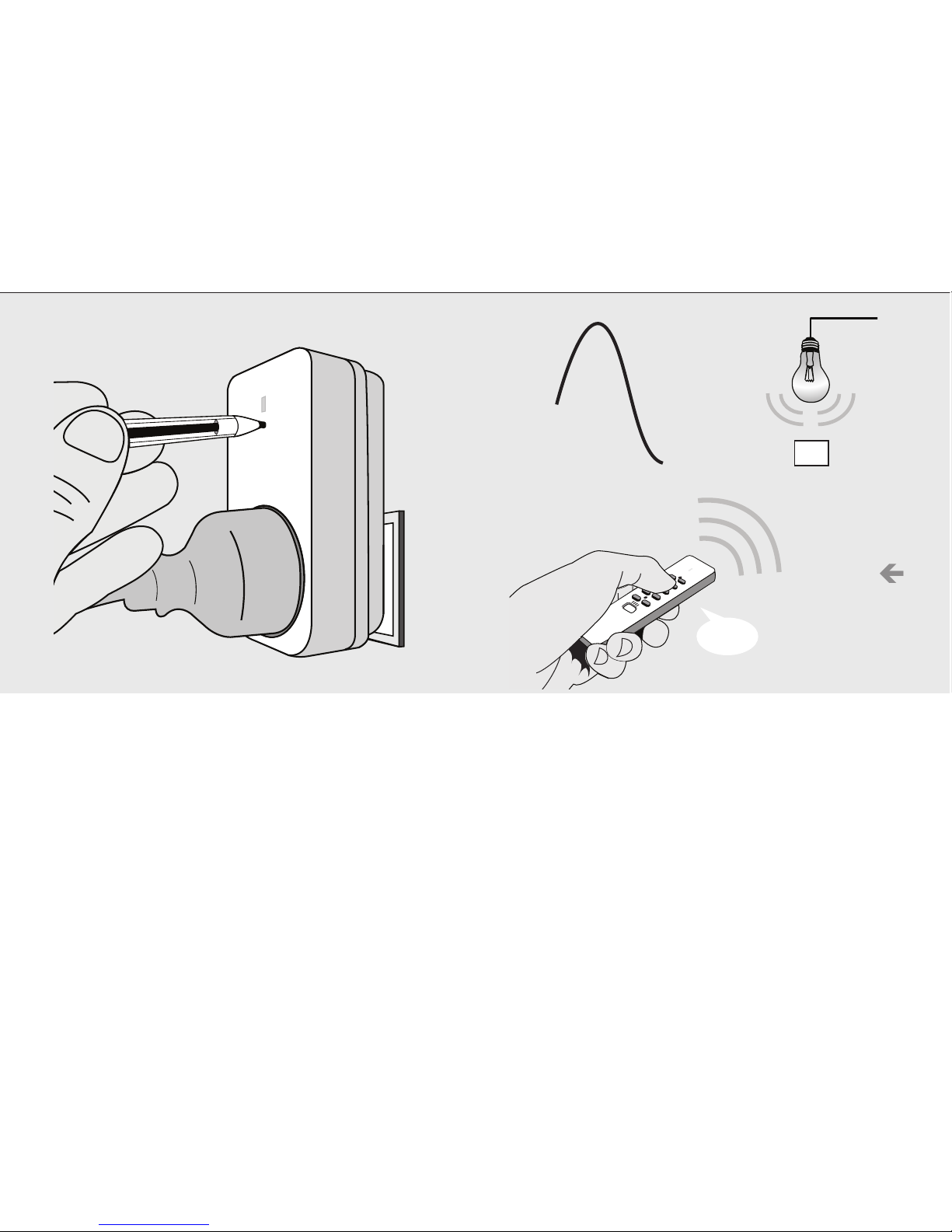

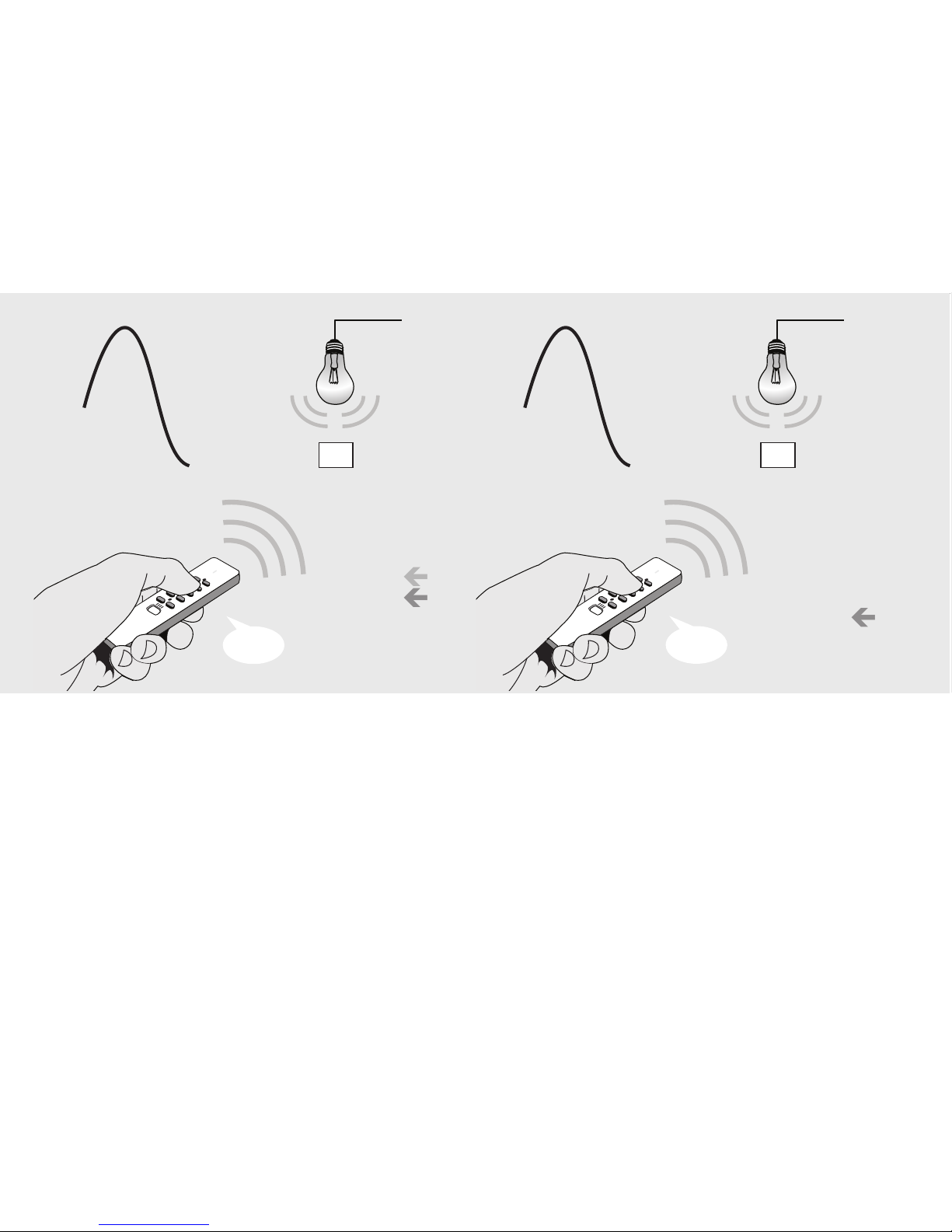

Option A: Setting the correct dimming range for dimmable ESL
Important note:
To assure correct dimming of dimmable ESL, this
dimmer always switches to full brightness (100%)
first. Immediately afterwards, the lights are set to
the dim-level that you have chosen.
dimmable ESL
ON
100%
On
Level
