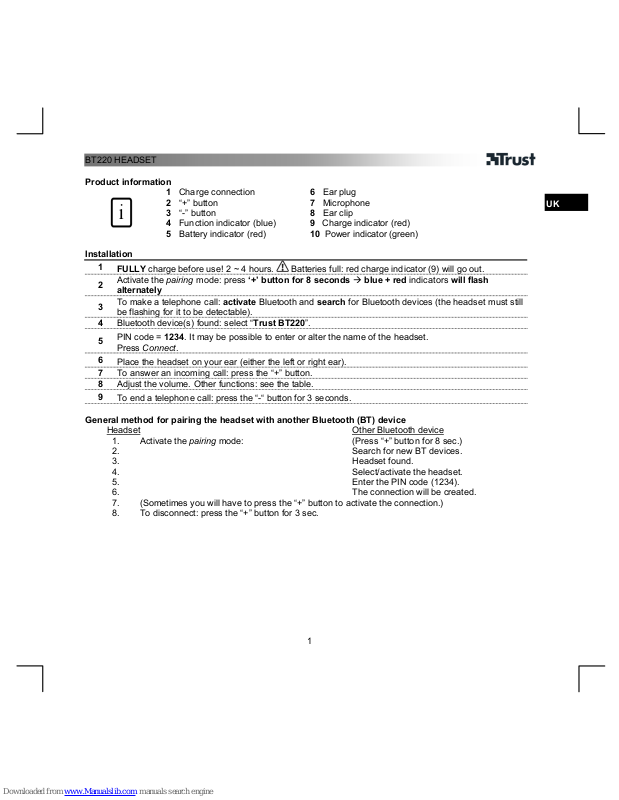

Page 1
BT220 HEADSET
1
UK
Product information
1 Charge connection
2 “+” button
3 “-” button
4 Function indicator (blue)
5 Battery indicator (red)
6 Ear plug
7 Microphone
8 Ear clip
9 Charge indicator (red)
10 Power indicator (green)
Installation
1
FULLY charge before use! 2 ~ 4 hours.
Batteries full: red charge indicator (9) will go out.
2
Activate the pairing mode: press ‘+’ button for 8 seconds Æ blue + red indicators will flash
alternately
3
To make a telephone call: activate Bluetooth and search for Bluetooth devices (the headset must still
be flashing for it to be detectable).
4 Bluetooth device(s) found: select “Trust BT220”.
5
PIN code = 1234. It may be possible to enter or alter the name of the headset.
Press Connect.
6
Place the headset on your ear (either the left or right ear).
7 To answer an incoming call: press the “+” button.
8 Adjust the volume. Other functions: see the table.
9
To end a telephone call: press the “-“ button for 3 seconds.
General method for pairing the headset with another Bluetooth (BT) device
Headset Other Bluetooth device
1. Activate the pairing mode: (Press “+” button for 8 sec.)
2. Search for new BT devices.
3. Headset found.
4. Select/activate the headset.
5. Enter the PIN code (1234).
6. The connection will be created.
7. (Sometimes you will have to press the “+” button to activate the connection.)
8. To disconnect: press the “+” button for 3 sec.
Page 2
BT220 HEADSET
2
Button functions and indicators
(The numbers between brackets refer to the product information diagrams.)
Charger + charger plug
Indicators
Status Green (10) Red (9)
Power On
Charging the battery On On
After charging: battery full On Off
Headset
Buttons
Headset indicators Headset
Status ‘+’ (2) ‘-‘ (3) Result Blue (4) Red (5) Signal (6)
Off 4 sec. On Flashes - Low + high tone
On 3 - 6 sec. Off - Flashes quickly High + low tone
Off 8 sec. On + pairing mode Flash alternately Low + high tone (x2)
On + battery
almost empty
(Recharge!)
Flashes
Power
connected (1)
Turned off and will be
recharged
- - -
Press
quickly
Answer incoming call
Ring tone -> answer
call
Incoming call
3 sec. Refuse call
Ring tone -> -
Press
quickly
Increase the volume
Tone
Press
quickly
Decrease the volume
Tone
3 sec. End call or accept
other call
Tone
Busy with call
Press both
buttons quickly at
the same time
Turn off microphone
(mute)
Tone approx. every
3 sec.
Mute Press both
buttons quickly at
the same time
Mute turned off Tone
Busy with call
on headset
3 sec.
Call transferred from
headset to telephone
(headset is not turned
off!)
Tone
Page 3
BT220 HEADSET
3
UK
Buttons
Headset indicators Headset
Status ‘+’ (2) ‘-‘ (3) Result Blue (4) Red (5) Signal (6)
Busy with call
on telephone
Press
quickly
Call transferred from
telephone to headset
Tone
Telephone +
headset on
without a call
Press
quickly
Speak assignment for
the telephone (must
support the telephone)
Tone
NOTE!
Pairing and use
• The headset will ONLY work if the Bluetooth (BT) connection has been paired correctly.
• The headset can only be used with BT devices which support the Headset Protocol (HP)
or the HandsFree Protocol (HFP).
• The pairing mode only remains active for 2 - 3 minutes. If necessary, reactivate the pairing
mode (turn the headset off first).
• After a successful BT connection, it will not be necessary to pair the devices again, even
after they have been turned off. However, if one of the devices has been paired with
another, similar, BT device, they will usually have to be paired again.
• The method of pairing and the use of BT can differ for different devices. See the
instruction manual provided with your other BT device for the correct method.
• The original ring tone of the telephone can only be heard via this headset if it is a
polyphonic ring tone and the telephone supports the transfer of this ring tone to a BT
headset. If not, you will hear a standard ring tone via the headset.
• Some telephones disconnect the BT connection if the headset is turned off. In that case,
you will no longer hear the telephone ring via the headset. Solution: press the “+” button
for 1 sec. to reactivate the connection.
• With some telephones, the “+” button must be pressed for 2 sec. to accept a call (e.g.
Sony Ericsson P800/900).
• Some telephones are produced without optimal BT support. If you have a problem, check
whether the telephone has the most up-to-date BT version (firmware). Contact the
telephone manufacturer for more information.
• An up-to-date list of telephones that can be used with this headset is available at:
www.trust.com/14219/compatibility.
• The PIN code (1234) cannot be changed.
Bad wireless connection
Page 4
BT220 HEADSET
4
• There are metal objects close to or between the headset and the other BT device.
• The battery is (almost) empty (the red indicator on the headset flashes).
• The other BT device has a smaller range (e.g. BT class 3: max. 1 metre).
• There is another wireless device close by (such as a wireless video or wireless network).
Battery
• It is recommended to always fully charge the battery (until the charge indicator goes out).
• A fully charged battery has a call time of 5 hours and a standby time of 100 hours.
• It may take a while before the red charge indicator goes out. In particular, this may occur if
the headset has not been used for some time.
• The headset is always turned off when the battery is recharged.
• It is possible that the headset cannot be turned on after the battery has been recharged
for only 20 minutes. The battery must then be recharged for at least 40 minutes.
• Recharge the battery at least every 2 months if the headset is not used for a long period of
time.
• Usage temperature: -10° C ~ 55° C. At a lower temperature, the battery will become
empty more quickly.
• The battery is built into the headset and cannot be replaced.
• The headset is charged via a 5 V power supply. The internal voltage of the headset is 3.7
V.
• If you dispose of the headset, observe the applicable guidelines regarding the disposal of
the Li-ion battery.
Go to www.trust.com/14219 for up-to-date FAQs, instruction manuals and more information on
Bluetooth.
Safety instructions
• Never open or repair this device yourself.
• Do not use this device in a damp area, such as a bathroom, damp basement or swimming pool.
• Clean the device with a dry cloth.
This device meets the essential requirements and other relevant conditions of the applicable European
directives. The Declaration of Conformity (DoC) is available at www.trust.com/14219/ce.
Page 5
BT220 HEADSET
5
UK
Wireless
• This wireless Bluetooth device works at a frequency of 2.4 GHz. It meets the essential
requirements and other relevant conditions of R&TTE Directive 1999/5/EC. It is a Class 1
wireless device and may be used in all EU countries. See www.trust.com/14219 for an up-to-date
list of countries where the use of this product is permitted. (Note: this class indication is not the
BT class.)
•
There may be restrictions for the use of this device outside of the EU. If this device is used
outside of the EU, check whether this device meets the local regulations. Frequency: 2.4 -
2.4835 GHz; Bandwidth: approx. 1 MHz; Power: 1 mW.
• Nowadays, there are an increasing number of wireless products (video, audio, computer, etc.)
which work in the same frequency range as this device. It may, therefore, be possible that the
functionality of this device is limited by or is limiting for other wireless devices. This can only be
avoided by paying attention to the distance between devices and, where possible, by changing
the channels of the other devices.
• Be careful when using wireless devices if you have a pacemaker or are dependent on other lifesaving, sensitive electronic equipment, because this product transmits radio signals.
Warranty & copyright
• This device has a two-year product warranty which is valid from the date of purchase. Go to
www.trust.com/warranty for more information.
• It is forbidden to reproduce any part of this instruction manual without the permission of Trust
International B.V.
