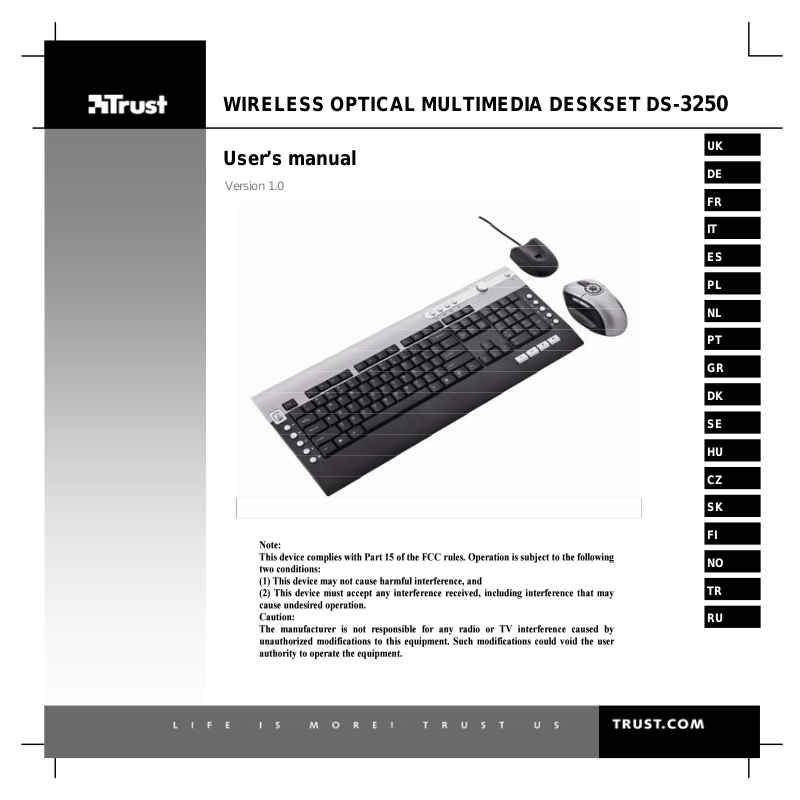

WIRELESS OPTICAL MULTIMEDIA DESKSET DS-
3250
User’s manual
Version 1.0
UK
DE
FR
IT
ES
PL
NL
PT
GR
DK
SE
HU
CZ
SK
FI
NO
TR
RU
USER’S MANUAL
B
E
A
Installation
1
3
C
2
4
G
F
H
D
USER’S MANUAL
USER’S
MANUAL
Product information
A: Internet Buttons
Browser back
Browser forward
Search
Browser reload
Browser stop
C: Launch/special Buttons
Start Internet Browser
Start E-mail program
Favorites
Installation
1 Open battery compartments on bottom sides of mouse and keyboard and place the 4 batteries.
2
3 Push connect button on USB Transmitter.
4 Push connect button on bottom side of Keyboard and finally connect button on bottom side of mouse.
Launch Windows default
Mediaplayer*
Insert special characters
D: System Buttons
Power
Sleep / Standby
Wake up
My computer*
Calculator*
* Driver from Trust website needed to support function in Windows 2000
Connect USB Transmitter to PC and wait until automatic installation has completed. (Answer any
question Windows asks with Allow, Continue, Next, OK or Yes)
B: Media Keys
Play / Pause
Previous track
Next track
Stop
Volume down direction
Volume up direction
Mute
Media Center Functions
Previous Screen
Channel Up
Channel Down
OK
E: USB Receiver
F: Mouse 4th and 5th buttons (Browser Back/
Forward )
G: Scrollwheel with on frontside Battery empty
LED
H: Multimedia buttons (functions: see table B)
UK
1
USER’S MANUAL
Note
Multimedia and Office keys
• Launch keys will start the default internet browser, E-mail program and Mediaplayer installed on your PC.
Configure default programs:
XP: Start Æ Control PanelÆ Add/Remove Programs Æ Set Program Access and Defaults.
Vista: Start Æ Control PanelÆDefault ProgramsÆSet programs access and computer defaultsÆ Custom
• The multimedia keys also work with other media player software like Itunes.
• 4th and 5th Mouse button only work in games that support standard 5 button mice.
Special characters
• The keyboard country layout settings in Windows should correspond with the keyboard layout of your
Trust keyboard. Layout of the Trust keyboard is specified by a sticker on the Box.
To set the keyboard Layout in Windows: Go to: Start Æ Control Panel (classic view) Æ Regional and
Language Options Æ Languages Æ Details (Vista: “Change Keyboards”)
• The Alt Gr key gives access to special characters like the € sign. An overview of the special characters per
country is available at www.trust.com/keyboardlayout.
Performance
• Maximum Wireless working distance is around 2,5 meter.
• Reduced wireless performance can be caused by:
- (Metal) objects close to or between transmitter and keyboard Æ Remove objects.
- Other wireless devices close by Æ Remove devices or reconnect USB transmitter to
get different communication ID.
- Empty batteries Æ Replace batteries.
• Mouse will have reduced tracking performance on very shiny or transparent surfaces.
Energy
• Battery lifetime: Mouse: +/- 130 hours. Keyboard: +/- 4500 hours.
• The mouse will enter sleep mode after 10 minutes of inactivity, but will respond immediately after
pressing a button.
• When mouse batteries are empty, the battery empty LED in front of the scroll wheel will light.
• Never recharge the batteries provided and never throw them onto a fire.
• Observe local regulations when disposing of batteries.
Safety instructions
• Do not open or repair this device.
• Do not use the device in a damp environment. Clean the device with a dry cloth.
2
USER’S MANUAL
See www.trust.com/15052 for up-to-date FAQs, Windows 2000 driver and instruction manuals. For extensive
service, register at www.trust.com/register.
• This device meets the essential requirements and other relevant conditions of the applicable Europea n
directives. The Declaration of Conformity (DoC) is available at www.trust.com/15052/ce.
Wireless
• This class 1 wireless device works at a frequency of 27 MHz It meets the essential requirements and
other relevant conditions of R&TTE Directive 1999/5/EC a nd can be used in the following countries:
all EU countries, as well as RU, TR, NO and HU. There are no limitations per channel for the abovementioned countries. See www.trust.com/15052 for an updated list of the countries where the use of
this device is permitted.
• There may be restrictions for the use of this device outside of the EU. If this device is used outside of
the EU, check whether this device meets the local regulations. Frequency: 27.045 ~ 27.145MHz
Bandwidth: approx. 6 KHz; Power: 0,5 mW.
• Be careful when using wireless devices if you have a pacemaker or are dependent on other life-
saving, sensitive electronic equipment, because this device transmits radio signals.
• If possible, dispose of the device at a recycling centre. Do not dispose of the device with the household
waste.
Warranty & copyright
• This device has a two-year product warranty which is valid from the date of purchase. See
www.trust.com/warranty for more information.
• It is forbidden to reproduce any part of this instruction manual without the permission of Trust
International B.V.
UK
3
