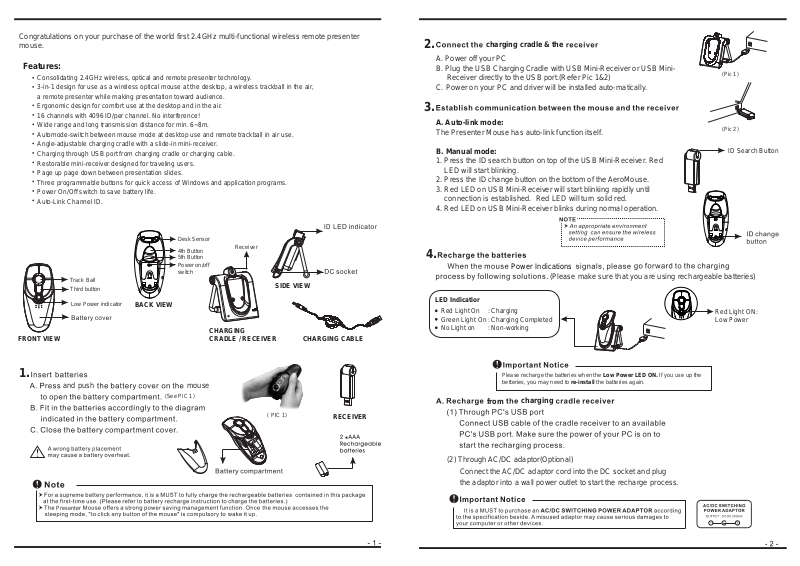

Trust 15550 Users Manual

Congratulations on your purchase of the world first 2.4GHz multi-functional wireless remote presenter mouse.

Features:

Consolidating 2.4GHz wireless, optical and remote presenter technology. 3-in-1 design for use as a wireless optical mouse at the desktop, a wireless trackball in the air, a remote presenter while making presentation toward audience. Ergonomic design for comfort use at the desktop and in the air. 16 channels with 4096 ID/per channel. No interference! Wide range and long transmission distance for min. 6~8m. Automode-switch between mouse mode at desktop use and remote trackball in air use. Angle-adjustable charging cradle with a slide-in mini-receiver. Charging through USB port from charging cradle or charging cable. Restorable mini-receiver designed for traveling users. Page up page down between presentation slides. Three programmable buttons for quick access of Windows and application programs. Power On/Off switch to save battery life. Auto-Link Channel ID.

FRONT VIEW

Track Ball Third button

Low Power indicator

BACK VIEW

Desk Sensor 4th Button

5th Button Power on/off

switch

Receiver

CHARGING CRADLE / RECEIVER

SIDE VIEW

CHARGING CABLE

charging cradle & the

A. Power off your PC B. Plug the USB Charging Cradle with USB Mini-Receiver or USB Mini Receiver directly to the USB port.(Refer Pic 1&2) C. Power on your PC and driver will be installed auto-matically.

A. Auto-link mode:

The Presenter Mouse has auto-link function itself.

B. Manual mode:

1. Press the ID search button on top of the USB Mini-Receiver. Red LED will start blinking.

2. Press the ID change button on the bottom of the AeroMouse.

3. Red LED on USB Mini-Receiver will start blinking rapidly until connection is established. Red LED will turn solid red.

4. Red LED on USB Mini-Receiver blinks during normal operation.

Power Indications

(Please make sure that you are using rechargeable batteries)

LED

Indicatior

Red Light On : Charging Green Light On: Charging Completed No Light on : Non-working

(Pic 1)

(Pic 2)

ID Search Button

Red Light ON: Low Power

Please recharge the batteries when the Low Power LED ON. If you use up the

and push

mouse

(See PIC 1)

( PIC 1)

RECEIVER

(2) Through AC/DC adaptor(Optional)

betteries, you may need to re-install the batteries again.

from

charging

Connect the AC/DC adaptor cord into the DC socket and plug the adaptor into a wall power outlet to start the recharge process.

Presenter

●
