Z-2000
Z-3000
Owner Guide
Air Purifier with SensorPod™ and filtration
Page 2
General Safety Information
PLEASE READ AND SAVE THESE INSTRUCTIONS
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a
polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contacta qualified
electrician. Do not attempt to defeat this safety feature.
Unplug or disconnect the appliance from the power supply before replacing filters or UV lamp, or when appliance is not in use.
WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
Do not operate any purifier with a damaged cord or plug, or if the wall socket is loose.
Do not run cord under carpeting, throw rugs, runners, or similar coverings. Do not run cord under furniture or appliances. Arrange cord
away from traffic area and where it will not be tripped over.
• Remove all packaging, including the filter bag, before use.
• Applianc es that are obviously damaged must not be oper ated.
• This appliance must only be connected to a wall socket outlet matching the supply plug type and rating stated on the rating plate.
• Locate air purifier near the outlet wall socket and do not use extension cords.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance
in a safe way and underst and the hazards involved.
• Children shall not play with the appliance.
• Skin or eye damage may result from directly viewing the light produced by the UV lamp in this appliance. Do not operate the UV-C
emitter outside the appliance or with the filter removed.
• Replace the UV lamp with the models specified within this manual.
• Do not attempt to service or repair this product yourself.
• Only use the purifier and SensorPod™ with the power cable provided.
• Only clean this machine with a damp cloth, do not use solvents or bleach.
• Ensure appliance is always placed on firm level surface before operation.
• Do not block or obstruct the air intake or outlet vents.
• Do not insert fingers or other items into the air intake or outlet vents.
ENG
FCC ID:
Z-2000: GV3-18Z2000Z-3000: GV3-18Z3000 Sensor: GV3-18SP001
IC:
Z-2000: 6128A-18Z2000 Z-3000: 6128A-18Z3000 Sensor: 6128A-18SP001
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate
the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct t h e interference by on e or m o re of th e fo llo win g measures:
Reorient o r relocate th e receiving an ten na .
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC RF Radiation Exposure Statement: This equipment should be installed and operated with minimum distance of 20cm between the
radiator and all persons.
This device complies with Innovation, Science and Economic Development 7 Canada (ISED) license-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) This d ev ice m ay not cause int erference, and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
2
Page 3
ISED Compliance
This device contains l ic ence-exempt transmi tter(s )/ receiv er( s) that
comply with Innovation, Sci ence and Economic D evelopment Canada’s
licence-ex empt RSS(s ). Operati on i s subject to the following two
conditions:
1. This device may not caus e inter fer ence.
2. This device must accept any interf erenc e, includi ng int erferenc e that
may cause undesired operat ion of the device.
L’émetteur/récept eur exempt de lic ence contenu dans le présent appareil
est conforme aux CNR d’Innovation, Sciences et Développement
économique Canada appl ic ables aux appareil s radio exempts de lic ence.
L’exploitation est autorisée aux deux conditions sui vantes :
1. L’appareil ne doit pas produir e de brouill age;
2. L’appareil doit accepter tout broui ll age radioélec tr ique subi , même si le
brouillage est susceptibl e d’en compromettr e le fonctionnement.
ISED 20cm RF Exposure
EN： The device should be installed and operated with
a minimum distance of 20 cm between the radiator and
your body.
FR ： L'appareil doit être installé et utilisé avec une
distance minimale de 20 cm entre le radiateur et votre
corps.
3
Page 4
Experience the difference
ENG
SensorPod™
Remote air quality monit or t ha t
ensures cleaner air, right where
you need it
Informs and adapts
Illumination color ring and
numeric displ ay communicate air
quality in real-time
Thoughtful execution
Exce ptional f unctionali ty w r apped
in a con t emporary des ign that fits
any environment
PureDirect™ technology
Proprietary bi-directional airflow
distributes clean air comfortably
and efficiently
360°Purification
Surrounding air is drawn in fr om
all directions through a 3-stage
filter and sterilizing UV lamp
Manual Cont en ts
Getting Started 4
Product Overview 5
Real-t ime quality d isplay 7
Control panel 7
Specifications 8
Care and Maintenance
Replacing HEPA drum filter 9
Replacing Carbon filter 10
Washing the Prefilter 10
Replacing the UV lamp 11
SensorPod 11
Frequently Asked Questions 13
Support 14
Registration and Warranty 14
4
Page 5
Getting started

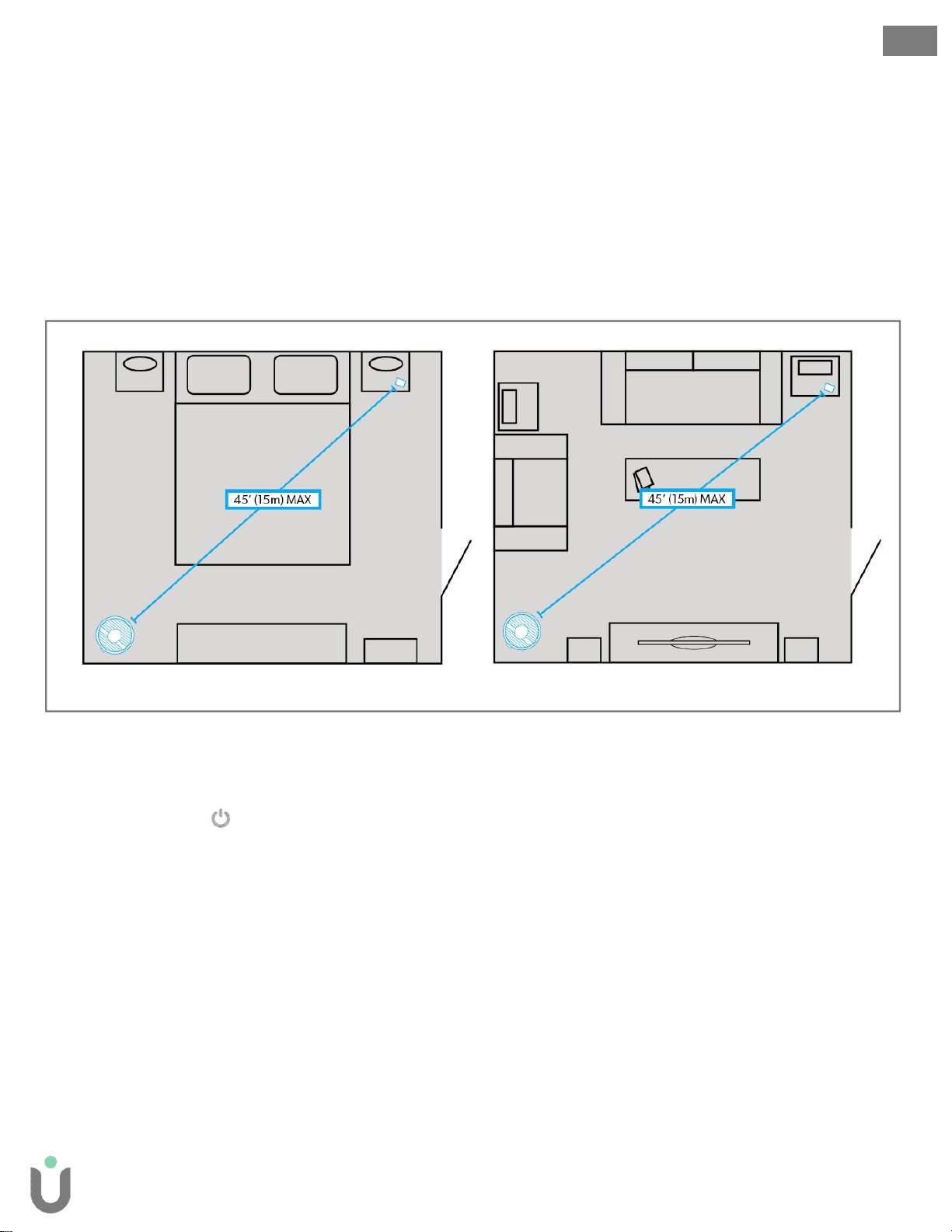

Step 1. Placement of the purifier and SensorPod
Place the purifier on a flat surface along a side wall, free from obstructions:
where air can flow freely into the purifier from all sides
avoiding furnishings like bedding and curtains, as well as sources of heat or moisture.
Place SensorPod on a counter or table away from the purifier to increase coverage across the room.
ENG
Sample Bedroom Sample Living Room
Step 2. Plug-in and turn on the purifier
Simply press the Power Button and the purifier will begin cleaning your air!
Step 3. Plug-in SensorPod
Air quality readings will immediately begin transmitting to the purifier.
Start living with cleaner air!
The purifier will automatically adjust fan speeds based on the air quality readings from SensorPod,
and proprietary PureDirect™ technology will deliver purified air throughout the room!
5
Page 6

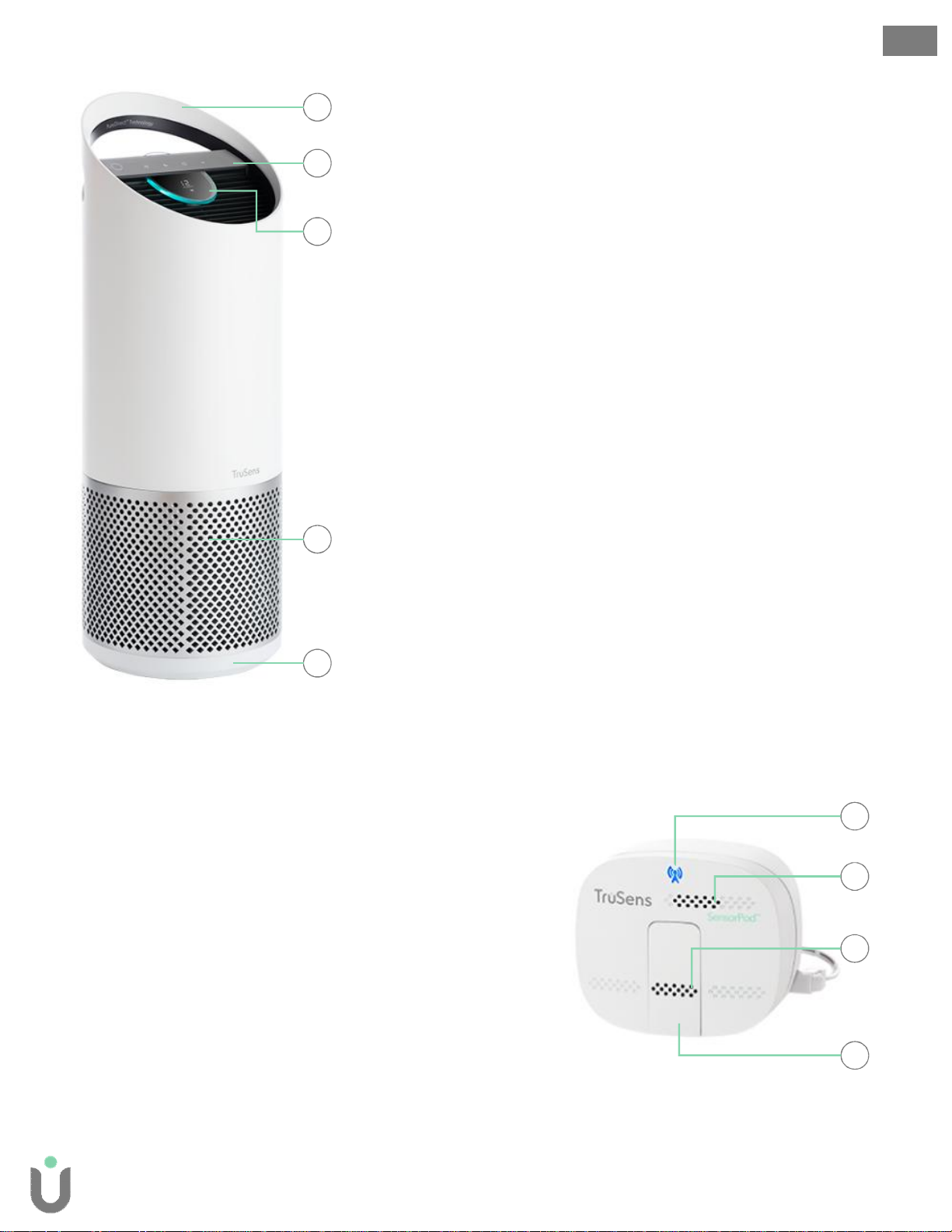

Get to know your air purifier
1
2
ENG
3
1. Easy-carr y han dl e
2. Soft-touch control panel
3. Air quality indicator ring
4. 360°air intake
5. Filter chamber cover & knob (underneath)
4
5
Introducing your remote air quality monitor, SensorPod™
The separate ai r qual ity sensor can more
accurately represent the air quality in your room
by monitoring the airaway from the puri fi er,
ensuring greater cover age of cleaner air.
1. Power and Signal Indicator
2. Air outlet
3. Air inlet
4. Easy-access door, for cleaning sensor
1
2
3
4
6
Page 7
PureDirect™ cleans comfortably and efficiently
By splitting the purified air into two
distinct and dir ected streams,
PureDi r ec tprovides a unique and
proprietary airflow that cleans the
room up to 24% faster.
ENG
filtration and UV steriliz ation
Washable Pre-Filter
Captures larger particulates, like dust
and pet hair
Activated Carbon Filter
Removes certain gases and odors
HEPA Filter
Captures particulates down to 0.3 microns
Ultraviolet Sterilization
Reduces the uncontrolled growth of
dangerous microbes ca ptured on the
surface of the filter
7
Page 8

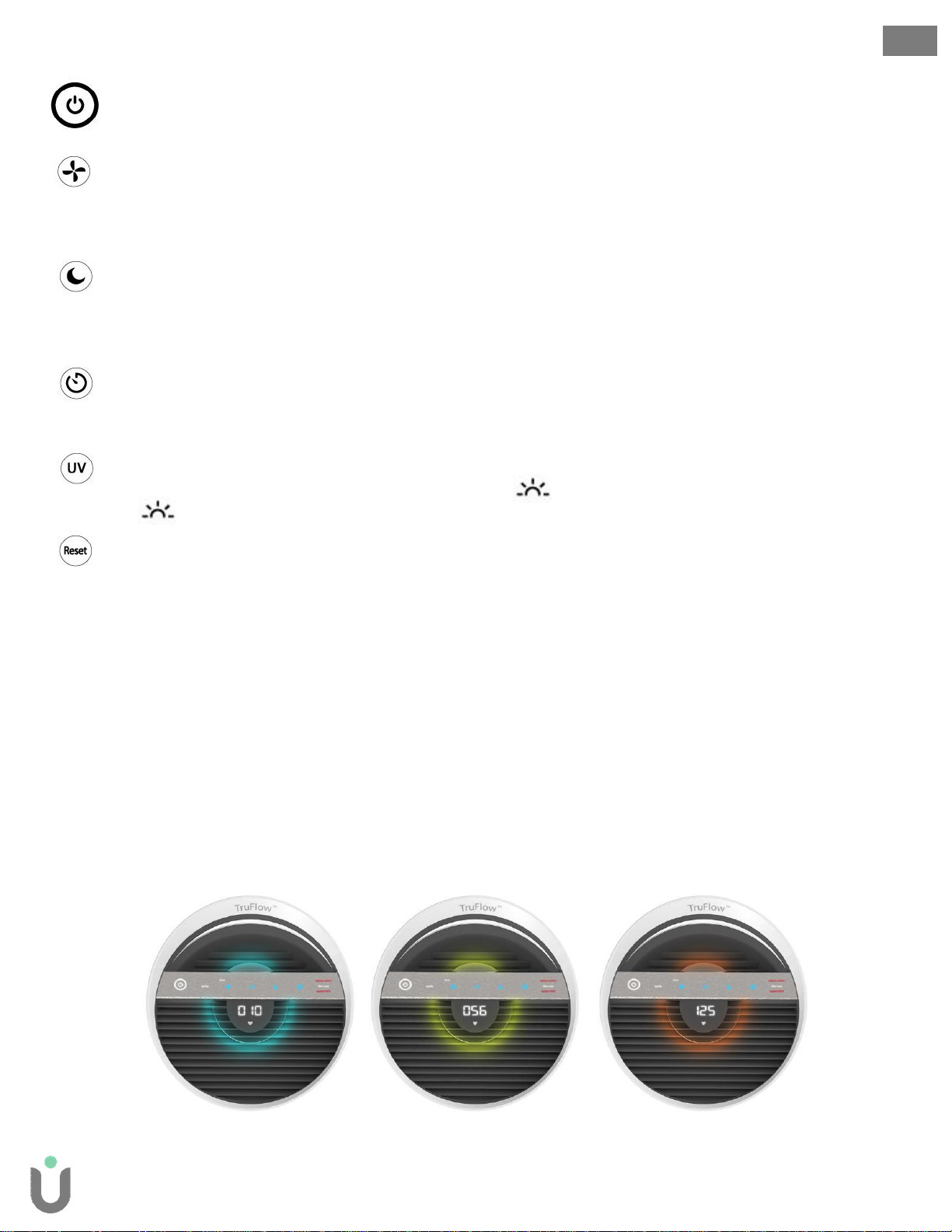

Control Panel
Power Button
Fan Speed Settings
Select fan speed or AUTO mode.
In AUTO mode, purifier automaticall y adjusts fan speed based on air quality readings from SensorPod.
(AUTO mode only available when purifi er i s paired with SensorPod and receiving signal .)
Dimmer Mo de
Display illumination turns off –for use while sleeping.
Simply press the button again to bring back all display features.
(Purifier will continue operating at fan speed or AUTO mode as selected by user.)
Timer Mode
Purifier will automatically turn off after 2, 4, 8, or 12 hours.
To cancel this countdown, simpl y cycle by pressing button until no timer setting is displayed.
UV Mode
UV lamp within the puri fi er’s filter chamber is on when symbol is white.
symbol will glow red when it is time to replace the UV lamp. See pages 7-8 for instructions.
ENG
Filter and UV Indicator Reset
HEPA, Carbon, and UV indicators glow red when it is time for each to be replaced. See pages 7-8 for instructions.
When 1 indicator is on, simply hold Reset button for 3 seconds to reset that indicator.
When 2+ indicators are on, press the Reset button to select the correct indicator (selected indicator will blink)
before holding 3 seconds to reset that indicator.
Real-time air quality feedback
The revo lutionary remote SensorP odevaluates the condition of your air by measuring both small (PM2 .5) and
larger (PM10) particulate matter. It calculates the overall air quality using a proprietary algorithm that is
reactive to genuine increases in pollutants without overreacting to someone entering the room or settling into
the couch.
An illuminated ring on the purifier’s control panel communicates your air quality levels with color, while a
numeric value provides greater detail.
Good Air Quality
0 - 50
TruSensutilizes the Air Quality Index (1-500) created by the U.S. Environmental Protection Agency
Moderate Air Quality
51 - 100
(EPA).
Poor Air Quality
101 - 500
8
Page 9
Specifications
ENG
Z-2000
Medium Room Purifier
Area changed every 15 minutes 188 ft² (17 m²) 375 ft² (35 m²)
Area changed every 30 minutes 375 ft² (35 m²) 750 ft² (70 m²)
SensorPod™
PureDirect™ technology Included
Fan Speed Settings Whisper, 1, 2, Turbo Whisper, 1, 2, 3, Turbo
Purification Levels
Timer Settings 2, 4, 8, 12 hour
Works up to 49 ft (15 m) across a room from the purifier.
Washable Prefilter
Carbon
HEPA Type
UV
Included
Z-3000
Large Room Purifier
Washable Prefilter
Carbon
True HE PA
UV
Replacement Indicators Carbon, HEPA, UV
Noise ## dB ## dB
Dimensions
Weight ## lbs (## kg) ## lbs (## kg)
Power Requirements 120 V / 60 Hz 120 V / 60 Hz
Power Consumption ## W ## W
Warranty 2 yea rs
LL x WW x HH in.
LL x WW x HH mm.
LL x WW x HH in.
LL x WW x HH mm.
Replacement Filters and UV Lamps
360°filter (Prefilter, HEPA, Carbon) HAF-Z2000-01 HAF-Z3000-01
Carbon filter (3-pack) CAF-Z2000-01 CAF-Z3000-01
Ultraviolet Lamp UVL-Z2000-01 UVL-Z 3000-01
9
Page 10
Specifications
Rated operational voltage 9V DC
Rated operational current 0.15A DC ±10%
Adapter input voltage range 90 ~ 240V AC 60±3Hz/ 50±3H z
Adapter output power DC 9V 0.15
Rated power 1.3±0.3W
ENG
SensorPod
Medium & Large
Signal frequency 2462MHz
Channel bandwidth 1MHz
Wireless transmit power 0dBm
Receive Sensitivity -94dBm@250kbps
Radio frequency modulation mode GFSK
Onboard antenna gain 2 ~ 3dBm
Sending and receiving distance open space≥15m
Product dimensions 80*45.5*68mm
Warranty 2 yea rs
Function
Button Binding button
Signal indicator Blue Light Indicator
10
Page 11
Filter Change and Maintenance

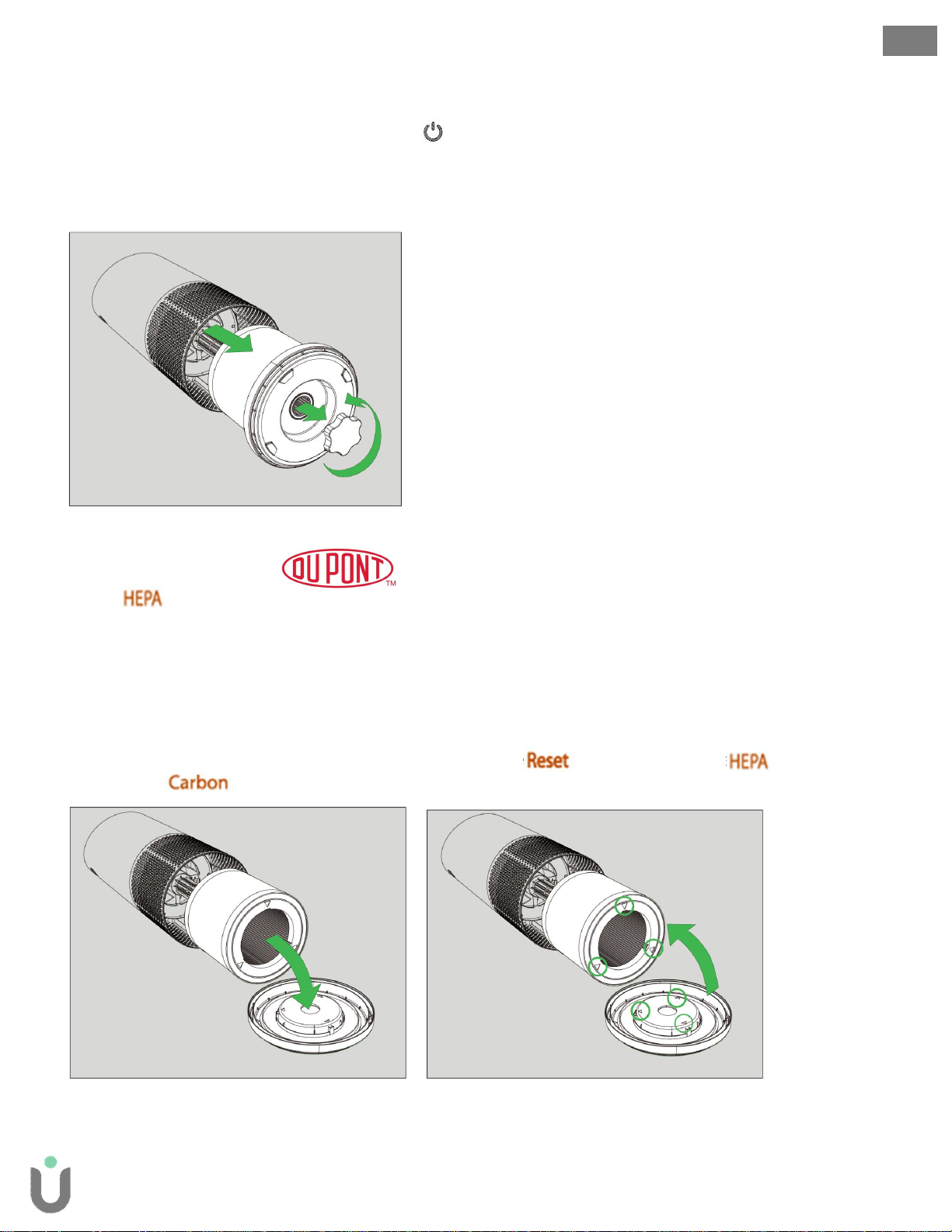

Accessing the filter chamber
-Always power off the purifier by pressing the Power Button and unplugging the power
cord.
-Gently place the unit on its side so that the filter chamber cover and knob are exposed.
-Turn the knob counter-clockwise and remove (Fig A).
-Gently remove the filter chamber cover and the 360° HEPA filter drum that is attached (Fig. B).
ENG
Fig. A Fig. B

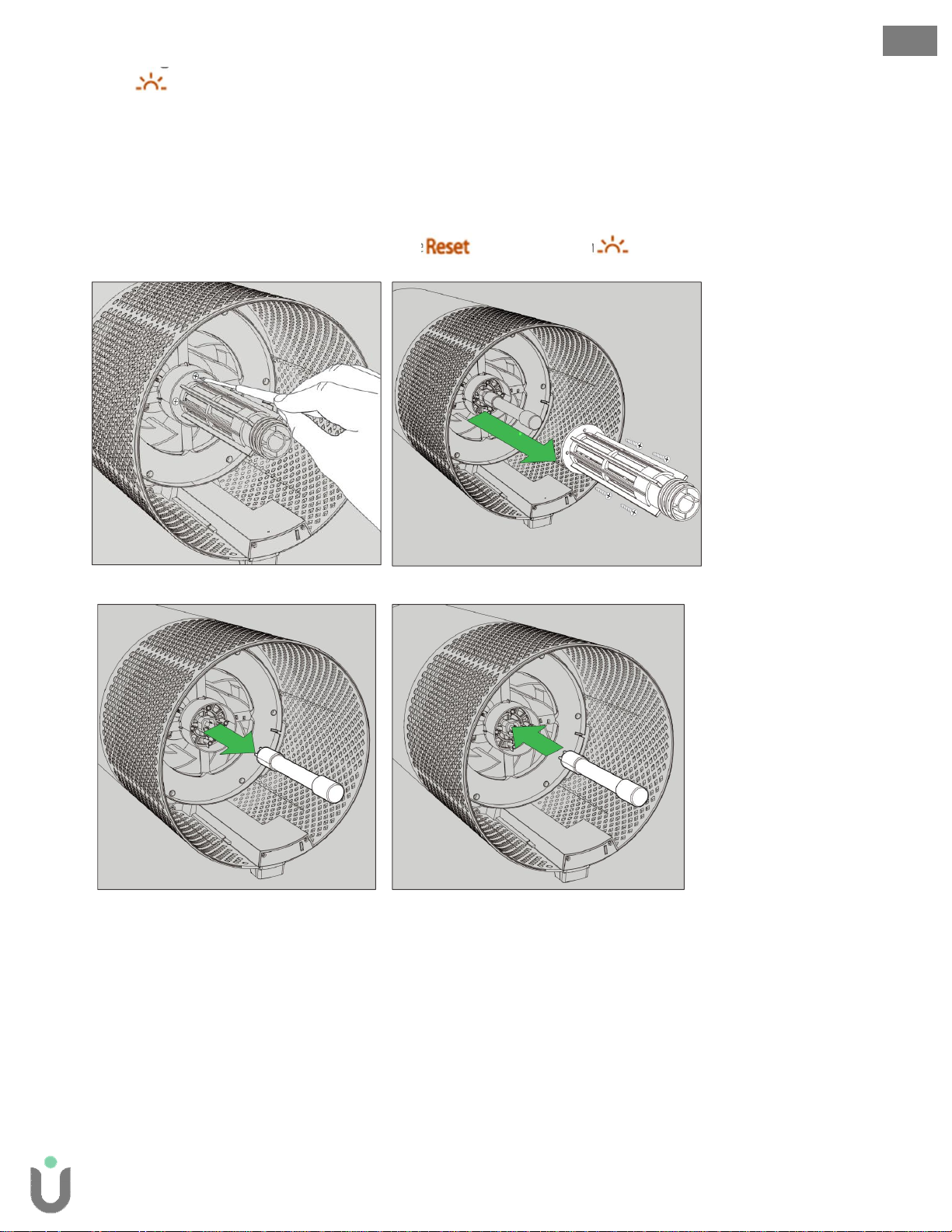

Replacing the 360° HEPA filter drum
1. The indicator will glow red when it is time to change the entire HE PA drum filter.
2. Gently pu ll the HEPA drum filter away from its place secu red to the filter chamber cover (Fig. C).
3. Your replacement HEPA filter will include all layers: Washable Prefilter, Carbon, and HEPA.
4. Use the directional arrows to align the replacement HEPA drum and secure it onto the filter chamber
cover (Fig. D).

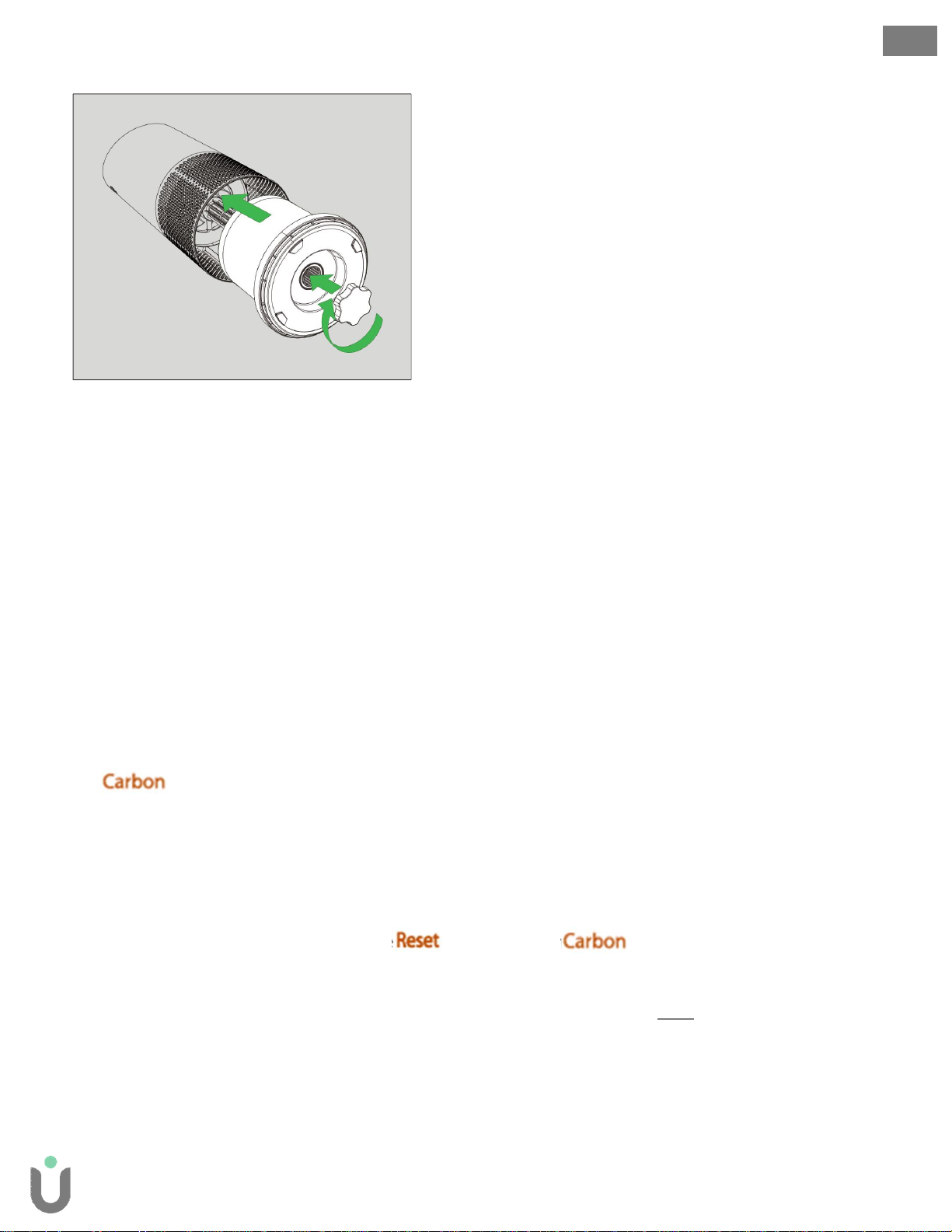

5. Gently replace the filter drum and filter cover into the filter chamber and onto the threading (Fig. E).
6. Turn the knob clockwise until the knob and filter chamber cover are securely tightened (Fig. F).
7. After plugging-in and powering-on the purifier, hold the button until the red indicator
turns off. (If the indicator is also Red, you’ll need to reset that as well).
Fig. C Fig. D
11
Page 12
Filter Change and Maintenance
Fig. E
ENG
Replacing the Carbon filter
1. The indicator will glow red when it is time to replace only the Carbon layer.
2. Gently peel away the Prefilter from its fastener strips.
3. Gently peel aw ay the old Carbon layer from its fastener strips.
4. Your replacement 3-pack of Carbon filters (on page 7) will cover each of the three Carbon ch anges between
changes of the entire HEPA drum filter assembly (see above).
5. Wrap a new Carbon layer around the filter drum and attach using the same fastener strips.
6. Replace the Prefilter by wrapping it around the Carbon layer and attach using its fastener strips.
7. Once the purifier is powered-on, hold the button until the indicator turns off.
Washing the Prefilter (Please Note: HEPA & Carbon filters are not washable)
1. We recommend that you visually inspect the Prefilter every month, and clean as needed. At a minimum,
you should wash the prefilter every time you change the Carbon of HEPA filters.
2. Gently peel away the Washable Prefilter from its fastener strips.
3. Gently rinse with running water –allow Prefilter to dry before re-installing.
4. Replace the Prefilter by wrapping it around the filter drum and attach using its fastener strips.
12
Page 13
Replacing the UV lamp
1. The indicator will glow red when it is time to replace the UV lamp.
2. Once the filter drum is removed (Fig. A, Fig B), use a screwdriver to remove the 4 screws securing
the UV housing (Fig. G).
3. Gently remove the UV housing (Fig. H).
4. Disconnect the plug of the UV lamp from the socket within the purifier (Fig. I).
5. Your replacement UV lamp will plug dir ectly into the same socket (Fig. J).
6. Replace the UV housing and use a screwdriver to tighten the fastening screws.
7. Once the purifier is powered-on, hold the button until the indicator turns white.
ENG
Fig. G Fig. H
Fig. G Fig. H
Cleaning the air quality sensor within the SensorPod
The SensorPod uses an infrared light to detect particulate matter, so it is important that you clean the
viewing chamber every 1-2 mont hs to remove any dust or particles that may affect the accuracy of the
sensor’s readings.
1. Turn-off the SensorPod by unplugging the powe r cord.
2. Open the cover on the front side by sliding the door downward and rotating outward at a 90° angle.
3. Use a dam p cotton swab to wipe the lens and intake area of the dust sensor.
4. Use a dry cotton swab to wipe away any remaining moisture.
5. Close the cover by rotating the door back down and sliding it back into place until you hear a click.
13
Page 14
Pairing SensorPod and Purifier
The SensorPod communicates with the purifier using radio frequency signals, and will be paired on the
production line and ready for use when you open the box. In the rare event that the signal is interrupted,
you can repair the connection in just a few easy steps. You’ll know that the signal is lost because:
a) SensorPod’ sLED will blink if the purifier is unplugged or out of range; OR
b) The Purifier’s sensor indicator light and air quality color/number indicat ors will blink for 1
minute and turn off if the SensorPod is unplugged or out of range.
1. Unplug the SensorPod.
2. HOLD the Power Button on the purifier for 3 seconds, when you should hear two chimes.

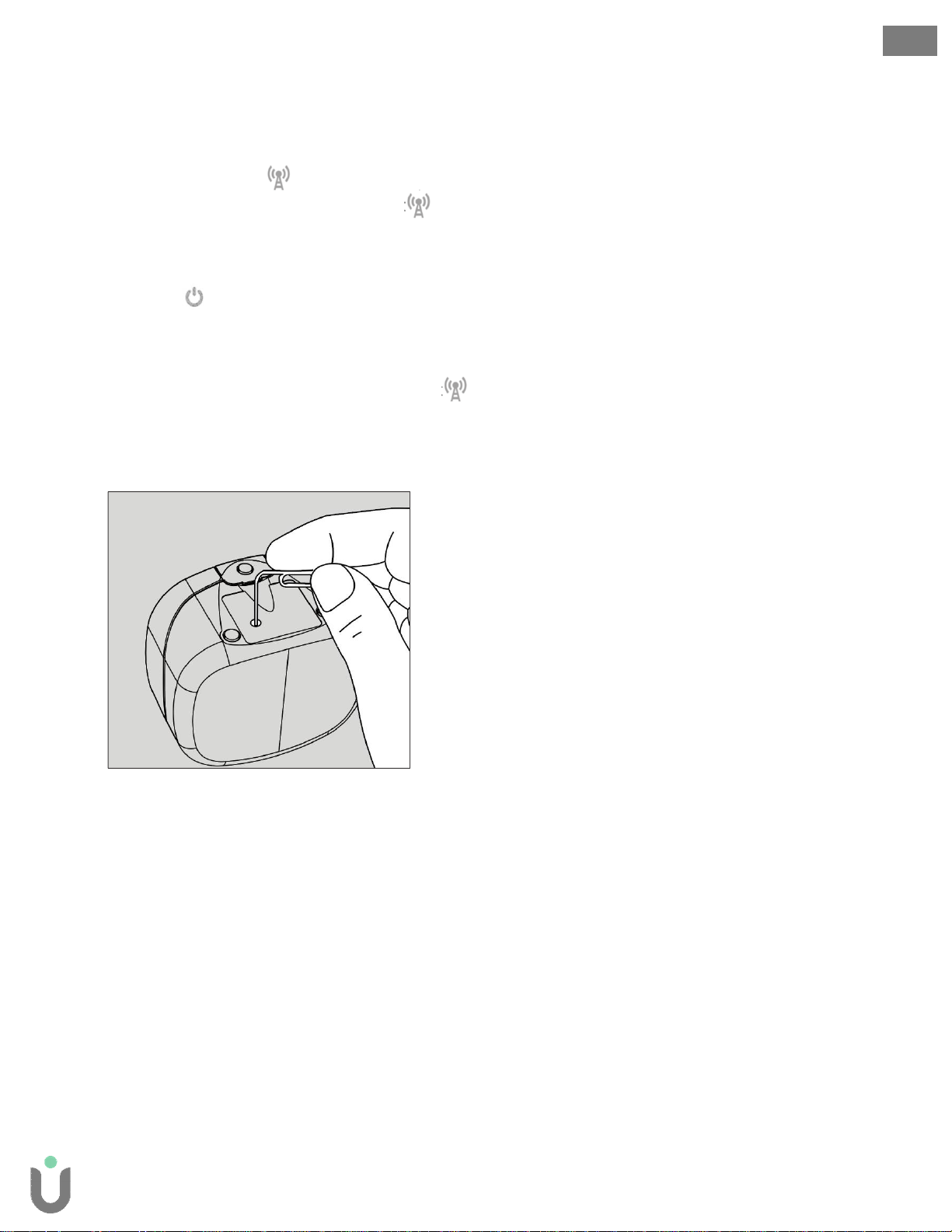

3. Plug-in the SensorPodand use an item with a small point (paper clip) to press and HOLD the pairing
button underneath the SensorPod for 3 seconds.
4. The connection should be established. You’ll know because the LED on the SensorPod should light
solid and the purifier’s sensor indicator light and air quality color/number indicators should be
on.
Note: the purifier’s air quality color/number indicators w ill cycle f or 6-8 seconds as they do each time
the purifier is powered on.
ENG
14
Page 15
Troubleshooting and FAQ
Where do I place the SensorPod? Anywhere you want to measure the ai r quality wi thin the room!
For optimal performance, place the SensorPod away from the air purifier
on a counter or table. In Auto Mode, the purifi er wi ll work to distribute
clean air until the SensorPod reads an acceptable le vel of air quality.
See specification table on page 7 for appropriate room sizes for each model.
ENG
How often do I need to change the
filters?
How often do I need to wash the
prefilter?
How often do I need to clean the dust
sensor within SensorPod?
Purifier won’t turn on. Check that the power cord is connected securely to both the wall outlet
The purifier is equipped with replacement indi cators that will notify you
when it is time to replace the Carbon or HEPA filter, or the UV lamp. Plan
on replacing the Carbon every 3-4 months, HEPA every 12-15 months,
and UV lamp every 24 months.
The prefilter captures larger particles and preserves the efficiency of the
other filters, so we recommend that you visually inspect the prefilter
every month and wash as needed. Another good habi t is to wash the
prefilter every time you replace a filter or the UV lamp.
For the most accurate measurement of your air quality, we’d recommend
you clean the surface of the dust sensor every 1-2 months.
and the purifier. Check if there is a power outage in the outle t by trying a
nearby light or device or by trying a working device i n the same outlet.
Check that the HEPA filter is fitted properly into filter chamber.
Please contact us if you’re still having a problem (page ##)!
Purifier won’t go i nto Auto Mode.
or
AQI indicator disc is off.
SensorPod light is blinking. Check that the purifier is in the same room and powe red-on. If it is, you’ll
I’ve lost my SensorPod! Don’t worry! Please contact our customer support team and you can
Auto Mode is only available when the puri fier can react to air quality
readings from the SensorPod, so check that the SensorPod is plugged-in
and that its light is solid.
See page 9 for instructions.
need to follow the pairing procedures on page 9 to repair the
connection.
order a replacement SensorPod. Follow the easy pairing process on page
9 for pairing your replacement SensorPod with your existing air purifier!
15
Page 16
Support
THANK YOU for allowing TruSensto join you on your journey tow ar ds wellness.
If you have any questions that are not answered in this product manual, ple ase reach out!
Call the TruSens helpline at 1-833-TRU-SENS
(1-833-878-7367)
Email us at [email protected]
ENG
And visit us and share your experience with us on social media!
TruSensWellness @Tru_Sens
tru_sens TruSens
Warranty
TruSens warrants that the machine will be perform to the specifications stated and be free from defects in
materials and workmanship for a period of 2 years from date of purchase, subject to normal use. Within the
guarantee period, TruSens will at its own discretion either repair or replace the defective machine free of
charge. Defects due to shipping, misuse, improper maintenance or the use of any parts from another
manufacturer are not covered under this guarantee. Proof of date of purchase will be required. Repairs or
alternations made by persons not authorized by TruSens will invalidate the guarantee. This guarantee does not
affect the legal rights which consumers have under applicable national legislation governing the sale of goods.
Register this product online at www.trusens.com
16
Page 17
Version 0, November 2018
Experience the difference
www.trusens.com
Loading...
