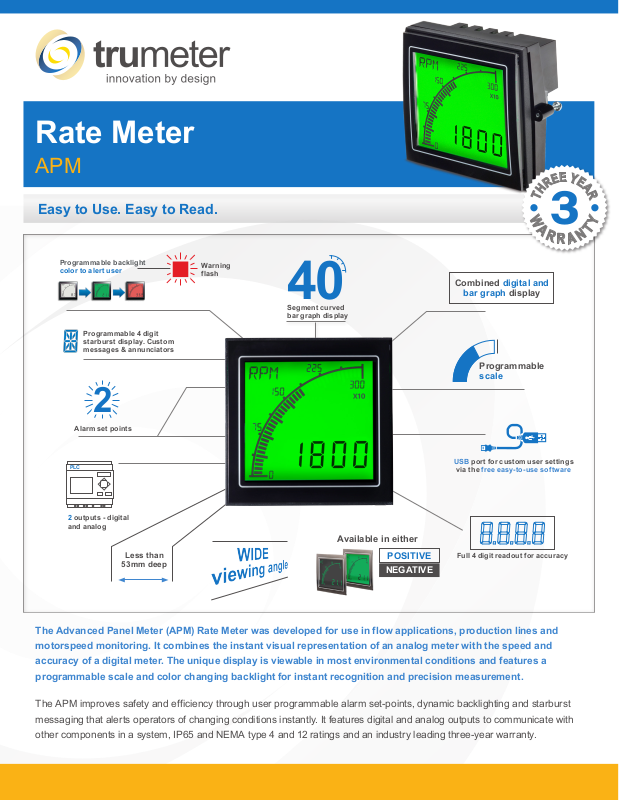

Rate Meter
APM
Easy to Use. Easy to Read.
Programmable backlight
color to aler t user
Programmable 4 digit
starburst display. Custom
messages & annunciators
Warning
flash
2
Alarm set points
PLC
40
Segment curved
bar graph display
E
E
R
H
T
W
A
R
R
Combined digital and
bar graph display
Programmable
scale
USB por t for custom user set tings
via the free easy-to -use soft ware
A
Y
E
A
R
Y
T
N
2 outputs - digital
and analog
Available in either
Less than
53mm deep
The Advanced Panel Meter (APM) Rate Meter was developed for use in flow applications, production lines and
motorspeed monitoring. It combines the instant visual representation of an analog meter with the speed and
accuracy of a digital meter. The unique display is viewable in most environmental conditions and features a
programmable scale and color changing backlight for instant recognition and precision measurement.
The APM improves safety and efficiency through user programmable alarm set-points, dynamic backlighting and starburst
messaging that alerts operators of changing conditions instantly. It features digital and analog outputs to communicate with
other components in a system, IP65 and NEMA type 4 and 12 ratings and an industry leading three-year warranty.
POSITIVE
NEG AT I V E
Full 4 digit readout for accuracy
Key Features
Large multi-format display that incorporates:
• 40 segment bar graph display
• Large 4 digit display
• Separate Starburst display area for annunciators, custom
messages and alarm information
• Dynamic backlight color
Programmable:
• Scale and gain
• Custom annunciators
• User selectable backlight color and intensity
• Two independent alarm set-points
• Two independent outputs
• 4-20mA analog monitor output
MEASUREMENT
Max Frequency 0 - 60 KHz
Min Frequency 0.001 Hz
Logic 0 < 1.2V
Logic 1 > 2.0V
Accuracy ±0.01%
MA X WOR KI NG
Voltage (input-COM) 36 VDC
ENVIRONMENTAL
Temperature - operating -10 to +60°C
Temperature - storage -40 to +70°C
IP rating (from the front) Nema 4X & 12 with IP65
POWER SUPPLY
Nominal Input (DC) 12-24VDC
DI S PL AY
Display Update Time 0.1 to 999.9 seconds
Scaling Factor -100 to 1990
Number of digits 4
Digit height 12mm [0.47”]
Digit height of annunciator 6mm [0.23”]
Number of message characters 4
Backlight colors Red, Green, White
LCD display Positive or Negative
OUTPUT
Max voltage 34V
Max current 500mA
Analog output 4-20mA
CERTIFICATION UL and cUL, CE
x10
Visibility:
• User adjustable backlight brightness and color
• Large display
• Wide viewing angle (both horizontal and vertical)
• Custom annunciators
Dimensions:
57mm [ 2.24”]
Panel cutout: 68 mm x 68m m [2.68” x 2.6 8”] as p er DIN4 3700/ IEC6155 4
53mm [2.09 ”] 72mm [2.84”]
Easy To Use Software
Just plug into any USB port on your PC, run the
freely available APM Configurator application
and you’re off. No drivers required.
72mm [2.84”]
Part Numbers
Part Description
APM-RATE-APO APM RATE METER, POSITIVE LCD WITH OUTPUTS
AP M - R AT E-A N O APM RATE METER, NEGATIVE LCD WITH OUTPUTS
022128 - 01 USB Cable
702 S. Military Trail
Deereld Beach, Florida
FL 33442,
USA
Tel: +1 954 725 6699
Email: sales.usa@trumeter.com
Pilot Mill
Alfred Street
Bury,
BL9 9EF
Tel: +44 161 674 0960
Email: sales.uk@trumeter.com
Lot 5881, Lorong Iks Bukit Minyak 1
Taman Perindustrian Iks, 14000 Bukit Tengah
Penang, Malaysia
Web: www.idtworld.com
Tel: + 604 5015700
Email: sales.my@idtworld.com
APM-RATE-US-DS-v.1.1 11/2018
