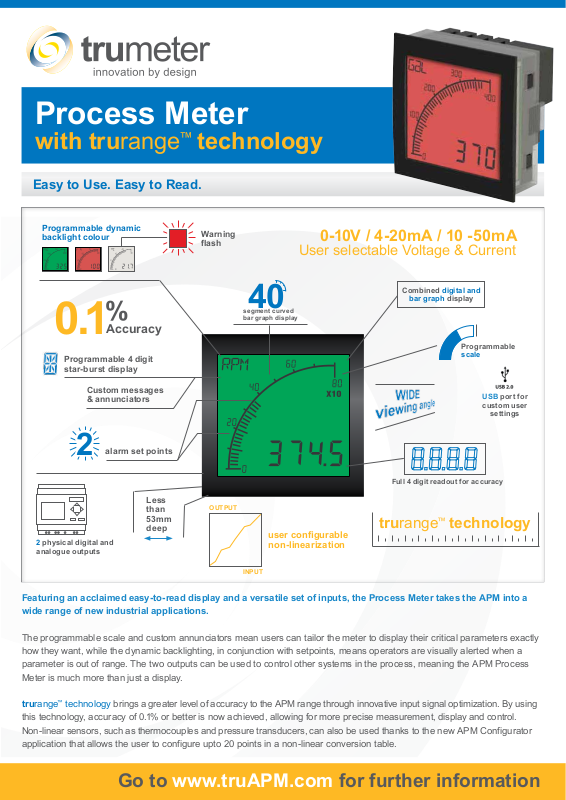

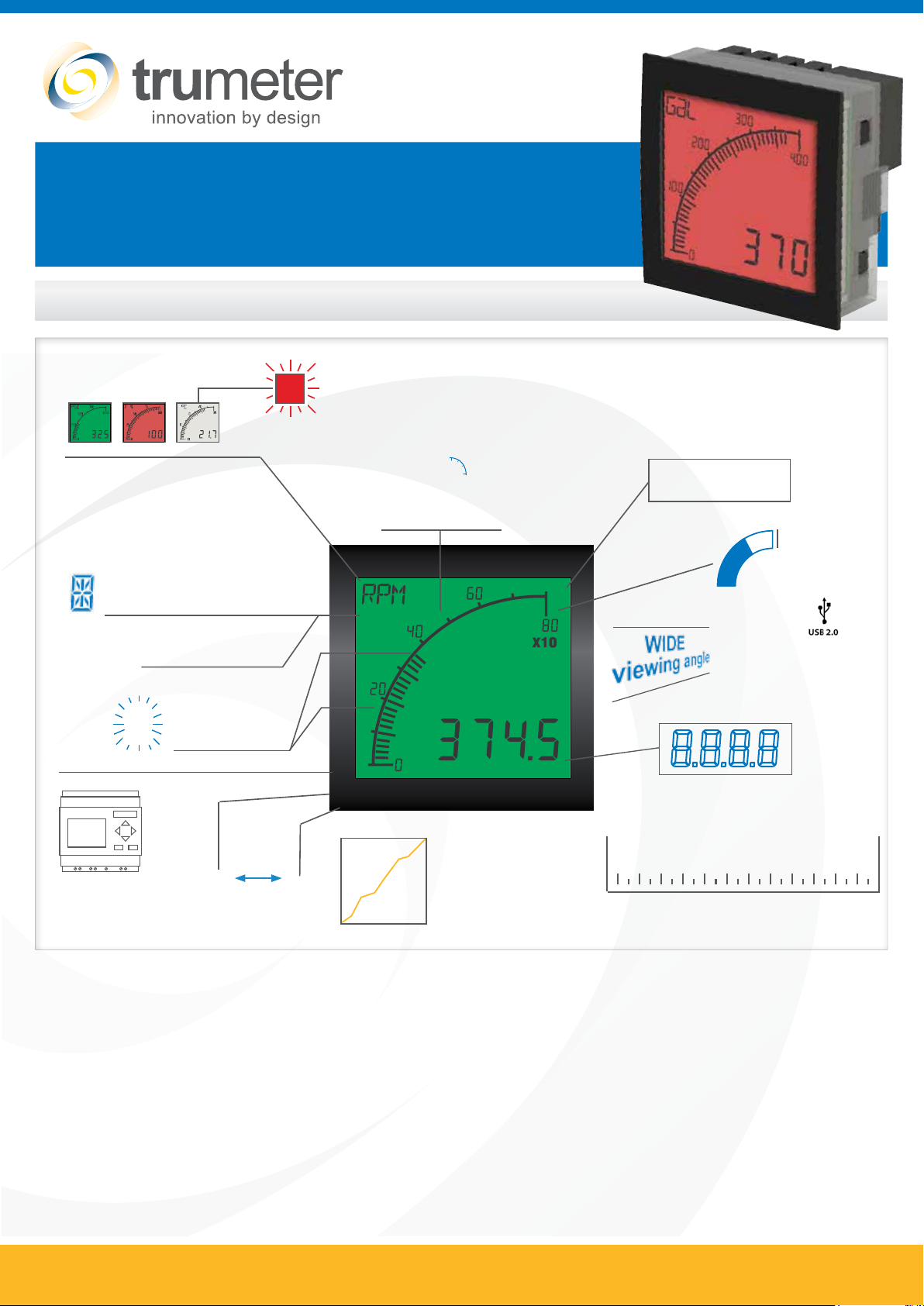

Page 1
Process Meter
with trurange™ technology
Easy to Use. Easy to Read.
Programmable dynamic
backlight colour
%
0.1
Programmable 4 digit
star-burst display
2
2 physical digital and
analogue outputs
Accuracy
Custom messages
& annunciators
alarm set points
Less
than
53mm
deep
Warning
flash
OUTPUT
40
segme nt cur ved
bar graph display
user congurable
non-linearization
0-10V / 4-20mA / 10 -50mA
User selectable Voltage & Current
Combined digital and
bar graph display
Programmable
scale
USB por t for
custom user
settings
Full 4 digit readout for accuracy
trurange™ technology
INPUT
Featuring an acclaimed easy-to-read display and a versatile set of inputs, the Process Meter takes the APM into a
wide range of new industrial applications.
The programmable scale and custom annunciators mean users can tailor the meter to display their critical parameters exactly
how they want, while the dynamic backlighting, in conjunction with setpoints, means operators are visually alerted when a
parameter is out of range. The two outputs can be used to control other systems in the process, meaning the APM Process
Meter is much more than just a display.
trurange™ technology brings a greater level of accuracy to the APM range through innovative input signal optimization. By using
this technology, accuracy of 0.1% or better is now achieved, allowing for more precise measurement, display and control.
Non-linear sensors, such as thermocouples and pressure transducers, can also be used thanks to the new APM Configurator
application that allows the user to configure upto 20 points in a non-linear conversion table.
Go to www.truAPM.com for further information

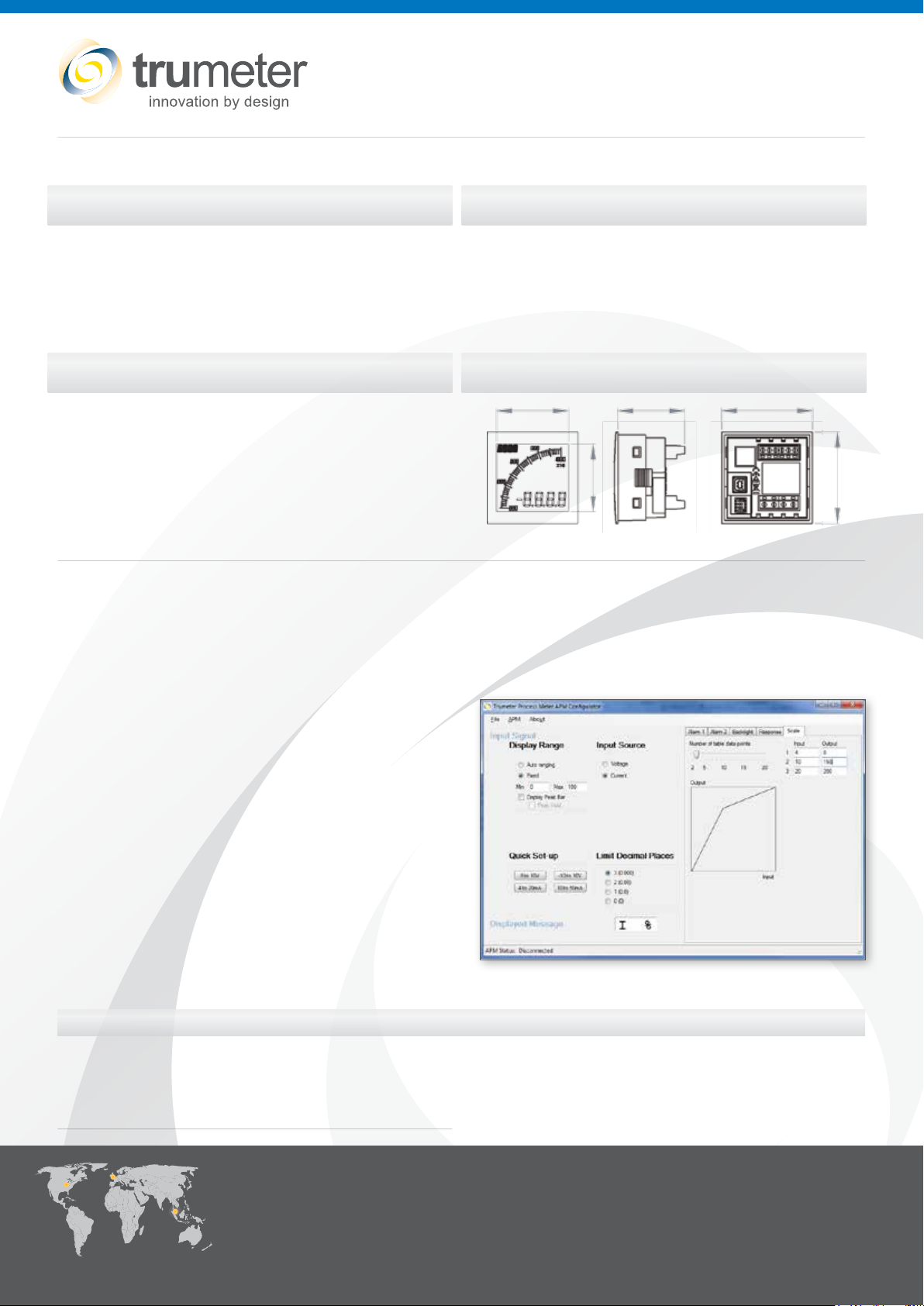

Page 2
Key Features
Large multi-format display that incorporates:
• 40 segment bar graph display
• Large 4-digit display
• Separate Starburst display area for annunciators,
custom messages and alarm information
• Dynamic backlight colour
Programmable:
• Display Range (Both Min & Max Values)
• Custom annunciators
• User-selectable backlight color and intensity
• Two independent alarm set-points
• Two independent outputs
• 4-20mA analogue monitor output
INPUT VO LTAGE CURRENT
Range (DC) 0 to +/-10VDC 0 - 50mA
Impedance 100KΩ 15Ω
Accuracy 0.1% 0.01%
ENVIRONMENTAL
Temperature - operating -10 to +60°C
Temperature - storage -40 to +70°C
IP rating (from the front) IP65
PO W E R S UPP LY
Nominal Input (AC or DC) 12-24 VAC/ V DC
DI S PL AY
Number of digits 4
Digit height 12mm [0.47”]
Number of message characters 4
Backlight colours Red, Green, White
LCD display Positive or Negative
OUTPUTS
Max voltage 24V
Max current 50mA
Analogue output 4-20mA
CERTIFICATION UL and cUL (Pending), CE
Visibility:
• User-adjustable backlight brightness and colour
• Large display
• Wide viewing angle (horizontal and vertical)
• Custom annunciators
Dimensions:
57mm [2.24”]
Panel cutout: 68 mm x 68m m [2.68 ” x 2.68 ”] as pe r DIN43700/I EC61554
53mm [2.09”] 72mm [2.84”]
Easy To Use Software
Just plug into any USB port on your PC, run the
freely available APM Configurator application
and you’re off. No drivers required.
72mm [2.84”]
Part Numbers:
APM-PROC-APO APM Process Meter, Positive LCD with outputs
APM-PROC-ANO APM Process Meter, Negative LCD with outputs
022128 - 01 USB Cable
Full specifications available online
