Trumeter APM-M2 Data Sheet

Download

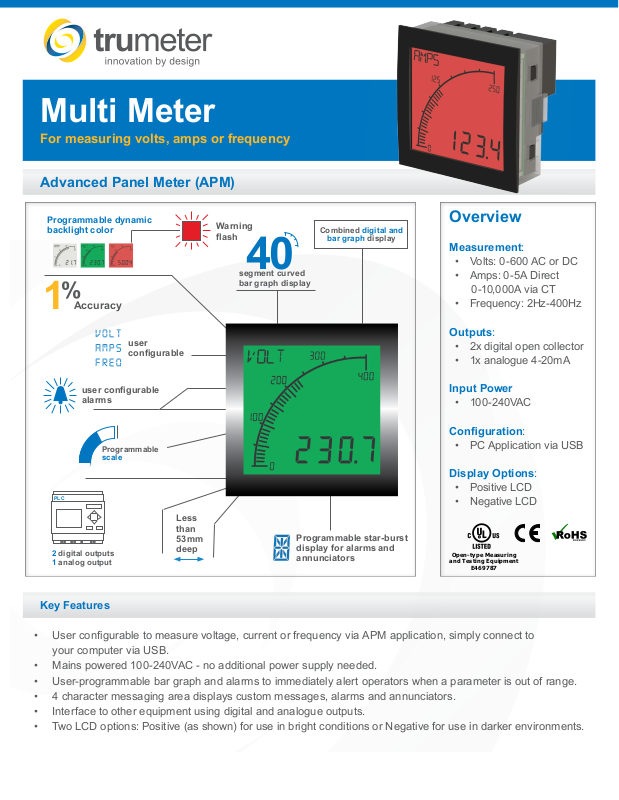

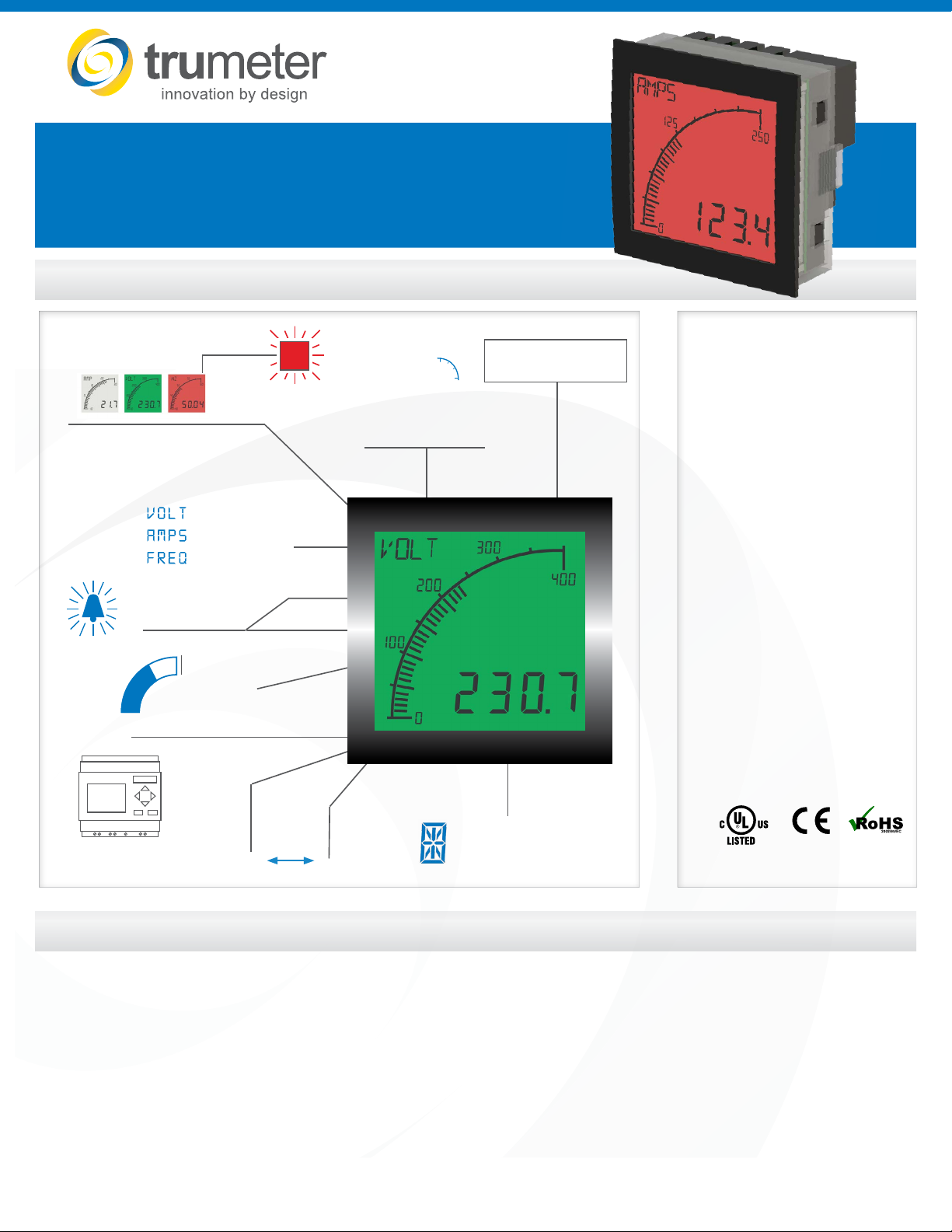

Page 1

Multi Meter

E469787

For measuring volts, amps or frequency

Advanced Panel Meter (APM)

Programmable dynamic backlight color

Accuracy

user

congurable

user congurable

alarms

Programmable

scale

PLC

2 digital outputs 1 analog output

Less than 53mm

deep

Warning flash

segment curved bar graph display

Combined digital and

bar graph display

Programmable star-burst display for alarms and annunciators

Overview

Measurement:

• Volts: 0-600 AC or DC

• Amps: 0-5A Direct 0-10,000A via CT

• Frequency: 2Hz-400Hz

Outputs:

• 2x digital open collector

• 1x analogue 4-20mA

Input Power

• 100-240VAC

Conguration:

• PC Application via USB

Display Options:

• Positive LCD

• Negative LCD

Open-type Measuring

and Testing Equipment

Key Features

• User configurable to measure voltage, current or frequency via APM application, simply connect to your computer via USB.

• Mains powered 100-240VAC - no additional power supply needed.

• User-programmable bar graph and alarms to immediately alert operators when a parameter is out of range.

• 4 character messaging area displays custom messages, alarms and annunciators.

• Interface to other equipment using digital and analogue outputs.

• Two LCD options: Positive (as shown) for use in bright conditions or Negative for use in darker environments.

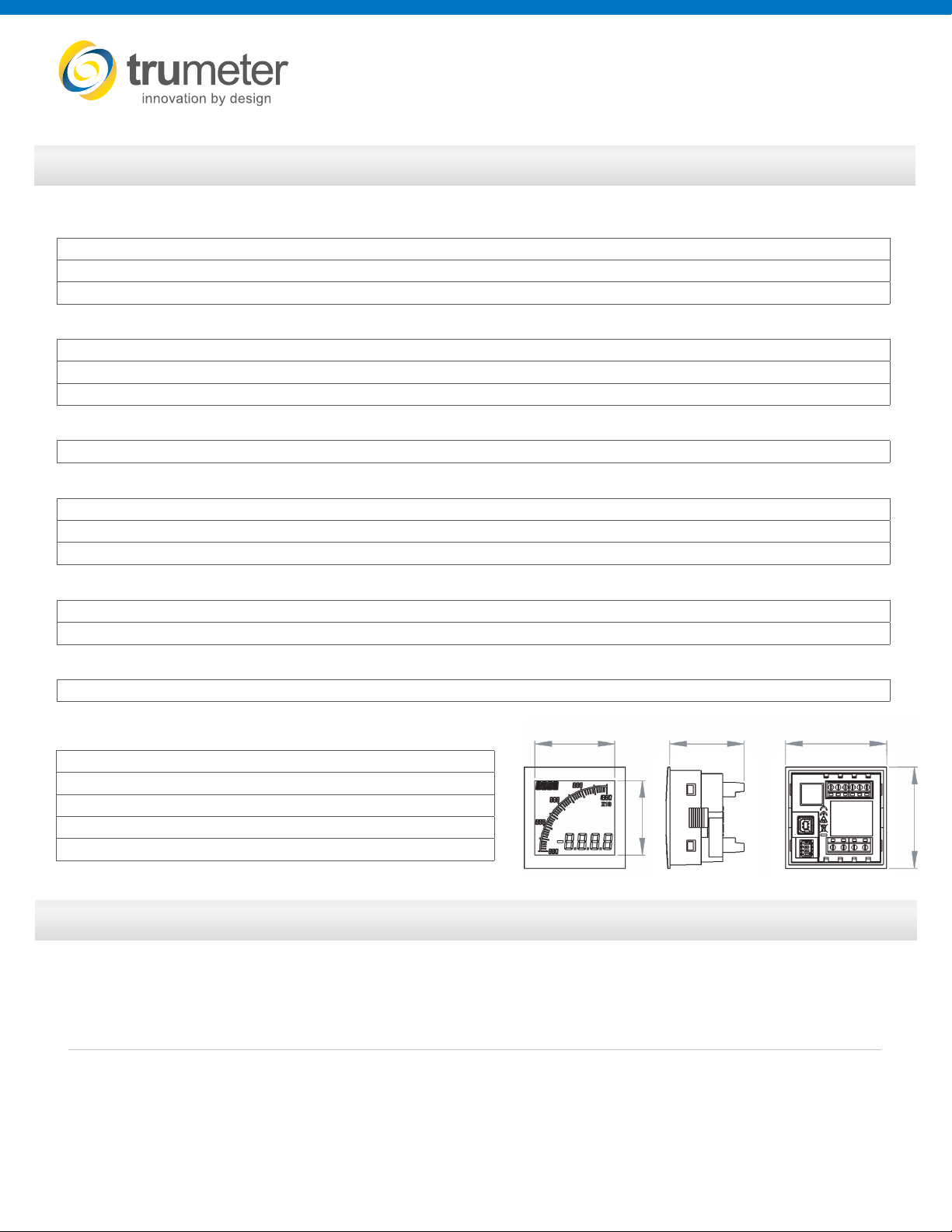

Page 2

Specications

POWER SUP PLY

Input 100 - 240VAC

Max Power 1.6W

Supply Frequency 47-63Hz

ENVIRONMENTAL

Temperature - operating -10 to +60°C

Temperature - storage -40 to +70°C

IP rating (from the front) IP65, NEMA type 4 and NEMA type 12

DISPL AY

User Congurable Backlight Colours Red, Green, White

ANALOGUE OUTPUT

Output 4-20 mA

Accuracy 0.50 %

Resolution 0.02 mA

OPEN COLLECTOR OUTPUTS

Max voltage (open collector outputs) 34 VDC

Max current (open collector outputs) 500 mA

CERTIFICATION

MECHANICAL

Dimensions 72mm x 72mm x 53mm [2.83” x 2.83” x 2.09”]

Cutout 68mm x 68mm [2.68” x 2.63”]

Connection Type Screw Terminals

Wire Gauge 0.8mm² - 3.3mm² (18AWG to 12AWG)

Weight 180 grams

Part Numbers

APM-M2-APO APM MULT M2 100-240VAC Positive LCD

APM-M2-ANO APM MULT M2 100-240VAC Negative LCD

022128-01 USB Cable

CE, RoHS, UL

57mm [2.24”] 53mm [2.09”] 72mm [2.84”]

72mm [2.84”]
