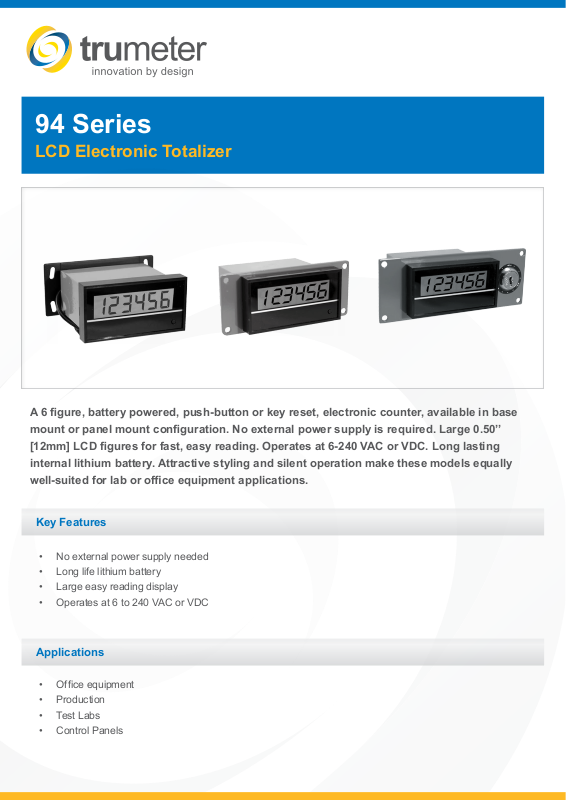

94 Series
LCD Electronic Totalizer
A 6 gure, battery powered, push-button or key reset, electronic counter, available in base
mount or panel mount conguration. No external power supply is required. Large 0.50’’
[12mm] LCD gures for fast, easy reading. Operates at 6-240 VAC or VDC. Long lasting
internal lithium battery. Attractive styling and silent operation make these models equally
well-suited for lab or oce equipment applications.
Key Features
• No external power supply needed
• Long life lithium battery
• Large easy reading display
• Operates at 6 to 240 VAC or VDC
Applications
• Office equipment
• Production
• Test Lab s
• Control Panels
Specication
Figures 6 LCD gures, 0.50’’ [12mm] high
Reset Push-button, or lock and key
Speed 0-40 counts/second, (min. 12.5ms - on, 12.5ms - o)
Input 6-240VAC or VDC
Mount Base or panel
Terminations (2) #22 AWG 221°F [105° C] wire leads, 8’’ [203mm] long
Power Source Internal lithium battery
Temp. Range -14°F to +122°F [-26°C to +50°C]
Weight 18 oz. [510g]
Dimensions
1.36 [34.4]
0.88 [22.2]
Mounting holes: 0.14” x 0.24” [3.6mm x 6.1mm] slots
Part Numbers
3.81 [96.8]
3.15 [80.0]
3.23 [82.0]
3.31 [84.1]
Base Mount
1.65 [41.9]
1.75 [44.5]
2.97 [75.3]
1.75 [44.4]
1.50 [38.1]
Panel Mount/Lock & Key Reset
5.50 [139.7]
3.15 [80.0]
1.65 [41.9]
2.12 [54.0]
5.13 [130.2]
Panel cutout: 4.75 ’’ x 1.50” [76.2mm x 44.5mm]
Mounting holes: 0.17’’ [4.3mm] Dia.
Panel Mount
4.44 [112.7]
3.15 [80.0]
1.65 [41.9]
1.87 [47.6]
4.06 [103.2]
Panel cutout: 3.0” x 1.75” [76.2mm x 44.5mm]
Mounting holes: 0.17” [4.3mm] Dia.
2.90 [73.5]
1.41 [35.8]
2.90 [73.5]
1.41 [35.8]
9415-001 6 gure, base mount, push-button reset
9415-003 6 gure, panel mount, push-button reset
9415-005 6 gure, panel mount, lock and key reset
Note: Load resistor (1500 ohms 10 watts) across input terminals required when using AC sensors
94-series-DS.v.2.0 01/2017
