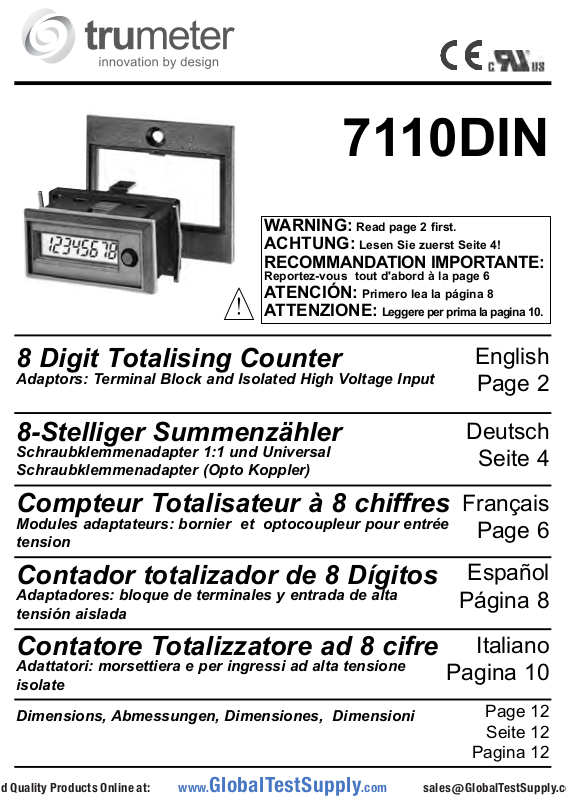

Page 1
7110DIN
WARNING: Read page 2 first.
ACHTUNG: Lesen Sie zuerst Seite 4!
RECOMMANDATION IMPORTANTE:
Reportez-vous tout d'abord à la page 6
ATENCIÓN: Primero lea la página 8
ATTENZIONE: Leggere per prima la pagina 10.
8 Digit Totalising Counter
Adaptors: Terminal Block and Isolated High Voltage Input
8-Stelliger Summenzähler
Schraubklemmenadapter 1:1 und Universal
Schraubklemmenadapter (Opto Koppler)
Compteur Totalisateur à 8 chiffres
Modules adaptateurs: bornier et optocoupleur pour entrée
tension
Contador totalizador de 8 Dígitos
Adaptadores: bloque de terminales y entrada de alta
tensión aislada
Contatore Totalizzatore ad 8 cifre
Adattatori: morsettiera e per ingressi ad alta tensione
isolate
Dimensions, Abmessungen, Dimensiones, Dimensioni
017371-01 Issue July 2016
www.GlobalTestSupply.com
English
Page 2
Deutsch
Seite 4
Français
Page 6
Español
Página 8
Italiano
Pagina 10
Page 12
Seite 12
Pagina 12
Page 2
Specification
24cm (9.45")
+V
+V
+V
+V
<=10KHz
18V
<=30Hz
V
<=18V
V
<=18V
Battery
Non-replaceable Lithium battery.
Expected life 10 year at 20°C
Display
8 digit black LCD, 7mm characters
Count Range
99999999 - rollover to 0
Operating temperature
-10°C to +60°C
Storage temperature
-20°C to +60°C
WARNING
THIS UNIT CONTAINS A LITHIUM BATTERY AND MUST NOT BE DISPOSED OF
IN A FIRE OR EXPOSED TO TEMPERATURES BELOW -20 C OR ABOVE +70 C.
Altitude
Up to 2000m
Relative Humidity
80% max up to 31°C, decreasing to
50% max at 40°C
Sealing
Front panel sealed to IP65 when used
with clip mount and gasket provided.

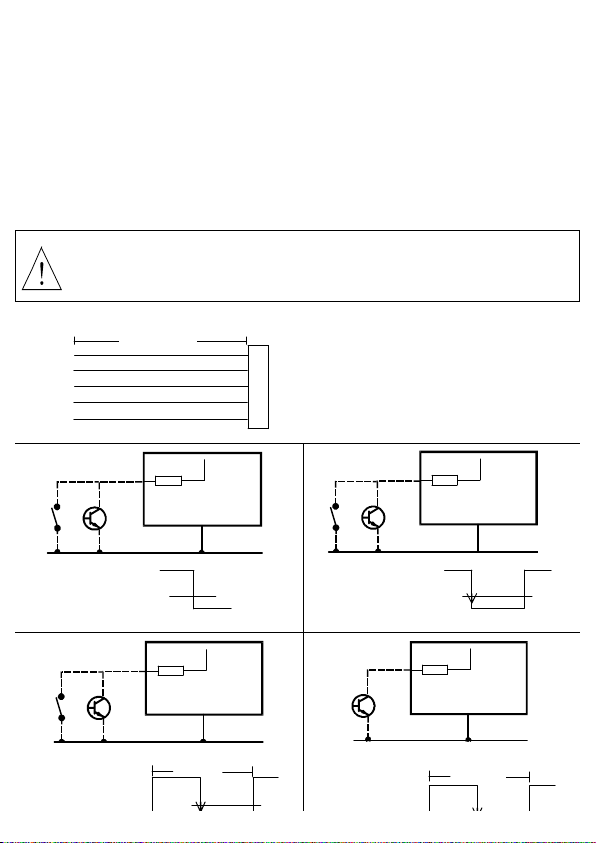

Connections
1
Black
Green
Yellow
Brown
Blue
Common
2
Enable Reset Button
3
External Reset
Low Speed Count Input
4
High Speed Count Input
5
}
} 18V
} max
}
Enable Reset
Button
(TTL/CMOS)
Low Speed Count
(Contact Closure/
Open Collector)
2
2
Disable
4
internal
resistor
1
External Reset
0.7
Enable
(Contact Closure/
Open Collector)
internal
resistor
1
=>15mS
www.GlobalTestSupply.com
<=18
0.7V
High Speed Count
(TTL/CMOS)
3
internal
resistor
1
=>15mS
0.7V
5
internal
resistor
1
<=
=>50 Sµ
0.7V
Page 3
Please note:
Any signal cables connected to this device must not exceed 30 metres in
length. If signal cables are installed that are routed outside the building, it will
be necessary to install additional surge protection devices.
Mounting
using Built-in Fixing Clip
using 50 x 25 Adaptor
using Screw-Fixed Bezel
Panel Cutout Size Maximum Panel
Thickness
45.5 x 22.5mm (1.78 x 0.88") 7.5mm
50.3 x 25.3mm (1.98 x 0.99") 7.5mm
<= 48 x 33mm ----
www.GlobalTestSupply.com
3
Page 4

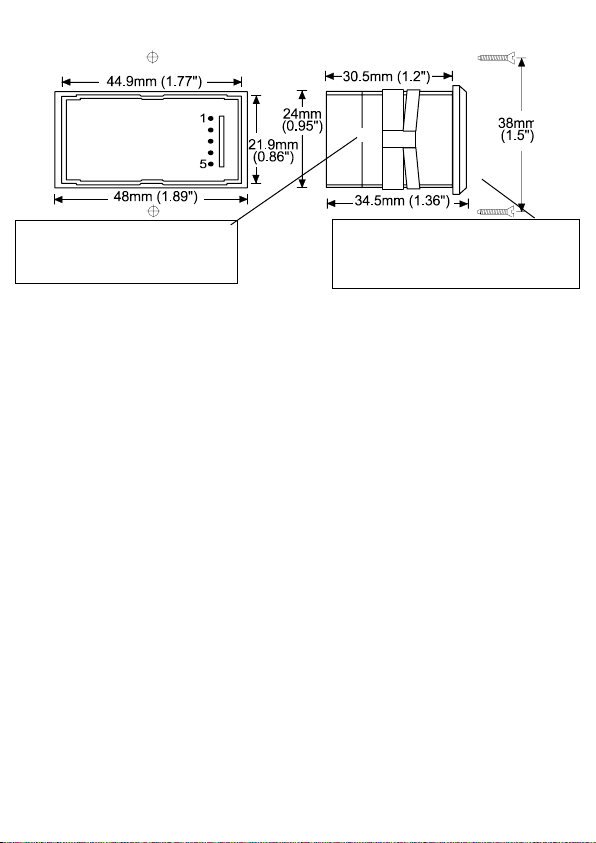

Dimensions, Abmessungen, Dimensiones, Dimensioni
Fixing Clip, Befestigungsklammer
Clip de fixation, Accesorio de
fijación, Clip di fissaggio
Screw-fixed bezel, Frontrahmen mit
Schraubenbefestigung,
Cadre à vis, Marco fijado con tornillos,
Cornice a vite
www.GlobalTestSupply.com
