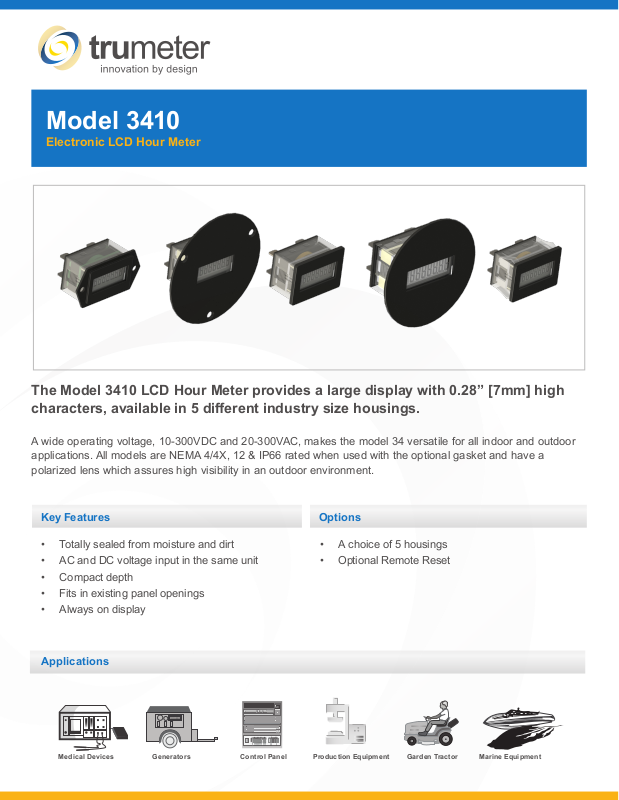

Model 3410
Electronic LCD Hour Meter
The Model 3410 LCD Hour Meter provides a large display with 0.28” [7mm] high
characters, available in 5 dierent industry size housings.
A wide operating voltage, 10-300VDC and 20-300VAC, makes the model 34 versatile for all indoor and outdoor
applications. All models are NEMA 4/4X, 12 & IP66 rated when used with the optional gasket and have a
polarized lens which assures high visibility in an outdoor environment.
Key Features
• Totally sealed from moisture and dirt
• AC and DC voltage input in the same unit
• Compact depth
• Fits in existing panel openings
• Always on display
Applications
Options
• A choice of 5 housings
• Optional Remote Reset
Medical Devices Generators Control Panel Production Equipment Garden Tractor Marine Equipment
Specications
1.750
44.45
27.90
0.157
4
C
L
1.09
27.6
0.94
23.9
0.78
19.70
1.44
36.6
1.60
40.60
1.10
27.90
1.09
27.6
0.94
23.9
0.25
6.35
0.88
22.40
0.78
19.70
0.152
3.85
2.87
72.90
1.26
32.13
0.63
16.07
2.19
55.65
1.09
27.6
1.98
50.30
0.03
0.70
0.78
19.70
2.21
56.1
1.98
50.3
0.776
19.70
0.03
0.70
0.78
19.70
0.965
0.949
24.50
24.10
1.476
1.461
37.50
37.10
0.78
Dimensions
Display LCD with large 0.28” [7mm] high gures black on light
background
Run Indicator Blinking decimal point
Reset Remote and non-reset
Resolution 0.1 Hour displayed
Accuracy ± 0.1% @ room temperature
± 0.2% over the specified temperature range
Records & Displays 9999999.9 (hours and 1/10ths)
Inputs 10 -30 0VDC and 20-300VAC - 50/60Hz <2mA
VIH 20VAC or 10VDC minimum
VIL 3VAC or 3VDC maximum
Power Self-powered - battery life 10+ years
Terminations Standard 0.250” [6.4mm] spades
Enclosure Totally sealed from moisture and dirt. NEMA 4/4X, 12 & IP66
compliant from the front when properly mounted using the
optional gasket. (Not applicable in the Snap-In Model)
Environmental:
Tem p .
Operating Temp.: -10˚C to +60˚C [14˚F to +140˚F]
Storage Temp.: -20˚C to +70˚C [-4˚F to +158˚F]
Humidity
Vibration
95% RH per SAE J1378
20g @ 10 to 80 Hz per SAE J1378
Shock: 4 4 to 55g’s per SAE J1378
Dielectric
Compliance
1000VAC 50/60 Hz for 1 minute (34x0 models only)
Compliant to the European WEEE and RoHS Directives
Sealing Totally sealed
EMC Compliance EN61326
Protection Against Alternator load dump: 150V EMI (Electromagnetic Interface):
+400V @ 500Hz inductive switching and reverse polarity
Weight 1 oz. [28g]
Approvals UL & cUL recognized (le # ELIY2.E36690), CE, SAE, NEMA
4/4X/IP66 compliant (not including
3410-2210)
TWO HOLE MOUNT
RECTANGULAR FLUSH
MOUNT AND SNAP-IN MODEL
19.70
2.21
56.1
THREE HOLE MOUNT
0.776
19.70
0.03
0.70
ROUND FLUSH MOUNT
Notes:
1. When inter facing the Model 34 with a Solid State Relay or AC Sensor,
the leakage current needs to be considered.
2. Exceeding the Absolute Voltage Range and the Absolute Maximum
Limits may result in damge to the unit.
50.3
1.98
Part Numbers
Part Number Description Gasket
3410-0000 AC/DC Hour Meter 2-hole case 1/4” spade terminal non-reset 5003-010
3410-0010 AC/DC Hour Meter 2-hole case 1/4” spade terminal remote-reset 5003-010
3410-1000 AC/DC Hour Meter 3-hole case 1/4” spade terminals non-reset 5003-017
3410-1010 AC/DC Hour Meter 3-hole case 1/4” spade terminals remote-reset 5003-017
3410-2000 AC/DC Hour Meter ush rectangular case 1/4” spade terminals non-reset 5003-009
3410-2010 AC/DC Hour Meter ush rectangular case 1/4” spade terminals remote-reset 5003-009
3410-3000 AC/DC Hour Meter round SAE case 1/4” spade terminals non-reset 5003-009
3410-3010 AC/DC Hour Meter round SAE case 1/4” spade terminals remote-reset **special order** MOQ=50pcs 5003-009
3410-5000 AC/DC Hour Meter snap-in case 1/4” spade terminals non-reset
3410-5010 AC/DC Hour Meter snap-in case 1/4” spade terminals remote reset
5003-010 NEMA 4X Gasket two hole mount
5003-017 NEMA 4X Gasket three hole mount
5003-009 NEMA 4X Gasket ush rectangular and SAE round mount
3410-DS.v.3.3 07/2018
