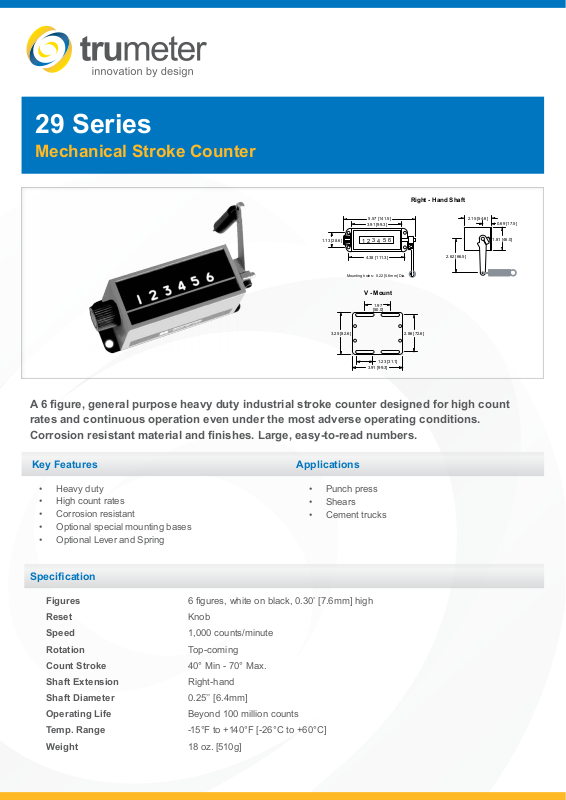

29 Series
Mechanical Stroke Counter
Right - Hand Shaft
1.13 [28.6]
4.38 [111.3]
Mounting holes : 0.22 [5.6mm] Dia.
V - Mount
3.25 [82.6]
5.57 [141.5]
3.91 [99.3]
3
4
21
1.97
[50.0]
1.23 [31.1]
3.91 [99.3]
5
6
2.86 [72.6]
2.62 [66.5]
2.15 [54.6]
0.69 [17.5]
1.81 [46.0]
A 6 gure, general purpose heavy duty industrial stroke counter designed for high count
rates and continuous operation even under the most adverse operating conditions.
Corrosion resistant material and nishes. Large, easy-to-read numbers.
Key Features
• Heavy duty
• High count rates
• Corrosion resistant
• Optional special mounting bases
• Optional Lever and Spring
Applications
• Punch press
• Shears
• Cement trucks
Specication
Figures 6 gures, white on black, 0.30’ [7.6mm] high
Reset Knob
Speed 1,000 counts/minute
Rotation Top-coming
Count Stroke 40° Min - 70° Max.
Shaft Extension Right-hand
Shaft Diameter 0.25’’ [6.4mm]
Operating Life Beyond 100 million counts
Temp. Range -15°F to +140°F [-26°C to +60°C]
Weight 18 oz. [510g]
Mechanical Rotation
Totalizing counters are used to sum the total number of cycles or inputs to a device. These counters have no “outputs”.
Totalizers can be Mechanical, Electromechanical or Electronic.
Totalizers are typically used to total cycle count, piece count, and linear length or to indicate position. Displays for
Mechanical & Electromechanical Totalizers are molded gure wheels usually displaying 0-9 digits on a contrasting
background and have a count capacity of 3-8 gures.
Mechanical Totalizers
The input for Mechanical Totalizers can be Rotary, Stroke or Rotary Ratchet. Mechanical Totalizers require no operating
power or sensor and are easy to install. For hand operated applications you need to consider our Model 46 with thumb
lever option.
Z
Basic operation of a mechanical stroke counter
The illustration (right) shows the lever in the rest position with a total shaft
rotation of X+Y+Z. Although these angles may dier from model to model,
the total shaft rotation contains a pre-travel (X), a count stroke (Y), and
an over-travel (Z). The lever must start in the pre-travel area and continue
through to the over-travel area to register a count. It is recommended that
the spring furnished with the counter be used to simplify adjustment of
count stroke to drive mechanism.
Y
X
SHAFT ROTATIONS:
Arrows indicate shaft rotation to increase count:
Left-hand top-coming:
(rotation #1)
Right-hand top-coming:
(rotation #3)
Part Numbers
Note: This illustrates rotations 2 and 3 only.
Left-hand top-going:
(rotation #2)
Right-hand top-going:
(rotation #4)
1-2936 Right-hand, top-coming, standard reset knob
V1-2936 Right-hand, top-coming, standard reset knob, V-base
200700-010S Spring and Lever Kit
29-series-DS.v.2.0 01/2017
