2300, 2401 & 2701 Series
Mechanical Length Measuring Unit
2401
2300
2701

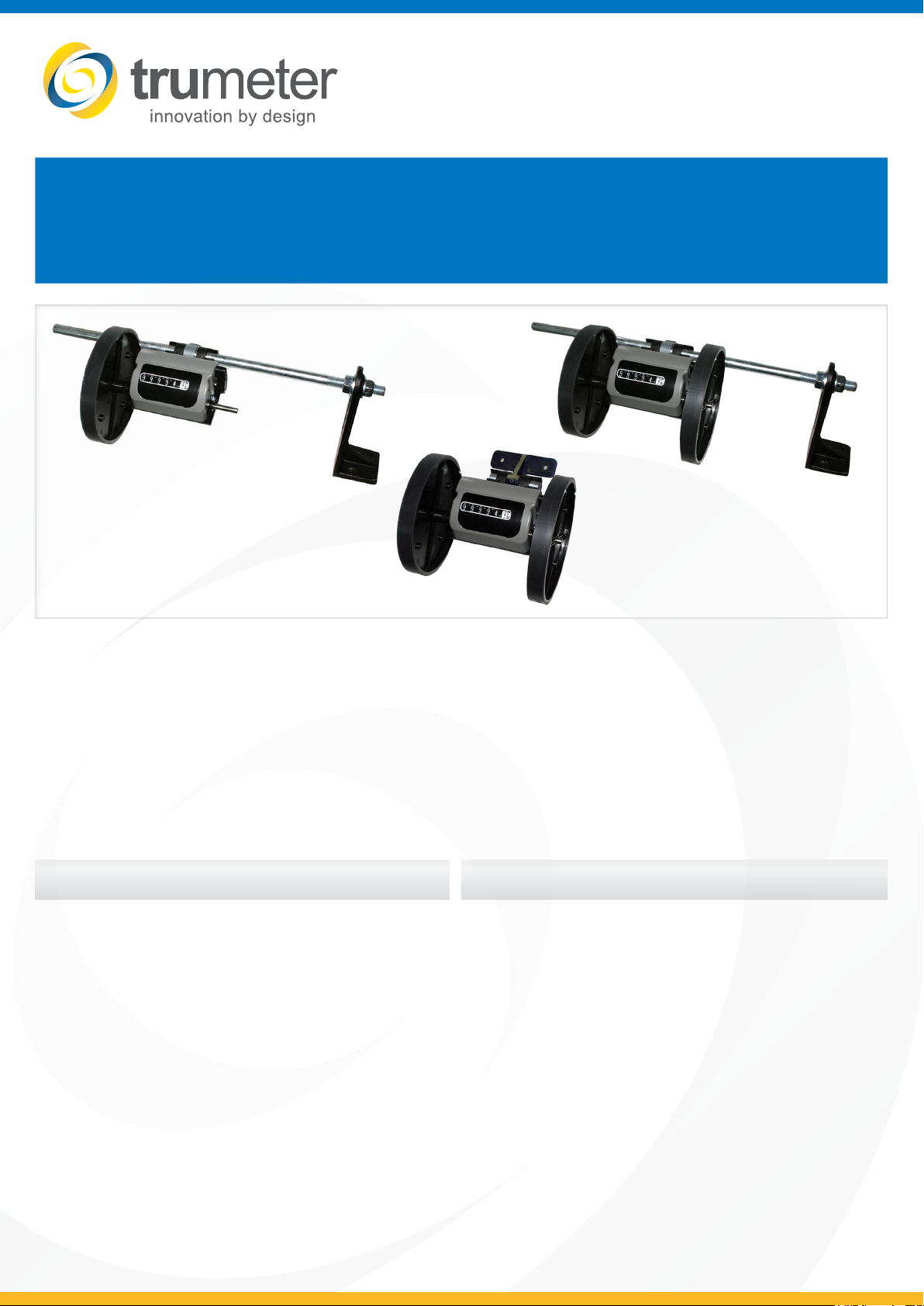

Heavy duty measuring unit, dual measuring wheels for better stability and contact, frame/
bulkhead mounted.
These rugged instruments have a wide range of applications where an accurate record of length is required. They
are strong, heavy duty units for use on calendars, tenters, rolling, ribbon winding, textile machinery and almost all
other continuous manufacturing processes. The 2701 (twin wheel) and the 2401 (single wheel) units are mounted or
hung from a supplied stay rod, 17.99” (457mm). The 2300 bolts directly onto a bulkhead or frame member. All models
incorporate a hinge arrangement on the stayrod so they can be positioned at any angle. Incorporates the 3602 counter
and measuring wheels.
Key Features
Specication
• Uses standard measuring wheels
• Can be tilted out of the way when not in use
• The 2300 bolts directly onto a bulkhead or frame
member
• The integral hinge arrangement allows the unit to
be positioned at any angle
• The measuring wheels supplied can be 0.5m or
0.3m (18in or 12in) circumference (specify when
ordering)
• The weight of the assembly holds it in contact with
the material being measured
Display 6 digit 0.25” (6.4mm)
Measurment Options Imperial or metric
Max speed of travel 3,000 RPM Mechanical
Shaft Diameter 7mm
Units of
Measurement
Packed Dimensions 2300: 180mm (7.09in) x 200mm
Nett Weight 2300: 2.81lb (1.3kg)
Metres/centimetres, yards/
eigths or feet/inches
(other measurements may be
available to special order)
(7.87in) x 270mm (10.63in)
2401/2701: 500mm (19.69in)
x 250mm (9.81in) x 100mm
(3.94in)
2401: 3.74lb (1.7kg)
2701: 4.4lb (2.0kg)

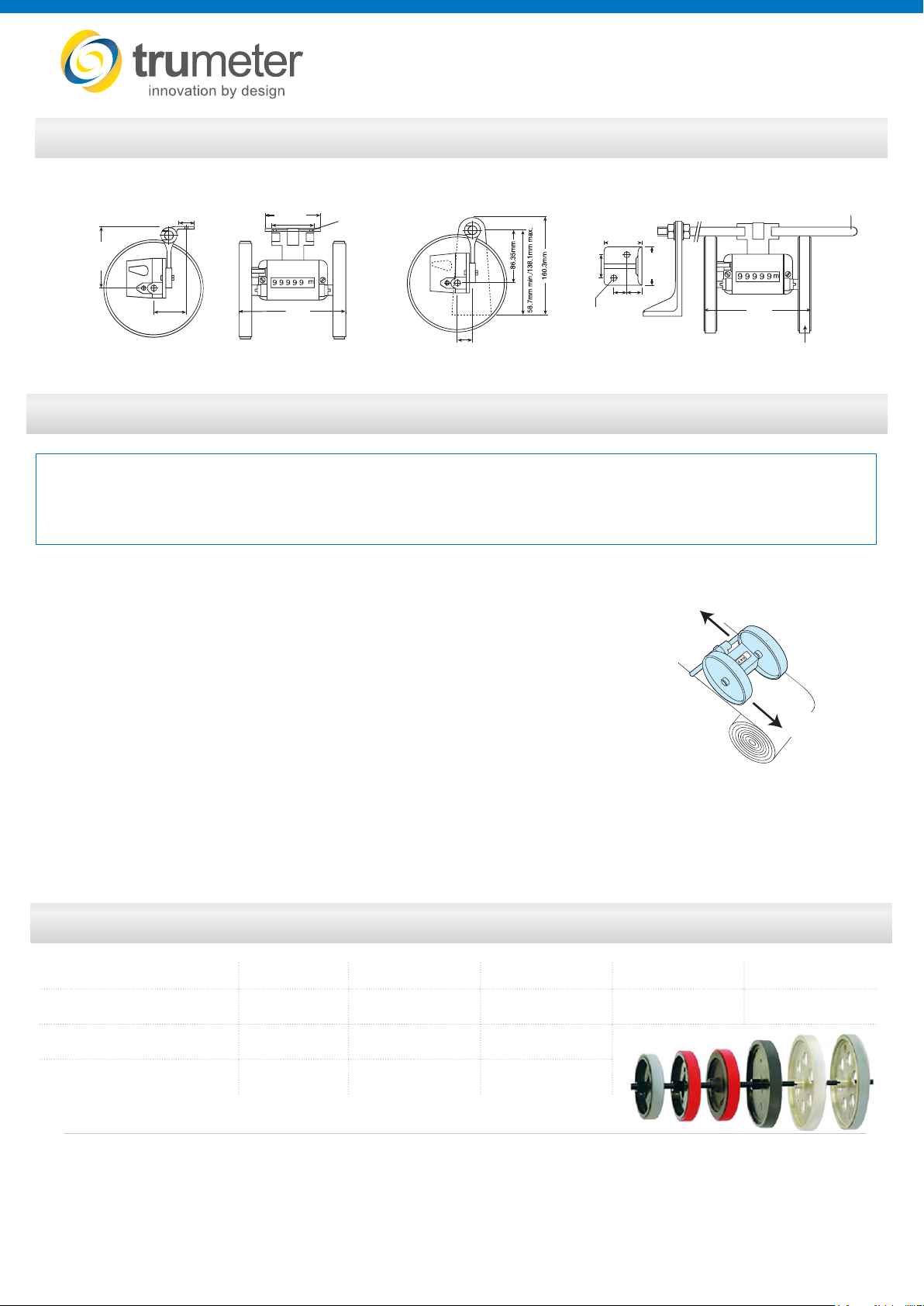

Dimensions
23.6mm centres
Product Dimensions 2300
Right hand
measuring wheel
omitted from this view
100.4mm
52.2mm
= 25mm =
89 mm
= 60 centres =
172mm
2 fixing
holes
5 DIA
Length Measuring Ordering Information
To order a 2300, 2401 or 2701:
1. Select from the three different basic units,
2. Select the wheel surface type
3. Select the wheel circumference from option
1. Select one of the units available from below
2300 Measuring counter with hinged bracket and two
wheels
2401 Measuring counter with stand, stay rod, counter
mounting bracket and one wheel
2701 Measuring counter with stand, stay rod, counter
mounting bracket and two wheels
Product Dimensions 2401 | 2701
Plan view of
stand showing
fixing holes
60.3mm
38.1mm
20.6mm 23.8mm
2 fixing
holes 9.5 DIA
63.5mm
4. Select the unit of measurement
5. Select the direction of travel
4. Select reading
MY Yards & 1/8ths
MFY Full Yards
MF Feet & Inches
MFF Full Feet
MC Metres & Centimeters
MFM Full Metres
172mm
Material Direction
(Top Coming)
2701 Only
457mm
Long stayrod
2. Select one of the measuring wheels listed below
-1 Rubber covered plastic wheel(s)
-3 Polyurethane covered plastic wheel(s)
5. Select direction of travel
C Top coming
G Top goin g
Material Direction
(Top Going)
-5 Knurled aluminum wheel(s)
Example of full order code
3. Select the circumference for the wheel(s)
1 1/2 metre wheel(s)
2701 Unit (stand, stayrod and 2 wheels) with 18” rubber covered
plastic wheels, reading yards & 1/8ths, direction top going.
2 1/3 metre wheel(s)
3 18 inch wheel(s)
The full order code is: 2701-13MYG
4 12 inch wheel(s)
Measuring Wheel Ordering Information
Material Width 12” circumference 18” circumference 1/3m circumference 1/2m circumference
Rubber Covered Plastic 5/8” (16mm) 007571 007573 007905 007574
Polyurethane Covered Plastic 5/8” (16mm) 011105 011106
Knurled Aluminum 5/8” (16mm) 001558 001622
