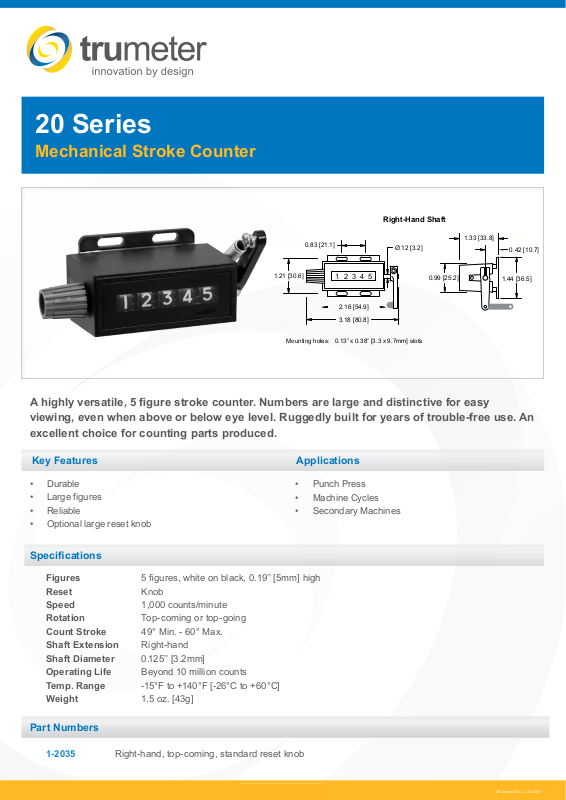

20 Series
Mechanical Stroke Counter
Right-Hand Shaft
0.83 [21.1]
1.21 [30.6]
2.16 [54.9]
3.18 [80.8]
Mounting holes: 0.13’’ x 0.38’’ [3.3 x 9.7mm] slots
5
3
4
21
Ø.12 [3.2]
0.99 [25.2]
1.33 [33.8]
0.42 [10.7]
1.44 [36.5]
A highly versatile, 5 gure stroke counter. Numbers are large and distinctive for easy
viewing, even when above or below eye level. Ruggedly built for years of trouble-free use. An
excellent choice for counting parts produced.
Key Features
• Durable
• Large figures
• Reliable
• Optional large reset knob
Applications
• Punch Press
• Machine Cycles
• Secondary Machines
Specications
Figures 5 gures, white on black, 0.19’’ [5mm] high
Reset Knob
Speed 1,000 counts/minute
Rotation Top-coming or top-going
Count Stroke 49° Min. - 60° Max.
Shaft Extension Right-hand
Shaft Diameter 0.125’’ [3.2mm]
Operating Life Beyond 10 million counts
Temp. Range -15°F to +140°F [-26°C to +60°C]
Weight 1.5 oz. [43g]
Part Numbers
1-2035 Right-hand, top-coming, standard reset knob
20-series-DS.v.2.1 04/2017
