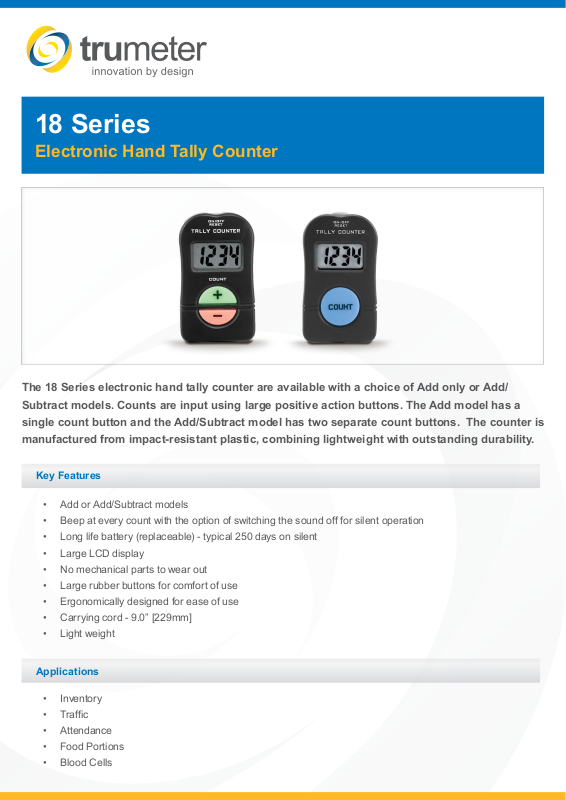

18 Series
Electronic Hand Tally Counter
The 18 Series electronic hand tally counter are available with a choice of Add only or Add/
Subtract models. Counts are input using large positive action buttons. The Add model has a
single count button and the Add/Subtract model has two separate count buttons. The counter is
manufactured from impact-resistant plastic, combining lightweight with outstanding durability.
Key Features
• Add or Add/Subtract models
• Beep at every count with the option of switching the sound off for silent operation
• Long life battery (replaceable) - typical 250 days on silent
• Large LCD display
• No mechanical parts to wear out
• Large rubber buttons for comfort of use
• Ergonomically designed for ease of use
• Carrying cord - 9.0” [229mm]
• Light weight
Applications
• Inventory
• Traf fi c
• Attendance
• Food Portions
• Blood Cells
Specications
Display 4 digit LCD 0.35” [9mm] high
Battery Operating Life 250 days (without sound)
Reset Push button
Operating Temperature +32°F to +122°F [0°C to +50°C]
Weight 0.7 oz (20g)
Color Black case with blue buttons (Add Only) or green and red buttons
(Add/Subtract)
Dimensions: 2.4” L x 1.4” W x 0.6” D [60mm x 35mm x 15mm]
Operating Instructions
• Press On/Off/Reset button to power ON the unit
• Add model - Press count button to increment count
• Add/Subtract model - Press the “+” button to Add, Press the “-” button to Subtract
• To reset counter press the On/Off/Reset button for 3 seconds
• To switch the sound Off/On at any time, hold the count button down for 3 seconds
• To turn Off, press the On/Off/Reset for 3 seconds when counter display is at “0”
Battery Replacement
• When the display gets dim, replace the battery.
• Use 1 type AG10 1.5 V or equivalent
• Observe polarity (±) during replacement
Part Numbers
E2M-1804 Electronic Hand Tally (Add only)
E3-1804 Electronic Hand Tally (Add/Subtract)
18-series-DS.v.2.0 10/2017
