MC-750
Massage
Chair
Leg Rest
Installation
Guide
Estimated Installation Time: 5 Minutes
Required Tool: Phillips-Head Screwdriver
Page 2

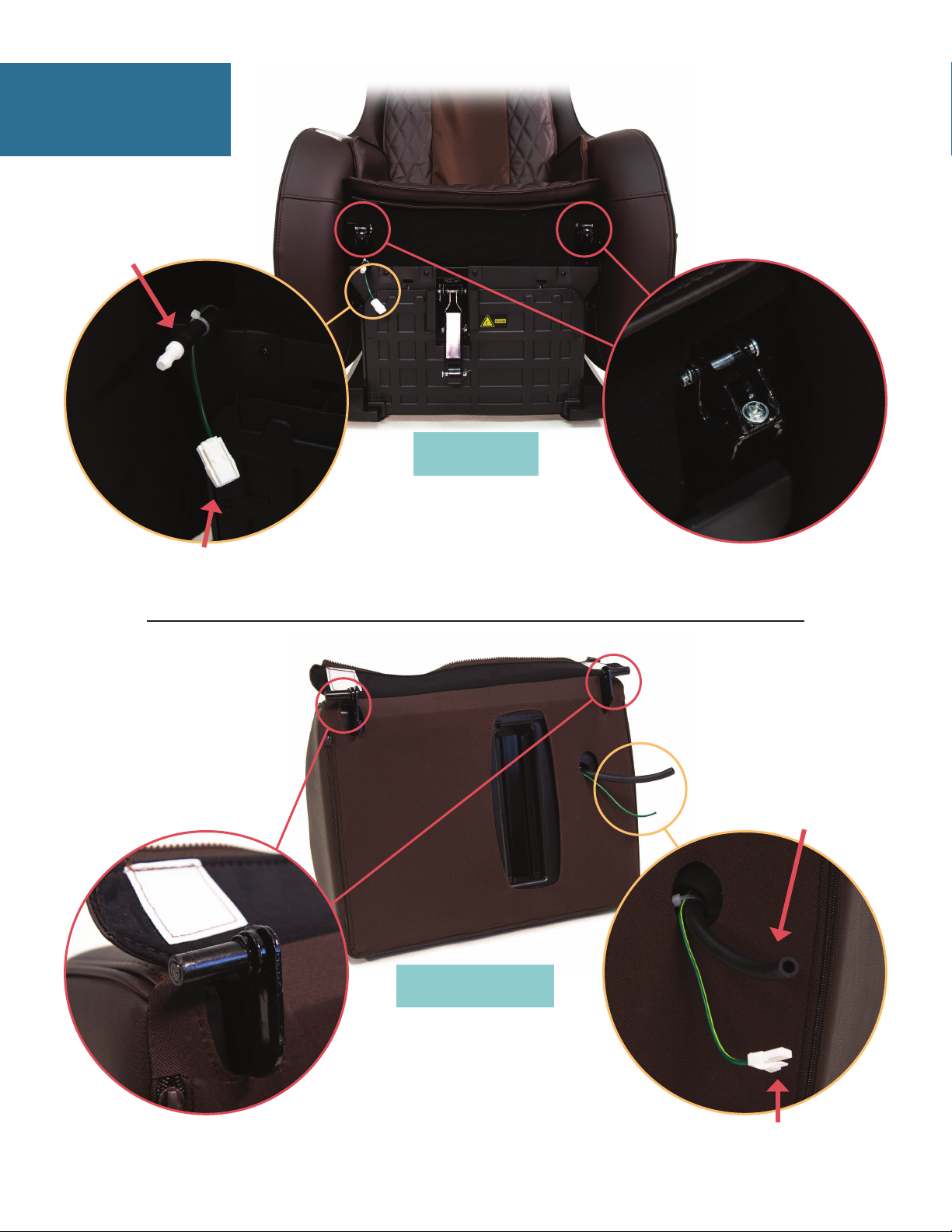

Notable
Parts
Air Compression
Tubing (Male)
Front Panel
Leg Rest Power
Plug (Female)
Leg Rest Mounting
Platform
Air Compression
Tubing (Female)
Leg Rest (Back)
Leg Rest Mounting Peg
Leg Rest Power
Plug (Male)
Page 3
Installation
STEP 1: Remove each bolt from both Leg Rest
Mounting Platforms using a Phillips-head screwdriver.
Keep the bolts somewhere safe to avoid losing them.

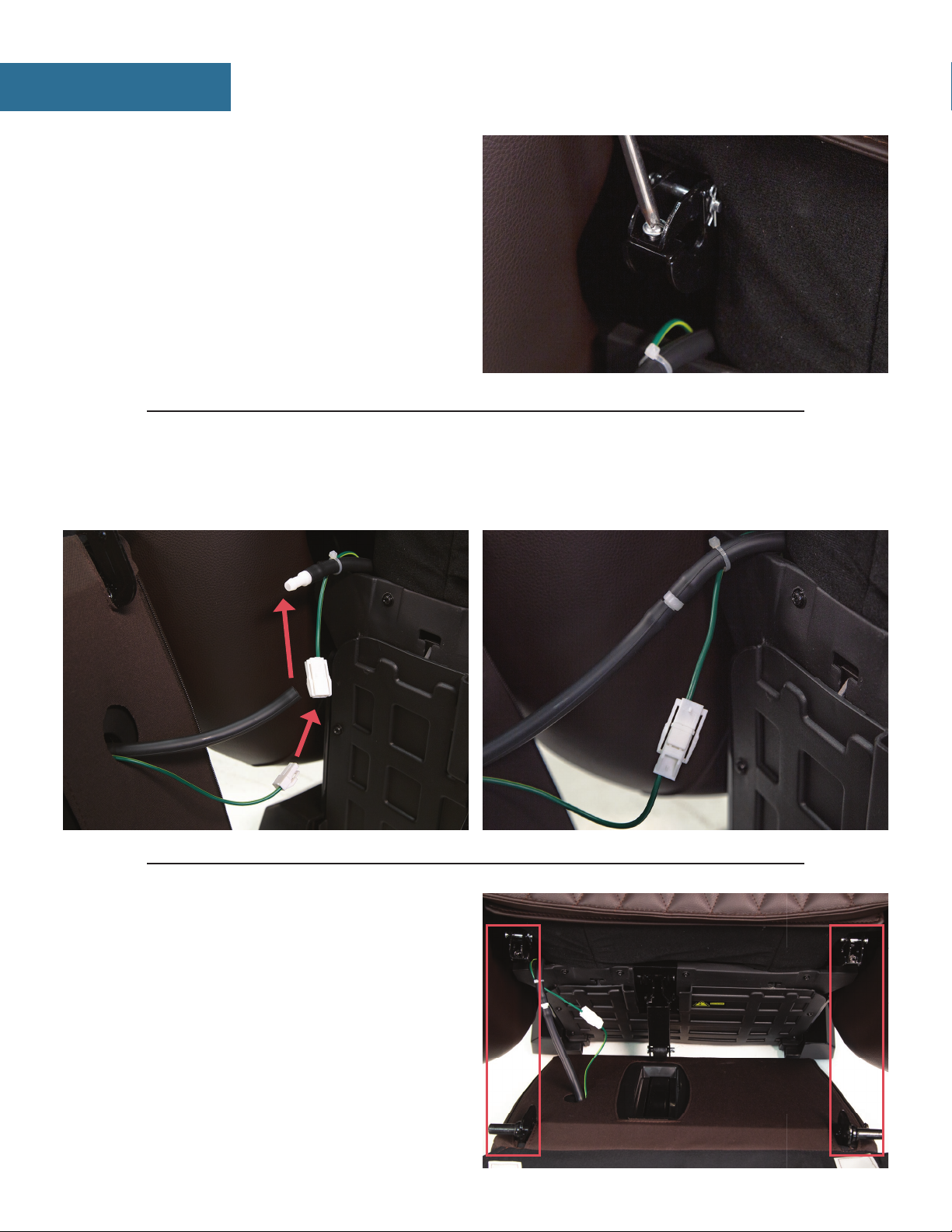

STEP 2: Line up the male and female connections for
the Air Compression Tubing and the Leg Rest Power
Plug and connect them together (A).
Ensure the Air Compression Tubing fi ts snugly in
place and the Leg Rest Power Plug is fi rmly locked
together. (B)
A B
STEP 3: Move the Leg Rest into place as shown in
the image to the right.
Line up the Leg Rest Mounting Peg with the Leg Rest
Mounting Platform in preparation to properly mount it
to the main body of the massage chair.
Page 4
Installation

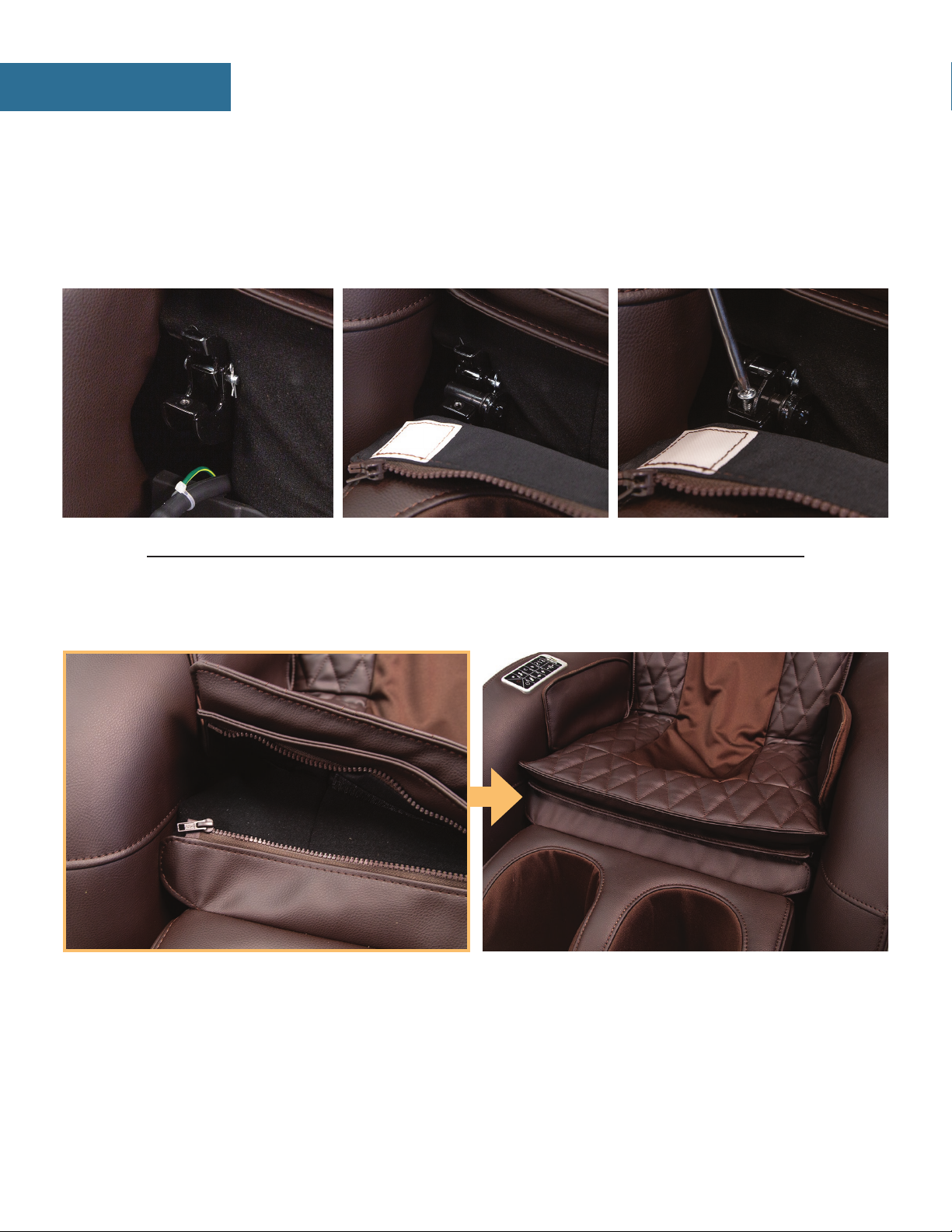

STEP 4: Lift the clamps of the Leg Rest Mounting
Platform (A) to allow you to properly mount the
Leg Rest using the Leg Rest Mounting Pegs (B)
Close each clamp after mounting the Leg Rest
and fasten them using the previously removed
screws using your Phillips-head screwdriver (C).
A B C
STEP 5 (FINAL): Fasten the Leg Rest fabric to the
seat of the massage chair using the zipper.
