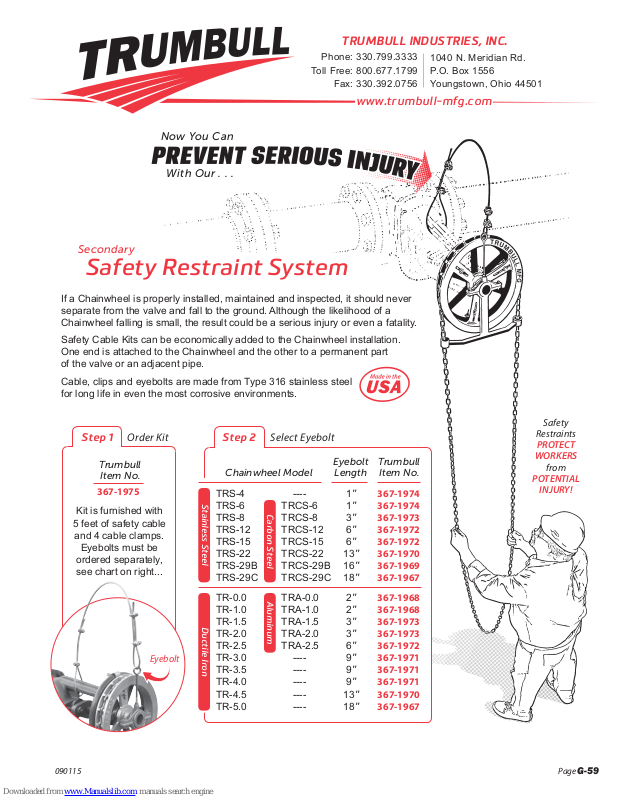

Now You Can
With Our . . .
Secondary
Safety Restraint System
If a Chainwheel is properly installed, maintained and inspected, it should never
separate from the valve and fall to the ground. Although the likelihood of a
Chainwheel falling is small, the result could be a serious injury or even a fatality.
Safety Cable Kits can be economically added to the Chainwheel installation.
One end is attached to the Chainwheel and the other to a permanent part
of the valve or an adjacent pipe.
Cable, clips and eyebolts are made from Type 316 stainless steel
for long life in even the most corrosive environments.
1040 N. Meridian Rd.
P.O. Box 1556
Youngstown, Ohio 44501
Step 1
367-1975
Kit is furnished with
5 feet of safety cable
and 4 cable clamps.
Eyebolts must be
ordered separately,
see chart on right...
Order Kit
Trumbull
Item No.
Eyebolt
Step 2
Eyebolt Trumbull
Chainwheel Model Length Item No.
TRS-4 ---- 1” 367-1974
Stainless Steel
TRS-6 TRCS-6 1” 367-1974
TRS-8 TRCS-8 3” 367-1973
TRS-12 TRCS-12 6” 367-1972
TRS-15 TRCS-15 6” 367-1972
TRS-22 TRCS-22 13” 367-1970
TRS-29B TRCS-29B 16” 367-1969
TRS-29C TRCS-29C 18” 367-1967
TR-0.0 TRA-0.0 2” 367-1968
TR-1.0 TRA-1.0 2” 367-1968
TR-1.5 TRA-1.5 3” 367-1973
Ductile Iron
TR-2.0 TRA-2.0 3” 367-1973
TR-2.5 TRA-2.5 6” 367-1972
TR-3.0 ---- 9” 367-1971
TR-3.5 ---- 9” 367-1971
TR-4.0 ---- 9” 367-1971
TR-4.5 ---- 13” 367-1970
TR-5.0 ---- 18” 367-1967
Select Eyebolt
Carbon Steel
Aluminum
Safety
Restraints
PROTECT
WORKERS
from
POTENTIAL
INJURY!
090115
Page G-59
Page 2
Toll Free: 800.677.1799
Installing the Safety Restraint is as easy as . . .
TRUMBULL INDUSTRIES, INC.
Phone: 330.799.3333
Fax: 330.392.0756
1040 N. Meridian Rd.
P.O. Box 1556
Youngstown, Ohio 44501
www.trumbull-mfg.com

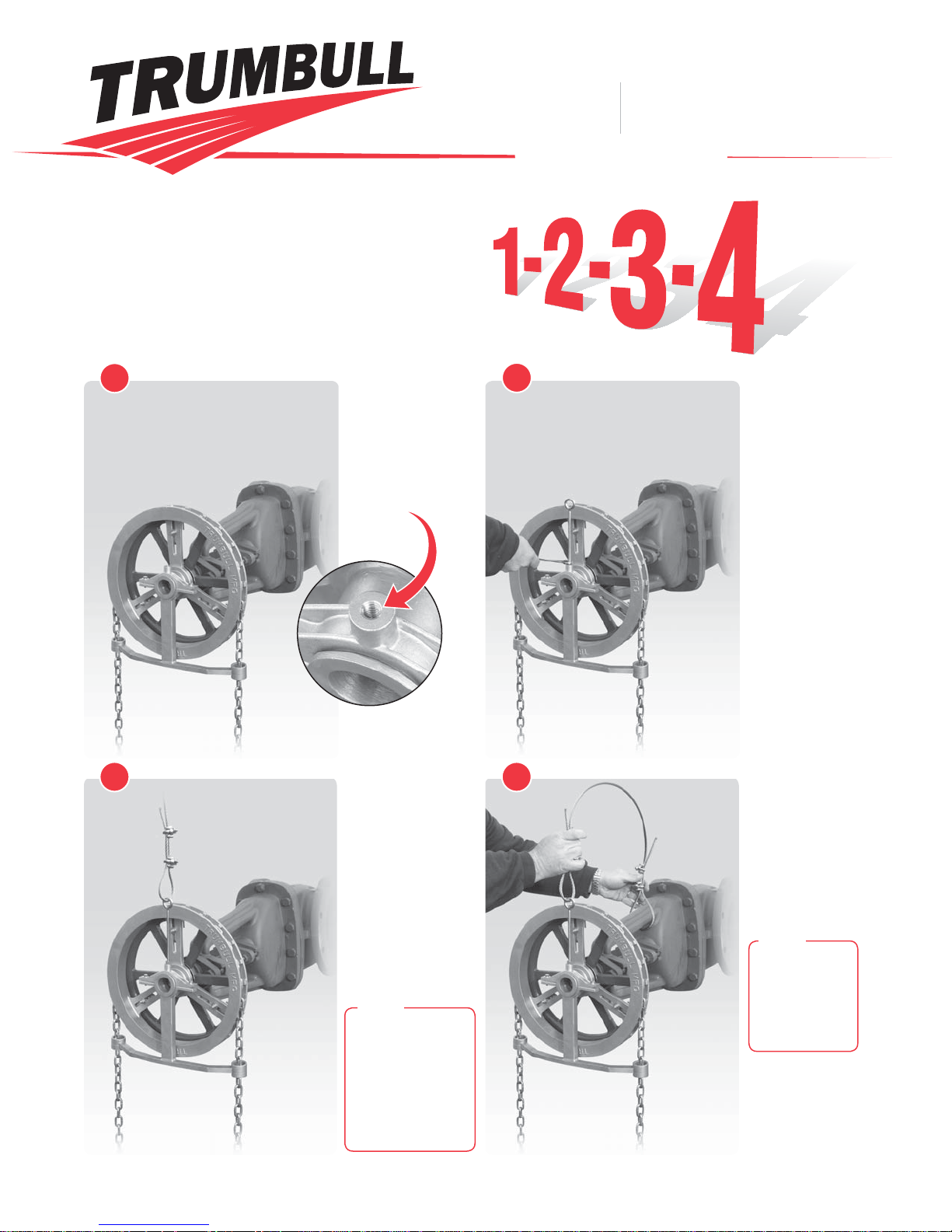

3
1
Typical
chainwheel
installation.
Safety cap is
threaded to
accept eyebolt.
2
Install safety
cable eyebolt
and use jam
nut to secure
in place.
4
Loop cable
through eyebolt
leaving about 6”
excess.
Install one cable
clamp about 1”
from end, and
the second
clamp as close
to the eyebolt
as possible.
Note
Eye of eyebolt
must be parallel
to Chainwheel
and u-bolt nuts
should face
AWAY from the
Chainwheel.
Loop other end
of cable around
a secure object.
Cable can be
attached to yoke
of valve or an
adjacent pipe.
Note
Tighten all
four clamp
nuts evenly
to 15 ft-lb
minimum.
090115
