TRUlink 39986 User Manual

1

U

SER GUIDE

VGA W/AUDIO OVER CAT5 EXTENDER

Model: 39986(remote unit)

1

Introduction................................................................................................................................................2

Features.....................................................................................................................................................3

System Requirements...................................................................................................................................4

Package Contents......................................................................................................................................5

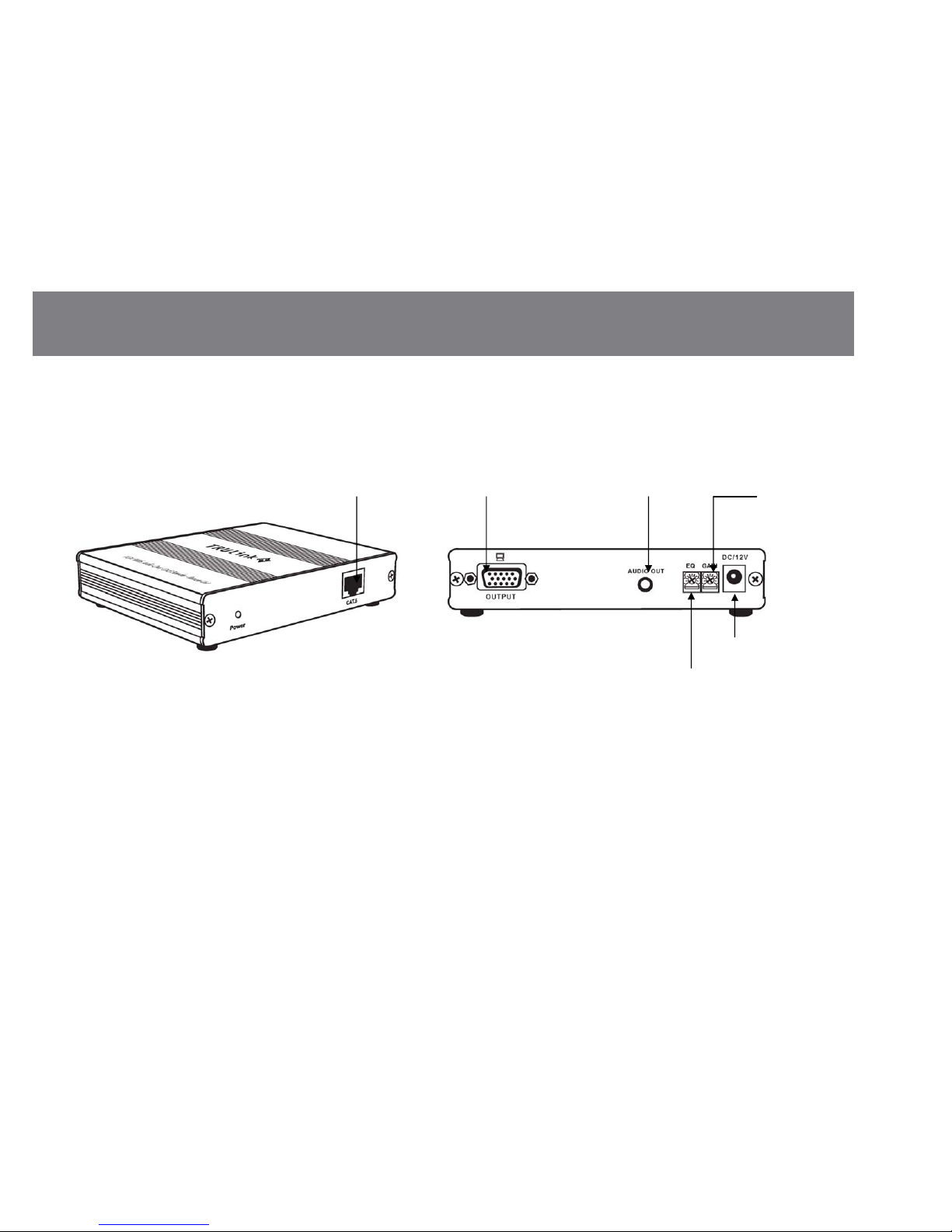

Device Overview.........................................................................................................................................6

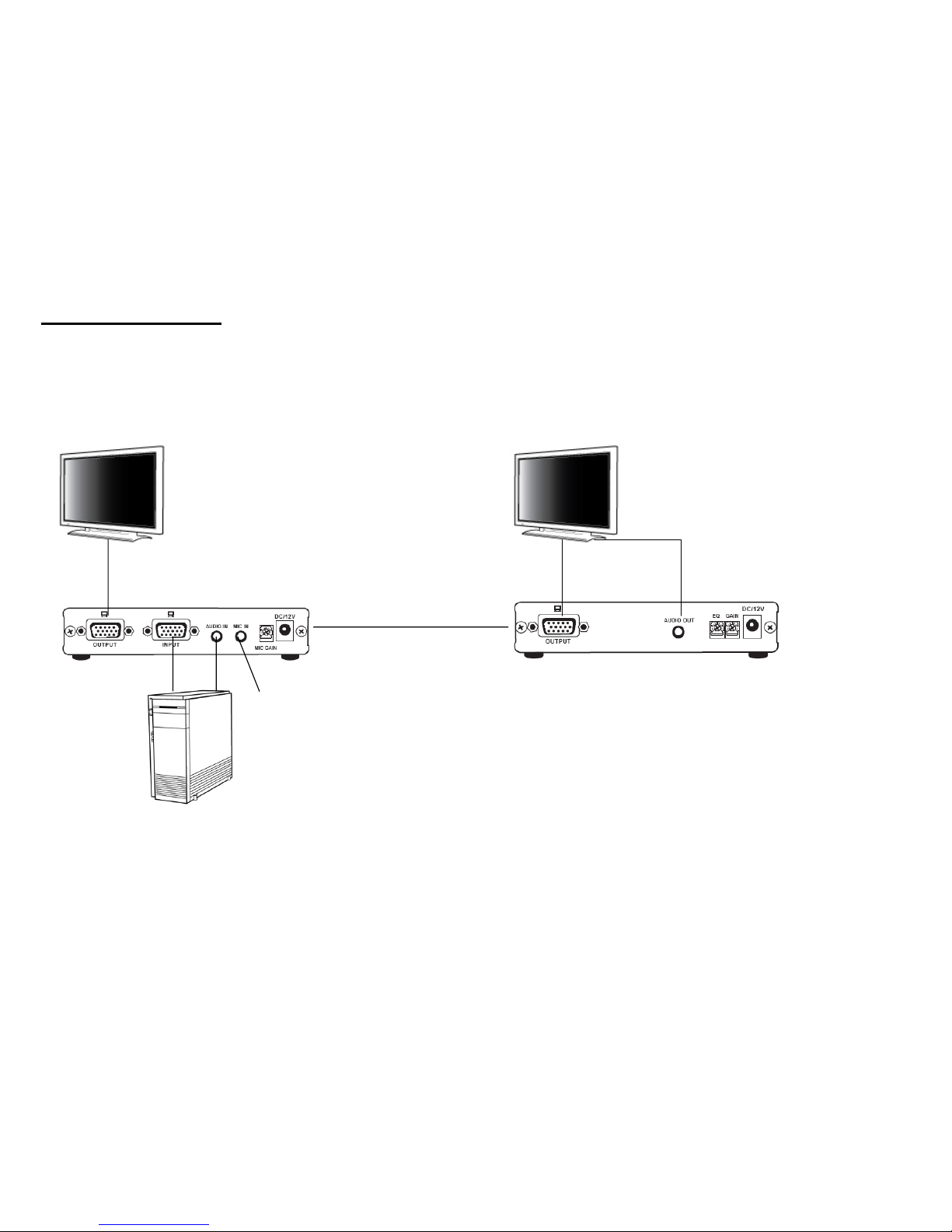

Device Installation ......................................................................................................................................7

Troubleshooting..........................................................................................................................................11

Technical Specifications..........................................................................................................................12

Cables To Go One Year Warranty............................................................................................................13

Important Safety Information.....................................................................................................................14

TABLE OF CONTENTS

2

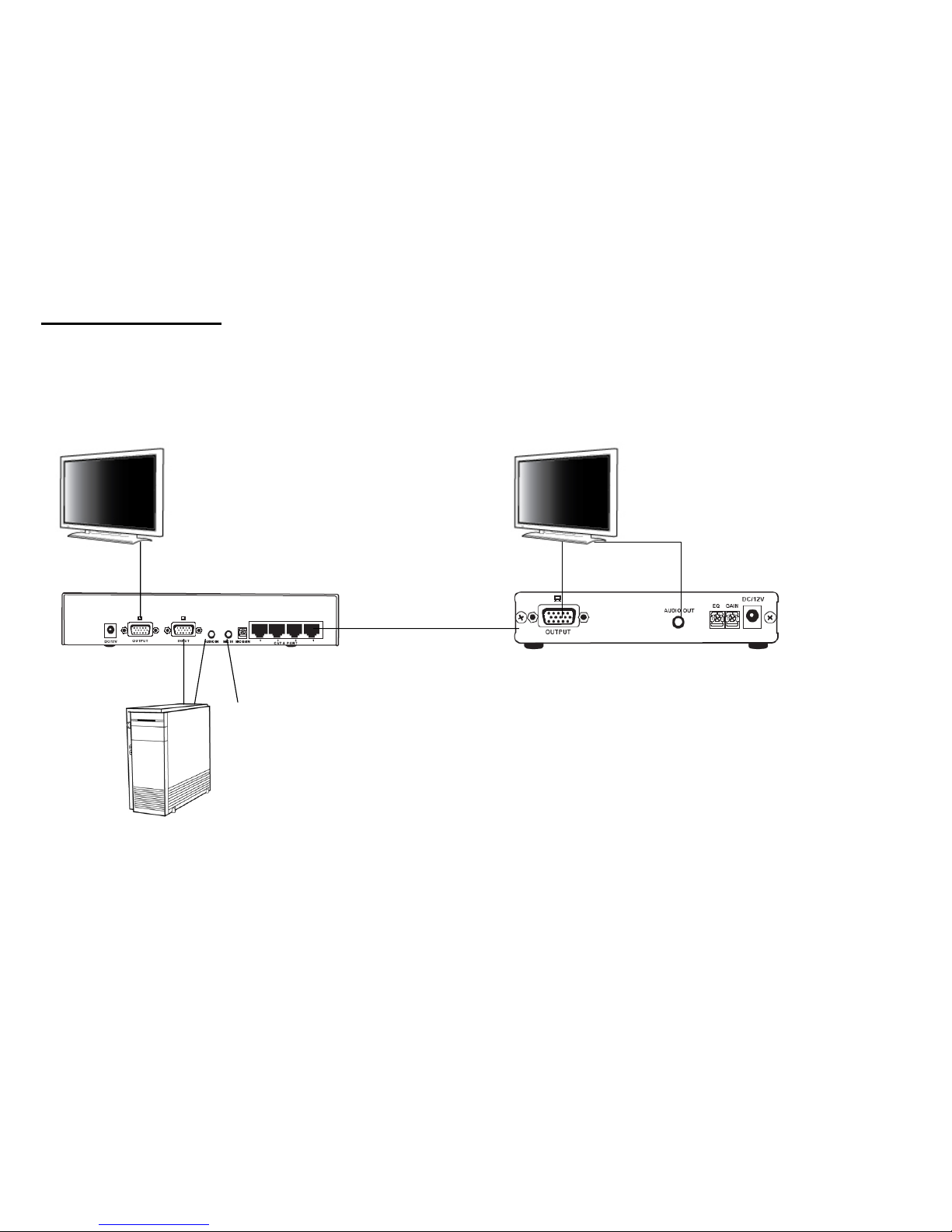

Thank you for purchasing the TruLink™ VGA w/Audio over Cat5 Extender Remote Unit. The Extender
Remote Unit when paired with the Extender Base Unit is a robust solution that allows you to extend your
VGA and audio signal up to 300 meters (1000 feet) over a Cat5E Unshielded Twisted Pair (UTP) cable.
This solution is ideal for applications where your VGA monitor needs to be placed further than the average
100 foot VGA cable limitation. Driving VGA and audio signals over Cat5E allows you to take advantage of
your UTP cable infrastructure already installed for a cost-effective and reliable installation. With the TruLink
VGA w/Audio over Cat5 Extender, you can place your display across the room, on another floor, or in
another building while your computer remains in a convenient location. It is recommended that you read

this guide thoroughly before use, and retain for future reference.

INTRODUCTION

3

 Extend your analog video and audio signals up to 300 meters (1000 feet)
 Cat5E UTP cabling enables easy and cost effective in-wall installation
 Supports the following resolutions using Cat5E* cabling:

100M 1280x1024
180M 1024x768
200M 800x600
300M 640x480

FEATURES

4

 Base Unit- Part #39984 or #39985 (sold separately)
 Cat5E UTP Cable
 HD15 and 3.5mm audio connection on computer
 HD15 and 3.5mm audio connection on each monitor, projector, or other display device
 HD 15 male to male cables for the computer and each display device connected and 3.5mm audio

cables for each audio output source connected

SYSTEM REQUIREMENTS
