TRUlink 29594 User Manual

1

USER GUIDE

WIRELESS USB TO AUDIO KIT

Model: 29594

1

Introduction.................................................................................................................................................2

Features......................................................................................................................................................3

System Requirements.................................................................................................................................4

Package Contents.......................................................................................................................................5

Device Overview

Wireless USB Host Adapter...............................................................................................................6

Wireless Audio Device Adapter…………………………………………………………………………….7

Software/Device Installation........................................................................................................................8

Using the Wireless USB to Audio Kit........................................................................................................15

Frequently Asked Questions.....................................................................................................................19

Technical Specifications............................................................................................................................20

Cables To Go Warranty............................................................................................................................21

Important Safety Information.....................................................................................................................22

Appendix

Association with other devices.........................................................................................................23

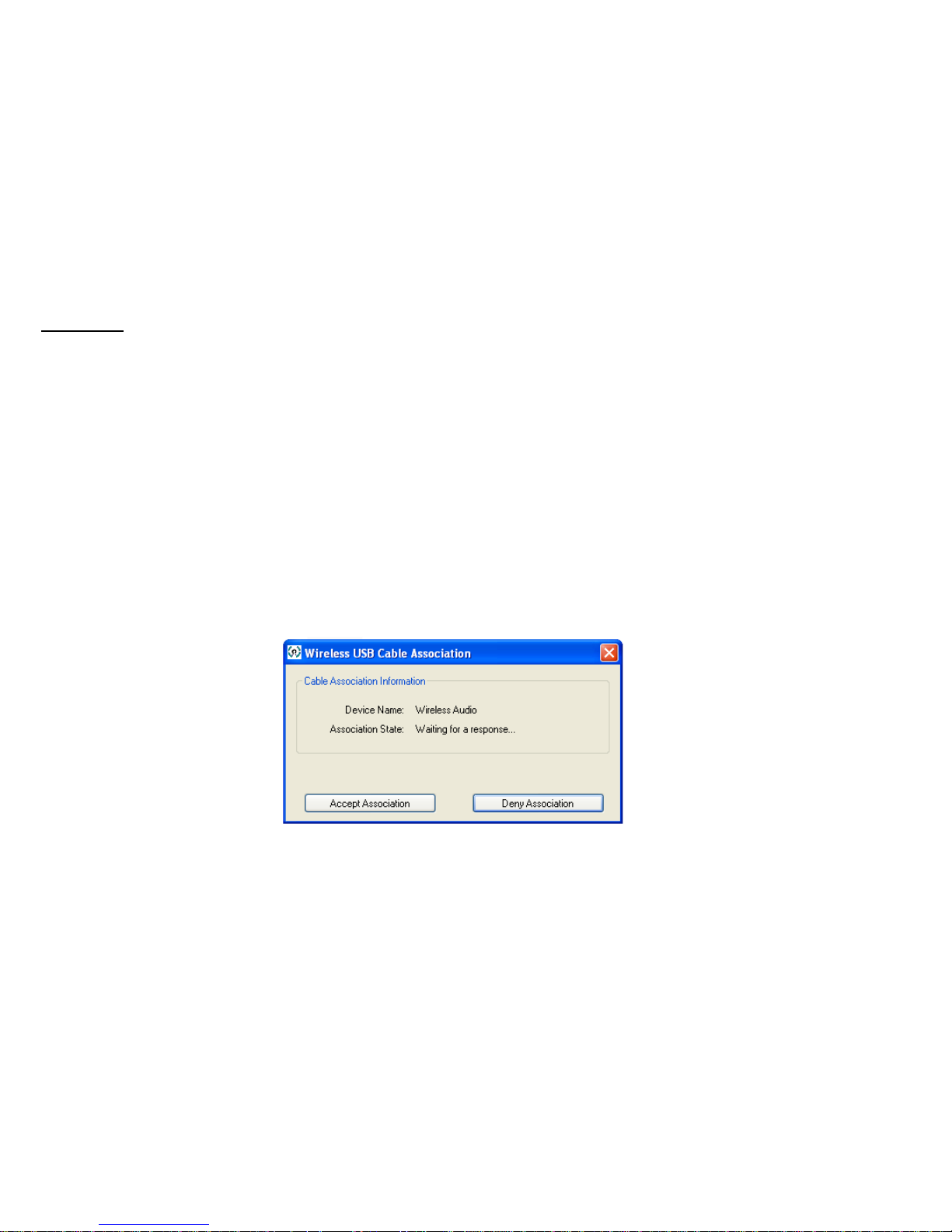

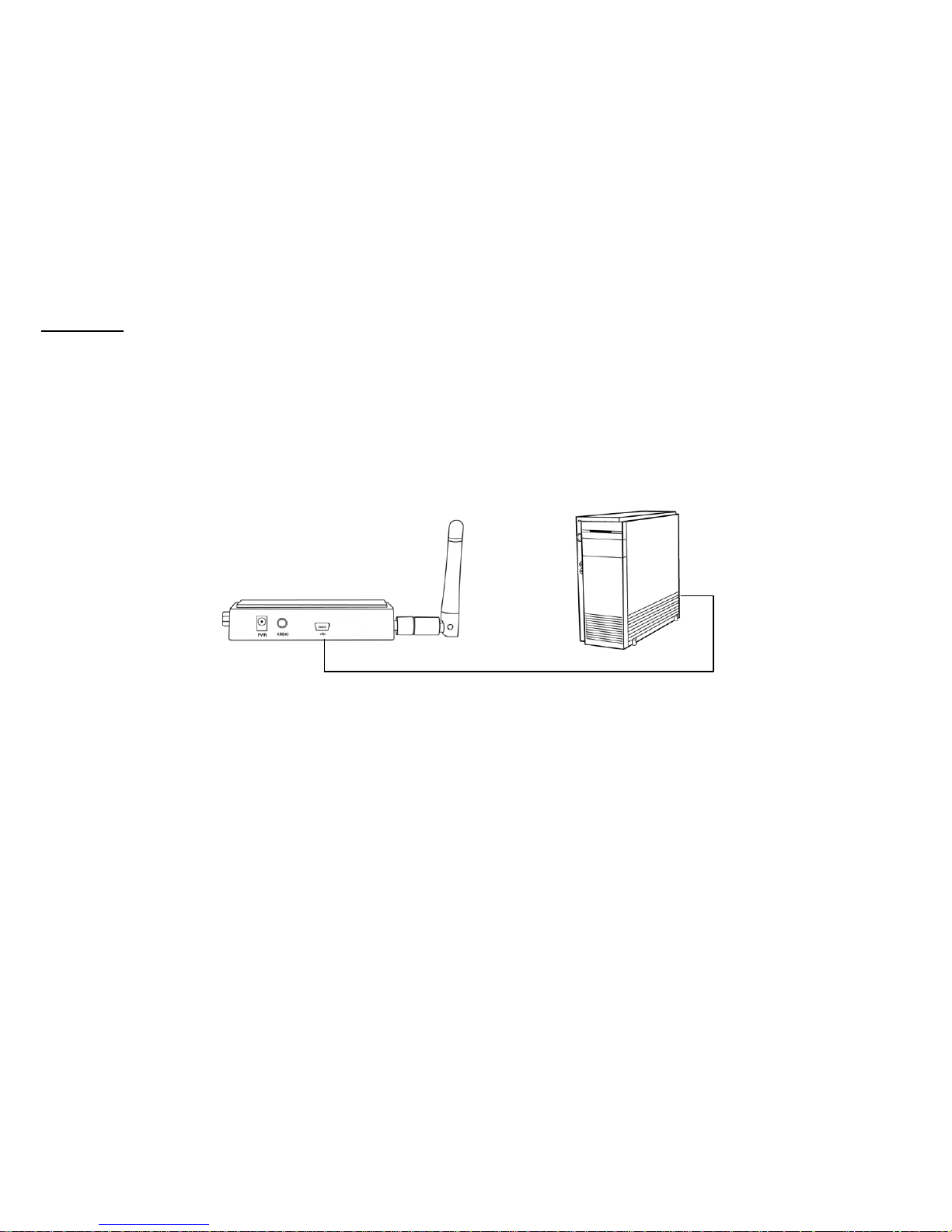

Cable Association Procedure...........................................................................................................24

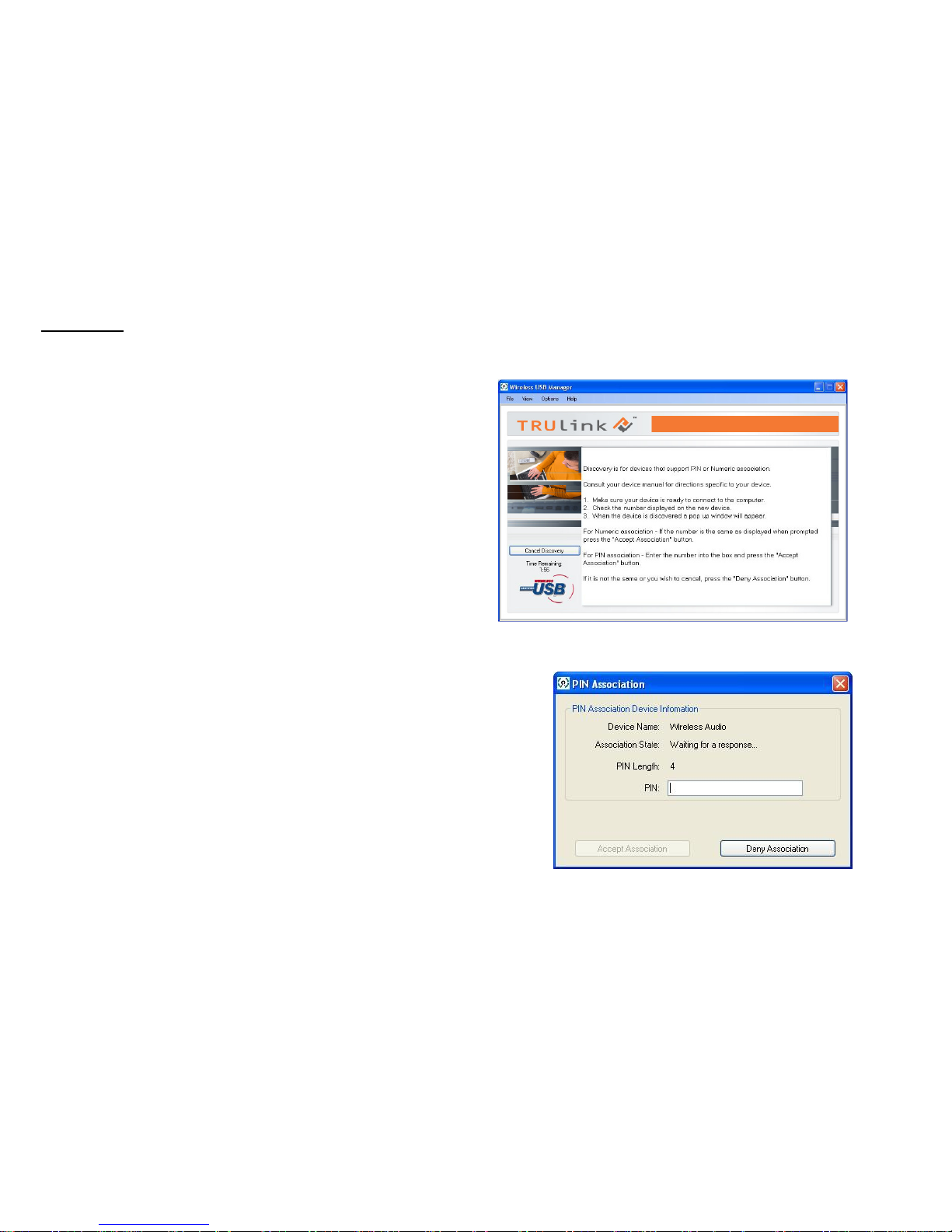

PIN Association Procedure..............................................................................................................26

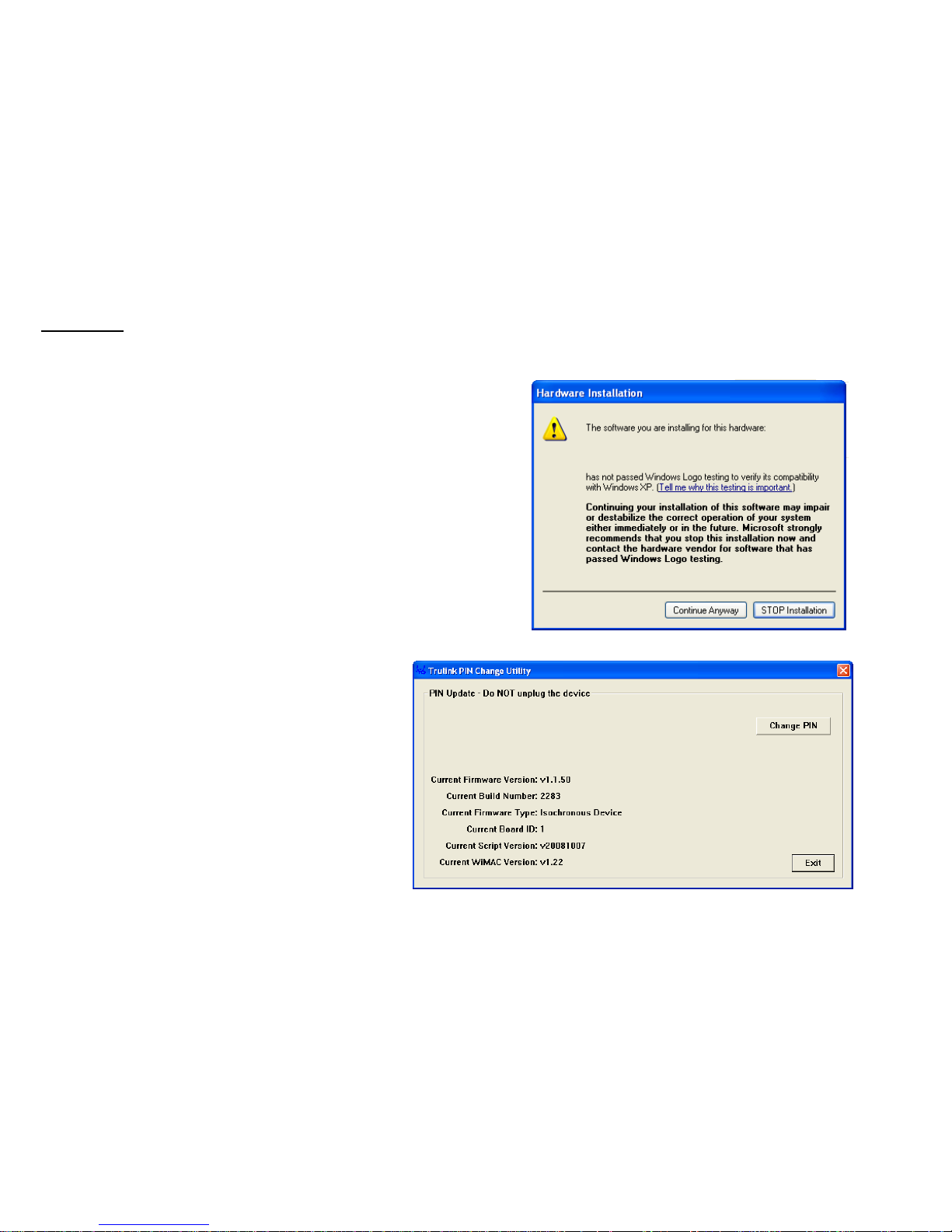

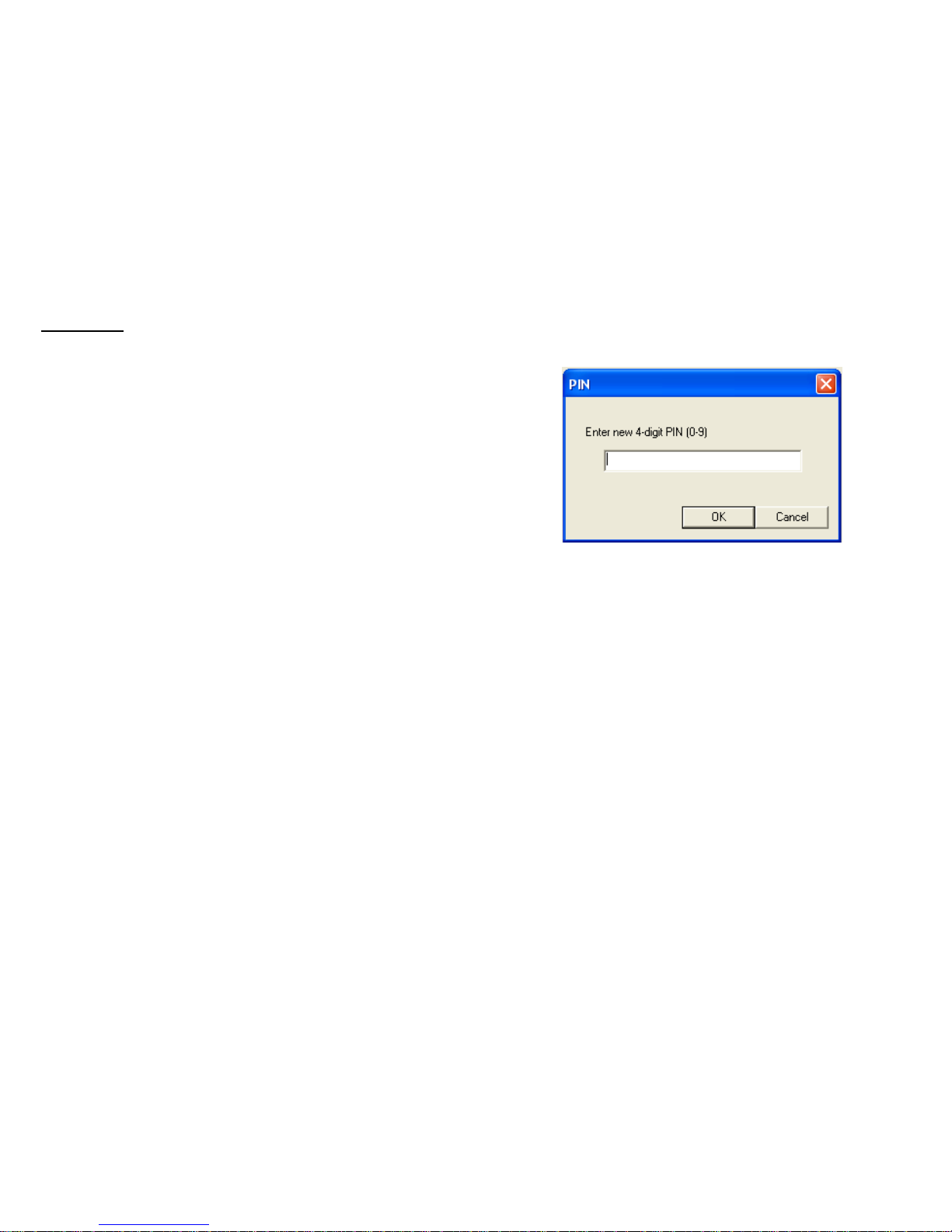

PIN Change Procedure....................................................................................................................28

TABLE OF CONTENTS

2

Thank you for purchasing the TruLink™ Wireless USB to Audio Kit. The TruLink USB to Audio Kit
includes everything you need to wirelessly stream audio from your computer to a remote sound system,
projector or television. Utilizing Ultra-Wide Band technology, the USB to Audio Kit enables secure, in­room wireless connectivity at distances up to 30 feet between the computer and the audio device. This
kit provides an effective wireless audio solution at home, in a classroom or in a conference room. We

recommend that you read this manual thoroughly and retain for future reference.

INTRODUCTION

3

 In-room wireless connectivity up to 30 feet
 Audio conversion from USB to 3.5mm stereo
 Up to six computers can share one wireless audio device*
 Ultra-Wide Band operates in the frequency on 3.1GHz to 4.8GHz (WiMedia™ Band Group 1)
 Certified Wireless™ USB 1.0 compliant
 WiMedia 1.0 MAC & 1.1 PHY compliant

FEATURES

4

 Microsoft® Windows® XP 32-bit with Service Pack 3 or higher
 or Microsoft® Vista® 32-bit/64-bit

SYSTEM REQUIREMENTS

5

 Wireless USB Host Adapter for your computer
 Wireless Audio Device Adapter for your audio device
 Two (2) Dipole Antennas (one for each adapter)
 3ft USB A Male/Mini-B Male Cable
 USB Extender with Cradle
 One (1) AC Power Adapter (cord approx. 4ft)
 User Guide
 Quick Start Guide
 Driver CD w/Electronic User Guide

PACKAGE CONTENTS

6

1 2

WIRELESS USB HOST ADAPTER

1. Link: Data Connection Indicator

• LED is solid when transfer device is connected

• LED blinks when data is being transferred

2. PWR: Power

• LED is solid when powered by the PC

DEVICE OVERVIEW

7

5

2

WIRELESS AUDIO DEVICE ADAPTER

1. Activity Indicator

• LED is solid when display cable is connected.

• LED is blinking when data is being transferred.

2. PWR: Power Indicator

• LED is solid when power is applied.

3. PWR plug

• Power adapter socket

4. USB connector

• In wireless mode, this connector is used for cable association

• In wired mode, this connector is used for wired operation

5. 3.5mm Stereo Audio Input

• Connect your speakers or AV receiver to this input to output
audio

DEVICE OVERVIEW

1

4

3

8

IMPORTANT NOTE:

• If installing on Windows XP, Service Pack 3 (SP3) is required. Verify that this has been

installed before installing the Wireless USB to Audio Kit software.

• Before installing the software, make sure that the Wireless USB Host Adapter and

Wireless Audio Device Adapter are not connected to the computer. Also make sure that
the Wireless Audio Device Adapter is not powered.

S

TEP 1-INSTALLING THE SOFTWARE

Insert the CD provided and the screen below will appear. Select the “Software Installation” from the
menu.

SOFTWARE/DEVICE INSTALLATION

9

This will take you to the TruLink Wireless USB to Audio Kit InstallShield Wizard.
Click “Next” to go to proceed with the install.

Read and accept the Wireless USB software License
Agreement by clicking “Yes”.

SOFTWARE/DEVICE INSTALLATION

10

After the software installs, your installation is complete
and you can hit the “Finish” button to exit the wizard.

Important: reboot/restart if prompted.

SOFTWARE/DEVICE INSTALLATION

11

S

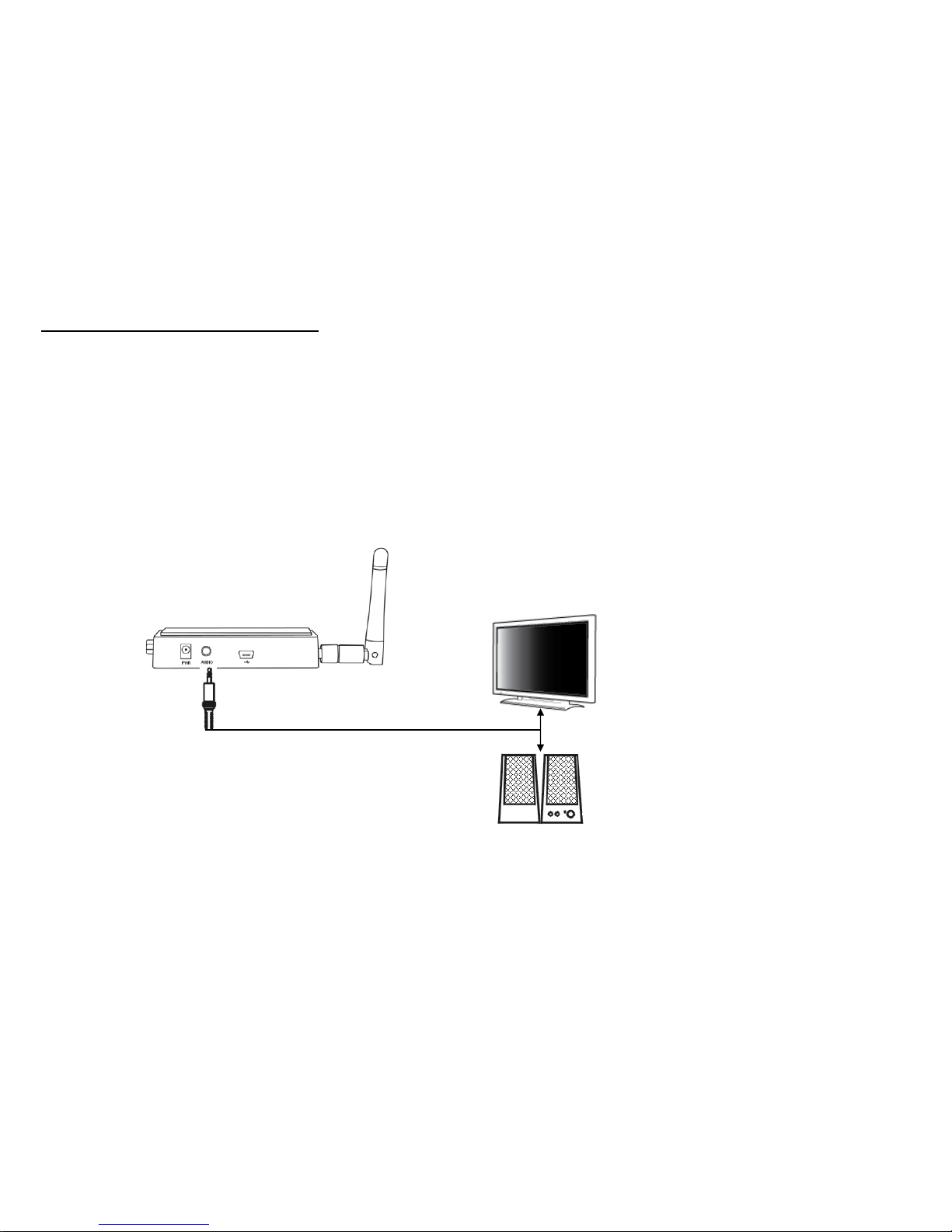

TEP 2-CONNECT THE WIRELESS AUDIO DEVICE ADAPTER

1. Connect one of the included dipole antennas to the Wireless Audio Device Adapter.

2. Connect the Wireless Audio Device Adapter 3.5mm Stereo Audio Input to your PC audio speakers,
sound system, projector or television using the appropriate cable or adapter types. Plug in the power
adapter to the Wireless Audio Device Adapter and opposite end into an AC outlet.

SOFTWARE/DEVICE INSTALLATION

12

S

TEP 3 -DRIVER INSTALLATION FOR THE WIRELESS USB HOST ADAPTER

Your Wireless USB to Audio Kit has been pre-associated for you, meaning the Wireless USB Host
Adapter will automatically recognize the Wireless Audio Device Adapter upon being powered and its
successful driver installation. After the software installation you should see the Wireless USB Manager

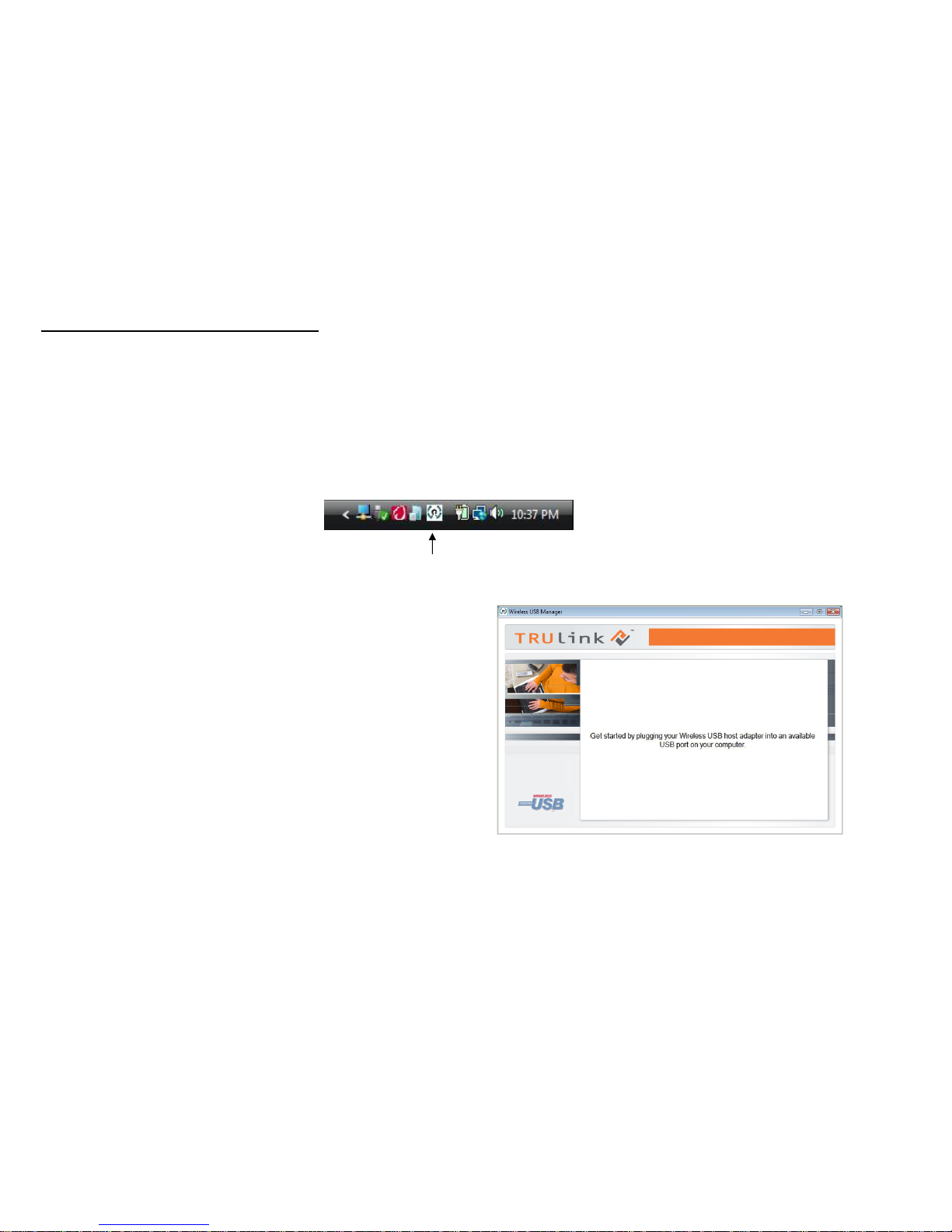

icon in your Windows icon tray. Double-click on this icon to open the manager utility.

The Wireless USB Manager will open and instruct you on
what to do next (Figure: Wireless USB Manager Welcome
Screen).

1. Screw on the other dipole antenna to the Wireless

USB Host Adapter and connect the Wireless USB Host
Adapter to an available USB port on your computer. You
also have the option to connect the Wireless USB Host
Adapter to the USB Cradle provided in the package if you
need to make the adapter more mobile.

Figure: Wireless USB Manager

SOFTWARE/DEVICE INSTALLATION

Figure: Wireless USB Manager Welcome

Screen

13

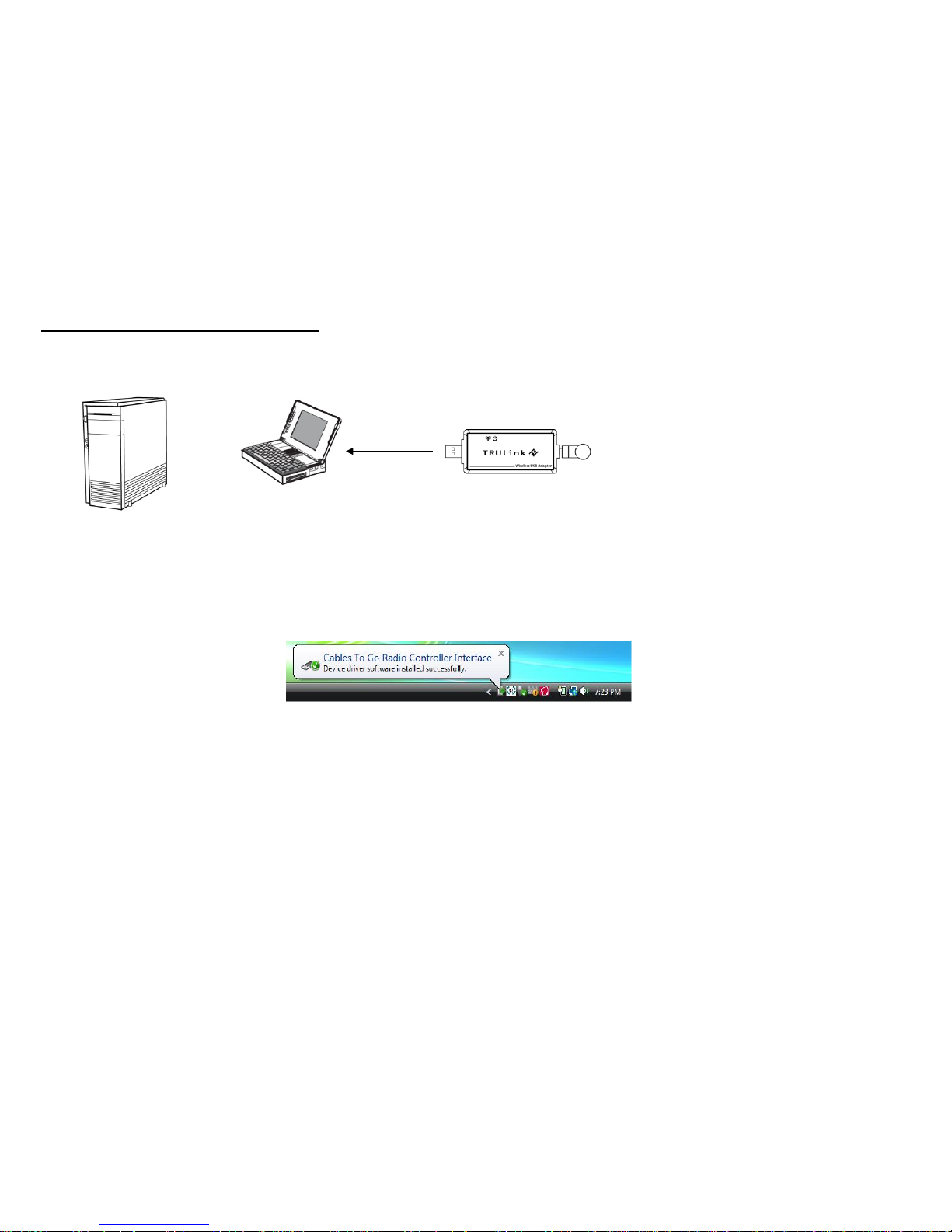

After you connect the Wireless USB Host Adapter to your computer, Windows will automatically install it
and you should get a successful install message in your icon tray such as this figure shows.

SOFTWARE/DEVICE INSTALLATION

Figure: Successful Install Message

14

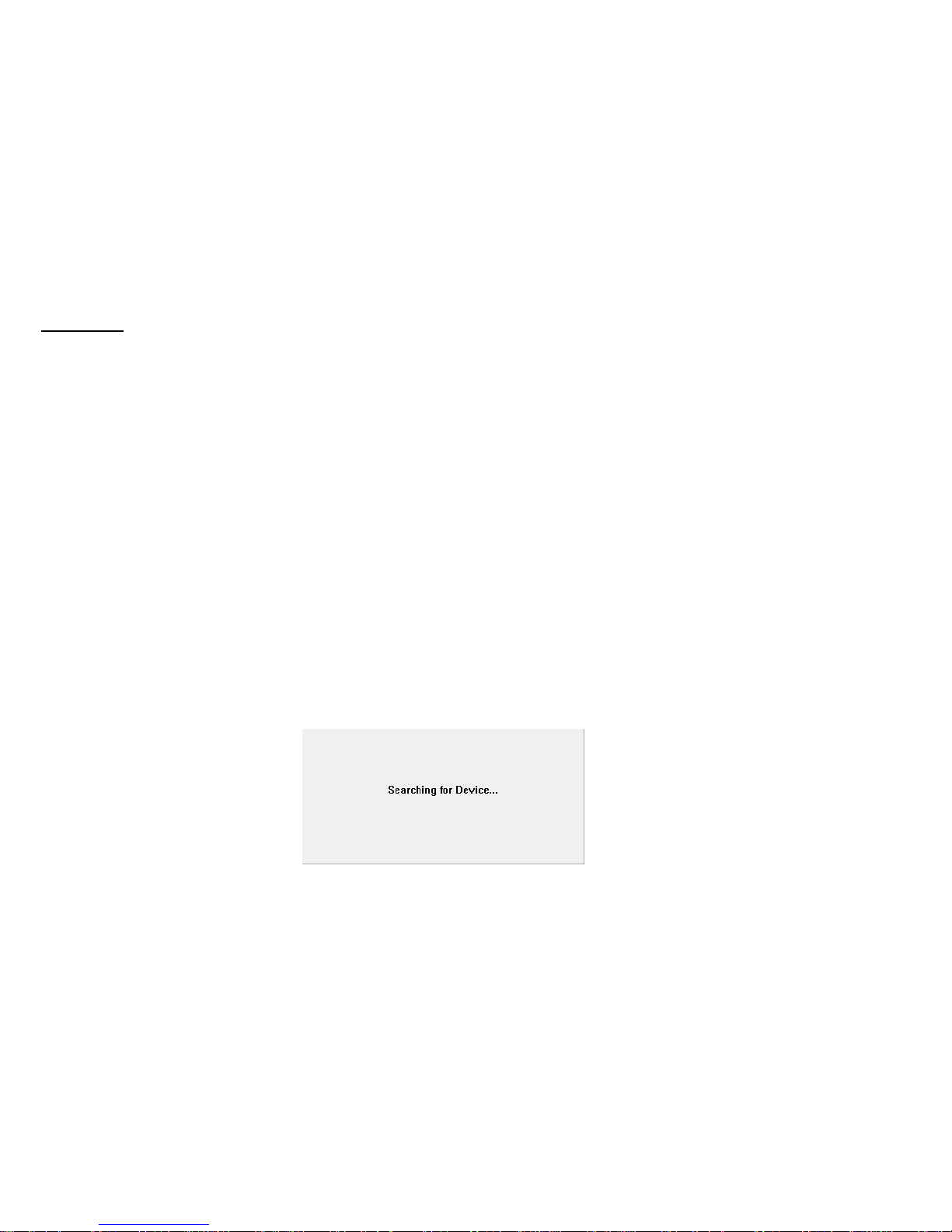

The Wireless USB Host Adapter will search for the Wireless Audio Device Adapter. When association is
confirmed between the devices, the Activity Indicators will light up on the devices. The TruLink
DisplayLink Manager utility (Figure: TruLink DisplayLink Manager) will activate and install an icon in the
Windows icon tray. The TruLink Wireless USB to Audio Kit is now fully functional and you are ready to
use it.

VERIFY CONNECTION

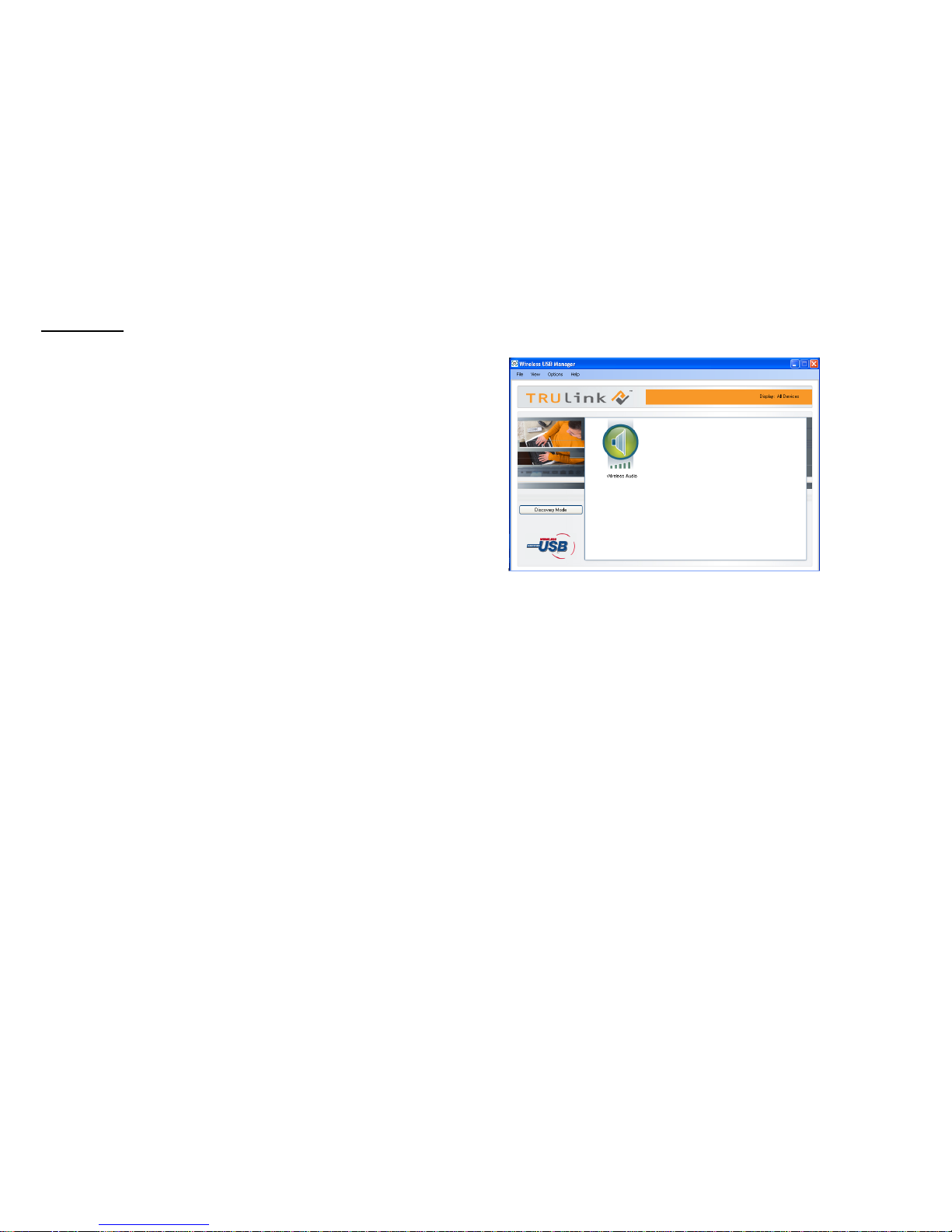

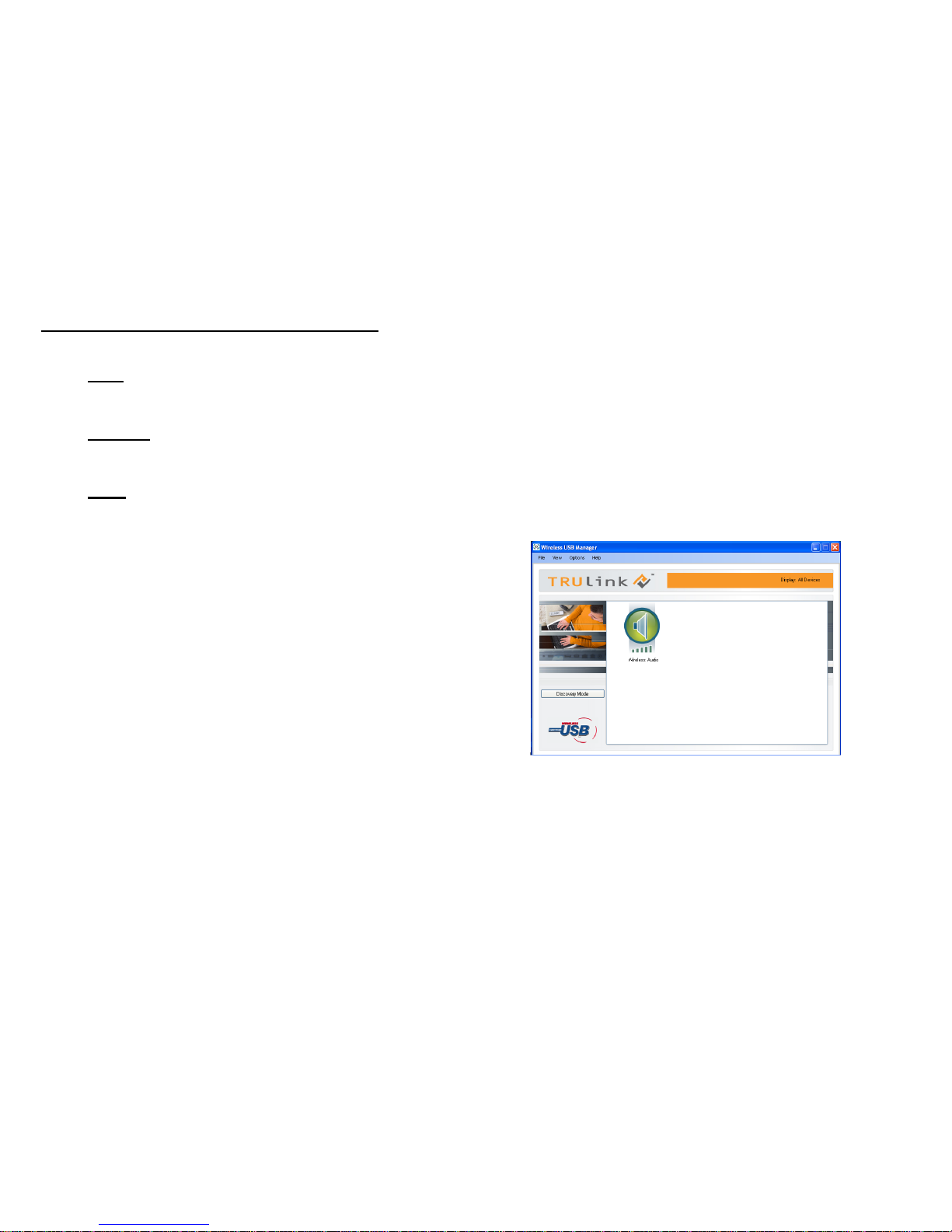

In the Wireless USB Manager, you should see the Wireless
Audio Device Adapter icon represented (Figure: Wireless
Audio Device Adapter Connected), which verifies an active
connection status.

SOFTWARE/DEVICE INSTALLATION

Figure: TruLink DisplayLink Manager

Figure: Wireless Audio Device

Adapter Connected

15

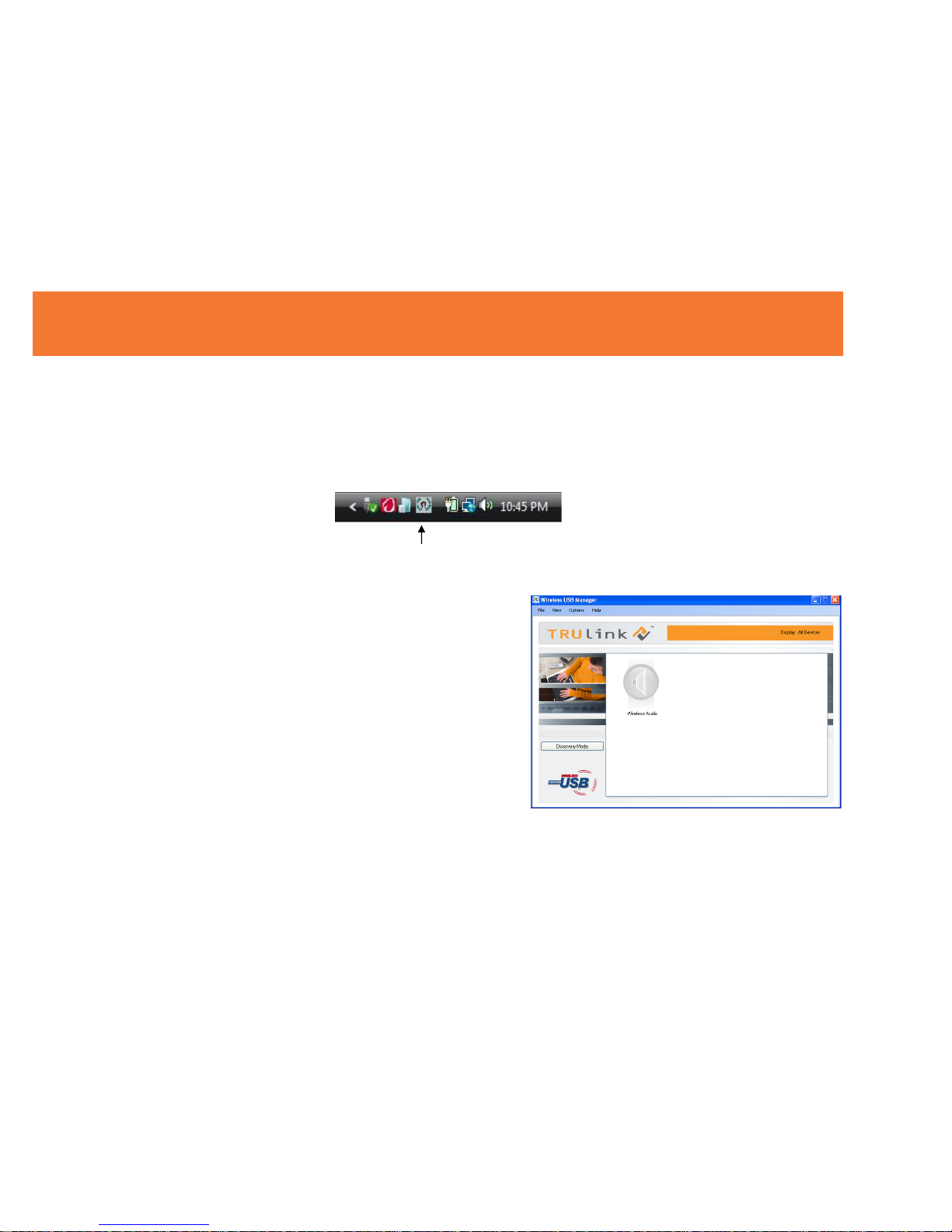

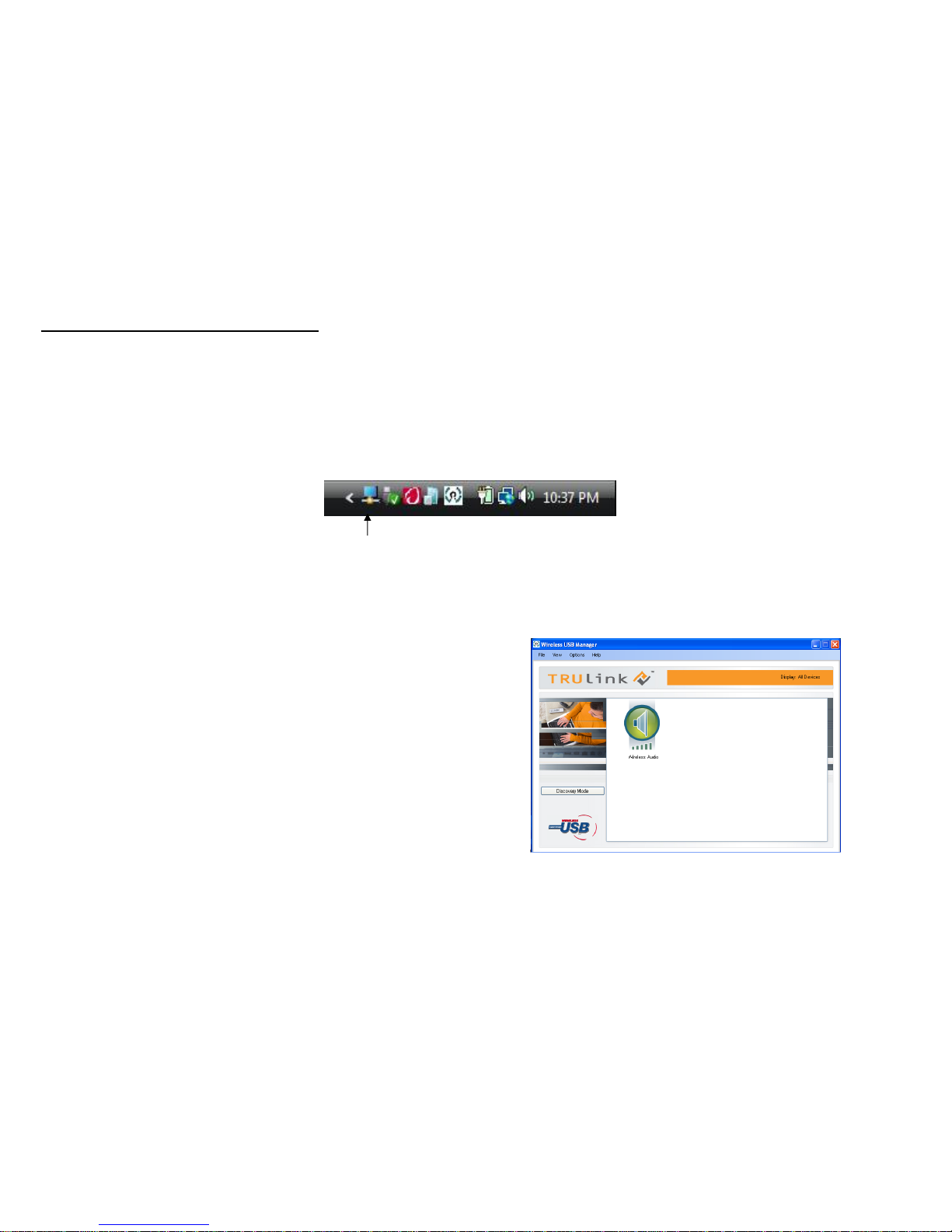

Wireless USB Manager

The Wireless USB Manager is simple and easy to use interface to manage your Wireless USB devices
and control your Wireless USB Host Adapter settings. The Wireless USB Manager can be accessed via
Wireless USB Manager Icon in the Windows tray (Figure: Wireless USB Manager Icon).

To launch the Wireless USB Manager, double click on the
Wireless USB Manager icon. In the main pane, you can find
an icon representing your Wireless Audio Device Adapter. If
your Wireless Audio Device Adapter is not connected, the
icon will be gray (Figure: Wireless Audio Device Adapter Not
Connected). If your Wireless Audio Device Adapter is
connected and ready to work, the icon will change and show
signal strength (Figure: Wireless Audio Device Adapter
Connected-next page).

USING THE WIRELESS USB TO AUDIO KIT

Figure: Wireless USB Manager Icon

Figure: Wireless Audio Device Adapter Not

Connected

16

The VIEW menu will give the option of what type of devices you wish to display (All Devices, Connected
Devices and Not Connected Devices).

The O

PTIONS menu will give the option to launch Host Settings window and turn the Wireless USB Host

Adapter radio on or off.
The H

ELP menu offers quick help on how to connect devices to your Wireless USB Host Adapter.

USING THE WIRELESS USB TO AUDIO KIT

Figure: Wireless Audio Device Adapter

Connected

17

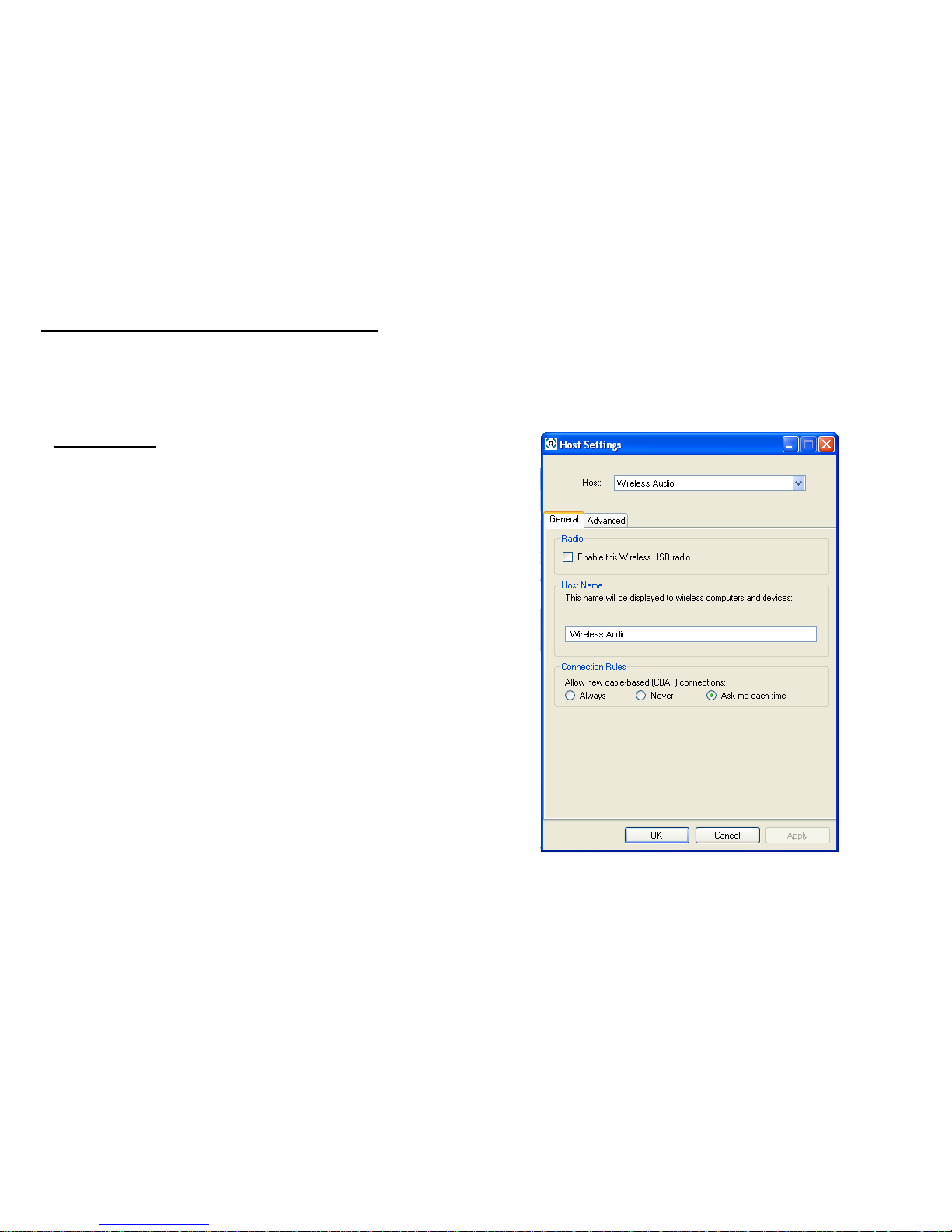

Figure: Host Settings - General

To manage the Wireless USB Host Adapter settings, either select “Host Settings” in the “Option” menu of
the Wireless USB Manager application or right click on the Wireless USB Manager icon in the Windows
tray.

GENERAL TAB (Figure: Host Settings – General)

1. Enable this Wireless USB radio: turn on or off the Wireless
USB radio.

2. Host name: Change the name of your Wireless USB Host
Adapter.

3. Cable association connection rules*: Always, Never or Ask
me each time. By default Wireless USB will ask you each
time you cable associate.

*Note that the cable association function is NOT needed to run

your kit. This function will be used if you purchase additional
Wireless USB devices.

USING THE WIRELESS USB TO AUDIO KIT

18

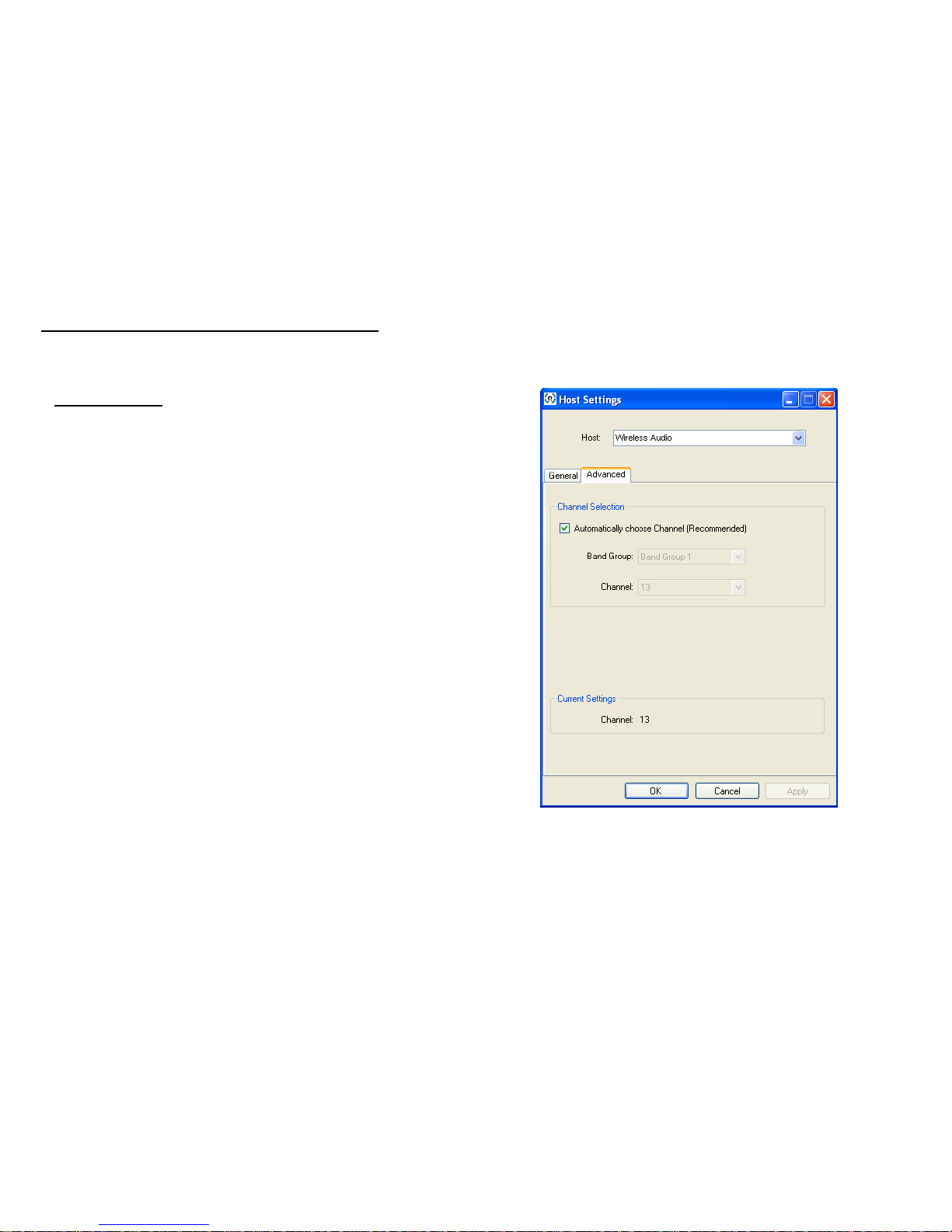

Figure: Host Settings - Advanced

ADVANCED TAB (Figure: Host Settings – Advanced)

1. Channel selection: this function allows you to set manually a
radio channel for the wireless communication (combination
of Band Group and Channel). For optimal performance, the
automatic setting is recommended.

USING THE WIRELESS USB TO AUDIO KIT

19

1. My Wireless USB Host Adapter is plugged into my computer and my Wireless Audio Device

Adapter is powered but I do not hear anything out of my speakers. What’s wrong?

Check the Wireless USB Manager to see if there is an icon for your Wireless Audio Device Adapter.
If there is no icon, try unplugging and then plugging in your Wireless USB Host Adapter to reload the
Wireless Audio Device Adapter.

If you see an icon that is gray in the Wireless USB Manager, try resetting the Wireless Audio Device
Adapter by unplugging its power and plugging it back in. You should see the icon in the Wireless USB
Manager appear in color when it is connected.

Still not connected?
If you are using an audio source such as an A/V receiver, make sure the receiver is on the right input
channel.

FREQUENTLY ASKED QUESTIONS

20

Systems Information

Operating System
Support: Microsoft XP 32-bit; Microsoft Vista 32-bit/64-bit
Operating Range: Up to 30 feet (10 meters)
PHY Data Rate: 53.3Mbps, 80Mbps, 106.6Mbps, 160Mbps,200Mbps, 320Mbps, 400Mbps, 480Mbps
Frequency: 3.1GHz to 4.8GHz (WiMedia Band Group 1)
RF Modulation Type: QPSK/DCM
Number of Channels: 7 Channels (3 FFI + 4 TFI)
USB Specification: Certified Wireless USB 1.0
Security: AES 128-bit
Antenna Type: Omni-directional

Wireless Audio Device Adapter Specs

Interface: USB 2.0 mini-B female for wired association, 3.5mm stereo audio output
Audio Output: 2 CH DAC output
Dynamic Range: 95db, THD+N -85db~91db
Sample Rate: 8kHz, 16kHz, 44.1kHz, to 48kHz with 16-bit resolution
Reset Switch: Used for erasing association history by pressing and holding the button for 10 seconds

Power Information

Power Consumption: 3.3W
Max Output Power: -41.3 dBm/MHz
Power Adapter: 5V, 2A; 100-240VAC 50-60Hz 0.5A

TECHNICAL SPECIFICATIONS

21

At Cables To Go, we want you to be totally confident in your purchase. That is why we offer a one year
warranty on this device. If you experience problems due to workmanship or material defect for the
duration of this warranty, we will repair or replace this device. To request a Return Merchandise
Authorization (RMA) number, contact customer service at 1-800-293-4970 or www.cablestogo.com.

Cables To Go

3555 Kettering Blvd.

Moraine, OH 45439

1-800-826-7904

www.cablestogo.com

CABLES TO GO™ WARRANTY STATEMENT

22

! Do not plug the unit in any outlet that does not have enough current to allow the device to function. Refer to the
specifications in this manual for power level of the unit.

! Liquid:
If this unit or its corresponding power adapter has had liquid spilled on or in it, do not attempt to use the unit.
Do not attempt to use this product in an outdoor environment as elements such as rain, snow, hail, etc. can damage the
product.

! In case of a storm, it is recommended that you unplug this device from the outlet.

! Avoid placing this product next to objects that produce heat such as portable heaters, space heaters, or heating ducts.

! THERE ARE NO USER SERVICEABLE PARTS

Do not attempt to open this product and expose the internal circuitry. If you feel that the product is defective, unplug the
unit and refer to the warranty information section of this manual.

©2009.Cables To Go is a trademark of Cables To Go. Microsoft and XP/Vista are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries. This product is not endorsed or
manufactured by Microsoft Corporation.

IMPORTANT SAFETY INFORMATION

23

ASSOCIATION WITH OTHER DEVICES

A

SSOCIATION CONCEPT

In order to establish a secure wireless connection, both your Wireless USB Host Adapter and the Wireless
Audio Device Adapter must exchange information about each other. This is done via cable or PIN
association.

A

SSOCIATION PROCESS

If you purchase additional Certified Wireless USB host adapters, such as the TruLink Wireless USB Host
Adapter (part #29578), you will need to associate them with your Wireless Audio Device Adapter. Refer
to your Wireless USB device documentation for more information on its settings for association or try
contacting the product’s manufacturer for assistance if needed.

APPENDIX

24

Figure: Cable Association

CABLE ASSOCIATION PROCEDURE

Cable association steps. Examples/Figures shown are used with the association of the TruLink Wireless
Audio Device Adapter (Part # 29595) when used with the TruLink Wireless USB Host Adapter (part
#29578). This process will vary by manufacturer of your Wireless USB host adapter.

1. Make sure that the Wireless USB host adapter utility is running. Check your Windows tray for the
Wireless USB Manager icon (Figure: Wireless USB Manager).

2. Plug in the power adapter for your TruLink Wireless Audio Device Adapter.

3. Connect the USB cable between an available USB port on your computer and your Wireless Audio
Device Adapter.

4. Complete cable association by pressing the “Accept Association” button when prompted (Figure: Cable
Association).

5. Remove the USB cable from your Wireless USB Audio Device Adapter and computer.

APPENDIX

25

Figure: TruLink Wireless Audio Device Adapter

Associated Certified Wireless USB Devices will appear as
icons in the Wireless USB Manager. When the Wireless
USB devices are connected, the icon will appear in color
(Figure: TruLink Wireless Audio Device Adapter
Connected).

Note: You may rename or delete the Wireless USB Device by right-clicking the device icon in the
Wireless USB Manager and select “rename”. You can also delete a wireless device adapter association
by selecting “delete”.

APPENDIX

26

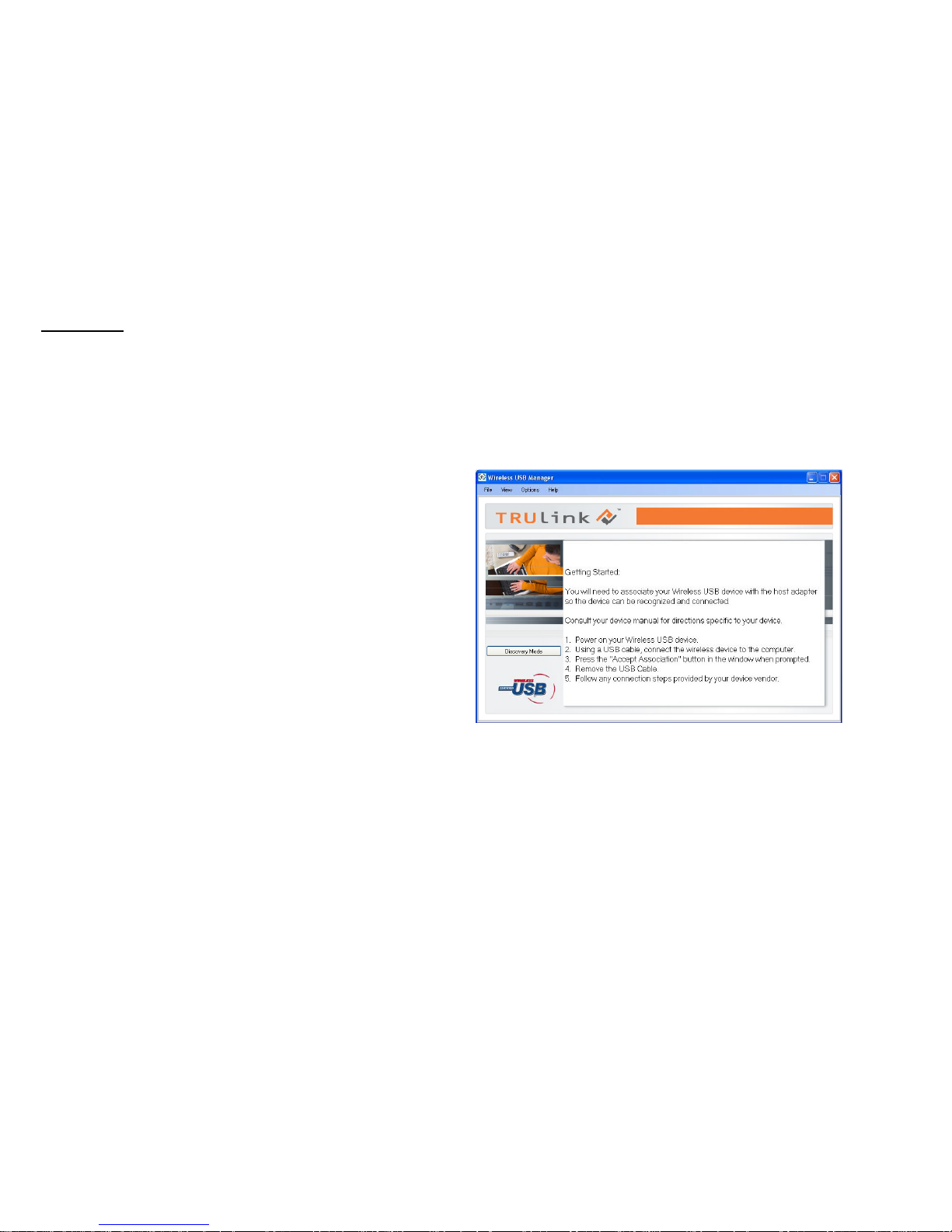

Figure: Discovery Mode Screen

PIN ASSOCIATION PROCEDURE

PIN association steps: Examples/Figures shown are used with the association of the TruLink Wireless
Audio Device Adapter (Part # 29595) when used with the TruLink Wireless USB Host Adapter (part #

29578). This process will vary by manufacturer of your Wireless USB host adapter.

1. Make sure your Wireless Audio Device Adapter is
powered on and the Wireless USB Host Adapter is
connected to your computer. Click the “Discovery
Mode” button (Figure: Discovery Mode Screen).

APPENDIX

27

Figure: Discovery Mode in Process

Figure: Pin Association Entry

2. The Wireless USB Host Adapter will search for the
Wireless Audio Device Adapter within its range. Note
that this operation can take up to 20 seconds (Figure:
Discovery Mode in Process).

3. Once the Wireless USB Host Adapter and the Wireless Audio
Device Adapter have exchanged security information, the
following dialog will appear.

APPENDIX

28

4. Enter the PIN of the Wireless Audio Device Adapter (4-digit PIN) and click Accept Association (Note:
the default PIN is “1234”). The Wireless Audio Device Adapter and Wireless USB Host Adapter are
now associated and ready for operation.

PIN CHANGE PROCEDURE

The default PIN setting for the Wireless Audio Device Adapter is “1234”. This section gives you the
instructions to change the PIN to another 4-Digit value.

IMPORTANT: The application used to change the PIN is not supported in Vista 64bit.

1. Make sure your Wireless USB Host Adapter and the Wireless Audio Device Adapter are not connected
to your computer.

2. Open/Launch the application “Pin Update” (C:\Program Files\Wireless USB
Manager\Utility\PINUpdate). The following dialog will appear:

APPENDIX

29

3. While the program is searching for the device, connect the USB cable between your Wireless Audio
Device Adapter and any available USB port on your computer.

APPENDIX

30

4. Click Install this driver software anyway.

5. To change pin, click “Change PIN”

APPENDIX

31

5. Enter a 4-Digit PIN (0-9) and click OK.

6. If your PIN is valid, a window displaying your new PIN will appear. Press OK. Your PIN has been
successfully changed. IMPORTANT: please exit the Trulink PIN Utility application (Exit button as
shown on figure in step 5) before unplugging the USB cable between your Wireless Audio Device
Adapter and your PC.

APPENDIX

32

33

For more information on this product or to check for updated drivers,
manuals or frequently asked questions please visit our website.

www.cablestogo.com

VER. 1.0.6.30.09
