trüke B097 User Manual

trüke Fit 1 – B097

User Manual

Product Description

Welcome to use trüke Fit 1 - True Wireless Stereo Bluetooth Earbuds!
This product adopts the industry's advanced single-chip solution, with excellent sound quality and
simple operation, which will bring different surprises to your life, work and journey.
You can split it into a single ear (mono) to make a call or listen to the mobile phone navigation tone
when you are driving or riding, so that the journey is safe and worry-free.
It can also be used in pairs (stereo) to enter the wonderful world of music.

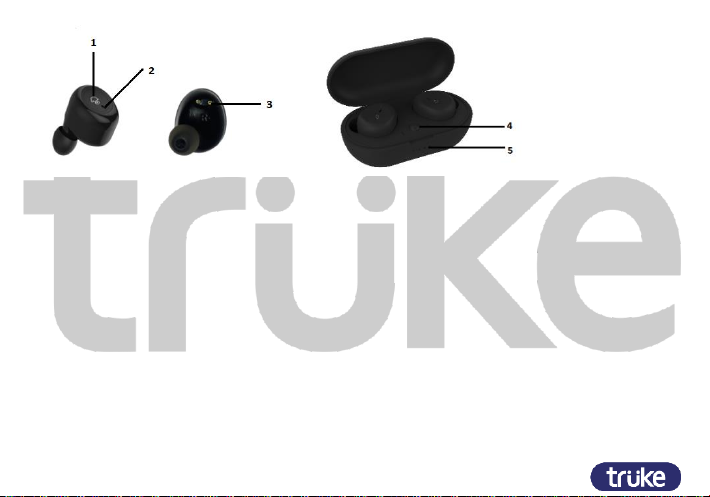

Overview

1. Multifunction button.

2. Led indicator Red/Blue

3. Charging pins.

4. Charging ON/OFF button.

5. Charging case battery level

Instructions for First Time Use

1. Remove the protective plastic film from charging pins of the earbuds if present.

2. Place earbuds back in charging case to charge for 1 hour.

Pairing procedure:

1. Take out the earbuds form case at same time, both earbuds will start blinking with red and blue led. In

few seconds one of the earbud’s red/blue led will stop blinking and other will keep blinking.

2. Turn on mobile’s Bluetooth and search for new device. Then select trüke Fit 1, now your Fit 1 earbuds

will be paired with mobile and ready to use.

Stereo/Mono mode switching procedure.

If your mobile is showing 2 trüke Fit 1 devices in Bluetooth option, then it is in mono mode, means only one
earbud will connect to mobile at a time. To switch from mono mode to stereo mode follow the below process

1. Turn off the mobile Bluetooth.

2.Take out both earbuds from charging case, both will start blinking.

3. Now press the button on right earbud 2 times. After this one earbud will stop blinking,

4. Now turn on mobile’s Bluetooth and connect with trüke Fit 1. (Search for new device in Bluetooth option if not
showing fit 1 device.)

General Functions & Operations

Power on

Press and hold the button for 2 seconds to turn it on, the red and blue lights flash.

Earbuds Pairing

1. Earbuds will automatically start & pair when it is taken out from the charging Case;

2. Connected Tone is played when earbuds and mobile phone connect successful;

3. Disconnected Tone is played when earbuds and mobile phone is disconnected.

Power off

Earbuds turns off automatically when earbuds are placed into the charging case;
Turning off one earbud does not affect the operation of the other earbud;
Both earbuds turn off, when any earbud is pressed for more than 5 seconds;

Operating language

English

Bluetooth name

trüke Fit 1

Play / Pause

Press the earbuds button

Call answering

Press the earbuds button

Disconnect incoming
call

Press and hold the earbuds button for 2 seconds

Automatic redial
function

Double Press Right earbuds button to call back the last call

Earbuds Remaining
Battery

Earbuds Remaining Battery will be displayed on supported mobile device

Low Battery Prompt

Red LED starts flashing when voltage is lower than 3.2v

Previous & next song

Previous song: Press left earbuds for 2 seconds;
Next song: Press right earbuds for 2 seconds;

Google Assistant / Siri

Double Press Left Earbud

Call Redial

Double Press Right Earbud

Volume adjustment

Not Supported through Earbuds

Charging indication

Earbuds Charging: The red light of Earbuds is always on while charging.
When the battery of earbuds is fully charged, the red light of earbuds goes off;

Charging Case: During the charging process of the Charging Case, the white light of the Charging Case
lights up from left to right in turn.
When the Charging Case Battery is fully charged, the white light turns always on;

Troubleshooting

1. Unable to start

Charge the earbuds for 30 minutes and then turn it on;

2. Earbuds Cannot Pair

Go to the mobile’s Bluetooth menu and forget/unpair the trüke Fit 1. Pair the device again.

3. Cannot Connect to Mobile Device

Turn off the earbuds by putting them in charging case. Turn off Mobile Device Bluetooth function then
turn it on again. Take out the earbuds from case and connect.

4. The earbuds can't be charged

Press the button on the case if no led is lit or only one is blinking charge the case first.
Make sure earbud are placed in case with right orientation, gently press them in place.

Performance Parameters

Model Number

B097

Charging input

5V 1A

Bluetooth version

5.0

Operating Voltage

3.7V

Talk-Time

4 hours*

Headphone Battery

50mAh 3.7V

Music Playback Time

5-8 hours*

Charging Case Battery

300mAh 3.7V

Standby duration

3 months

Charging Interface

Micro USB

Net weight

41 grams

Charging time

90Mins*

Waterproof Level

Splashproof

Dimension

71.3×39.8×30.8mm

*Talk-Time, Music Playback & Charging Time are mentioned under ideal lab conditions. Under
daily usage, ac tual time may vary.

Precautions

1. Do not use this product under high temperature, high humidity, high cold, high dust, high

electromagnetic radiation and lightning environment;

2. Do not use non-original charging accessories to charge;

3. Charging time should not exceed 3 hours;

4. Recharge every 30 days when not in use for a long time;

5. Do not exceed 60 decibels when used for a long time to avoid hearing damage;

6. Do not disassemble by any unauthorized personnel, otherwise warranty will be void;

7. After the product has expired, it can be sent to a professional recycling agency. Do not discard it at will,

so as not to pollute the environment;

Customer Care:

For any queries/complaints, please feel free to WhatsApp us on [phone]

Or

Write to us at [e-mail].
