Portable Measurement Device

MSA Lite

Quick User’s Manual ver.0.92

1. Product summary

The MSA Lite is a sleek, light weight, portable device that analyzes the skin. The MSA

Lite measures skin texture, pigmentation, sebum, skin color/tone, keratin, pores, and

wrinkles. The cradle has a built in charging system for easy on counter powering.

1.1 Package contents

The MSA Lite consists of a main unit, a 50XPL lens, a cradle, a USB cable, and power

adapter (see image below).

Before using the MSA Lite, please confirm all parts have been received.

1.2 Major functions

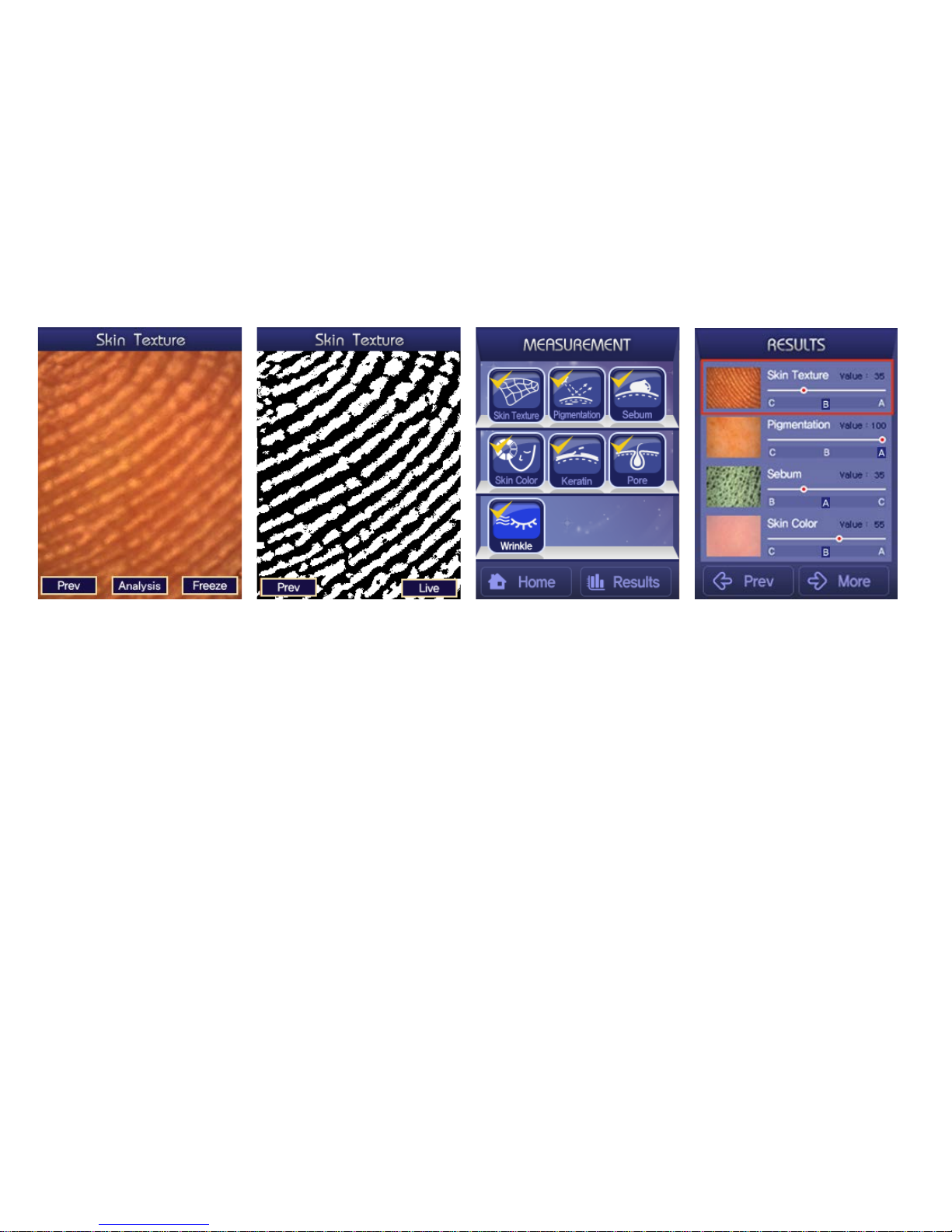

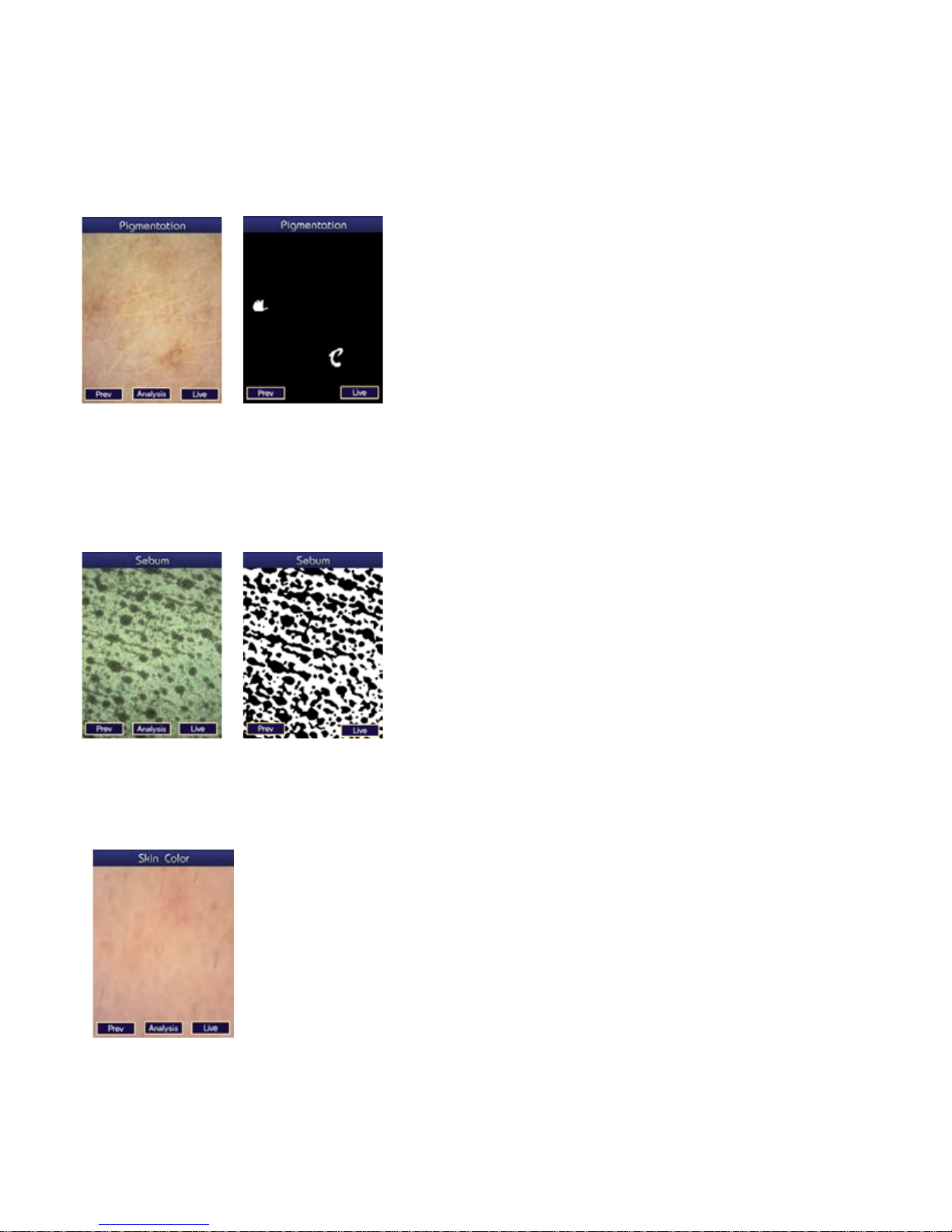

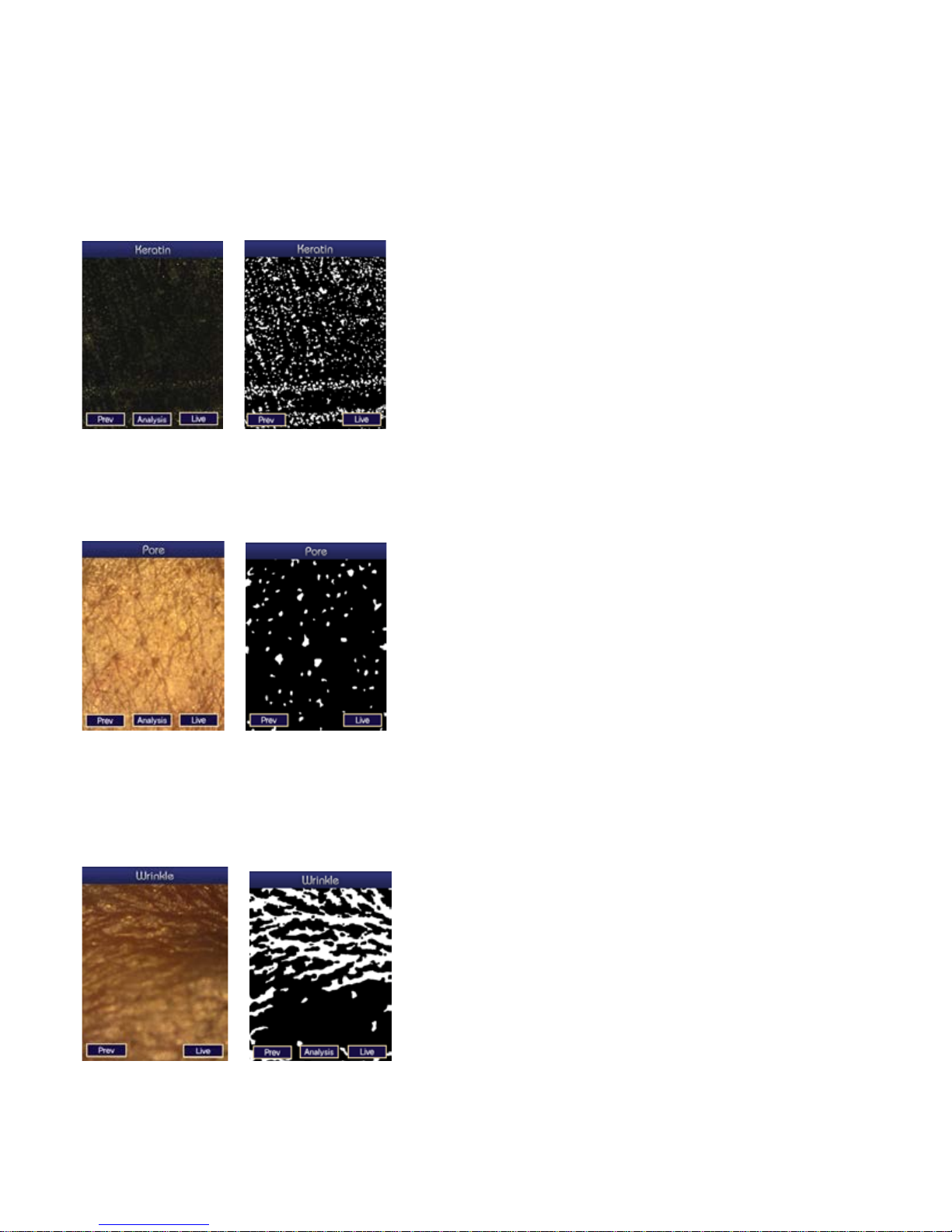

The MSA Lite uses a 50X lens and two lighting modes, white and polarized, to

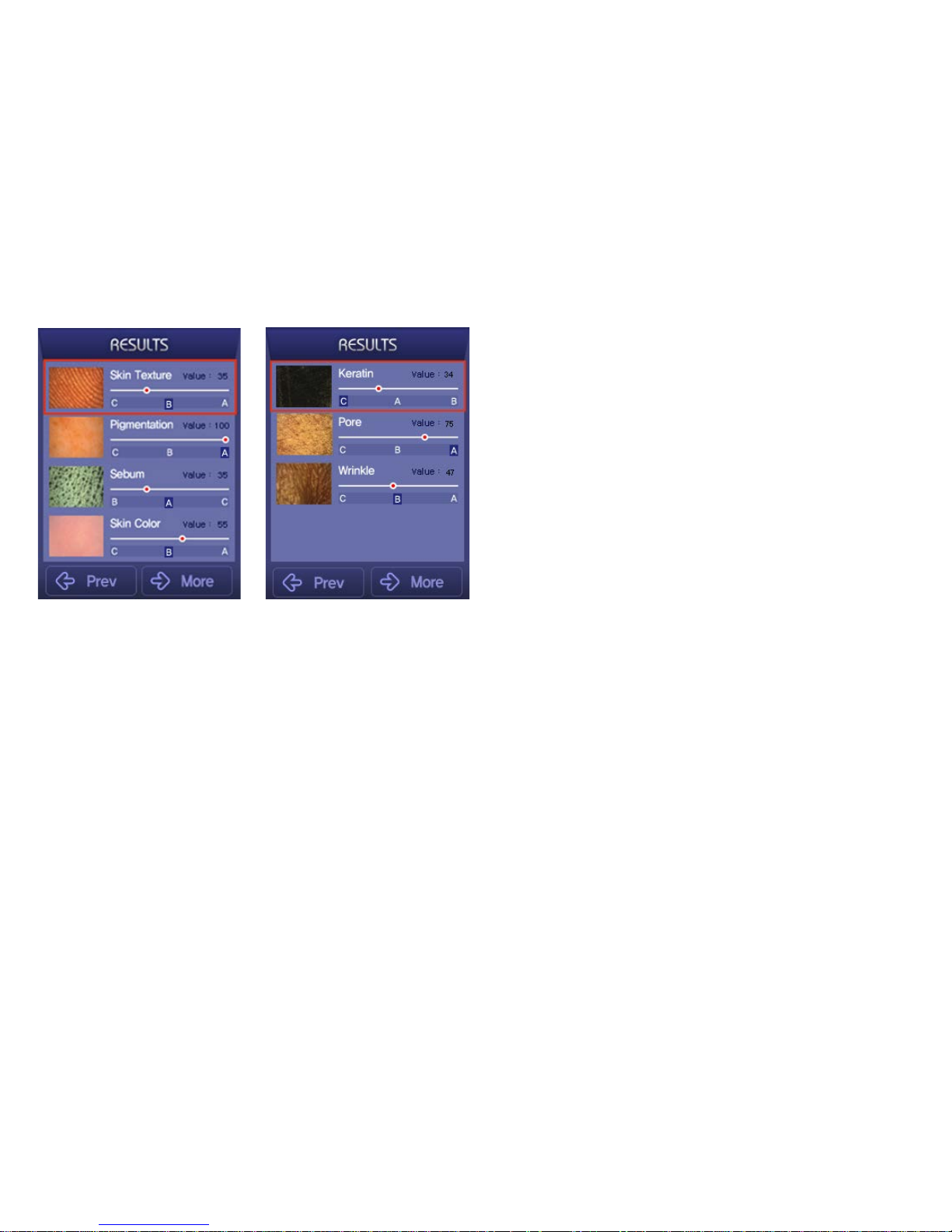

analyze each parameter. Captured images and values are stored onto the MSA Lite

and can be retrieved by plugging the unit to your PC with a USB cable.

Cradle

AC Adaptor

Main Unit

2. How to use the MSA lite

2.1 Parts name

2.2 Power ON/OFF

To power on the MSA Lite, press and hold the left button for about 2 seconds.

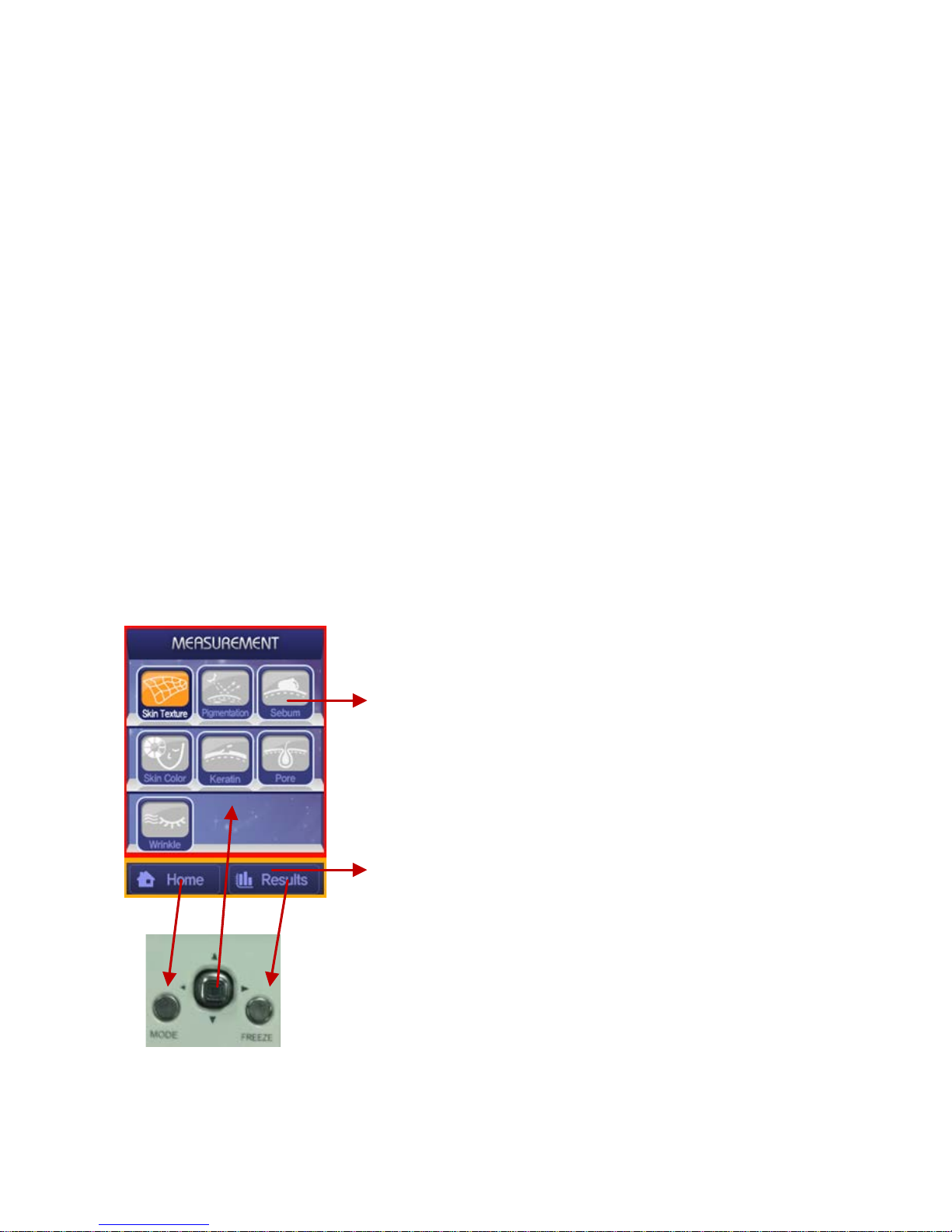

Home screen

2

Please note the battery needs to be charge sufficiently for the device to operate

properly.

When the MSA Lite is on and you press and hold the left button for about 2

seconds, the power will turn off.

The battery will charge automatically when put on the cradle. After 10 minutes on the

cradle, the MSA Lite will turn off.

2.3 Battery replacement

If you need to replace the battery, remove the

screw on the back of the MSA Lite towards the

bottom of the handle (see the picture at the right

for reference).

2.4 Attaching / Detaching the lens and adjusting focus

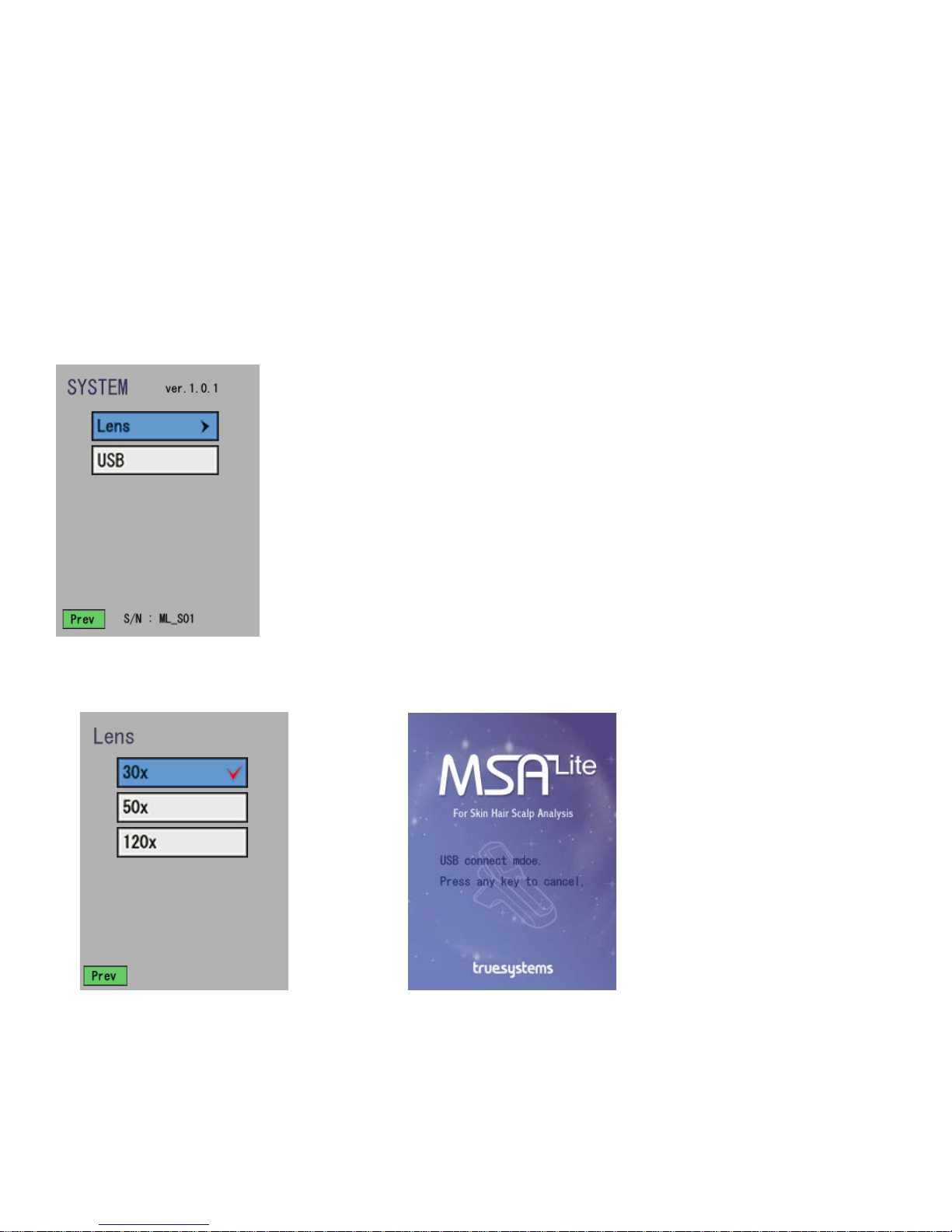

The lens can be detached and replaced with other lens magnifications for different

applications (i.e. skin, hair, and scalp). In order to detach the lens, turn the lens counter

clock wise at the base of the lens. To attach the lens, align the

mark of the lens with the five degrees left of the top position

on the figure, insert the lens and turn to clock wise direction.

To adjust focus, turn the dome little by little so that the image

can be seen clearly.

Please note if you change the lens with a different
