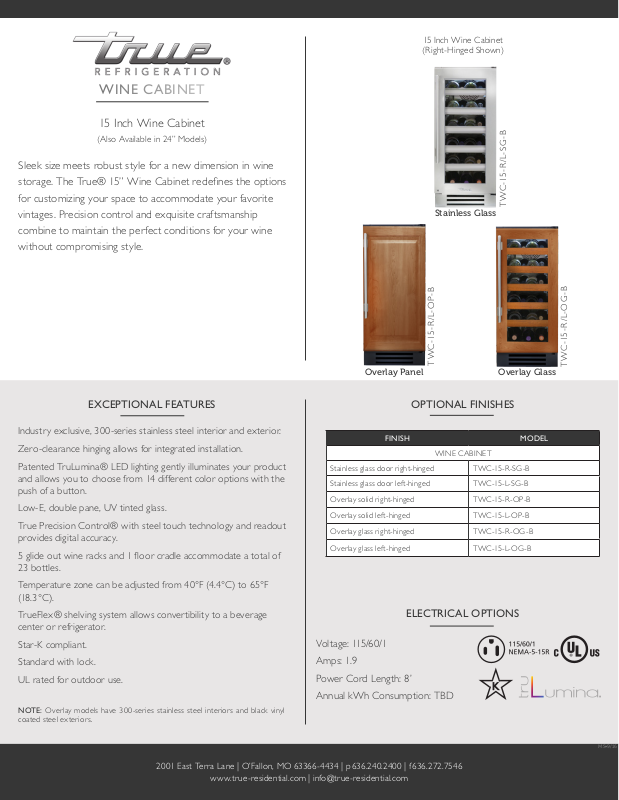

Page 1
MS•9/16
WINE CABINET
15 Inch Wine Cabinet
(Also Available in 24” Models)
Sleek size meets robust style for a new dimension in wine
storage. The True® 15” Wine Cabinet redenes the options
for customizing your space to accommodate your favorite
vintages. Precision control and exquisite craftsmanship
combine to maintain the perfect conditions for your wine
without compromising style.
15 Inch Wine Cabinet
(Right-Hinged Shown)
TWC-15-R/L-SG-B
Stainless Glass
EXCEPTIONAL FEATURES
Industry exclusive, 300-series stainless steel interior and exterior.
Zero-clearance hinging allows for integrated installation.
Patented TruLumina® LED lighting gently illuminates your product
and allows you to choose from 14 different color options with the
push of a button.
Low-E, double pane, UV tinted glass.
True Precision Control®with steel touch technology and readout
provides digital accuracy.
5 glide out wine racks and 1 oor cradle accommodate a total of
23 bottles.
Temperature zone can be adjusted from 40°F (4.4°C) to 65°F
(18.3°C).
TrueFlex®shelving system allows convertibility to a beverage
center or refrigerator.
Star-K compliant.
Standard with lock.
UL rated for outdoor use.
NOTE : Overlay models have 300-series stainless steel interior s and black vinyl
coated steel exteriors.
Overlay Panel Overlay Glass
TWC-15-R/L-OP-B
OPTIONAL FINISHES
FINISH MODEL
WINE CABINET
Stainless glass door right-hinged TWC-15-R -S G-B
Stainless glass door left-hinged T WC-15 - L-SG-B
Overlay solid right-hinged TWC-15-R-OP-B
Overlay solid left-hinged TWC-15-L-OP-B
Overlay glass right-hinged TWC-15-R-OG-B
Overlay glass left-hinged TWC-15-L-OG-B
ELECTRICAL OPTIONS
Voltage: 115/60/1
Amps: 1.9
Power Cord Length: 8’
Annual kWh Consumption: TBD
TWC-15-R/L-OG-B
2001 East Terra Lane | O’Fallon, MO 63366-4434 | p 636.240.2400 | f 636.272.7546
www.true-residential.com | [email protected]
Page 2
MS•9/16
WINE CABINET STAINLESS FINISH:
PLAN VIEWS
14 7/8"
25 3/4"
FRONT
34 1/4"
VIEW
4 1/8"
3 3/4"
Dimensions may vary by ± 1/8”
WINE CABINET OVERLAY FINISH: Shown with 3/4" Panel
14 7/8"
23 7/8"
SIDE
VIEW
23 7/8"
34 1/4"
TOP
VIEW
TOP
VIEW
37 7/8"
16 1/4"
37 7/8"
34 1/4"
FRONT
VIEW
ROUGH
OPENING
HEIGHT
1
/2"
34
4 1/8"
3 3/4"
OPENING DIMENSIONS
Width Depth† Height
15" 24" 34½"
ROUGH
OPENING
WIDTH
15"
SIDE
VIEW
Dimensions may vary by ± 1/8”
ROUGH
OPENING
DEPTH
24"
34 1/4"
SPECIFICATIONS
Width 14⁄
Depth† 23⁄
Heigth 34¼
Wine Storage
Opening Width 15"
Opening Depth 24"
Opening Height 34½"
Crated Weight 175
†Depth does not include 1⁄foor door handle.
5 glide out wine racks and 1 oor cradle
accommodate a total of 23 bottles.
16 1/4"
2001 East Terra Lane | O’Fallon, MO 63366-4434 | p 636.240.2400 | f 636.272.7546
www.true-residential.com | [email protected]
