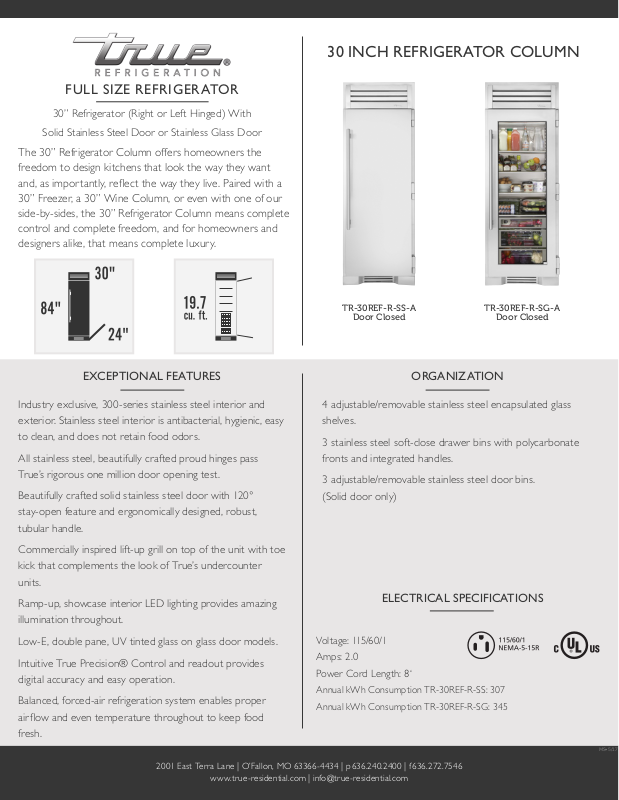

Page 1
MS•5/17
FULL SIZE REFRIGERATOR
30” Refrigerator (Right or Left Hinged) With
Solid Stainless Steel Door or Stainless Glass Door
The 30” Refrigerator Column offers homeowners the
freedom to design kitchens that look the way they want
and, as importantly, reect the way they live. Paired with a
30” Freezer, a 30” Wine Column, or even with one of our
side-by-sides, the 30” Refrigerator Column means complete
control and complete freedom, and for homeowners and
designers alike, that means complete luxury.
30 INCH REFRIGERATOR COLUMN
EXCEPTIONAL FEATURES
Industry exclusive, 300-series stainless steel interior and
exterior. Stainless steel interior is antibacterial, hygienic, easy
to clean, and does not retain food odors.
All stainless steel, beautifully crafted proud hinges pass
True’s rigorous one million door opening test.
Beautifully crafted solid stainless steel door with 120°
stay-open feature and ergonomically designed, robust,
tubular handle.
Commercially inspired lift-up grill on top of the unit with toe
kick that complements the look of True’s undercounter
units.
Ramp-up, showcase interior LED lighting provides amazing
illumination throughout.
TR-30REF-R-SS-A
Door Closed
TR-30REF-R-SG-A
Door Closed
ORGANIZATION
4 adjustable/removable stainless steel encapsulated glass
shelves.
3 stainless steel soft-close drawer bins with polycarbonate
fronts and integrated handles.
3 adjustable/removable stainless steel door bins.
(Solid door only)
ELECTRICAL SPECIFICATIONS
Low-E, double pane, UV tinted glass on glass door models.
Intuitive True Precision® Control and readout provides
digital accuracy and easy operation.
Balanced, forced-air refrigeration system enables proper
airow and even temperature throughout to keep food
fresh.
2001 East Terra Lane | O’Fallon, MO 63366-4434 | p 636.240.2400 | f 636.272.7546
www.true-residential.com | [email protected]
Voltage: 115/60/1
Amps: 2.0
Power Cord Length: 8‘
Annual kWh Consumption TR-30REF-R-SS: 307
Annual kWh Consumption TR-30REF-R-SG: 345
Page 2
MS•5/17
PLAN VIEW
83 15/16"
2132mm
30"
762mm
67 29/32"
1725mm
DOOR
HEIGHT
72 5/8"
1845mm
25 25/32"
655mm
27 29/32"
709mm
30 15/32"
774mm
2 9/16"
65mm
3 15/16"
100mm
90°
29 15/32"
748mm
31 15/32"
799mm
55 1/4"
1403mm
23 25/32"
604mm
29 9/16"
751mm
135°
20 19/32"
523mm
TR-30REF-R-SG-A
R
25 25/32"
655mm
FLUSH INSTALL
TR-30REF-R-SG-A
R
TR-30REF-R-SG-A
23 25/32"
PROUD INSTALL
FRONT VIEW SIDE VIEW TOP VIEWS
Dimensions may vary by ± 1/8”
FLUSH OPENING DIMENSIONS PROUD OPENING DIMENSIONS
Width Depth† Height
30¼" 26" 84¼"
TOP VIEW
FIGURE 1 ROUGH OPENING
604mm
25 25/32"
655mm
FLUSH INSTALL
2001 East Terra Lane | O’Fallon, MO 63366-4434 | p 636.240.2400 | f 636.272.7546
www.true-residential.com | [email protected]
Width Depth† Height
29¾" 24" 84"
FRONT VIEW
FIGURE 2 ROUGH OPENING
Elec trical located
in this a rea.
8"
(204 mm)
293/4"
(756 mm)
301/4"
(769 mm)
PROUD
INSTALL
FLUSH
INSTALL
2"
(51 mm)
(1956 mm)
77"
(2134 mm)
PROUD
INSTALL
841/4"
(2140 mm)
FLUSH
INSTALL
84"
SPECIFICATIONS
Width 30"
Depth† 28"
Height 84"
Shelving
Flush Opening
Width
Flush Opening
Depth
Flush Opening
Height
Proud Opening
Width
Proud Opening
Depth
Proud Opening
Height
Weight** TBD lbs
†Depth does not include 2 ⁄for door handle.
**Because of the weight of this unit, it is recommended to
consult a flooring expert prior to installation. The flooring
beneath the unit should be rated to support at least 150
pounds per square foot.
4 adjustable/removable stainless
steel encapsulated glass shelves.
3 stainless steel soft-close drawer
bins with polycarbonate fronts
and integrated handles.
3 adjustable/removable stainless
steel door bins (Solid door only).
30¼"
26"
84¼"
29¾"
24"
84"
