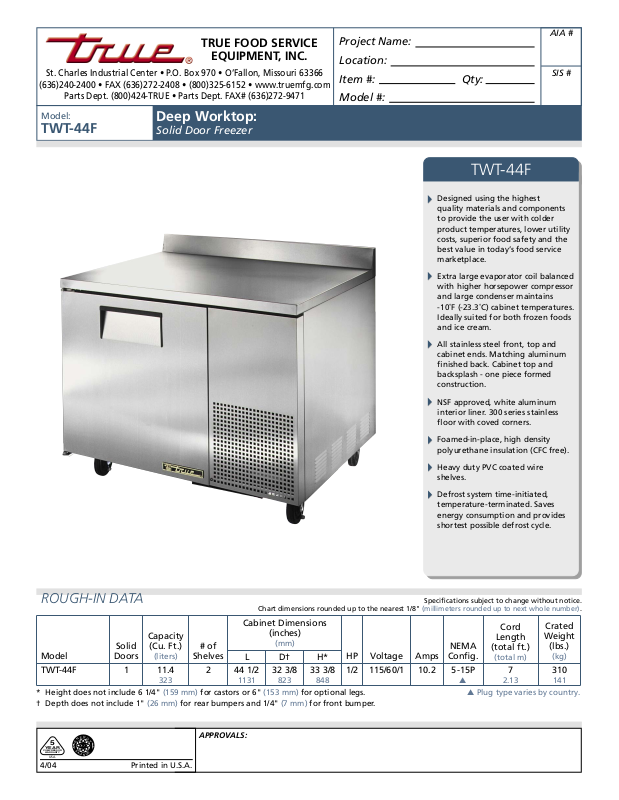

TRUE FOOD SERVICE
EQUIPMENT, INC.
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# (636)272-9471
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Model:
TWT-44F
Deep Worktop:
Solid Door Freezer
TWT-44F
Designed using the highest
quality materials and components
to provide the user with colder
product temperatures, lower utility
costs, superior food safety and the
best value in today’s food service
marketplace.
Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser maintains
-10˚F (-23.3˚C) cabinet temperatures.
Ideally suited for both frozen foods
and ice cream.
All stainless steel front, top and
cabinet ends. Matching aluminum
fi nished back. Cabinet top and
backsplash - one piece formed
construction.
NSF approved, white aluminum
interior liner. 300 series stainless
fl oor with coved corners.
Foamed-in-place, high density
polyurethane insulation (CFC free).
Heavy duty PVC coated wire
shelves.
Defrost system time-initiated,
temperature-terminated. Saves
energy consumption and provides
shortest possible defrost cycle.
ROUGH-IN DATA
Model
Doors
TWT-44F 1 11.4
Solid
Capacity
(Cu. Ft.)
(liters)
323
# of
Shelves
2 44 1/2
Chart dimensions rounded up to the nearest 1/8"
Cabinet Dimensions
(inches)
(mm)
LD†H*
1131
32 3/8
823
33 3/8
HP Voltage Amps
1/2 115/60/1 10.2 5-15P
848
Specifi cations subject to change without notice.
(millimeters rounded up to next whole number).
Crated
Weight
(lbs.)
(kg)
310
141
NEMA
Confi g.
▲
Cord
Length
(total ft.)
(total m)
7
2.13
* Height does not include 6 1/4" (159 mm) for castors or 6" (153 mm) for optional legs. ▲ Plug type varies by country.
† Depth does not include 1" (26 mm) for rear bumpers and 1/4" (7 mm) for front bumper.
YEAR
COMPRESSOR
WARRANTY
4/04
5
USA
S
S
A
S
V
I
G
N
R
E
G
N
Y
E
APPROVALS:
Printed in U.S.A.
Model:
TWT-44F
Deep Worktop:
Solid Door Freezer
STANDARD FEATURES
DESIGN
• True’s deep worktop units are
designed with enduring quality that
protects your long term investment.
• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures,
lower utility costs, superior food safety
and the best value in today’s food
service marketplace.
REFRIGERATION SYSTEM
• Factory engineered self-contained,
capillary tube system using
environmentally friendly (CFC free)
R404A refrigerant.
• Oversized, factory balanced
refrigeration system with guided
airfl ow to provide uniform product
temperature.
• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains -10˚F
(-23.3˚C) cabinet temperature. Ideally
suited for both frozen foods and ice
cream.
• Sealed, cast iron, self-lubricating
evaporator fan motors and larger
fan blades give True worktop units
a superior low velocity, high volume
airfl ow design. This unique design
insures faster temperature recovery
and shorter run times in the busiest of
food service environments.
• Condensing unit is accessed from
behind front grill; slides out for easy
maintenance.
• Defrost system time-initiated,
temperature-terminated. Saves energy
consumption and provides shortest
possible defrost cycle.
CABINET CONSTRUCTION
• Exterior - stainless steel front, top and
ends. Matching aluminum fi nished
back. Top and backsplash is one piece
formed construction.
• Interior - attractive, NSF approved,
white aluminum liner. 300 series
stainless fl oor with coved corners.
• Insulation - entire cabinet structure
and solid door are foamed-inplace using high density, CFC free,
polyurethane insulation.
• 5" (127 mm) diameter stem castors locks provided on front set.
36" (915 mm) work surface height.
DOOR
• Stainless steel exterior with white
aluminum liner to match cabinet
interior.
• Positive seal door swings within
cabinet dimensions.
• Door fi tted with 12" (305 mm) long
recessed handle that is foamed-inplace with a sheet metal interlock to
insure permanent attachment.
• Magnetic door gasket of one piece
construction, removable without tools
for ease of cleaning.
SHELVING
• Two (2) adjustable, heavy duty PVC
coated wire shelves 25"L x 27 3/4"D
(635 mm x 705 mm). Four (4) chrome
plated shelf clips included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves
are adjustable on 1/2" (13 mm)
increments.
MODEL FEATURES
• Evaporator is epoxy coated to
eliminate the potential of corrosion.
ELECTRICAL
• Unit completely pre-wired at factory
and ready for fi nal connection to a
115/60/1 phase - 15 amp dedicated
outlet. Cord and plug set included.
115/60/1
NEMA-5-15R
OPTIONAL FEATURES/ACCESSORIES
❒ 6" (153 mm) stainless steel or seismic
legs.
❒ Cutting boards.
❒ Half bun tray rack. Holds up to eleven
18"L x 26"D (458 mm x 661 mm) sheet
pans (sold separately).
❒ Additional shelves.
❒ Heavy duty tops (16 gauge) - upcharge
applies.
❒ Heavy duty package (16 gauge tops,
20 gauge door, sides and back with
stainless interior) - upcharge applies.
❒ Remote cabinets (condensing unit
supplied by others), consult factory
technical service department for BTU
information.
PLAN VIEW
617/8"
1
/4"
(1572 mm)
323/8"
(823 mm)
3013/32"
(773 mm)
SIDE VIEW
131/32"
(51 mm)
1"
(26 mm)
25/8"
(67 mm)
281/2"
(724 mm)
(7 mm)
Model Front Side Plan 3D
TWT-44F TFPY21E TFPY21S TFPY21P TFPY213
391/2"
(1004 mm)
3515/16"
(913 mm)
63/16"
(158 mm)
One year warranty on all parts
& labor and an additional 4 year
WARRANTY
warranty on compressor.
(U.S.A. only)
FRONT VIEW
293/4"
(756 mm)
81/4"
(210 mm)
39/16"
(91 mm)
335/16"
(847 mm)
441/2"
(1131 mm)
TRUE
123/4"
(324 mm)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
