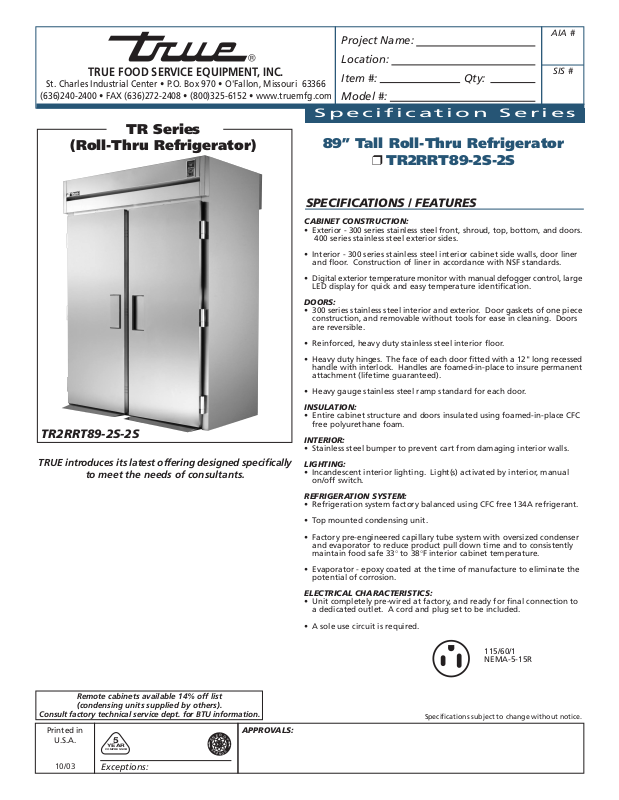

True Manufacturing TR2RRT89-2S-2S General Manual

TRUE FOOD SERVICE EQUIPMENT, INC.

St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366

[phone] • FAX [phone] • [phone] • www.truemfg.com

Specification Series

TR Series

(Roll-Thru Refrigerator)

TR2RRT89-2S-2S

TRUE introduces its latest offering designed specifically

to meet the needs of consultants.

89” Tall Roll-Thru Refrigerator

SPECIFICATIONS / FEATURES

CABINET CONSTRUCTION:

• Exterior - 300 series stainless steel front, shroud, top, bottom, and doors.
400 series stainless steel exterior sides.

• Interior - 300 series stainless steel interior cabinet side walls, door liner
and floor. Construction of liner in accordance with NSF standards.

• Digital exterior temperature monitor with manual defogger control, large
LED display for quick and easy temperature identification.

DOORS:

• 300 series stainless steel interior and exterior. Door gaskets of one piece
construction, and removable without tools for ease in cleaning. Doors
are reversible.

• Reinforced, heavy duty stainless steel interior floor.

• Heavy duty hinges. The face of each door fitted with a 12" long recessed
handle with interlock. Handles are foamed-in-place to insure permanent
attachment (lifetime guaranteed).

• Heavy gauge stainless steel ramp standard for each door.

INSULATION:

• Entire cabinet structure and doors insulated using foamed-in-place CFC
free polyurethane foam.

INTERIOR:

• Stainless steel bumper to prevent cart from damaging interior walls.

LIGHTING:

• Incandescent interior lighting. Light(s) activated by interior, manual
on/off switch.

REFRIGERATION SYSTEM:

• Refrigeration system factory balanced using CFC free 134A refrigerant.

• Top mounted condensing unit.

• Factory pre-engineered capillary tube system with oversized condenser
and evaporator to reduce product pull down time and to consistently
maintain food safe 33° to 38°F interior cabinet temperature.

• Evaporator - epoxy coated at the time of manufacture to eliminate the
potential of corrosion.

ELECTRICAL CHARACTERISTICS:

• Unit completely pre-wired at factory, and ready for final connection to
a dedicated outlet. A cord and plug set to be included.

• A sole use circuit is required.

Project Name:

Location:

Item #: Qty:

Model #:

❒ TR2RRT89-2S-2S

AIA #

SIS #

Remote cabinets available 14% off list
(condensing units supplied by others).

Consult factory technical service dept. for BTU information.

Printed in

U.S.A.

10/03

5

YEAR

COMPRESSOR

Exceptions:

E

S

R

E

G

N

Y

S

A

S

V

I

G

N

APPROVALS:

115/60/1
NEMA-5-15R

Specifications subject to change without notice.

12

®

5

/8"

TR-Series: 89” Tall Roll-Thru Refrigerator

35

L - 173 cm
D - 94 cm
H - 226 cm
Door
Swing - 76 cm

367/8"

763/8"

89"

27/16"

96

7

/

8

"

30"

1

/2"301/2"

30

68"

Rough-In Data

Dimensions Cord

Capacity (inches) NEMA Length Crated
Model Doors (Cu. Ft) L D H HP Volts PH Amps Config. (feet) Weight
TR2RRT89-2S-2S 4 80 68 36 7/8 89 1/2 115 1 9.5 5-15 9 821

Specifications subject to change without notice.

Standard Features ____________________________________________________________________________________________

• Oversized and balanced, environmentally
friendly (134A) refrigeration system - holds
food safe 33°F to 38°F.

• Exterior - 300 series stainless steel front, top
and bottom. Stainless steel sides.

• Interior - 300 series stainless steel walls, floor
and door liner.

• Accepts roll-in rack (inboard castor) with
maximum dimensions of
27”W x 29”D x 72”H.
(supplied by others).

• Exterior mounted digital electronic
thermometer with manual defogger.

• Heavy gauge reversible doors. Three
cam-lift hinges per door - lifetime
guaranteed. Designed for easy product
access with a full 180 degree open
capability and stay open feature at 120
degrees.

• 300 series stainless steel doors with
recessed handles (lifetime guaranteed).

• Top mounted unit positioned out of food
zone to maximize storage capacity.

• Glass condensate pan to prevent
electrolysis.

• Hot gas condensate for energy efficiency.

• Heavy gauge stainless steel ramp standard

for each door.

• Incandescent interior lighting.

• Reversible wiper gaskets for positive seal.

• Field reversible door swing.

• Magnetic door gaskets.

• Epoxy coated evaporator.

• Interior bumpers protect cabinet.

• 1 year parts & labor warranty (USA).

• 5 year compressor warranty (USA).

Optional Accessories ______________

❒ Export units available - consult factory.
❒ Metal handle (solid doors only).
❒ Electronic temperature control.
❒ Correctional facility options - consult factory.
❒ Remote cabinets available (contact factory

technical services for BTU information).

KCL

Model Front Right Plan 3D
TR2RRT89-2S-2S TFQX83E TFQY85S TFQY98P TFQX853

TRUE FOOD SERVICE EQUIPMENT

YEAR

COMPRESSOR

R

E

G

N

Y

5

E

S

S

A

S

V

I

G

N

St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com

Printed in U.S.A.
