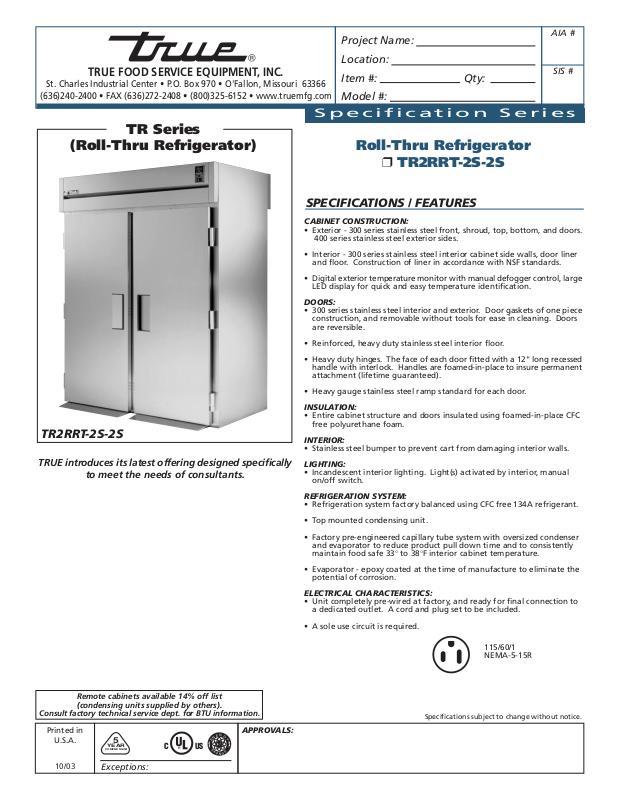

Page 1
TRUE FOOD SERVICE EQUIPMENT, INC.
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366
(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Specification Series
TR Series
(Roll-Thru Refrigerator)
SPECIFICATIONS / FEATURES
CABINET CONSTRUCTION:
• Exterior - 300 series stainless steel front, shroud, top, bottom, and doors.
400 series stainless steel exterior sides.
• Interior - 300 series stainless steel interior cabinet side walls, door liner
and floor. Construction of liner in accordance with NSF standards.
• Digital exterior temperature monitor with manual defogger control, large
LED display for quick and easy temperature identification.
DOORS:
• 300 series stainless steel interior and exterior. Door gaskets of one piece
construction, and removable without tools for ease in cleaning. Doors
are reversible.
• Reinforced, heavy duty stainless steel interior floor.
• Heavy duty hinges. The face of each door fitted with a 12" long recessed
handle with interlock. Handles are foamed-in-place to insure permanent
attachment (lifetime guaranteed).
• Heavy gauge stainless steel ramp standard for each door.
INSULATION:
• Entire cabinet structure and doors insulated using foamed-in-place CFC
free polyurethane foam.
TR2RRT-2S-2S
TRUE introduces its latest offering designed specifically
to meet the needs of consultants.
INTERIOR:
• Stainless steel bumper to prevent cart from damaging interior walls.
LIGHTING:
• Incandescent interior lighting. Light(s) activated by interior, manual
on/off switch.
REFRIGERATION SYSTEM:
• Refrigeration system factory balanced using CFC free 134A refrigerant.
• Top mounted condensing unit.
• Factory pre-engineered capillary tube system with oversized condenser
and evaporator to reduce product pull down time and to consistently
maintain food safe 33° to 38°F interior cabinet temperature.
• Evaporator - epoxy coated at the time of manufacture to eliminate the
potential of corrosion.
ELECTRICAL CHARACTERISTICS:
• Unit completely pre-wired at factory, and ready for final connection to
a dedicated outlet. A cord and plug set to be included.
• A sole use circuit is required.
Project Name:
Location:
Item #: Qty:
Model #:
Roll-Thru Refrigerator
❒ TR2RRT-2S-2S
AIA #
SIS #
Remote cabinets available 14% off list
(condensing units supplied by others).
Consult factory technical service dept. for BTU information.
Printed in
U.S.A.
10/03
5
YEAR
COMPRESSOR
Exceptions:
C US
®
E
S
R
E
G
N
Y
S
A
S
V
I
G
N
APPROVALS:
115/60/1
NEMA-5-15R
Specifications subject to change without notice.
Page 2
12
®
5
/8"
35
TR-Series: Roll-Thru Refrigerator
L - 173 cm
D - 94 cm
H - 213 cm
Door
Swing - 77 cm
367/8"
96
7
/
8
"
711/8"
833/4"
27/16"
30"
1
/2"301/2"
30
68"
Rough-In Data
Dimensions Cord
Capacity (inches) NEMA Length Crated
Model Doors (Cu. Ft) L D H HP Volts PH Amps Config. (feet) Weight
TR2RRT-2S-2S 4 75 68 36 7/8 83 3/4 1/2 115 1 9.5 5-15 9 781
Specifications subject to change without notice.
Standard Features ____________________________________________________________________________________________
• Oversized and balanced, environmentally
friendly (134A) refrigeration system - holds
food safe 33°F to 38°F.
• Exterior - 300 series stainless steel front, top
and bottom. Stainless steel sides.
• Interior - 300 series stainless steel walls, floor
and door liner.
• Accepts roll-in rack (inboard castor) with
maximum dimensions of
27”W x 29”D x 66”H.
(supplied by others).
• Exterior mounted digital electronic
thermometer with manual defogger.
• Heavy gauge reversible doors. Three camlift hinges per door - lifetime guaranteed.
Designed for easy product access with a full
180 degree open capability and stay open
feature at 120 degrees.
• Energy saver switch.
• 300 series stainless steel doors with
recessed handles (lifetime guaranteed).
• Top mounted unit positioned out of
food zone to maximize storage capacity.
• Glass condensate pan to prevent
electrolysis.
• Hot gas condensate for energy
efficiency.
• Heavy gauge stainless steel ramp
standard for each door.
• Incandescent interior lighting.
• Reversible wiper gaskets for positive
seal.
• Magnetic door gaskets.
• Epoxy coated evaporator.
• Interior bumpers protect cabinet.
• Self-contained system.
• 1 year parts & labor warranty (USA).
• 5 year compressor warranty (USA).
Optional Accessories ______________
❒ Export units available - consult factory.
❒ Metal handle (solid doors only).
❒ Electronic temperature control.
❒ Correctional facility options - consult factory.
❒ Remote cabinets available (contact factory
technical services for BTU information).
KCL
Model Front Right Plan 3D
TR2RRT-2S-2S TFQY55E TFQX61S TFQY98P TFQZ423
TRUE FOOD SERVICE EQUIPMENT
YEAR
COMPRESSOR
R
E
G
N
Y
5
C US
®
E
S
S
A
S
V
I
G
N
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366 • (636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Printed in U.S.A.
