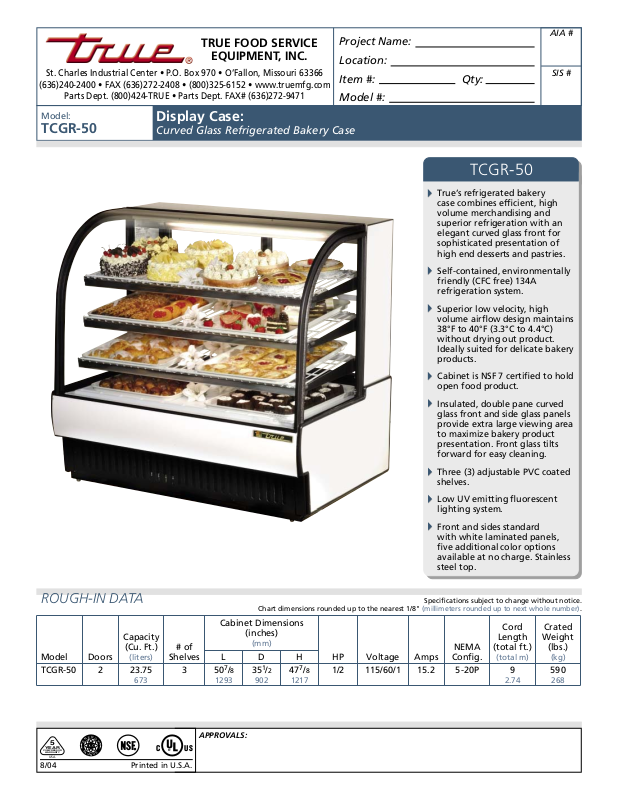

Page 1
TRUE FOOD SERVICE
EQUIPMENT, INC.
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# (636)272-9471
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Model:
TCGR-50
Display Case:
Curved Glass Refrigerated Bakery Case
TCGR-50
True’s refrigerated bakery
case combines effi cient, high
volume merchandising and
superior refrigeration with an
elegant curved glass front for
sophisticated presentation of
high end desserts and pastries.
Self-contained, environmentally
friendly (CFC free) 134A
refrigeration system.
Superior low velocity, high
volume airfl ow design maintains
38°F to 40°F (3.3°C to 4.4°C)
without drying out product.
Ideally suited for delicate bakery
products.
Cabinet is NSF 7 certifi ed to hold
open food product.
Insulated, double pane curved
glass front and side glass panels
provide extra large viewing area
to maximize bakery product
presentation. Front glass tilts
forward for easy cleaning.
ROUGH-IN DATA
Capacity
Model Doors
TCGR-50 2 23.75
R
E
G
N
YEAR
COMPRESSOR
WARRANTY
8/04
5
USA
E
S
S
A
V
I
G
N
(Cu. Ft.)
(liters)
673
Y
S
R
Printed in U.S.A.
# of
Shelves
350
®
C US
Chart dimensions rounded up to the nearest 1/8"
Cabinet Dimensions
(inches)
(mm)
LDH
7
/8
351/2
1293
APPROVALS:
902
477/8
1217
Three (3) adjustable PVC coated
shelves.
Low UV emitting fl uorescent
lighting system.
Front and sides standard
with white laminated panels,
fi ve additional color options
available at no charge. Stainless
steel top.
Specifi cations subject to change without notice.
(millimeters rounded up to next whole number).
Cord
Length
HP Voltage Amps
NEMA
Confi g.
(total ft.)
(total m)
1/2 115/60/1 15.2 5-20P 9
2.74
Crated
Weight
(lbs.)
(kg)
590
268
Page 2
Model:
TCGR-50
Display Case:
Curved Glass Refrigerated Bakery Case
STANDARD FEATURES
DESIGN
• True’s refrigerated bakery case combines
effi cient, high volume merchandising and
superior refrigeration with an elegant curved
glass front for sophisticated presentation of
high end desserts and pastries.
• Designed to provide an attractive companion to
our “dry” display case.
REFRIGERATION SYSTEM
• Self-contained, factory pre-engineered capillary
tube system using environmentally friendly (CFC
free) 134A refrigerant.
• Extra large evaporator coil balanced with higher
horsepower compressor and large condenser
maintains 38°F to 40°F (3.3°C to 4.4°C), ideally
suited for bakery products.
• Forced-air refrigeration system; sealed, cast iron,
self-lubricating evaporator fan motor and larger
fan blades give True refrigerated bakery cases
a superior low velocity, high volume airfl ow
design.
• Condensing unit located behind removable
panel in back of unit. Entire system slides out
for easy cleaning and maintenance.
CABINET CONSTRUCTION
• Exterior - white laminate front and side panels.
Color options available at no charge:
Walnut Teak Oak Beige Black White
All laminate ships separately from unit and is
fi eld installed. Stainless steel top.
• Insulated, double pane curved glass front and
side panels provide extra large viewing area to
maximize bakery product presentation. Front
glass tilts forward for easy cleaning. Exterior
pane is tempered for safety.
• Interior - NSF approved white aluminum sides
• Insulation - entire cabinet structure is
• Cabinet mounted on a welded, heavy duty
• Cabinet is NSF 7 certifi ed to hold open food
DOORS
• “Low-E”, double pane thermal glass insert with
• Self-closing rear doors, effi cient counter
• Each door is fi tted with a 12" (305 mm) long
SHELVING
• Three (3) adjustable, heavy duty PVC coated
• Shelf supports a maximum weight of 150 lbs.
PAN CAPACITY
• Cabinet holds (8) 18"L x 26"D (458 mm x
LIGHTING
• Case is equipped with 4 light sources for
and top, coved corners and high impact plastic
fl oor.
foamed-in-place using high density, CFC free,
polyurethane insulation.
galvanized frame rail. Rail dipped in rust
inhibiting enamel paint for corrosion protection
inside and out. Leg levelers included.
product.
mitered plastic channel frame.
balanced weight system for smooth, even,
positive closure. Sliding doors ride on stainless
steel V-channel with stainless steel bearings.
Doors fi t within plastic channel frame.
molded plastic handle.
wire shelves 443/8"L x 225/32"D (1128 mm x
563 mm). Shelving system is cantilevered
and angle can be adjusted to maximize
presentation.
(69 kg).
661 mm) display pans (2 per level) and (4)
9"L x 26"D (229 mm x 661 mm) display pans
(1 per level). Pans supplied by others.
maximum product display; (3) shelf mounted
and (1) cabinet mounted. Fluorescent lamps
are low UV emitting to enhance product
appearance and increase shelf life.
• Safety shielded lighting tube assure longer,
brighter, shadow-free product illumination.
MODEL FEATURES
• 5 Amp exterior scale receptacle.
• Evaporator is epoxy coated to eliminate the
potential of corrosion
• Recessed exterior light switch and thermostat
control.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for fi nal connection to a 115/60/1 phase
- 20 amp dedicated outlet. Cord and plug set
included.
115/60/1
NEMA-5-20R
RECOMMENDED OPERATION CONDITIONS
• TCGR models are designed to operate in an
environment where temperature and humidity
do not exceed 75°F (24°C) and 55% relative
humidity.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒
21/2" (64 mm) diameter castors.
❒
6" (153 mm) standard or seismic/fl anged legs.
❒
Custom exterior laminates, contact factory for
details. See our website: www.truemfg.com for
the latest color offerings.
❒
Additional shelves (non-lighted).
❒
Remote cabinets (condensing unit supplied
by others), consult factory technical service
department for BTU information.
PLAN VIEW
233/8"
(594 mm)
One year warranty on all parts
& labor and an additional 4 year
WARRANTY
warranty on compressor.
(U.S.A. only)
507/8"
(1293 mm)
281/4"
(718 mm)
4713/16"
(1215 mm)
1613/32"
(417 mm)
REAR VIEW SIDE VIEW
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
KCL
Model Front Side Plan 3D Rear
TCGR-50 TFD055E TFD055S TFD055P TFD0553 TFD055B
403/16"
(1021 mm)
351/2"
(902 mm)
537/32"
(1352 mm)
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • (636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
