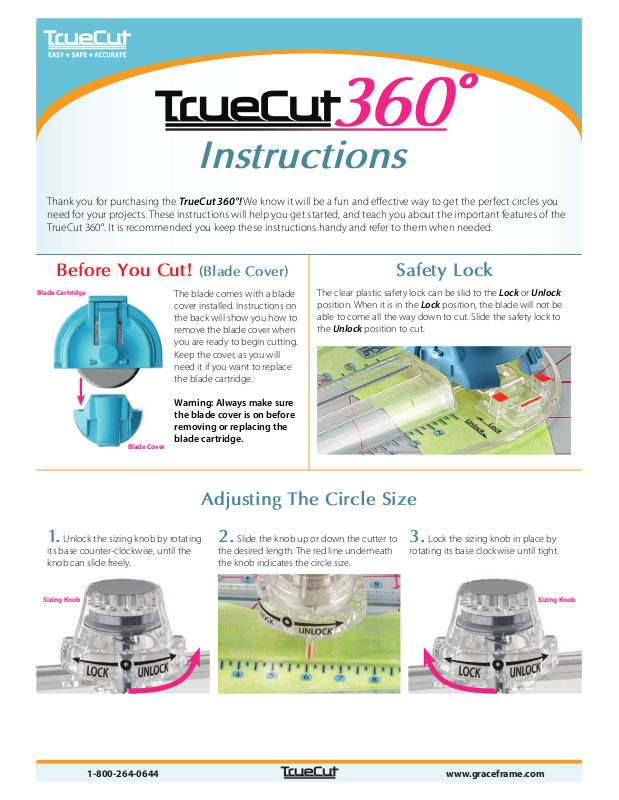

TrueCut TrueCut360 Instructions Manual

Instructions

Thank you for purchasing the TrueCut 360°! We know it will be a fun and e ective way to get the perfect circles you
need for your projects. These instructions will help you get started, and teach you about the important features of the
TrueCut 360°. It is recommended you keep these instructions handy and refer to them when needed.

Before You Cut! (Blade Cover)

Blade Cartridge

Blade Cover

The blade comes with a blade
cover installed. Instructions on
the back will show you how to
remove the blade cover when
you are ready to begin cutting.
Keep the cover, as you will
need it if you want to replace
the blade cartridge.

Warning: Always make sure
the blade cover is on before
removing or replacing the
blade cartridge.

Adjusting The Circle Size

1. Unlock the sizing knob by rotating

its base counter-clockwise, until the
knob can slide freely.

2. Slide the knob up or down the cutter to

the desired length. The red line underneath
the knob indicates the circle size.

Safety Lock

The clear plastic safety lock can be slid to the Lock or Unlock
position. When it is in the Lock position, the blade will not be
able to come all the way down to cut. Slide the safety lock to
the Unlock position to cut.

3. Lock the sizing knob in place by

rotating its base clockwise until tight.

Sizing Knob Sizing Knob

1-800-264-0644 www.graceframe.com

Cutting Circles

1. The best circles are cut with a single smooth motion,

without stopping and starting again. Place one hand on the
sizing knob. The sizing knob will be the center of your circle.

3. Apply pressure to the blade and sizing knobs, and in one

smooth motion, rotate the blade knob in a full circle.

2. Place your free hand on the blade knob, crossing over

your other arm.

Changing The Blade

Warning: Always make sure the blade cover is on before removing or replacing the blade cartridge.

1. While pushing the release lever to the side, lift up

on the blade knob and reveal the blade.

3. Insert the new blade untill it clicks in place.

New Blade

(additional blade cartridges sold separately)

2. Make sure the blade cover is on, and then remove

the old blade by pulling it out of the TrueCut 360°.

Old Blade

Release

Lever

4. Remove the blade cover by twisting a little and

pulling. Keep it in a safe place.

Blade Cover

1-800-264-0644 www.graceframe.com
