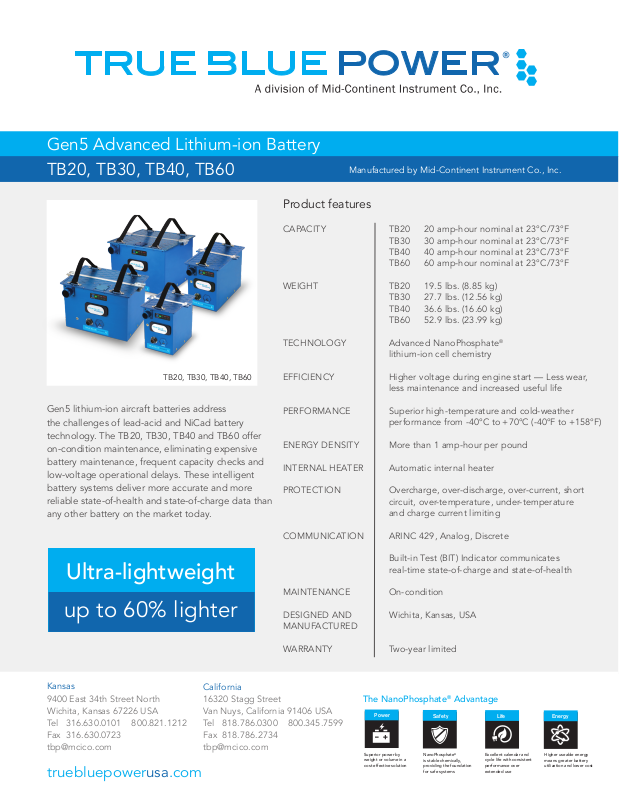

True Blue Power TB20, TB30, TB40, TB60 User Manual
Gen5 Advanced Lithium-ion Battery
TB20, TB30, TB40, TB60
TB20, TB30, TB40, TB60
Gen5 lithium-ion aircraft batteries address
the challenges of lead-acid and NiCad battery
technology. The TB20, TB30, TB40 and TB60 offer
on-condition maintenance, eliminating expensive
battery maintenance, frequent capacity checks and
low-voltage operational delays. These intelligent
battery systems deliver more accurate and more
reliable state-of-health and state-of-charge data than
any other battery on the market today.
Manufactured by Mid-Continent Instrument Co., Inc.
Product features
CAPACITY TB20 20 amp-hour nominal at 23°C/73°F
TB30 30 amp-hour nominal at 23°C/73°F
TB40 40 amp-hour nominal at 23°C/73°F
TB60 60 amp-hour nominal at 23°C/73°F
WEIGHT TB20 19.5 lbs. (8.85 kg)
TB30 27.7 lbs. (12.56 kg)
TB40 36.6 lbs. (16.60 kg)
TB60 52.9 lbs. (23.99 kg)
TECHNOLOGY Advanced NanoPhosphate
lithium-ion cell chemistry
EFFICIENCY Higher voltage during engine start — Less wear,
less maintenance and increased useful life
PERFORMANCE Superior high-temperature and cold-weather
performance from -40°C to +70°C (-40°F to +158°F)
ENERGY DENSITY More than 1 amp-hour per pound
INTERNAL HEATER Automatic internal heater
PROTECTION Overcharge, over-discharge, over-current, short
circuit, over-temperature, under-temperature
and charge current limiting
®
Ultra-lightweight
up to 60% lighter
Kansas
9400 East 34th Street North
Wichita, Kansas 67226 USA
Tel 316.630.0101 800.821.1212
Fax 316.630.0723
tbp@mcico.com
truebluepowerusa.com
COMMUNICATION ARINC 429, Analog, Discrete
Built-in Test (BIT) Indicator communicates
real-time state-of-charge and state-of-health
MAINTENANCE On-condition
DESIGNED AND Wichita, Kansas, USA
MANUFACTURED
WARRANTY Two-year limited
California
16320 Stagg Street
Van Nuys, California 91406 USA
Tel 818.786.0300 800.345.7599
Fax 818.786.2734
tbp@mcico.com
The NanoPhosphate® Advantage
Power
Superior power by
weight or volume in a
cost effective solution
Safety
NanoPhosphate
is stable chemically,
providing the foundation
for safe systems
®
Excellent calendar and
cycle life with consistent
performance over
extended use
Life
Energy
Higher useable energy
means greater battery
utilization and lower cost
Gen5 Advanced Lithium-ion Battery
TB20, TB30, TB40, TB60
Status Button
Vent
1.25
Quick Disconnect
Receptacle
per MS3509
(MIL-PRF-18148/3)
#1/4 - 20 Grounding
Point
Communications/
Service Connector
per MS3114E14-18P
TB20
and TB30
Quick Disconnect
Receptacle
per MS3509
(MIL-PRF-18148/3)
Communications/
Service Connector
per MS3114E14-18P
1/4-20 Grounding
Point
Vent
Status Button
1.50
6.02
USB Access
Cover
8.76
USB Access
Cover
0.47
Manufactured by Mid-Continent Instrument Co., Inc.
Technical specifications
CHARGE VOLTAGE 28 VDC nominal
OUTPUT VOLTAGE 26.4 VDC nominal
OUTPUT CURRENT TB20 525A continuous, 960A max
TB30 575A continuous, 1440A max
TB40 525A continuous, 1500A max
TB60 425A continuous, 1500A max
TECHNOLOGY Advanced NanoPhosphate
lithium-ion cell chemistry
ENERGY DENSITY TB20 59.7 Wh/Kg
TB30 63.1 Wh/Kg
TB40 63.6 Wh/Kg
TB60 66.0 Wh/Kg
0.5
0.2
CHARGE CURRENT Programmable up to 4C or 10C unlimited
LIMITING
OPERATING -40°C to +70°C (-40°F to +158°F)
TEMPERATURE
8.7
WEIGHT TB20 19.5 lbs. (8.85 kg)
TB30 27.7 lbs. (12.56 kg)
TB40 36.6 lbs. (16.60 kg)
TB60 52.9 lbs. (23.99 kg)
®
4X 8-32
TB40
and TB60
0.6
0.4 MIN
1.3
3.4
1.5
8.2
0.6
4X 8-32
0.4 MIN
12.1
0.6
TB20 and TB40 TB30 and TB60
11.6
6X 0.03
DIMENSIONS TB20 9.1" L x 8.6" W x 8.8" H
TB30 12.5" L x 8.6" W x 8.8" H
TB40 9.1" L x 14.7" W x 8.8" H
TB60 12.5” L x 14.7“ W x 8.8” H
CONFIGURATION TB20 8P8S; 4 parallel x 8 in series x 2
TB30 12P8S; 4 parallel x 8 in series x 3
TB40 16P8S; 4 parallel x 8 in series x 4
TB60 24P8S; 4 parallel x 8 in series x 6
LIFE EXPECTANCY 8 years (average)
MAINTENANCE On-condition
CASE Anodized aluminum, blue
CERTIFICATION FAA TSO-C179b (Class A-4B)
4X 3.4
1.5
RTCA DO-311A
RTCA DO-160G
RTCA DO-178C DAL A
UNDOT/IATA
