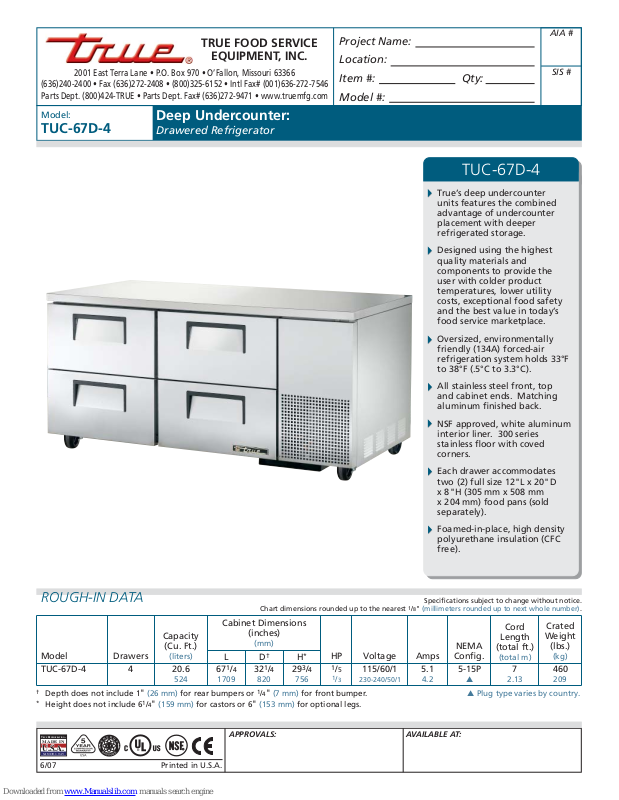

True TUC-67D-4 Specifications

TRUE FOOD SERVICE

.S.A.

EQUIPMENT, INC.

2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TUC-67D-4

Deep Undercounter:

Drawered Refrigerator

TUC-67D-4

True’s deep undercounter
units features the combined
advantage of undercounter
placement with deeper
refrigerated storage.

Designed using the highest
quality materials and
components to provide the
user with colder product
temperatures, lower utility
costs, exceptional food safety
and the best value in today’s
food service marketplace.

Oversized, environmentally
friendly (134A) forced-air
refrigeration system holds 33°F
to 38°F (.5°C to 3.3°C).

All stainless steel front, top
and cabinet ends. Matching
aluminum fi nished back.

NSF approved, white aluminum
interior liner. 300 series
stainless fl oor with coved
corners.

Each drawer accommodates
two (2) full size 12"L x 20"D
x 8"H (305 mm x 508 mm
x 204 mm) food pans (sold
separately).

Foamed-in-place, high density
polyurethane insulation (CFC
free).

ROUGH-IN DATA

Chart dimensions rounded up to the nearest

Cabinet Dimensions

Capacity

(Cu. Ft.)

Model Drawers
TUC-67D-4 4 20.6

†

Depth does not include 1" (26 mm) for rear bumpers or 1/4" (7 mm) for front bumper. ▲ Plug type varies by country.

*

Height does not include 61/4" (159 mm) for castors or 6" (153 mm) for optional legs.

(liters)

524

671/4

1709

(inches)

(mm)

LD†H

321/4

820

293/4

756

*

HP Voltage Amps

1

/5

/3

115/60/1

230-240/50/1

1

Specifi cations subject to change without notice.

1

/8" (millimeters rounded up to next whole number).

Crated

Weight

(lbs.)

(kg)

460

209

5.1

4.2

NEMA

Confi g.

5-15P

▲

Cord

Length

(total ft.)

(total m)

7

2.13

T

RUE

R

EFRIGERATION

TM

MADE IN

U.S.A.

U.S.A.

SINCE 1945

6/07

®

R

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

Model:

TUC-67D-4

Deep Undercounter:

Drawered Refrigerator

STANDARD FEATURES

DESIGN

• True’s deep undercounter units are
designed with enduring quality that
protects your long term investment.

• True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures, lower
utility costs, exceptional food safety and
the best value in today’s food service
marketplace.

REFRIGERATION SYSTEM

• Factory engineered, self-contained
capillary tube system using
environmentally friendly (CFC free) 134A
refrigerant.

• Oversized, factory balanced refrigeration
system with guided airfl ow to provide
uniform product temperatures.

• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains cabinet
temperatures of 33°F to 38°F (.5°C to

3.3°C) for the best in food preservation.

• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger fan
blades give True undercounter units a
more effi cient low velocity, high volume
airfl ow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of food
service environments.

• Condensing unit is accessed from
behind front grill; slides out for easy
maintenance.

CABINET CONSTRUCTION

• Exterior - stainless steel front, top and
cabinet ends. Matching aluminum
fi nished back.

• Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless fl oor
with coved corners.

• Insulation - entire cabinet structure and
drawer facings are foamed-in-place using
high density, CFC free, polyurethane
insulation.

• 5" (127 mm) diameter stem castors - locks
provided on front set. 36" (915 mm)
work surface height.

DRAWERS

• Stainless steel exterior with white
aluminum liner to match cabinet interior.

• Each drawer fi tted with 12" (305 mm)
long recessed handles that is foamed­in-place with a sheet metal interlock to
ensure permanent attachment.

• Heavy-dutxy stainless steel drawer slides
and rollers. Removeable without tools
for easy cleaning.

• Magnetic drawer gaskets of one piece
construction, removable without tools for
ease of cleaning.

DRAWER PAN CAPACITY

• Each drawer accommodates two (2)
full size 12"L x 20"W x 8"D (305 mm
x 508 mm x 204 mm) food pans (sold
separately).

MODEL FEATURES

• Evaporator is epoxy coated to eliminate
the potential of corrosion.

• Drawers will support a wide variety of
incremental pan size confi gurations;
divider bars available.

• NSF-7 compliant for open food product.

ELECTRICAL

• Unit completely pre-wired at factory and
ready for fi nal connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord
and plug set included.

115/60/1
NEMA-5-15R

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❒ 230 - 240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/fl anged legs.

1

❒ 2

/2" (64 mm) diameter castors.

❒ Exterior round digital thermometer

(factory installed).

❒ Single utility shelf.
❒ Double utility shelf.

1

❒ 32

/8" (816 mm) deep, 1/2" (13 mm)
thick, white polyethylene cutting board.
Requires “L” brackets.

1

❒ 32

/8" (816 mm) deep, 1/2" (13 mm) thick,
composite cutting board. Requires “L”
brackets.

❒ Heavy duty 16 gauge tops.
❒ Heavy duty package - 16 gauge tops, 20

gauge door, sides and back with stainless
interior.

❒ 3" (85 mm) diameter castors.
❒ Remote cabinets (condensing unit

supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant). Consult
factory technical service department for
BTU information

PLAN VIEW

587/8"

(1496 mm)

1

/4"

323/16"

(818 mm)

1"

(26 mm)

25/8"

(67 mm)

39/16"

(91 mm)

RIGHT VIEW

293/4"

(756 mm)

5"

(127 mm)

One year warranty on all parts

and labor and an additional 4
year warranty on compressor.

WARRANTY

(U.S.A. only)

671/4"

(1709 mm)

123/4"

ELEVATION

(324 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

81/4"

(210 mm)

3515/16"

(913 mm)

63/16"

(158 mm)

KCL

2511/16"

(653 mm)

(7 mm)

Model Elevation Right Plan 3D

TUC-67D-4 TFPY16E TFPY65S TFPY16P TFPY163
