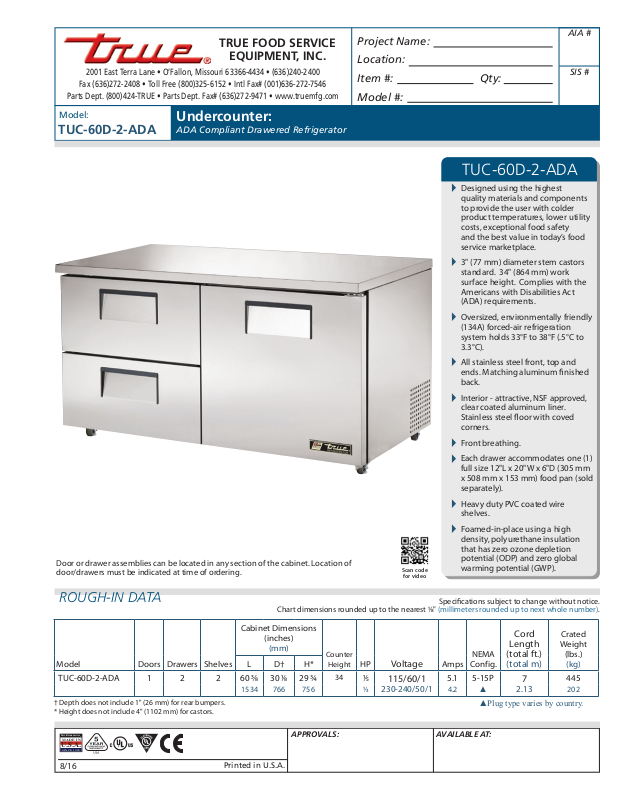

True TUC-60D-2-ADA User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TUC-60D-2-ADA

Door or drawer assemblies can be located in any section of the cabinet. Location of
door/drawers must be indicated at time of ordering.

Undercounter:

ADA Compliant Drawered Refrigerator

Scan cod e

for video

TUC-60D-2-ADA

Designed using the highest



quality materials and components
to provide the user with colder
product temperatures, lower utility
costs, exceptional food safety
and the best value in today’s food
service marketplace.

3" (77 mm) diameter stem castors



standard. 34" (864 mm) work
surface height. Complies with the
Americans with Disabilities Act
(ADA) requirements.

Oversized, environmentally friendly



(134A) forced-air refrigeration
system holds 33°F to 38°F (.5°C to

3.3°C).

All stainless steel front, top and



ends. Matching aluminum nished
back.

Interior - attractive, NSF approved,



clear coated aluminum liner.
Stainless steel oor with coved
corners.

Front breathing.



Each drawer accommodates one (1)



full size 12"L x 20"W x 6"D (305 mm
x 508 mm x 153 mm) food pan (sold
separately).

Heavy duty PVC coated wire



shelves.

Foamed-in-place using a high



density, polyurethane insulation
that has zero ozone depletion
potential (ODP) and zero global
warming potential (GWP).

ROUGH-IN DATA

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

Model Doors Drawers Shelves

TUC-60D-2-ADA 1 2 2 60 ⁄ 30 ⁄ 29¾

1534 766 756 ⁄

†Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 4" (1102 mm) for castors.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

8/16

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

Specications subject to change without notice.

Counter

Height HP Voltage Amps

34

⁄

230-240/50/1

115/60/1

5.1 5-15P

4.2 ▲

Cord

Length

NEMA

Config.

(total ft.)

(total m)

7

2.13

▲Plug type varies by country.

Crated

Weight

(lbs.)

(kg)L D† H*

445

202

Model:

TUC-60D-2-ADA

Undercounter:

ADA Compliant Drawered Refrigerator

STANDARD FEATURES

DESIGN

True’s undercounter units are designed with

•

enduring quality that protects your long term
investment.
True’s commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional
food safety and the best value in today’s food
service marketplace.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary tube

•

system using environmentally friendly (CFC free)
134A refrigerant.
Oversized, factory balanced refrigeration system

•

with guided airow to provide uniform product
temperatures.
Extra large evaporator coil balanced with higher

•

horsepower compressor and large condenser
maintains cabinet temperatures of 33°F to 38°F
(.56°C to 3.33°C) for the best in food preservation.
Sealed, cast iron, self-lubricating evaporator

•

fan motor(s) and larger fan blades give True
undercounter units a more ecient, low velocity,
high volume airow design. This unique design
ensures faster temperature recovery and
shorter run times in the busiest of foodservice
environments.
Condensing unit access in back of cabinet, slides

•

out for easy maintenance.

CABINET CONSTRUCTION

Exterior - stainless steel front, top and ends.

•

Matching aluminum nished back.
Interior - attractive, NSF approved, clear coated

•

aluminum liner. Stainless steel oor with coved
corners.

Insulation - entire cabinet structure, solid door,

•

and drawer facings are foamed-in-place using a
high density, polyurethane insulation that has
zero ozone depletion potential (ODP) and zero
global warming potential (GWP).
3" (77 mm) diameter stem castors. 34" (864 mm)

•

work surface height. Compliant with American
Disablities Act (ADA) requirements.

DOOR / DRAWERS

Door or drawer assemblies can be located in any

•

section of the cabinet. Location of door/drawers
must be indicated at time of ordering.
Door constructed of stainless steel exterior with

•

clear aluminum liner to match cabinet interior.
Drawers have stainless steel exterior facings and
liners with stainless steel frames.
Each door and drawer tted with 12" (305 mm)

•

long recessed handle that is foamed-in-place
with a sheet metal interlock to ensure permanent
attachment.
Door section - positive seal self-closing door

•

with 90º stay open feature. Door swings within
cabinet dimensions.
Magnetic drawer/door gaskets of one piece

•

construction, removable without tools for ease
of cleaning.
Heavy-duty stainless steel drawer slides and

•

rollers. Removable without tools for easy
cleaning.
Each drawer accommodates one (1) full size 12"L

•

x 20"W x 6"D (305 mm x 208 mm x 153 mm)
food pan (sold separately). Drawer will support
varying size pan congurations with pan divider
bars (drawer pans and divider bars optional).

SHELVING

Two (2) adjustable, heavy duty PVC coated wire

•

shelves 27 ½"L x 16"D (699 mm x 407 mm). Four
(4) chrome plated shelf clips included per shelf.
Shelf support pilasters made of same material as

•

cabinet interior; shelves are adjustable on ½" (13
mm) increments.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/60/1 phase, 15 amp
dedicated outlet. Cord and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 230 - 240V / 50 Hz.
❑ Barrel lock available for door section (factory

installed).
❑ Single overshelf.
❑ Double overshelf.
❑ 30" (762 mm) deep,½" (13 mm) thick, white

polyethylene cutting board. Requires “L”

brackets.
❑ 30" (762 mm) deep,½" (13 mm) thick, composite

cutting board. Requires “L” brackets.
❑ Heavy duty 16 gauge top.
❑ Exterior rectangular digital temperature display

(factory installed).
❑ Standard height units with 5" (127 mm) diameter

castors. 36" (915 mm) work surface height.
❑ Low prole models with 31⁄" (810 mm) work

surface height.

PLAN VIEW

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

WARRANTY

warranty on compressor.

(U.S.A. only)

*

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

Model Elevation Right Plan 3D Back

TUC-60D-2-ADA TFQY129E TFPY18S TFQY127P TFQY1293
