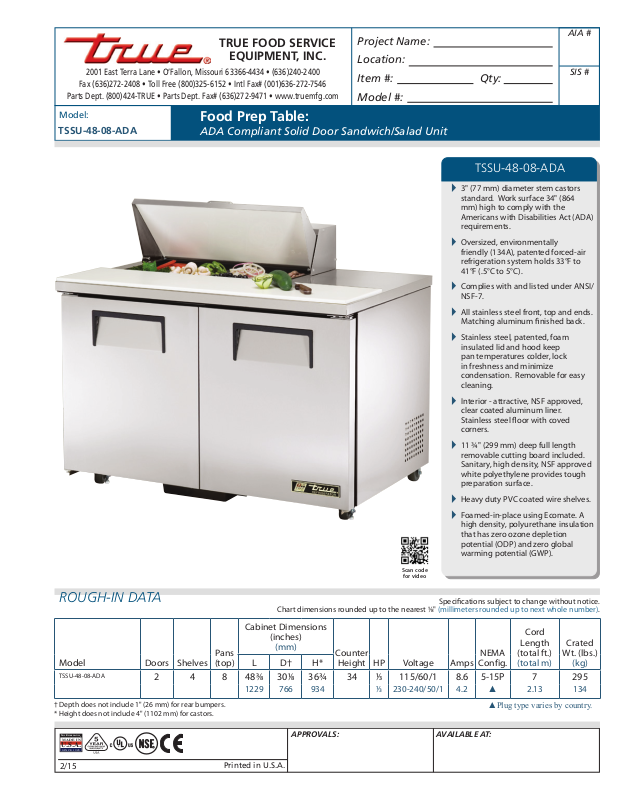

TRUE FOOD SERVICE |
Project Name: |
|
|
|
|
AIA # |
|||
|
|
|
|
|
|||||
EQUIPMENT, INC. |
Location: |
|
|
|
|
|
|
||
2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • (636)240-2400 |
Item #: |
|
Qty: |
SIS # |
|||||
Fax (636)272-2408 • Toll Free (800)325-6152 • Intl Fax# (001)636-272-7546 |
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
Parts Dept. (800)424-TRUE • Parts Dept. Fax# (636)272-9471 • www.truemfg.com |
Model #: |
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
Model: |
Food Prep Table: |
TSSU-48-08-ADA |
ADA Compliant Solid Door Sandwich/Salad Unit |
|
|
|
|
|
TSSU-48-08-ADA |
|
3" (77 mm) diameter stem castors |
|
standard. Work surface 34" (864 |
|
mm) high to comply with the |
|
Americans with Disabilities Act (ADA) |
|
requirements. |
|
Oversized, environmentally |
|
friendly (134A), patented forced-air |
|
refrigeration system holds 33°F to |
|
41°F (.5°C to 5°C). |
|
Complies with and listed under ANSI/ |
|
NSF-7. |
|
All stainless steel front, top and ends. |
|
Matching aluminum finished back. |
|
Stainless steel, patented, foam |
|
insulated lid and hood keep |
|
pan temperatures colder, lock |
|
in freshness and minimize |
|
condensation. Removable for easy |
|
cleaning. |
|
Interior - attractive, NSF approved, |
|
clear coated aluminum liner. |
|
Stainless steel floor with coved |
|
corners. |
|
11 3/4" (299 mm) deep full length |
|
removable cutting board included. |
|
Sanitary, high density, NSF approved |
|
white polyethylene provides tough |
|
preparation surface. |
|
Heavy duty PVC coated wire shelves. |
|
Foamed-in-place using Ecomate. A |
|
high density, polyurethane insulation |
|
that has zero ozone depletion |
|
potential (ODP) and zero global |
|
warming potential (GWP). |
|
Scan code |
|
for video |
ROUGH-IN DATA
Specifications subject to change without notice. Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
|
|
Cabinet Dimensions |
|
Cord |
|
|||
|
|
|
(inches) |
|
|
|
|
|
|
|
|
|
|
|
Length |
Crated |
|
|
|
|
(mm) |
|
|
|
||
|
Pans |
|
|
Counter |
NEMA |
(total ft.) |
Wt. (lbs.) |
|
|
|
|
|
|||||
|
|
|
|
|||||
Model |
Doors Shelves (top) |
L |
D† |
H* Height HP |
Voltage Amps Config. |
(total m) |
(kg) |
|
TSSU-48-08-ADA |
2 |
4 |
8 |
483/8 |
301/8 |
363/4 |
34 |
1/3 |
115/60/1 |
8.6 |
5-15P |
7 |
295 |
|
|
|
|
1229 |
766 |
934 |
|
1/3 |
230-240/50/1 |
4.2 |
▲ |
2.13 |
134 |
† Depth does not include 1" (26 mm) for rear bumpers. * Height does not include 4" (1102 mm) for castors.
▲Plug type varies by country.
MADE IN |
APPROVALS: |
AVAILABLE AT: |
TRUE REFRIGERATION® |
|
|
U.S.A. |
|
|
SINCE 1945 |
|
|
2/15 |
Printed in U.S.A. |
|
