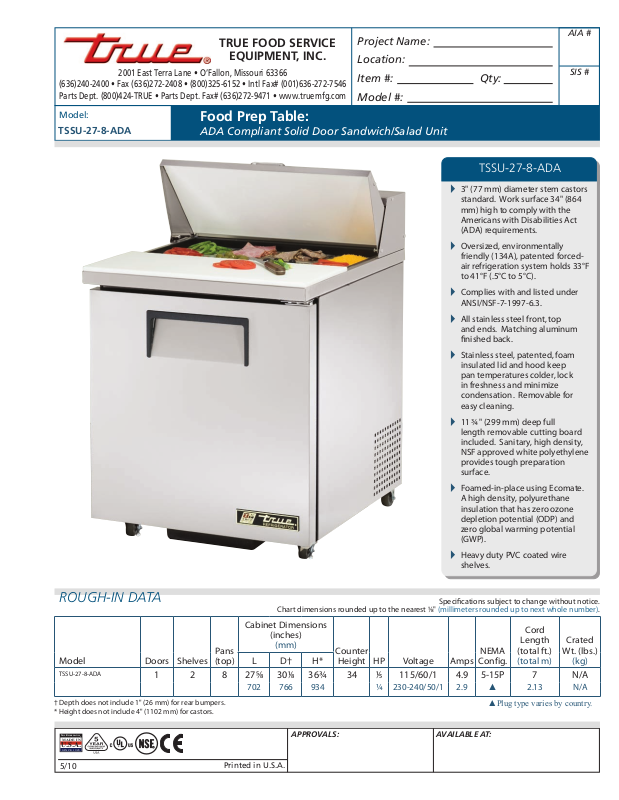

True TSSU-27-8-ADA User Manual

TRUE FOOD SERVICE

T

RUE

R

EFRIGERAT ION

MADE IN

SINCE 1945

U.S.A.

®

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TSSU-27-8-ADA

Food Prep Table:

ADA Compliant Solid Door Sandwich/Salad Unit

TSSU-27-8-ADA

3" (77 mm) diameter stem castors



standard. Work surface 34" (864
mm) high to comply with the
Americans with Disabilities Act
(ADA) requirements.

Oversized, environmentally



friendly (134A), patented forced­air refrigeration system holds 33°F
to 41°F (.5°C to 5°C).

Complies with and listed under



ANSI/NSF-7-1997-6.3.

All stainless steel front, top



and ends. Matching aluminum
nished back.

Stainless steel, patented, foam



insulated lid and hood keep
pan temperatures colder, lock
in freshness and minimize
condensation. Removable for
easy cleaning.

11 ¾" (299 mm) deep full
length removable cutting board
included. Sanitary, high density,
NSF approved white polyethylene
provides tough preparation
surface.

Foamed-in-place using Ecomate.



A high density, polyurethane
insulation that has zero ozone
depletion potential (ODP) and
zero global warming potential
(GWP).

Heavy duty PVC coated wire



shelves.

Rough-In Data

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

Pans

Model Doors Shelves

TSSU-27-8-ADA

† Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 4" (1102 mm) for castors.

5/10

1 2 8 27⁄ 30⁄ 36¾ 34 ⁄ 115/60/1 4.9 5-15P 7 N/A

(top)

Printed in U.S.A.

(mm)

Counter

Height HP Voltage Amps

702 766 934 ¼ 230-240/50/1 2.9 ▲ 2.13 N/A

ApprovAls: AvAilAble At:

Specications subject to change without notice.

Cord

Length

NEMA

Config.

(total ft.)

(total m)

▲Plug type varies by country.

Crated

Wt. (lbs.)

(kg)L D† H*

Model:

TSSU-27-8-ADA

Food Prep Table:

ADA Compliant Solid Door Sandwich/Salad Unit

StanDaRD FeatuReS

DESIGN

True’s salad/sandwich units are designed with

•

enduring quality that protects your long term
investment.
True’s commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional food
safety and the best value in today’s food service
marketplace.

REFRIGERATION SYSTEM

Self-contained, factory pre-engineered capillary

•

tube system using environmentally friendly (CFC
free) 134A refrigerant.
Oversized, factory balanced refrigeration

•

system with guided airow to provide uniform
temperature in food pans and cabinet interior.
Patented forced-air design holds 33°F to 41°F

•

(.5°C to 5°C) product temperature in food pans
and cabinet interior. Complies with and listed
under ANSI/NSF-7-1997-6.3.
Sealed, cast iron, self-lubricating evaporator

•

fan motors and larger fan blades give True
undercounter units a more ecient, low velocity,
high volume airow design.
Condensing unit access in back of cabinet, slides

•

out for easy maintenance.

CABINET CONSTRUCTION

Exterior - stainless steel front, top and ends.

•

Matching aluminum nished back.
Interior - attractive, NSF approved, white

•

aluminum liner. 300 series stainless steel oor
with coved corners.
Insulation - entire cabinet structure and solid

•

door are foamed-in-place using Ecomate. A high
density, polyurethane insulation that has zero
ozone depletion potential (ODP) and zero global
warming potential (GWP).
3" (77 mm) diameter stem castors. 34" (864 mm)

•

work surface height.

DOOR

Stainless steel exterior with white aluminum liner

•

to match cabinet interior.
Door tted with 12" (305 mm) long recessed

•

handle that is foamed-in-place with a sheet metal
interlock to ensure permanent attachment.
Positive seal self-closing door with 90° stay open

•

feature. Door swing within cabinet dimensions.
Magnetic door gasket of one piece construction,

•

removable without tools for ease of cleaning.

SHELVING

Two (2) adjustable, heavy duty PVC coated wire

•

shelves 23¼"L x 16"D (591 mm x 407 mm). Four
(4) chrome plated shelf clips included per shelf.
Shelf support pilasters made of same material as

•

cabinet interior; shelves are adjustable on½" (13
mm) increments.

PAN CAPACITY

Comes standard with 8 (•⁄size) 6⁄"L x 6¼”W
x 4"D (175 mm x 159 mm x 102 mm) clear
polycarbonate, NSF approved, food pans in
countertop prep area. Also accommodates
6" (153 mm) and 8" (204 mm) deep food pans
(supplied by others).
Countertop pan opening designed to t varying

•

size pan congurations with available pan divider
bars. Pans supplied by others.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
11•¾" (299 mm) deep full length removable
cutting board included. Sanitary, high-density,
NSF approved white polyethylene provides tough
preparation surface.
Stainless steel, patented, foam insulated lid

•

and hood keep pan temperatures colder,
lock in freshness and minimize condensation.
Removable for easy cleaning.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/60/1 phase, 15 amp
dedicated outlet. Cord and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

230 - 240V / 50 Hz. ❑
Barrel lock (factory installed). ❑
Additional shelves. ❑
Single overshelf. ❑
Double overshelf. ❑
Flat lid. ❑
Sneezeguard. ❑
19" (483 mm) deep, ❑ ½" (13 mm) thick, white
polyethylene cutting board. Requires “L” brackets.
19" (483 mm) deep, ❑ ¾" (20 mm) thick, white
polyethylene cutting board. Requires “L” brackets.
11 ❑ ¾" (299 mm) deep,½" (13 mm) thick,
composite cutting board. Requires “L” brackets.
19" (483 mm) deep, ❑ ½" (13 mm) thick, composite
cutting board. Requires “L” brackets.
Crumb catcher. Requires crumb catcher cutting ❑
board for proper installation.
Pan dividers. ❑
Exterior rectanglular digital thermometer (factory ❑
installed).
Standard height unit with 5" (127 mm) diameter ❑
castors. 36" (915 mm) work surface height.

Plan VIew

Cubic Feet/Liters

* Based on ANSI/AHAM HRF-1-2004

One year warranty on all parts

and labor and an additional 4
year warranty on compressor.

6.5/185

WARRANTY

(U.S.A. only)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

Model Elevation Right Plan 3D

TSSU-27-8-ADA

TFNX02E TFNX02S TFNY01P TFNX023
