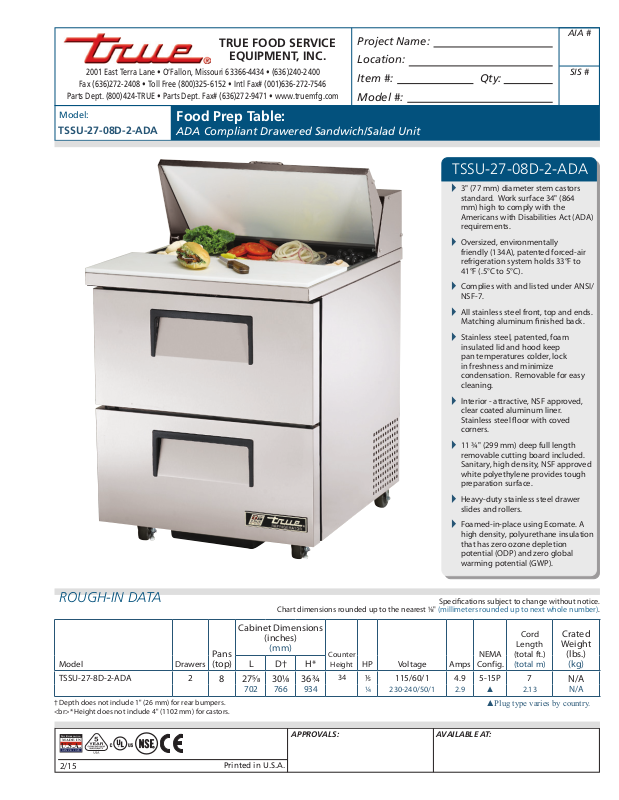

True TSSU-27-08D-2-ADA User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TSSU-27-08D-2-ADA

Food Prep Table:

ADA Compliant Drawered Sandwich/Salad Unit

TSSU-27-08D-2-ADA

3" (77 mm) diameter stem castors



standard. Work surface 34" (864
mm) high to comply with the
Americans with Disabilities Act (ADA)
requirements.

Oversized, environmentally



friendly (134A), patented forced-air
refrigeration system holds 33°F to
41°F (.5°C to 5°C).

Complies with and listed under ANSI/



NSF-7.

All stainless steel front, top and ends.



Matching aluminum nished back.

Stainless steel, patented, foam



insulated lid and hood keep
pan temperatures colder, lock
in freshness and minimize
condensation. Removable for easy
cleaning.

Interior - attractive, NSF approved,



clear coated aluminum liner.
Stainless steel oor with coved
corners.

11 ¾" (299 mm) deep full length



removable cutting board included.
Sanitary, high density, NSF approved
white polyethylene provides tough
preparation surface.

Heavy-duty stainless steel drawer



slides and rollers.

Foamed-in-place using Ecomate. A



high density, polyurethane insulation
that has zero ozone depletion
potential (ODP) and zero global
warming potential (GWP).

ROUGH-IN DATA

Pans

Model Drawers

TSSU-27-8D-2-ADA 2

†Depth does not include 1" (26 mm) for rear bumpers.
<br>* Height does not include 4" (1102 mm) for castors.

T

RUE

R

EFRIGERATION

®

MADE IN

U.S.A.

SINCE 1945

2/15

(top)

8 27⁄ 30⁄ 36¾

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

702 766 934

Printed in U.S.A.

Specications subject to change without notice.

Counter

Height HP Voltage Amps

34

⁄ 115/60/1 4.9 5-15P 7

¼ 230-240/50/1 2.9 ▲ 2.13

APPROVALS: AVAILABLE AT:

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D† H*

N/A

N/A

▲Plug type varies by country.

Model:

TSSU-27-08D-2-ADA

Food Prep Table:

ADA Compliant Drawered Sandwich/Salad Unit

STANDARD FEATURES

DESIGN

True’s salad/sandwich units are designed with

•

enduring quality that protects your long term
investment.
True’s commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, lower utility costs, exceptional food
safety and the best value in today’s food service
marketplace.

REFRIGERATION SYSTEM

Self-contained, factory pre-engineered capillary

•

tube system using environmentally friendly (CFC
free) 134A refrigerant.
Oversized, factory balanced refrigeration

•

system with guided airow to provide uniform
temperature in food pans and cabinet interior.
Patented forced-air design holds 33°F to 41°F (.5°C

•

to 5°C) product temperature in food pans and
cabinet interior. Complies with and listed under
ANSI/NSF-7.
Sealed, cast iron, self-lubricating evaporator

•

fan motor and larger fan blades give True
undercounter units a more ecient, low velocity,
high volume airow design.
Condensing unit access in back of cabinet, slides

•

out for easy maintenance.

CABINET CONSTRUCTION

Exterior - stainless steel front, top and ends.

•

Matching aluminum nished back.
Interior - attractive, NSF approved, clear coated

•

aluminum liner. Stainless steel oor with coved
corners.
Insulation - entire cabinet structure and drawer

•

facings are foamed-in-place using Ecomate. A high
density, polyurethane insulation that has zero
ozone depletion potential (ODP) and zero global
warming potential (GWP).

3" (77 mm) diameter stem castors. 34" (864 mm)

•

work surface height.

DRAWERS

Stainless steel exterior drawer facings and liners.

•

Stainless steel drawer frames.
Each drawerr tted with 12" (305 mm) long

•

recessed handle that is foamed-in-place with
a sheet metal interlock to ensure permanent
attachment.
Magnetic drawer gaskets of one piece

•

construction, removable without tools for ease of
cleaning.
Heavy-duty stainless steel drawer slides and

•

rollers. Removable without tools for easy cleaning.

DRAWER PAN CAPACITY

Comes standard with 8 ( ⁄size) 6⁄"L x 6¼”W

•

x 4"D (175 mm x 159 mm x 102 mm) clear
polycarbonate, NSF approved, food pans in
countertop prep area. Also accommodates 6" (153
mm) deep food pans (supplied by others).
Each drawer accommodates one (1) full size 12"L

•

x 20”W x 6"D (305 mm x 508 mm x 153 mm)
food pan (sold separately). Drawer will support
varying size pan congurations with available pan
divider bars (drawer pans and divider bars sold
separately).
Countertop pan opening designed to t varying

•

size pan congurations with available pan divider
bars. Pans supplied by others.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
11 ¾" (299 mm) deep full length removable

•

cutting board included. Sanitary, high-density,
NSF approved white polyethylene provides tough
preparation surface.

Stainless steel, patented, foam insulated lid(s)

•

and hood keep pan temperatures colder, lock in
freshness and minimize condensation. Removable
for easy cleaning.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/60/1 phase, 15 amp
dedicated outlet. Cord and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 230 - 240V / 50 Hz.
❑ Single overshelf.
❑ Double overshelf.
❑ Flat lid.
❑ Sneezeguard.
❑ 11 ¾" (299 mm) deep, ½" (13 mm) thick,

composite cutting board. Requires “L” brackets.

❑ Crumb catcher. Requires crumb catcher cutting

board for proper installation.
❑ Pan dividers.
❑ Exterior rectanglular digital temperature display

(factory installed).
❑ Standard height unit with 5" (127 mm) diameter

castors. 36" (915 mm) work surface height.

Beginning in October of 2014, True Manufacturing began the

process of changing the standard interior nishes on select

products. The interior liners of these units have changed from the

traditional NSF-approved white aluminum to an NSF-approved clear

coated aluminum that is silver in color. In addition, the traditional
white PVC coated shelves have been switched to a gray PVC coating.
There are no functional dierences created by any of these changes,
the dierence is only in the appearance. The following product lines

are aected by this change: T-Series, TUC, TWT, TSSU, TFP, TPP, TMC,

TRCB. A sticker will be placed on the outside packaging so that units

*CABINET INTERIOR

with this change can be identied in inventory.

PLAN VIEW

4615/16"

1

/8"

(4 mm)

447/16"

(1129 mm)

4011/16"

(1034 mm)

3311/16"

(856 mm)

125/8"

3"

(321 mm)

(77 mm)

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

WARRANTY

warranty on compressor.

(U.S.A. only)

*

ELEVATION

279/16"

(701 mm)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

7"

(178 mm)

363/4"

(934 mm)

293/4"

(756 mm)

75/16"

(186 mm)

WITHOUT NOTICE

315/16"

(101 mm)

(404 mm)

TRUE FOOD SERVICE EQUIPMENT

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

157/8"

KCL

(1193 mm)

311/16"

(789 mm)

185/16"

(466 mm)

103/4"

(274 mm)

RIGHT VIEW

Model Elevation Right Plan 3D Back

TSSU-27-08D-2-ADA TFNX01E TFNX01S TFNY16P TFNX013

15/8"

(42 mm)

1"

(26 mm)

61/8"

(156 mm)

25/16"

(59 mm)

PAN LAYOUT
