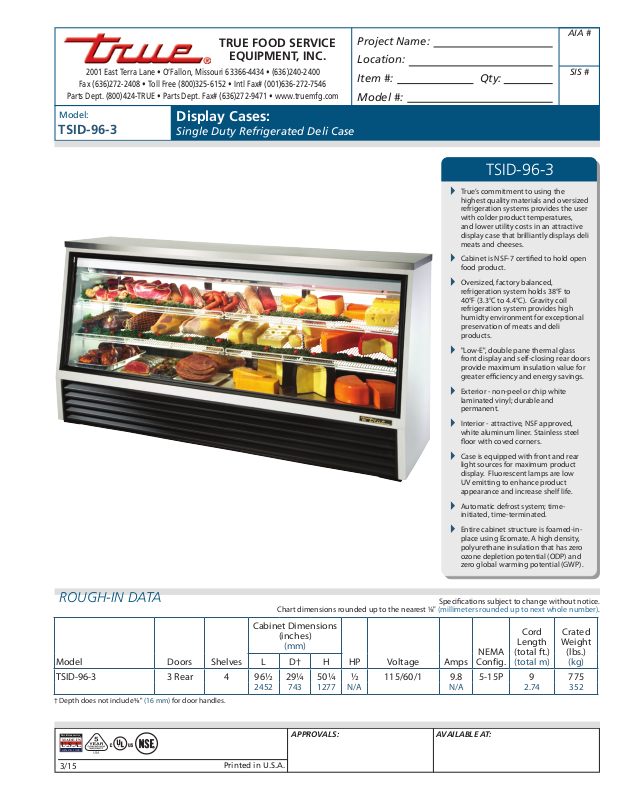

Model:

TSID-96-3

Display Cases:

Single Duty Refrigerated Deli Case

TSID-96-3

True’s commitment to using the



highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures,
and lower utility costs in an attractive
display case that brilliantly displays deli
meats and cheeses.

Cabinet is NSF-7 certied to hold open



food product.

Oversized, factory balanced,



refrigeration system holds 38°F to
40°F (3.3°C to 4.4°C). Gravity coil
refrigeration system provides high
humidty environment for exceptional
preservation of meats and deli
products.

"Low-E", double pane thermal glass



front display and self-closing rear doors
provide maximum insulation value for
greater eciency and energy savings.

Exterior - non-peel or chip white



laminated vinyl; durable and
permanent.

Interior - attractive, NSF approved,



white aluminum liner. Stainless steel
oor with coved corners.

Case is equipped with front and rear



light sources for maximum product
display. Fluorescent lamps are low
UV emitting to enhance product
appearance and increase shelf life.

Automatic defrost system; time-



initiated, time-terminated.

Entire cabinet structure is foamed-in-



place using Ecomate. A high density,
polyurethane insulation that has zero
ozone depletion potential (ODP) and
zero global warming potential (GWP).

ROUGH-IN DATA

Model Doors Shelves

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D† H

TSID-96-3 3 Rear 4 96½ 29¼ 50¼ ½ 115/60/1 9.8 5-15P 9 775

2452 743 1277 N/A N/A 2.74 352

†Depth does not include⁄" (16 mm) for door handles.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

3/15

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

Model:

TSID-96-3

Display Cases:

Single Duty Refrigerated Deli Case

STANDARD FEATURES

DESIGN

True’s commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, and lower utility costs in an
attractive display case that brilliantly displays
deli meats and cheese.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
Gravity coil refrigeration system provides

•

high humidity environment for exceptional
preservation of meats and deli products.
Extra large evaporator coil balanced with higher

•

horsepower compressor and large condenser;
maintains cabinet temperatures of 38°F to 40°F
(3.3°C to 4.4°C).
Automatic defrost system; time-initiated, time-

•

terminated.
Condensing unit located behind grill in back of

•

unit. Entire system slides out for easy cleaning
and maintanance.

CABINET CONSTRUCTION

Exterior - non-peel or chip laminated vinyl;

•

white sides with black front and back grills.
"Low-E", double pane thermal front viewing

•

glass provides maximum insulation value for
greater eciency and energy savings.
Stainless steel counter top provides surface

•

for equipment such as registers and point-of­purchase novelties.
Interior - attractive, NSF approved, white

•

aluminum liner. Stainless steel oor with coved
corners.

Insulation - entire cabinet structure is foamed-

•

in-place using Ecomate. A high density,
polyurethane insulation that has zero ozone
depletion potential (ODP) and zero global
warming potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
Frame rail tted with leg levelers.

•

Front viewing glass slanted 12.52°to minimize

•

reection from overhead lighting enhancing
your cold product presentations.

DOORS

Rear door assemblies feature "Low-E", double

•

pane thermal insulated glass. The latest in
energy ecient technology.
Each door tted with 12" (305 mm) long handle.

•

Self-closing doors. Sliding doors ride on

•

stainless steel V-Channel with stainless steel
bearings for smooth, even, positive closure.
Doors t within plastic channel frame.
Front glass doors slanted 12.52°to minimize

•

reection from overhead lighting enhancing
your cold product presentations.

SHELVING

Four (4) adjustable, heavy duty PVC coated wire

•

shelves. Two (2) top shelves dimensions are 45
1/2"L x 17 1/2" D (1156 mm x 445 mm). Two
(2) bottom shelves dimensions are 45 3/4"L x
19" D (1163 mm x 483 mm). Two (2) chrome
plated shelf clips and one (1) center cantilevered
bracket per shelf.
Aluminum shelf support end pilasters and

•

stainless steel shelf support center pilasters.
Shelves are adjustable on ½" (13 mm)
increments.

LIGHTING

Case equipped with front and rear light sources

•

for maximum product display. Fluorescent
lamps are low UV emitting to enhance product
appearance and increase shelf life.
Cabinet lighting utilizes electronic ballast and

•

T-8 bulbs for brighter illumination, longer bulb
life and increased energy eciency. Lamps are
safety shielded.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/60/1 phase, 15 amp
dedicated outlet. Cord and plug set included.

RECOMMENDED OPERATING CONDITIONS

TSID refrigerated models are designed to

•

operate in an environment where temperatures
and humidity do not exceed 75°F (24°C) and
55% relative humidity.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½" (64 mm) diameter castors.
❑ 4" (102 mm) diameter castors.
❑ Ratchet locks (requires 2).
❑ Additional shelves.

PLAN VIEW

12.52°

293/4"

(756 mm)

295/32"

(741 mm)

211/2"

(547 mm)

171/2"

(445 mm)

19"

(483 mm)

19

/32"

(16 mm)

13

/16"

(21 mm)

RIGHT VIEW

961/2"

(2452 mm)

311/2"

(801 mm)

301/2"

501/4"

(1277 mm)

3

/16"

(5 mm)

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

WARRANTY

warranty on compressor.

(U.S.A. only)

*

REAR VIEW

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

(775 mm)

121/32"

(306 mm)

13

/16"

(21 mm)

Model Elevation Right Plan 3D Back

TSID-96-3 TFQY22E TFQY45S TFQY22P TFQY223
