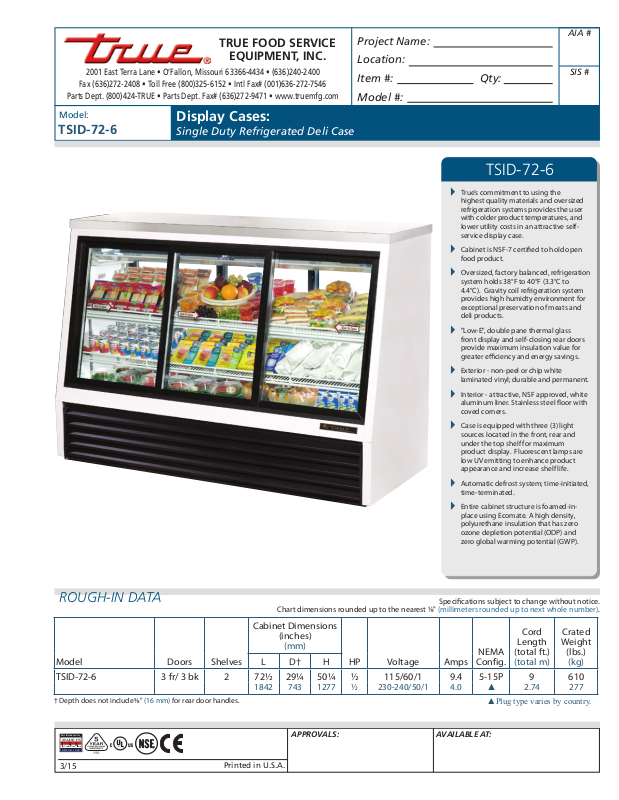

Model:

TSID-72-6

Display Cases:

Single Duty Refrigerated Deli Case

TSID-72-6

True’s commitment to using the



highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures, and
lower utility costs in an attractive self­service display case.

Cabinet is NSF-7 certied to hold open



food product.

Oversized, factory balanced, refrigeration



system holds 38°F to 40°F (3.3°C to

4.4°C). Gravity coil refrigeration system
provides high humidty environment for
exceptional preservation of meats and
deli products.

"Low-E", double pane thermal glass



front display and self-closing rear doors
provide maximum insulation value for
greater eciency and energy savings.

Exterior - non-peel or chip white



laminated vinyl; durable and permanent.

Interior - attractive, NSF approved, white



aluminum liner. Stainless steel oor with
coved corners.

Case is equipped with three (3) light



sources located in the front, rear and
under the top shelf for maximum
product display. Fluorescent lamps are
low UV emitting to enhance product
appearance and increase shelf life.

Automatic defrost system; time-initiated,



time-terminated.

Entire cabinet structure is foamed-in-



place using Ecomate. A high density,
polyurethane insulation that has zero
ozone depletion potential (ODP) and
zero global warming potential (GWP).

ROUGH-IN DATA

Model Doors Shelves

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D† H

TSID-72-6 3 fr/ 3 bk 2 72½ 29¼ 50¼ ½ 115/60/1 9.4 5-15P 9 610

1842 743 1277 ½ 230-240/50/1 4.0 ▲ 2.74 277

† Depth does not include⁄" (16 mm) for rear door handles.

T

RUE

R

EFRIGERATION

®

MADE IN

U.S.A.

SINCE 1945

3/15

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

▲Plug type varies by country.

Model:

TSID-72-6

Display Cases:

Single Duty Refrigerated Deli Case

STANDARD FEATURES

DESIGN

True’s commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, and lower utility costs in an
attractive self-service display case that brilliantly
displays deli meats and cheese.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
Gravity coil refrigeration system provides

•

high humidity environment for exceptional
preservation of meats and deli products.
Extra large evaporator coil balanced with higher

•

horsepower compressor and large condenser;
maintains cabinet temperatures of 38°F to 40°F
(3.3°C to 4.4°C).
Automatic defrost system; time-initiated, time-

•

terminated.
Condensing unit located behind grill in back of

•

unit. Entire system slides out for easy cleaning
and maintanance.

CABINET CONSTRUCTION

Exterior - non-peel or chip laminated vinyl;

•

white sides with black front and back grills.
Stainless steel counter top provides surface

•

for equipment such as registers and point-of­purchase novelties.
Interior - attractive, NSF approved, white

•

aluminum liner. Stainless steel oor with coved
corners.
Insulation - entire cabinet structure is foamed-

•

in-place using Ecomate. A high density,
polyurethane insulation that has zero ozone
depletion potential (ODP) and zero global
warming potential (GWP).

Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
Frame rail tted with leg levelers.

•

DOORS

Front and rear door assemblies feature "Low-E",

•

double pane thermal insulated glass. The latest
in energy ecient technology.
Each door tted with 12" (305 mm) long handle.

•

Self-closing doors. Sliding doors ride on

•

stainless steel V-Channel with stainless steel
bearings for smooth, even, positive closure.
Doors t within plastic channel frame.
Front glass doors slanted 12.52° to minimize

•

reection from overhead lighting enhancing
your cold product presentations.

SHELVING

Two (2) adjustable, heavy duty PVC coated wire

•

shelves. Top shelf dimension is 67¾"L x 17 ½ " D
(1721 mm x 445 mm). Bottom shelf dimension
is 67 ¾"L x 19" D (1721 mm x 483 mm). Four (4)
chrome plated shelf clips included per shelf.
Aluminum shelf support pilasters. Shelves are

•

adjustable on ½" (13 mm) increments.

LIGHTING

Case equipped with three (3) light sources

•

located in the front, rear and under the top
shelf for maximum product display. Fluorescent
lamps are low UV emitting to enhance product
appearance and increase shelf life.
Cabinet lighting utilizes electronic ballast and

•

T-8 bulbs for brighter illumination, longer bulb
life and increased energy eciency. Lamps are
safety shielded.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/60/1 phase, 15 amp
dedicated outlet. Cord and plug set included.

RECOMMENDED OPERATING CONDITIONS

TSID refrigerated models are designed to

•

operate in an environment where temperatures
and humidity do not exceed 75°F (24°C) and
55% relative humidity.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 230 - 240V / 50 Hz.
❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½" (64 mm) diameter castors.
❑ 4" (102 mm) diameter castors.
❑ Ratchet locks (requires 4).
❑ Additional shelves.
❑ Additional non-lighted shelves (lighted shelf

available as replacement only).

❑ Low height models with 41¾" (1061 mm) work

surface height.

PLAN VIEW

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

WARRANTY

warranty on compressor.

(U.S.A. only)

*

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

Model Elevation Right Plan 3D Back
