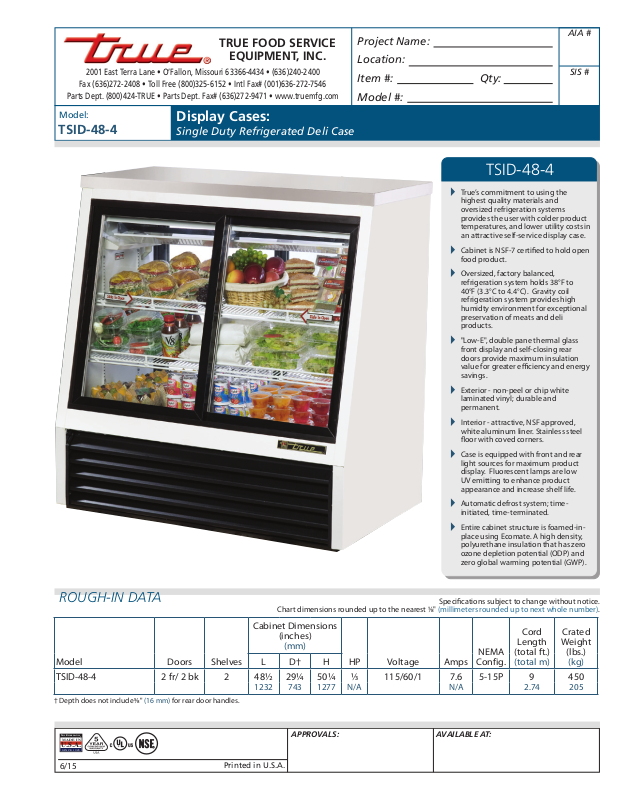

True TSID-48-4 User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone]

Fax [phone] • Toll Free [phone] • Intl Fax# [phone]

Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TSID-48-4

Display Cases:

Single Duty Refrigerated Deli Case

TSID-48-4

True’s commitment to using the



highest quality materials and
oversized refrigeration systems
provides the user with colder product
temperatures, and lower utility costs in
an attractive self-service display case.

Cabinet is NSF-7 certied to hold open



food product.

Oversized, factory balanced,



refrigeration system holds 38°F to
40°F (3.3°C to 4.4°C). Gravity coil
refrigeration system provides high
humidty environment for exceptional
preservation of meats and deli
products.

"Low-E", double pane thermal glass



front display and self-closing rear
doors provide maximum insulation
value for greater eciency and energy
savings.

Exterior - non-peel or chip white



laminated vinyl; durable and
permanent.

Interior - attractive, NSF approved,



white aluminum liner. Stainless steel
oor with coved corners.

Case is equipped with front and rear



light sources for maximum product
display. Fluorescent lamps are low
UV emitting to enhance product
appearance and increase shelf life.

Automatic defrost system; time-



initiated, time-terminated.

Entire cabinet structure is foamed-in-



place using Ecomate. A high density,
polyurethane insulation that has zero
ozone depletion potential (ODP) and
zero global warming potential (GWP).

ROUGH-IN DATA

Model Doors Shelves

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D† H

TSID-48-4 2 fr/ 2 bk 2 48½ 29¼ 50¼ ⁄ 115/60/1 7.6 5-15P 9 450

1232 743 1277 N/A N/A 2.74 205

† Depth does not include⁄" (16 mm) for rear door handles.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

6/15

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

Model:

TSID-48-4

Display Cases:

Single Duty Refrigerated Deli Case

STANDARD FEATURES

DESIGN

True’s commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, and lower utility costs in
an attractive self-service display case that
brilliantly displays deli meats and cheese.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
Gravity coil refrigeration system provides

•

high humidity environment for exceptional
preservation of meats and deli products.
Extra large evaporator coil balanced with

•

higher horsepower compressor and large
condenser; maintains cabinet temperatures of
38°F to 40°F (3.3°C to 4.4°C).
Automatic defrost system; time-initiated, time-

•

terminated.
Condensing unit located behind grill in back of

•

unit. Entire system slides out for easy cleaning
and maintanance.

CABINET CONSTRUCTION

Exterior - non-peel or chip laminated vinyl;

•

white sides with black front and back grills.
Stainless steel counter top provides surface

•

for equipment such as registers and point-of­purchase novelties.
Interior - attractive, NSF approved, white

•

aluminum liner. Stainless steel oor with coved
corners.

Insulation - entire cabinet structure is foamed-

•

in-place using Ecomate. A high density,
polyurethane insulation that has zero ozone
depletion potential (ODP) and zero global
warming potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
Frame rail tted with leg levelers.

•

DOORS

Front and rear door assemblies feature "Low-E",

•

double pane thermal insulated glass. The latest
in energy ecient technology.
Each door tted with 12" (305 mm) long

•

handle.
Self-closing doors. Sliding doors ride on

•

stainless steel V-Channel with stainless steel
bearings for smooth, even, positive closure.
Doors t within plastic channel frame.
Front glass doors slanted 12.52° to minimize

•

reection from overhead lighting enhancing
your cold product presentations.

SHELVING

Two (2) adjustable, heavy duty PVC coated

•

wire shelves. Top shelf dimension is 43¾ "L x
17 ½ " D (1112 mm x 445 mm). Bottom shelf
dimension is 43 ¾ "L x 19" D (1112 mm x
483 mm). Four (4) chrome plated shelf clips
included per shelf.
Aluminum shelf support pilasters. Shelves are

•

adjustable on ½ " (13 mm) increments.

LIGHTING

Case equipped with front and rear light

•

sources for maximum product display.
Fluorescent lamps are low UV emitting to
enhance product appearance and increase
shelf life.

Cabinet lighting utilizes electronic ballast and

•

T-8 bulbs for brighter illumination, longer bulb
life and increased energy eciency. Lamps are
safety shielded.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1 phase,
15 amp dedicated outlet. Cord and plug set
included.

RECOMMENDED OPERATING CONDITIONS

TSID refrigerated models are designed

•

to operate in an environment where
temperatures and humidity do not exceed
75°F (24°C) and 55% relative humidity.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½ " (64 mm) diameter castors.
❑ 4" (102 mm) diameter castors.
❑ Ratchet locks (requires 2).
❑ Additional shelves.
❑ Low height models with 41¾ " (1061 mm)

work surface height.

PLAN VIEW

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.

2001 East Terra Lane • O’Fallon, Missouri 63366-4434 • [phone] • Fax [phone] • Toll Free [phone] • Intl. Fax# [phone] • www.truemfg.com

WARRANTY

warranty on compressor.

(U.S.A. only)

*

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

Model Elevation Right Plan 3D Back

TSID-48-4 TFQY30E TFQY46S TFQY30P TFQY303
