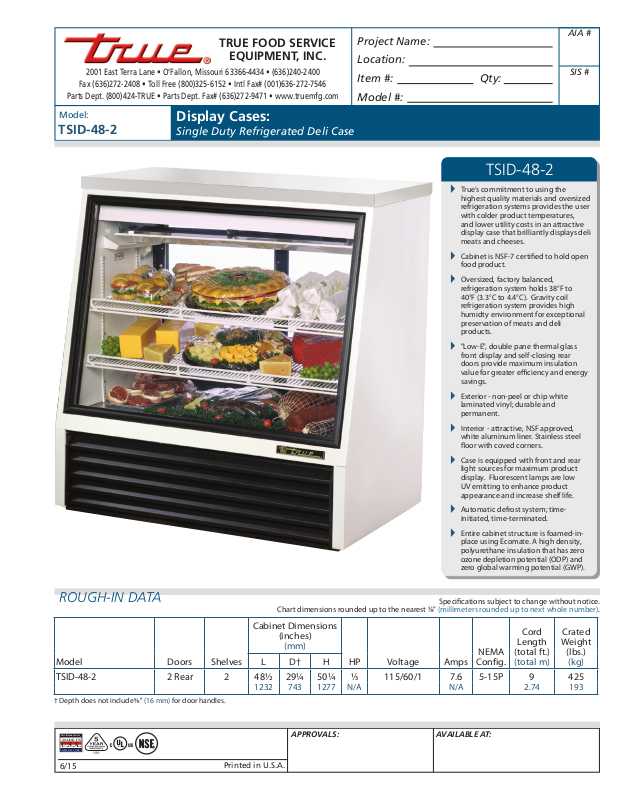

Model:

TSID-48-2

Display Cases:

Single Duty Refrigerated Deli Case

TSID-48-2

True’s commitment to using the



highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures,
and lower utility costs in an attractive
display case that brilliantly displays deli
meats and cheeses.

Cabinet is NSF-7 certied to hold open



food product.

Oversized, factory balanced,



refrigeration system holds 38°F to
40°F (3.3°C to 4.4°C). Gravity coil
refrigeration system provides high
humidty environment for exceptional
preservation of meats and deli
products.

"Low-E", double pane thermal glass



front display and self-closing rear
doors provide maximum insulation
value for greater eciency and energy
savings.

Exterior - non-peel or chip white



laminated vinyl; durable and
permanent.

Interior - attractive, NSF approved,



white aluminum liner. Stainless steel
oor with coved corners.

Case is equipped with front and rear



light sources for maximum product
display. Fluorescent lamps are low
UV emitting to enhance product
appearance and increase shelf life.

Automatic defrost system; time-



initiated, time-terminated.

Entire cabinet structure is foamed-in-



place using Ecomate. A high density,
polyurethane insulation that has zero
ozone depletion potential (ODP) and
zero global warming potential (GWP).

ROUGH-IN DATA

Model Doors Shelves

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Cabinet Dimensions

(inches)

(mm)

HP Voltage Amps

Specications subject to change without notice.

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D† H

TSID-48-2 2 Rear 2 48½ 29¼ 50¼ ⁄ 115/60/1 7.6 5-15P 9 425

1232 743 1277 N/A N/A 2.74 193

† Depth does not include⁄" (16 mm) for door handles.

T

RUE

R

EFRIGERATION

MADE IN

U.S.A.

SINCE 1945

6/15

®

Printed in U.S.A.

APPROVALS: AVAILABLE AT:

Model:

TSID-48-2

Display Cases:

Single Duty Refrigerated Deli Case

STANDARD FEATURES

DESIGN

True’s commitment to using the highest

•

quality materials and oversized refrigeration
systems provides the user with colder product
temperatures, and lower utility costs in an
attractive display case that brilliantly displays
deli meats and cheese.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary

•

tube system using environmentally friendly
(CFC free) 134A refrigerant.
Gravity coil refrigeration system provides

•

high humidity environment for exceptional
preservation of meats and deli products.
Extra large evaporator coil balanced with higher

•

horsepower compressor and large condenser;
maintains cabinet temperatures of 38°F to 40°F
(3.3°C to 4.4°C).
Automatic defrost system; time-initiated, time-

•

terminated.
Condensing unit located behind grill in back of

•

unit. Entire system slides out for easy cleaning
and maintanance.

CABINET CONSTRUCTION

Exterior - non-peel or chip laminated vinyl;

•

white sides with black front and back grills.
"Low-E", double pane thermal front viewing

•

glass provides maximum insulation value for
greater eciency and energy savings.
Stainless steel counter top provides surface

•

for equipment such as registers and point-of­purchase novelties.
Interior - attractive, NSF approved, white

•

aluminum liner. Stainless steel oor with coved
corners.

Insulation - entire cabinet structure is foamed-

•

in-place using Ecomate. A high density,
polyurethane insulation that has zero ozone
depletion potential (ODP) and zero global
warming potential (GWP).
Welded, heavy duty steel frame rail, black

•

powder coated for corrosion protection.
Frame rail tted with leg levelers.

•

Front viewing glass slanted 12.52° to minimize

•

reection from overhead lighting enhancing
your cold product presentations.

DOORS

Rear door assemblies feature "Low-E", double

•

pane thermal insulated glass. The latest in
energy ecient technology.
Each door tted with 12" (305 mm) long handle.

•

Self-closing doors. Sliding doors ride on

•

stainless steel V-Channel with stainless steel
bearings for smooth, even, positive closure.
Doors t within plastic channel frame.
Front glass doors slanted 12.52° to minimize

•

reection from overhead lighting enhancing
your cold product presentations.

SHELVING

Two (2) adjustable, heavy duty PVC coated wire

•

shelves. Top shelf dimension is 43 ¾"L x 17 ½" D
(1112 mm x 445 mm). Bottom shelf dimension
is 43 ¾"L x 19" D (1112 mm x 483 mm). Four (4)
chrome plated shelf clips included per shelf.
Aluminum shelf support pilasters. Shelves are

•

adjustable on ½" (13 mm) increments.

LIGHTING

Case equipped with front and rear light sources

•

for maximum product display. Fluorescent
lamps are low UV emitting to enhance product
appearance and increase shelf life.

Cabinet lighting utilizes electronic ballast and

•

T-8 bulbs for brighter illumination, longer bulb
life and increased energy eciency. Lamps are
safety shielded.

MODEL FEATURES

Evaporator is epoxy coated to eliminate the

•

potential of corrosion.
NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and

•

ready for nal connection to a 115/60/1 phase,
15 amp dedicated outlet. Cord and plug set
included.

RECOMMENDED OPERATING CONDITIONS

TSID refrigerated models are designed to

•

operate in an environment where temperatures
and humidity do not exceed 75°F (24°C) and
55% relative humidity.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

❑ 6" (153 mm) standard legs.
❑ 6" (153 mm) seismic/anged legs.
❑ 2 ½" (64 mm) diameter castors.
❑ 4" (102 mm) diameter castors.
❑ Ratchet lock.
❑ Additional shelves.
❑ Low height models with 41¾" (1061 mm) work

surface height.

PLAN VIEW

Three year warranty on all parts

and laborand an additional 2 year

*RESIDENTIAL APPLICATIONS: TRUE assumes no liability for parts or
labor coverage for component failure or other damages resulting
from installation in non-commercial or residential applications.
