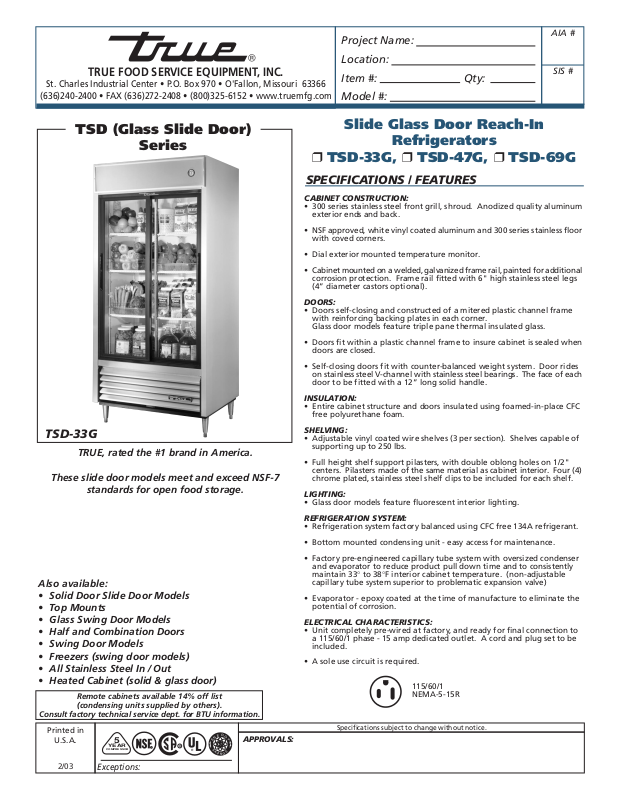

True TSD-33G User Manual
TRUE FOOD SERVICE EQUIPMENT, INC.
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366
(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
TSD (Glass Slide Door)
Series
TSD-33G
TRUE, rated the #1 brand in America.
These slide door models meet and exceed NSF-7
standards for open food storage.
Also available:
• Solid Door Slide Door Models
• Top Mounts
• Glass Swing Door Models
• Half and Combination Doors
• Swing Door Models
• Freezers (swing door models)
• All Stainless Steel In / Out
• Heated Cabinet (solid & glass door)
Remote cabinets available 14% off list
Consult factory technical service dept. for BTU information.
(condensing units supplied by others).
Printed in
U.S.A.
2/03
5
YEAR
COMPRESSOR
Exceptions:
R
R
E
G
N
Y
E
APPROVALS:
R
S
S
®
A
S
V
I
G
N
Slide Glass Door Reach-In
Refrigerators
❒ TSD-33G, ❒ TSD-47G, ❒ TSD-69G
SPECIFICATIONS / FEATURES
CABINET CONSTRUCTION:
• 300 series stainless steel front grill, shroud. Anodized quality aluminum
exterior ends and back.
• NSF approved, white vinyl coated aluminum and 300 series stainless floor
with coved corners.
• Dial exterior mounted temperature monitor.
• Cabinet mounted on a welded, galvanized frame rail, painted for additional
corrosion protection. Frame rail fitted with 6" high stainless steel legs
(4” diameter castors optional).
DOORS:
• Doors self-closing and constructed of a mitered plastic channel frame
with reinforcing backing plates in each corner.
Glass door models feature triple pane thermal insulated glass.
• Doors fit within a plastic channel frame to insure cabinet is sealed when
doors are closed.
• Self-closing doors fit with counter-balanced weight system. Door rides
on stainless steel V-channel with stainless steel bearings. The face of each
door to be fitted with a 12” long solid handle.
INSULATION:
• Entire cabinet structure and doors insulated using foamed-in-place CFC
free polyurethane foam.
SHELVING:
• Adjustable vinyl coated wire shelves (3 per section). Shelves capable of
supporting up to 250 lbs.
• Full height shelf support pilasters, with double oblong holes on 1/2"
centers. Pilasters made of the same material as cabinet interior. Four (4)
chrome plated, stainless steel shelf clips to be included for each shelf.
LIGHTING:
• Glass door models feature fluorescent interior lighting.
REFRIGERATION SYSTEM:
• Refrigeration system factory balanced using CFC free 134A refrigerant.
• Bottom mounted condensing unit - easy access for maintenance.
• Factory pre-engineered capillary tube system with oversized condenser
and evaporator to reduce product pull down time and to consistently
maintain 33° to 38°F interior cabinet temperature. (non-adjustable
capillary tube system superior to problematic expansion valve)
• Evaporator - epoxy coated at the time of manufacture to eliminate the
potential of corrosion.
ELECTRICAL CHARACTERISTICS:
• Unit completely pre-wired at factory, and ready for final connection to
a 115/60/1 phase - 15 amp dedicated outlet. A cord and plug set to be
included.
• A sole use circuit is required.
115/60/1
NEMA-5-15R
Specifications subject to change without notice.
®
1
39
/
2
"
TSD-Series: Glass Slide Door Reach-In Refrigerators
54"
78"
11"
L - 101 cm
D - 75 cm
H - 199 cm
3
9
/
8
"
3
53
/
8
"
1
29
/
2
"
1
78
/
4
"
1
/
4
" 85
6"
11"
L - 138 cm
D - 75 cm
H - 199 cm
3
9
/
8
"
3
53
/
8
"
1
29
/
2
"
1
78
/
4
"
1
84
/
4
"84
6"
11"
L - 199 cm
D - 75 cm
H - 202 cm
3
9
/
8
"
3
53
/
8
"
TSD-33G TSD-47G TSD-69G
Rough-In Data
Dimensions Cord
Capacity # of (inches) NEMA Length Crated
Model Doors (Cu. Ft) Shelves L D† H* HP Volts PH Amps Config. (feet) Weight
TSD-33G 2 33 6 39 1/2 29 1/2 78 1/4 1/2 115 1 8.9 5-15 9 380
TSD-47G 2 47 6 54 29 1/2 78 1/4 1/2 115 1 10.6 5-15 9 454
TSD-69G 3 69 9 78 29 1/2 79 1/4 1/2 115 1 11.8 5-15 9 640
* Height does not include 6” for legs or 5” for optional castors.
† Depth does not include 1/4” for door handle.
Specifications subject to change without notice.
1
29
/
2
"
1
79
/
4
"
1
/
4
"
6"
Standard Features ___________________________________________________________________________________________
• Oversized and balanced, environmentally
friendly (134A) refrigeration system holds 33°F to 38°F.
• 300 series stainless steel front.
• Glass door models feature triple pane
thermal insulated glass doors.
• Slide door system self-closes to preserve
refrigeration and maximize floor space.
Efficient counter balanced weight system
for smooth, even, positive closure.
• Interior - NSF approved, white vinyl
coated aluminum sides and top, 300
series stainless steel floor with coved
corners.
• Anodized quality aluminum top, sides
and back.
• Exterior mounted temperature monitor.
• Adjustable vinyl coated wire shelves.
• Epoxy coated evaporator.
• Fluorescent interior lighting.
• 6" stainless steel legs standard.
Model Front Right Plan 3D
KCL
TSD-33G TFGY13E TFGY10S TFGY10P TFGY133
TSD-47G TFGY14E TFGY10S TFGY11P TFGY143
TSD-69G TFGY15E TFGY12S TFGY12P TFGY153
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366 • (636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
• Foamed-in-place high density
polyurethane insulation (CFC free).
• Slide out compressor can be serviced
easily and accessed by a single repairman.
• 1 year parts & labor warranty (USA).
• 5 year compressor warranty.
Optional Accessories ______________
❒ 4” diameter swivel castors available.
❒ Seismic legs available.
❒ Additional shelves available.
❒ Wine racks available for TSD-47G & TSD-69G.
Clearance Required For Coolers (USA)
Sides Top Rear
Inches/mm Inches/mm Inches/mm
0 / 0 0 / 0 1 / 26
R
E
G
N
Y
YEAR
COMPRESSOR
5
R
R
E
S
S
®
A
S
V
I
G
N
Printed in U.S.A.
