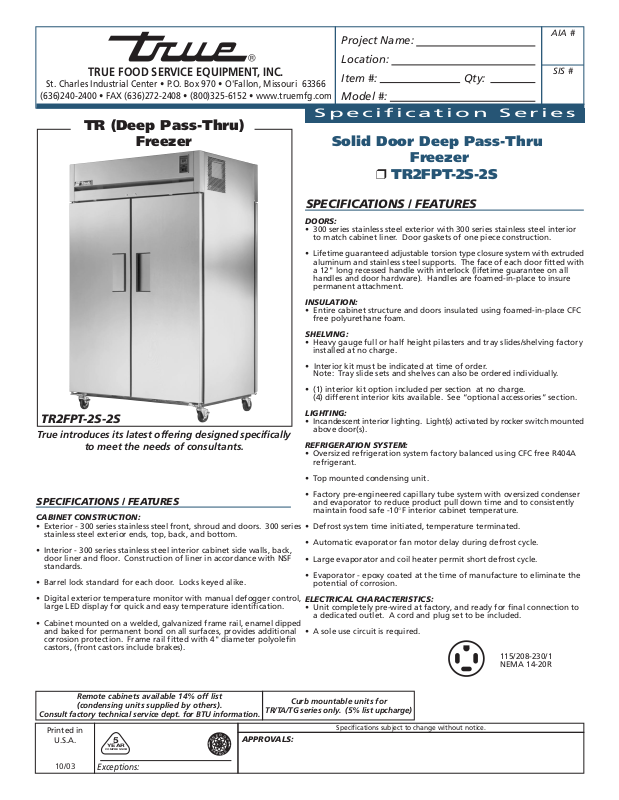

True TR2FPT-2S-2S User Manual
TRUE FOOD SERVICE EQUIPMENT, INC.
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366
(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Specification Series
TR (Deep Pass-Thru)
Freezer
SPECIFICATIONS / FEATURES
DOORS:
• 300 series stainless steel exterior with 300 series stainless steel interior
to match cabinet liner. Door gaskets of one piece construction.
• Lifetime guaranteed adjustable torsion type closure system with extruded
aluminum and stainless steel supports. The face of each door fitted with
a 12" long recessed handle with interlock (lifetime guarantee on all
handles and door hardware). Handles are foamed-in-place to insure
permanent attachment.
INSULATION:
• Entire cabinet structure and doors insulated using foamed-in-place CFC
free polyurethane foam.
SHELVING:
• Heavy gauge full or half height pilasters and tray slides/shelving factory
installed at no charge.
• Interior kit must be indicated at time of order.
Note: Tray slide sets and shelves can also be ordered individually.
• (1) interior kit option included per section at no charge.
(4) different interior kits available. See “optional accessories” section.
TR2FPT-2S-2S
True introduces its latest offering designed specifically
to meet the needs of consultants.
SPECIFICATIONS / FEATURES
CABINET CONSTRUCTION:
• Exterior - 300 series stainless steel front, shroud and doors. 300 series
stainless steel exterior ends, top, back, and bottom.
• Interior - 300 series stainless steel interior cabinet side walls, back,
door liner and floor. Construction of liner in accordance with NSF
standards.
• Barrel lock standard for each door. Locks keyed alike.
• Digital exterior temperature monitor with manual defogger control,
large LED display for quick and easy temperature identification.
• Cabinet mounted on a welded, galvanized frame rail, enamel dipped
and baked for permanent bond on all surfaces, provides additional
corrosion protection. Frame rail fitted with 4" diameter polyolefin
castors, (front castors include brakes).
LIGHTING:
• Incandescent interior lighting. Light(s) activated by rocker switch mounted
above door(s).
REFRIGERATION SYSTEM:
• Oversized refrigeration system factory balanced using CFC free R404A
refrigerant.
• Top mounted condensing unit.
• Factory pre-engineered capillary tube system with oversized condenser
and evaporator to reduce product pull down time and to consistently
maintain food safe -10°F interior cabinet temperature.
• Defrost system time initiated, temperature terminated.
• Automatic evaporator fan motor delay during defrost cycle.
• Large evaporator and coil heater permit short defrost cycle.
• Evaporator - epoxy coated at the time of manufacture to eliminate the
potential of corrosion.
ELECTRICAL CHARACTERISTICS:
• Unit completely pre-wired at factory, and ready for final connection to
a dedicated outlet. A cord and plug set to be included.
• A sole use circuit is required.
Project Name:
Location:
Item #: Qty:
Model #:
Solid Door Deep Pass-Thru
Freezer
❒ TR2FPT-2S-2S
115/208-230/1
NEMA 14-20R
AIA #
SIS #
Remote cabinets available 14% off list
(condensing units supplied by others).
Consult factory technical service dept. for BTU information.
Printed in
U.S.A.
10/03
5
YEAR
COMPRESSOR
Exceptions:
R
E
G
N
Y
E
S
S
A
S
V
I
G
N
APPROVALS:
Curb mountable units for
TR/TA/TG series only. (5% list upcharge)
Specifications subject to change without notice.
12
®
9
/16
"
TR-Series: Deep Pass-Thru Freezer (solid doors)
-10
L - 131 cm
D - 95 cm
H - 199 cm
Door
Swing - 61 cm
23
37
5
/8
"
1
/2
"
84
1
/4
"
77"
83
1
/4
"
3
51
/8
"
23
5
/8
"
63
3
/8
"
5"
1
1
/4
"
Rough-In Data
Dimensions Cord
Capacity (inches) NEMA Length Crated
Model Doors (Cu. Ft) L D H* HP Volts PH Amps Config. (feet) Weight
TR2FPT-2S-2S ‡ 4 56 51 3/8 37 1/4 78 1/4 1 115/208-230 1 14.0 14-20 9 754
* Height does not include 5” for castor height or 6” for optional legs.
‡ Requires 115/208-230/60 Hz, single phase, 3 pole, 4 wire.
Specifications subject to change without notice.
Standard Features ____________________________________________________________________________________________
• Oversized and balanced, environmentally
friendly (R404A) refrigeration system
holds -10°F.
• Exterior - 300 series stainless steel front,
doors, sides, top and bottom (the finest
stainless available).
• Interior - 300 series stainless steel side
walls, door liner & floor.
• 300 series stainless steel doors with
recessed handles (lifetime guaranteed).
• Door locks standard.
• Exterior mounted digital electronic
thermometer with manual defogger.
• Wide door openings.
• (1) interior kit option included per section
at no charge. (4) different interior kits
available.
• Pilasters and tray slides/shelving factory
installed at no charge. Kit selection must
be indicated at time of order.
• Magnetic door gaskets.
• Epoxy coated evaporator.
• Incandescent interior lighting.
• 4" diameter swivel castors standard
equipment - locking castors provided for
front set. Legs available.
• Large evaporator and coil heater permit
short defrost cycle.
• Defrost system time initiated, temperature
terminated.
• Automatic evaporator fan motor delay
during defrost cycle.
• Minimum wattage heater in cabinet
frame and door.
• Hot gas condensate for energy efficiency.
• Top mounted unit positioned out of food
zone to maximize storage capacity.
• Positive seal self-closing doors with factory
tested (over 1,000,000 times) lifetime
guaranteed door hinges and torsion type
closure system.
• Foamed-in-place polyurethane high
density cell insulation (CFC free).
• Self-contained system.
• 1 year parts & labor warranty (USA).
• 5 year compressor warranty (USA).
Optional Accessories ______________
❒ 6" stainless steel legs.
❒ Seismic/Flanged legs.
❒ Kit #1 (9 sets of #1 type tray slides).
❒ Kit #2 (rod type 1 set covers 1/2 section).
❒ Kit #3 (6 sets of universal type tray slides).
❒ Kit #4 (3 chrome shelves and shelf supports)
❒ Stainless steel (electro polished) shelves.
❒ Chrome shelves.
❒ Metal handle (solid doors only).
❒ Cam lift hinge (solid door models only).
❒ Electronic temperature control.
❒ Universal pan slides.
❒ #1 pan slides.
❒ #2 or rod style pan slides.
❒ Curb mountable units.
❒ Export units available - consult factory.
❒ Correctional facility options - consult factory.
❒ Remote cabinets available (contact factory
technical services for BTU information).
KCL
