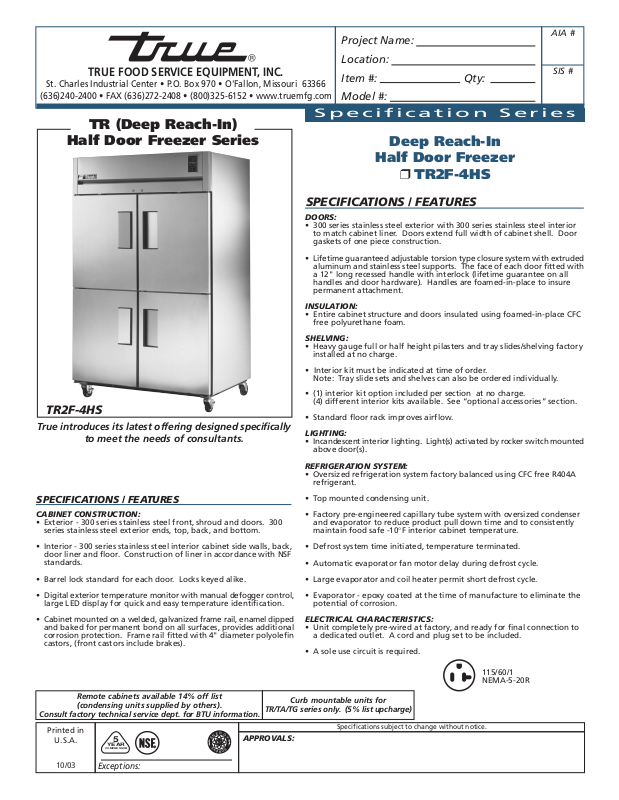

True TR2F-4HS User Manual
TRUE FOOD SERVICE EQUIPMENT, INC.
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366
(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Specification Series
TR (Deep Reach-In)
Half Door Freezer Series
SPECIFICATIONS / FEATURES
DOORS:
• 300 series stainless steel exterior with 300 series stainless steel interior
to match cabinet liner. Doors extend full width of cabinet shell. Door
gaskets of one piece construction.
• Lifetime guaranteed adjustable torsion type closure system with extruded
aluminum and stainless steel supports. The face of each door fitted with
a 12" long recessed handle with interlock (lifetime guarantee on all
handles and door hardware). Handles are foamed-in-place to insure
permanent attachment.
INSULATION:
• Entire cabinet structure and doors insulated using foamed-in-place CFC
free polyurethane foam.
SHELVING:
• Heavy gauge full or half height pilasters and tray slides/shelving factory
installed at no charge.
• Interior kit must be indicated at time of order.
Note: Tray slide sets and shelves can also be ordered individually.
• (1) interior kit option included per section at no charge.
TR2F-4HS
True introduces its latest offering designed specifically
to meet the needs of consultants.
SPECIFICATIONS / FEATURES
CABINET CONSTRUCTION:
• Exterior - 300 series stainless steel front, shroud and doors. 300
series stainless steel exterior ends, top, back, and bottom.
• Interior - 300 series stainless steel interior cabinet side walls, back,
door liner and floor. Construction of liner in accordance with NSF
standards.
• Barrel lock standard for each door. Locks keyed alike.
• Digital exterior temperature monitor with manual defogger control,
large LED display for quick and easy temperature identification.
• Cabinet mounted on a welded, galvanized frame rail, enamel dipped
and baked for permanent bond on all surfaces, provides additional
corrosion protection. Frame rail fitted with 4" diameter polyolefin
castors, (front castors include brakes).
(4) different interior kits available. See “optional accessories” section.
• Standard floor rack improves airflow.
LIGHTING:
• Incandescent interior lighting. Light(s) activated by rocker switch mounted
above door(s).
REFRIGERATION SYSTEM:
• Oversized refrigeration system factory balanced using CFC free R404A
refrigerant.
• Top mounted condensing unit.
• Factory pre-engineered capillary tube system with oversized condenser
and evaporator to reduce product pull down time and to consistently
maintain food safe -10°F interior cabinet temperature.
• Defrost system time initiated, temperature terminated.
• Automatic evaporator fan motor delay during defrost cycle.
• Large evaporator and coil heater permit short defrost cycle.
• Evaporator - epoxy coated at the time of manufacture to eliminate the
potential of corrosion.
ELECTRICAL CHARACTERISTICS:
• Unit completely pre-wired at factory, and ready for final connection to
a dedicated outlet. A cord and plug set to be included.
• A sole use circuit is required.
Project Name:
Location:
Item #: Qty:
Model #:
Deep Reach-In
Half Door Freezer
❒ TR2F-4HS
AIA #
SIS #
Remote cabinets available 14% off list
(condensing units supplied by others).
Consult factory technical service dept. for BTU information.
Printed in
U.S.A.
10/03
5
YEAR
COMPRESSOR
Exceptions:
R
R
E
G
N
Y
E
S
S
A
S
V
I
G
N
APPROVALS:
115/60/1
NEMA-5-20R
Curb mountable units for
TR/TA/TG series only. (5% list upcharge)
Specifications subject to change without notice.
31
TR-Series: Deep Reach-In Half Door Freezer
-10
3
51
/
8
"
12
®
9
/
16
"
L - 131 cm
1
/
2
"
77"
D - 89 cm
H - 199 cm
Door
Swing - 61 cm
34
3
/
4
"
31
1
83
/
4
1
/
2
"
23
3
58
/
8
"
5
/
8
"
5"
1
1
/
4
"
Rough-In Data
Dimensions Cord
Capacity (inches) NEMA Length Crated
Model Doors (Cu. Ft) L D H* HP Volts PH Amps Config. (feet) Weight
TR2F-4HS 4 56 51 3/8 34 3/4 78 1/4 3/4 115 1 13.0 5-20 9 704
* Height does not include 5” for castor height or 6” for optional legs.
Specifications subject to change without notice.
Standard Features ____________________________________________________________________________________________
• Oversized and balanced, environmentally
friendly (R404A) refrigeration system holds
-10°F.
• Exterior - 300 series stainless steel front,
doors, sides, top, bottom and back (the
finest stainless available).
• Interior - 300 series stainless steel side
walls, back, door liner & floor.
• 300 series stainless steel doors with
recessed handles (lifetime guaranteed).
• Door locks standard.
• Exterior mounted digital electronic
thermometer with manual defogger.
• Wide door openings.
• Half-doors allow product segmentation
for easy access.
• (1) interior kit option included per section
at no charge. (4) different interior kits
available.
• Pilasters and tray slides/shelving factory
installed at no charge. Kit selection must
be indicated at time of order.
• Magnetic door gaskets.
• Epoxy coated evaporator.
• Incandescent interior lighting.
• 4" diameter swivel castors standard
equipment - locking castors provided for
front set.
• Large evaporator and coil heater permit
short defrost cycle.
• Defrost system time initiated, temperature
terminated.
• Automatic evaporator fan motor delay
during defrost cycle.
• Minimum wattage heater in cabinet frame
and door.
• Standard backguard - improves airflow.
• Hot gas condensate for energy efficiency.
• Top mounted unit positioned out of food
zone to maximize storage capacity.
• Foamed-in-place polyurethane high density
cell insulation (CFC free).
• Positive seal self-closing doors with factory
tested (over 1,000,000 times) lifetime
guaranteed door hinges and torsion type
closure system.
• Self-contained system.
KCL
Model Front Right Plan 3D
TR2F-4HS TFQX59E TFQX59S TFQY54P TFQX593
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366 • (636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
• 1 year parts & labor warranty (USA).
• 5 year compressor warranty (USA).
