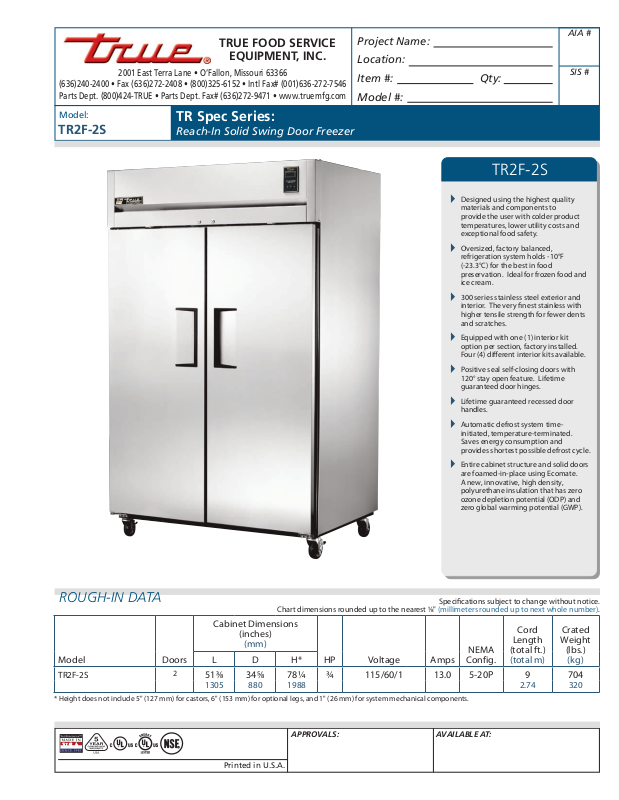

True TR2F-2S User Manual

TRUE FOOD SERVICE

EQUIPMENT, INC.

2001 East Terra Lane • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com

Project Name:

Location:

Item #: Qty:

Model #:

AIA #

SIS #

Model:

TR2F-2S

TR Spec Series:

Reach-In Solid Swing Door Freezer

TR2F-2S

Designed using the highest quality



materials and components to
provide the user with colder product
temperatures, lower utility costs and
exceptional food safety.

Oversized, factory balanced,



refrigeration system holds -10°F
(-23.3°C) for the best in food
preservation. Ideal for frozen food and
ice cream.

300 series stainless steel exterior and



interior. The very nest stainless with
higher tensile strength for fewer dents
and scratches.

Equipped with one (1) interior kit



option per section, factory installed.
Four (4) dierent interior kits available.

Positive seal self-closing doors with



120° stay open feature. Lifetime
guaranteed door hinges.

Lifetime guaranteed recessed door



handles.

Automatic defrost system time-



initiated, temperature-terminated.
Saves energy consumption and
provides shortest possible defrost cycle.

Entire cabinet structure and solid doors



are foamed-in-place using Ecomate.
A new, innovative, high density,
polyurethane insulation that has zero
ozone depletion potential (ODP) and
zero global warming potential (GWP).

Rough-In Data

Chart dimensions rounded up to the nearest ⁄" (millimeters rounded up to next whole number).

Specications subject to change without notice.

Cabinet Dimensions

(inches)

(mm)

Model Doors

TR2F-2S

* Height does not include 5" (127 mm) for castors, 6" (153 mm) for optional legs, and 1" (26 mm) for system mechanical components.

2

51⁄ 34⁄ 78¼ ¾ 115/60/1 13.0 5-20P 9 704

1305 880 1988 2.74 320

ApprovAls: AvAilAble At:

Printed in U.S.A.

HP Voltage Amps

NEMA

Config.

Cord

Length
(total ft.)

(total m)

Crated

Weight

(lbs.)

(kg)L D H*

Model:

TR2F-2S

TR Spec Series:

Reach-In Solid Swing Door Freezer

StanDaRD FeatuReS

DESIGN

True’s solid door reach-in’s are designed with

•

enduring quality that protects your long term
investment.
Designed using the highest quality materials and

•

components to provide the user with colder product
temperatures, lower utility costs and exceptional
food safety.

REFRIGERATION SYSTEM

Factory engineered, self-contained, capillary tube

•

system using environmentally friendly (CFC free)
404A refrigerant.
Extra large evaporator coil balanced with higher

•

horsepower compressor and large condenser
maintains -10°F (-23.3°C) cabinet temperature. Ideal
for both frozen foods and ice cream.
Sealed, cast iron, self-lubricating evaporator fan

•

motor(s) and larger fan blades give True reach­in’s a more ecient low velocity, high volume
airow design. This unique design ensures faster
temperature recovery and shorter run times in the
busiest of foodservice environments.
Top mounted refrigeration system with evaporator

•

positioned out of food zone to maximize capacity.
Automatic defrost system time-initiated,

•

temperature-terminated. Saves energy consumption
and provides shortest possible defrost cycle.
Automatic evaporator fan motor delay during defrost

•

cycle.

CABINET CONSTRUCTION

Exterior - 300 series stainless steel door(s), front,

•

sides, back and bottom.
Interior- 300 series stainless steel liner and oor.

•

Insulation - entire cabinet structure and solid

•

doors are foamed-in-place using Ecomate. A new,
innovative, high density, polyurethane insulation
that has zero ozone depletion potential (ODP) and
zero global warming potential (GWP).
Welded, heavy duty steel frame rail, black powder

•

coated for corrosion protection.

Frame rail tted with 4" (102 mm) diameter stem

•

castors - locks provided on front set.

DOORS

300 series stainless steel exterior and liners. Doors

•

open within cabinet dimension.
Door locks standard.

•

Lifetime guaranteed recessed door handles. Each

•

door tted with 12" (305 mm) long recessed handle
that is foamed-in-place with a sheet metal interlock
to ensure permanent attachment.
Positive seal self-closing doors with 120° stay open

•

feature. Lifetime guaranteed door hinges.
Magnetic door gaskets of one piece construction,

•

removable without tools for ease of cleaning.

SHELVING

One (1) factory installed, interior kit option per

•

section. Four (4) dierent interior kits available (see
Kit Options). Pilasters and tray slides are factory
installed at no charge.

LIGHTING

Incandescent interior lighting - lights activated

•

by rocker switch mounted above door(s), safety
shielded.

MODEL FEATURES

Exterior digital temperature display, available with

•

either °F or °C .
Evaporator epoxy coated to eliminate the potential

•

of corrosion.
Backguard improves airow.

•

Minimum wattage heater in cabinet frame and door.

•

NSF-7 compliant for open food product.

•

ELECTRICAL

Unit completely pre-wired at factory and ready

•

for nal connection to a 115/60/1 phase, 20 amp
dedicated outlet. Cord and plug set included.

OPTIONAL FEATURES/ACCESSORIES

Upcharge and lead times may apply.

6" (153 mm) standard legs. ❑
6" (153 mm) seismic/anged legs. ❑
6" (153 mm) stainless steel legs. ❑
Stainless steel rail skirt for use with legs (eld ❑
installed).
Metal door handles (factory installed). ❑
Novelty baskets. ❑
Electronic temperature control (factory installed). ❑
Correctional facilities options. ❑
Curb mountable units. ❑
Remote cabinets (condensing unit supplied by ❑
others; system comes standard with 404A expansion
valve and requires R404A refrigerant). Consult
factory technical service department for BTU
information. All remote units must be hard wired
during installation.
Kit #1: Nine (9) sets of #1 type tray slides and pilasters ❑
(factory installed), bottom support of one (1) 18"L x
26"D (458 mm x 661 mm) pan or two (2) 14"L x 18"D
(356 mm x 458 mm) pans.
Kit #2: One (1) set half-section #2 steel rod tray slides ❑
and pilasters (factory installed), rim support of one
(1) 18"L x 26"D (458 mm x 661 mm) pan.
Kit #3: Six (6) sets of universal type tray slides and ❑
pilasters (factory installed), bottom support of one
(1) 18"L x 26"D (458 mm x 661 mm) pan, two (2) 14"L
x 18"D (356 mm x 458 mm) pans or two (2) 12"L x
20"D (305 mm x 508 mm) pans.
Kit #4: Three (3) chrome shelves 23 ❑ ½"L x 27 ¾"D (597
mm x 705 mm). Four (4) shelf supports included per
shelf (factory installed); adjustable on 6" (153 mm)
increments. Optional wall mounted shelf support
pilasters (factory installed) with four (4) shelf clips per
shelf available; adjustable on ½ " (13 mm) increments.
Additional kit option components available ❑
individually. Upcharge applies.

Plan VIew

CUBIC FEET

* Based on ANSI/AHAM HRF-1-2004

One year warranty on all parts

and labor and an additional 4
year warranty on compressor.

56

WARRANTY

(U.S.A. only)

METRIC DIMENSIONS ROUNDED UP TO THE

NEAREST WHOLE MILLIMETER

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

KCL

Model Elevation Right Plan 3D Back

TR2F-2S TFQY54E TFQY54S TFQY54P TFQY543
